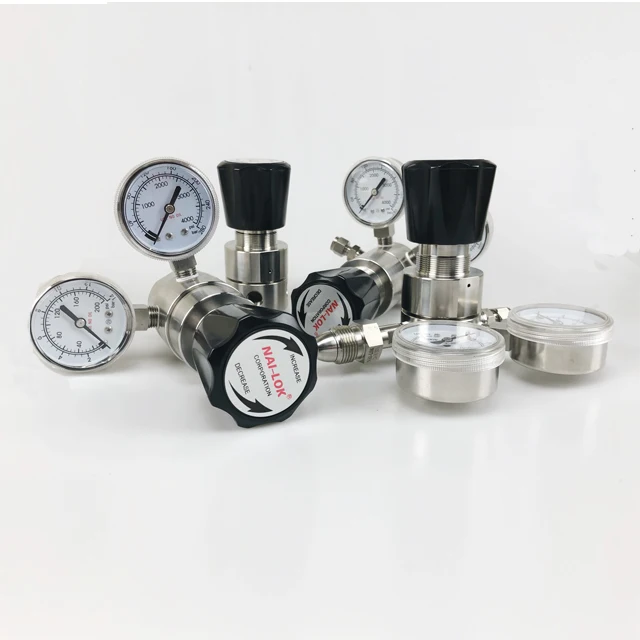

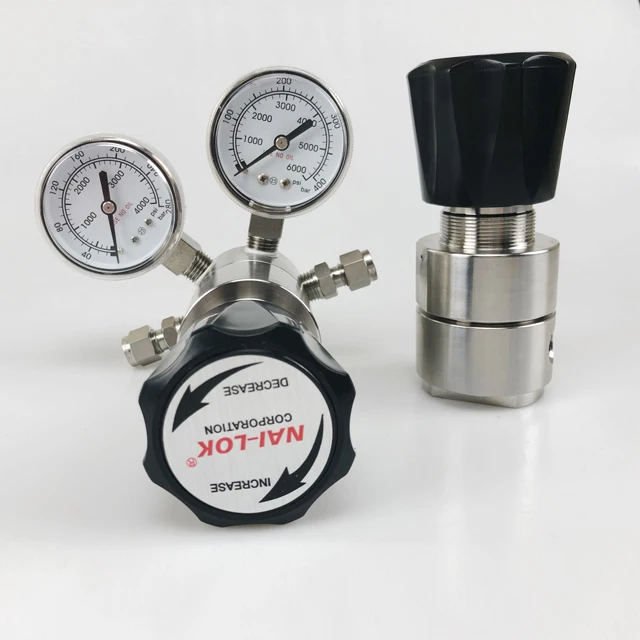

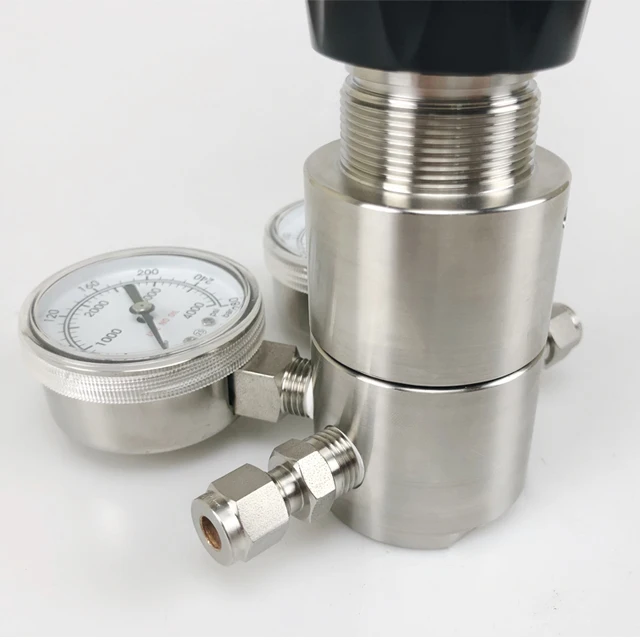

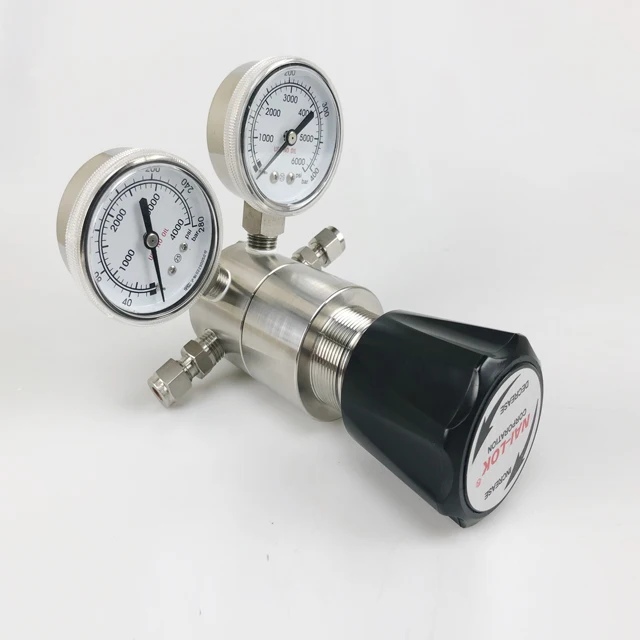

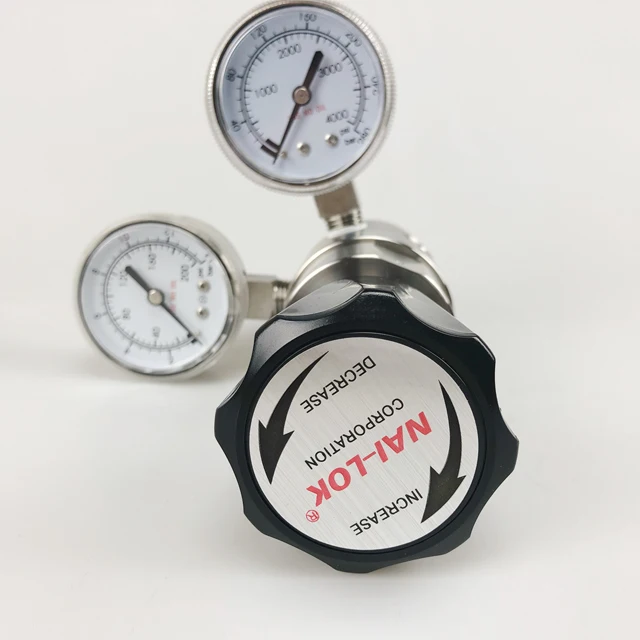

Диафрагменный регулятор hastelloy из нержавеющей стали для высококоррозионного


Поделиться:


Цена:80,00 $ - 95,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 95.27 $* 100.22 $*
Aug-19-2025 94.74 $* 99.26 $*
Jul-19-2025 79.72 $* 83.12 $*
Jun-19-2025 93.22 $* 98.59 $*
May-19-2025 81.71 $* 85.19 $*
Apr-19-2025 91.40 $* 96.35 $*
Mar-19-2025 90.14 $* 95.10 $*
Feb-19-2025 90.31 $* 95.75 $*
Jan-19-2025 89.24 $* 93.76 $*

Характеристики


Product Description

General Description

NAI-LOK NR11 Serie stainless steel pressure regulators, single stage diaphragm construction,stable output pressure, applied to pure gases, standard gases and corrosive gases and so on.



Features

  • Single stage pressure-reducing structure
  • Body thread: 1/4"NPT(F)
  • Desigh Proof Pressure:150% maximum rated
  • Flow Capacity:CV=0.06



Technical Data

  • Maximum inlet pressure: 4000PSIG
  • Output pressure: 0-25,0-50,0-100,0-150,0-250,0-450psig
  • Design Proof Pressure:150% maximum rated

Loading Spring

Spring loading is used with direct acting regulators with handknob adjustment.



Sensing-Diaphragm

Diaphragms provide sensitive and accurate regulation for outlet pressure ranges up to 500 psig / 34.5 bar



Body material

Chrome plated brass,316L stainless steel



Venting

Non-venting is standard



Panel

Panel mounting is available




NR11 Series Regulator Drawing






Specifications

Maximun Inlet Pressure3500 psig (241 bar)
Outlet pressure ranges0-25,0-50,0-100,0-250,0-450 psig
Operating Temperature-40°C to 74°C
Flow CapacityCv=0.06
BodySS316 / Chrome plated brass
DiaphragmHastelloy / SS316
SeatTeflon
Size1/4 Female NPT
Weight0.9 kg
OptionCGA connector / gauge / panel / fitting



Sample



NR71D

pressure regulator nailok3.jpg

7502

Application

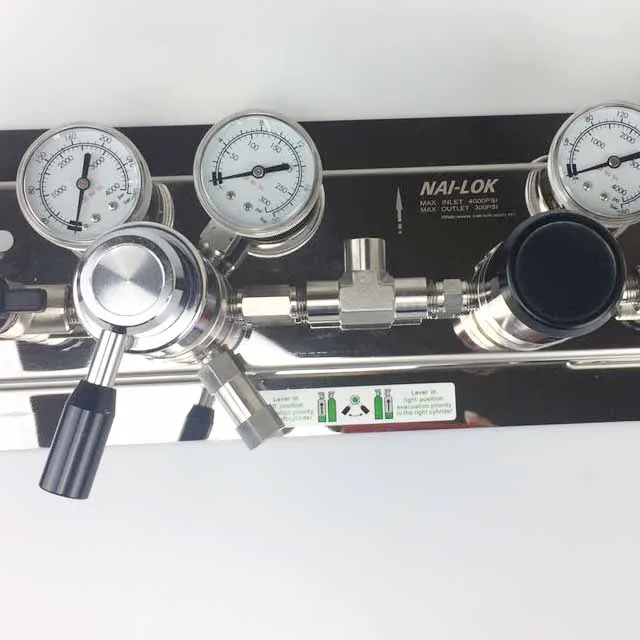

NAI-LOK Cylinder manifolds,control 1 cylinder with purge valve.

 HP GAS MANIFOLDS NAILOK.jpg



NAI-LOK Semi-automatic changeover system,control 2 cylinder with purge valve.

gas manifolds.jpg





Ordering information -NR11 Series

BASIC SERIESBODY MATERIALINLET AND OUTLET PORT TYPEINLET AND OUTLET PORT SIZEINLET PRESSUREFLOW CAPACITYPORT TYPE
NR11     1-Chrome plated brass0- 0-25 psig2- NPTF4- 1/4"

1- 3500 psig CV=0.06

 3- 3 ports
6-316L Stainless steel1- 0-50 psig

2- 400 psig CV=0.15

4- 4 ports
  2- 0-100 psig            6- 6 ports (with relief valve)
3- 0-250 psig
5- 0-450 psig
with 3500psi inlet only
