Характеристики
ATNJ one set AWS 1700Mhz mobile cell phone signal repeater
Technical Specifications
SPECIFICATIONS | parameters | |
Frequency Range (Customers to Choose) | Uplink | 1710-1755Mhz |
Downlink | 2110-2155Mhz | |
Frequency Bandwidth (3dB Bandwidth) | 45Mhz | |
Gain | 70dB | |
Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
Auto Gain Control | 20dB Min. | |
Output Power(Customers to Choose) | 20dBm | |
Spurious Emission | ≤ -15dBm/30kHz | |
9kHz~1GHz: ≤ -36dBm/30kHz | ||
1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
In-band Ripple | ≤ 3dB | |
VSWR | <=2 | |
I/O Impedance | 50 Ω | |
Noise Figure | ≤ 5dB | |
System Delay | ≤ 5μs | |
RF Connector(Customers to Choose) | SMA (Female) | |
Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |

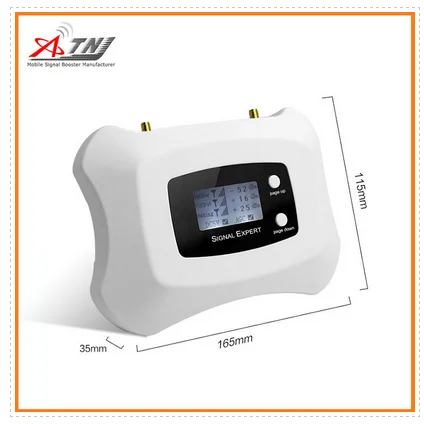

Dimensions | 165*130*40 (mm) | |
Weight | ≤0.8 kg(Net) | |
Alarm Monitoring System | Alarm for uplink self-oscillation | |
Indication LED | Power supply | |
AS Series Repeater
