Автоматический сварочный аппарат для оцинкованной проволоки/машина сварки кирпичной сетки/сварочный забора из проволочной сетки по хорошей
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Hebei,Sade,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.61 $* | 0.61 $* |
| Aug-19-2025 | 0.47 $* | 0.48 $* |
| Jul-19-2025 | 0.75 $* | 0.42 $* |
| Jun-19-2025 | 0.69 $* | 0.12 $* |
| May-19-2025 | 0.22 $* | 0.35 $* |
| Apr-19-2025 | 0.87 $* | 0.32 $* |
| Mar-19-2025 | 0.91 $* | 0.16 $* |
| Feb-19-2025 | 0.79 $* | 0.51 $* |
| Jan-19-2025 | 0.88 $* | 0.7 $* |
Характеристики

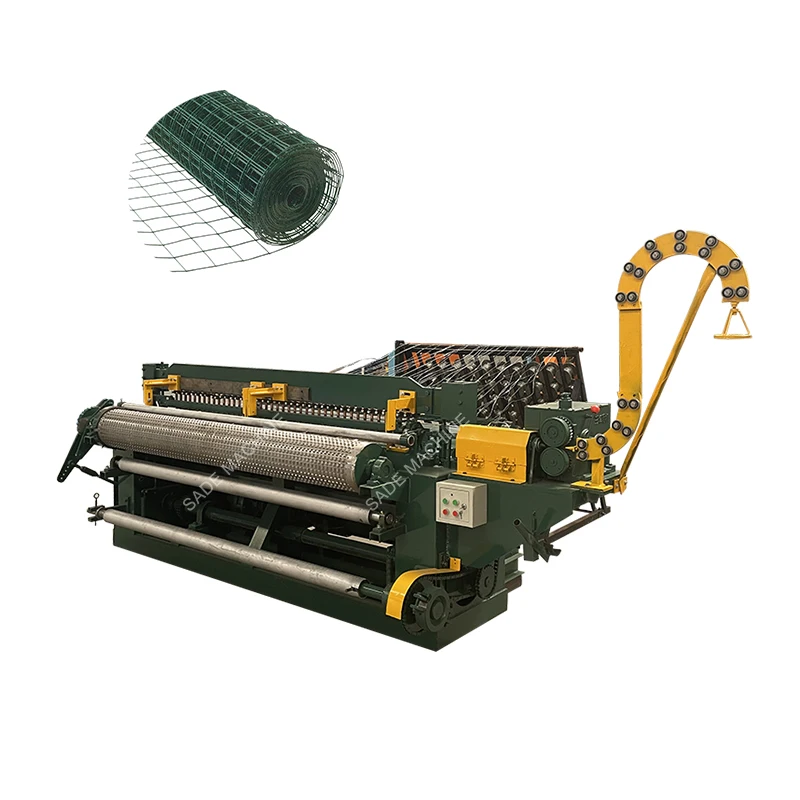

Sade Full Automatic Welded Wire Mesh Machines for Steel Wire fence Mesh
Product Description
The raw material can be low-carbon steel wire, galvanized steel wire, stainless steel wire etc.

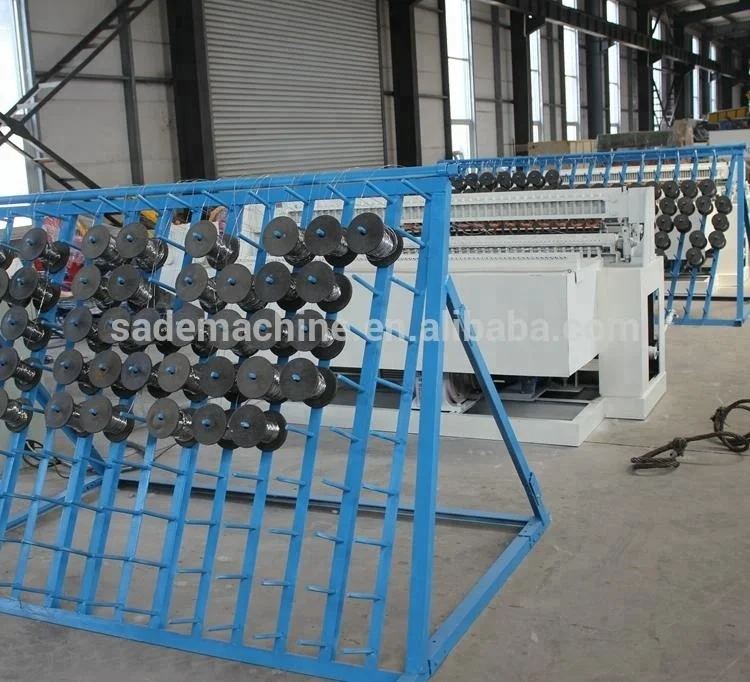

The production line consists of main mesh welding machine, electrical control cabinet, repairing machine, repairing table, bobbin machine, bobbins, bracket for longitude wires, wire pay off stand.
Type | LE-DHWJ-1 | LE-DHWJ-2 | LE-DHWJ-3 |
Wire diameter | 0.4-0.65mm | 0.65-1.8mm/0.8-2mm/0.65-2mm | 1.0-2.2mm/1.2-2.5mm |
Aperture/pitch | 1/4",1/2" | 1/2", 1", 2" | 1", 2", 3", 4" |
6.25, 12.5mm | 12.5, 25, 50mm | 25, 50, 75, 100mm | |
Mesh width | Max.1m, 1.2m | Max.1.2m,1.5m, 2m | Max.1.2m, 1.5m, 2m, 2.5m |
Motor | 3kw | 3kw; 4kw | 4kw; 5.5kw, 7.5kw |
Welding speed | Max.75 rows/min | Max.120-180 rows/min | Max.80-120 rows/min |
Transformer | 50kva*3 | 60kva*4;60kva*5, 60kva*7 | 70kva/80kva*5/6/7/8 |
Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |

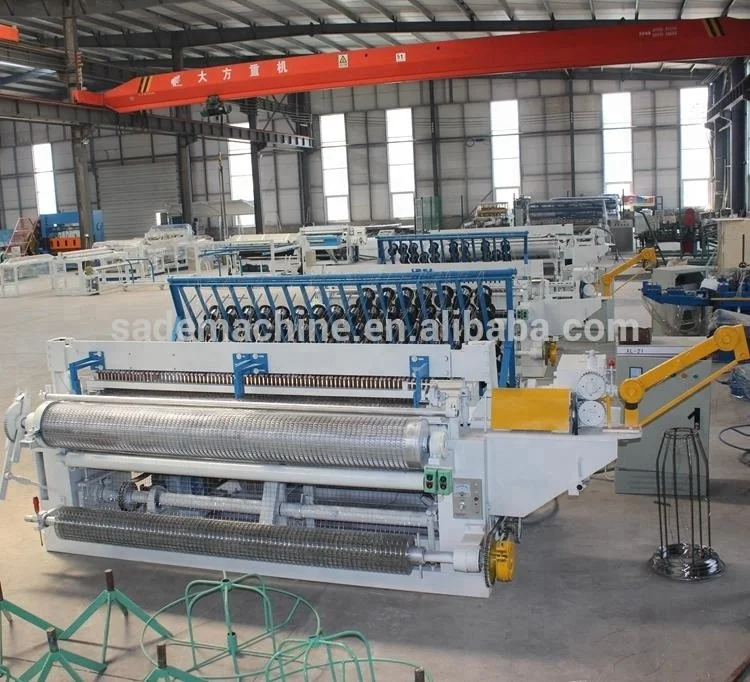

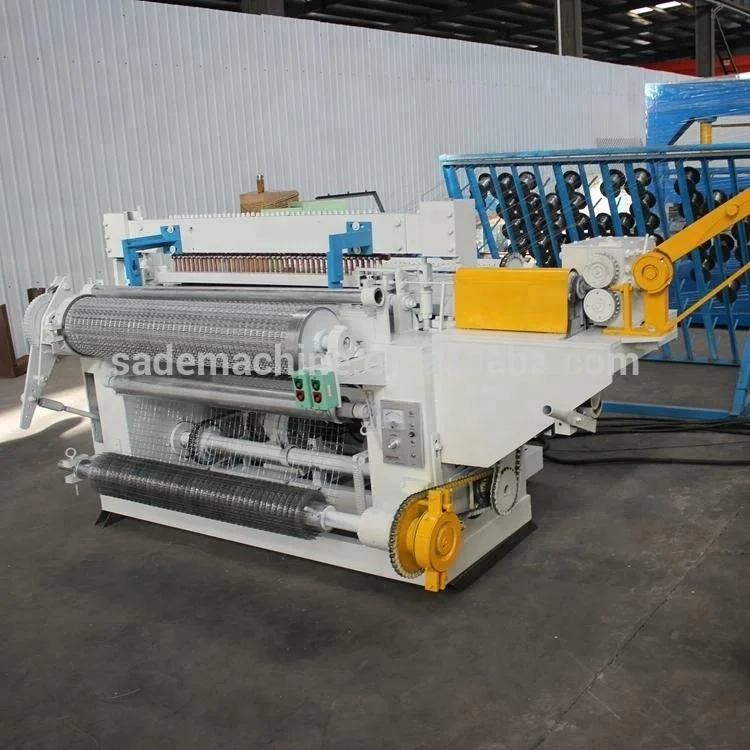

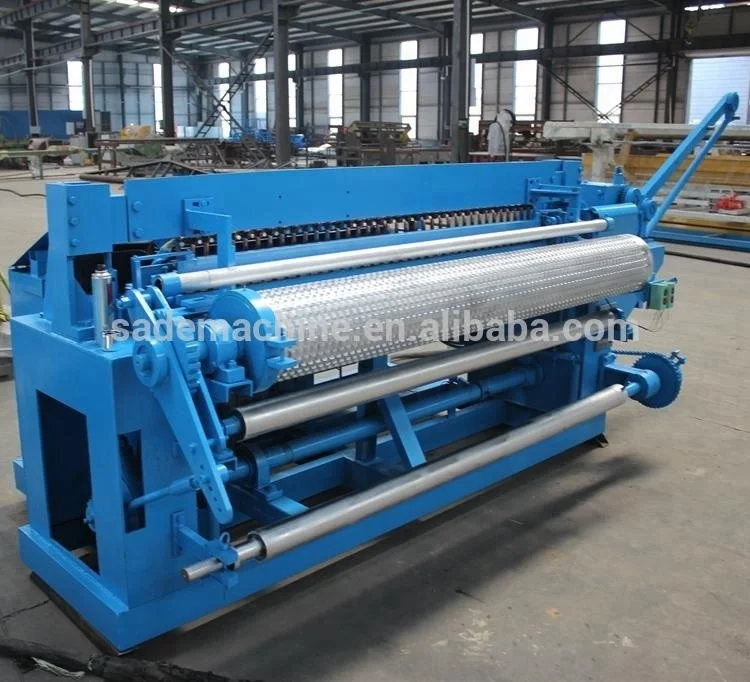

Detailed Images
Our advantage
1,Both longitude wire and cross wire can be fed from wire coils automatically.
2,design reasonable, low noise,
3, more stable, easy operation,
4,inverter control and working speed can be adjusted as you need.
5,The mesh size is precise and the machine can be set the mesh width and mesh length according to customer’s requirement.
Application
The finished welded wire mesh can be widely used in mining, commerce, transportation, construction (walls with nets, floor heating network), decorating, landscaping protection, all sectors of the fence, concrete roads, airport runways, tunnels, bridges, pipelines communication, water conservancy, power plant, dam, harbor, river beware wall, warehouses and other types of construction of the reinforced concrete structure with a net.
Certifications
Customer visiting
Company Information
Hebei Sade Wire Mesh Machine Manufacturing Co.Ltd is located in Anping County - the well-known hometown of wire mesh, Hebei province, China, covers a total area of 67000 square meters. And we have more than 100 sets of processing machinery and over 300 employees, among them, there are more than 70 technicians. This is a enterprise that professional engaged in wire mesh equipment research and development, production, processing, manufacturing. We have passed ISO9001, CE and SGS Certificates through consistent efforts of all staff members. Our company has been rated as an advanced company of scientific&technological progress and civilized company by the government for several years.
Our business philosophy: Diligence makes the machinery, Innovation wins the future. Best Quality satisfies the customers.
Packaging & Shipping
If you have any other question, please Contact Us Now!
