20' classsical American folding fat tire electric beach bicycle  CE EN15194 approval

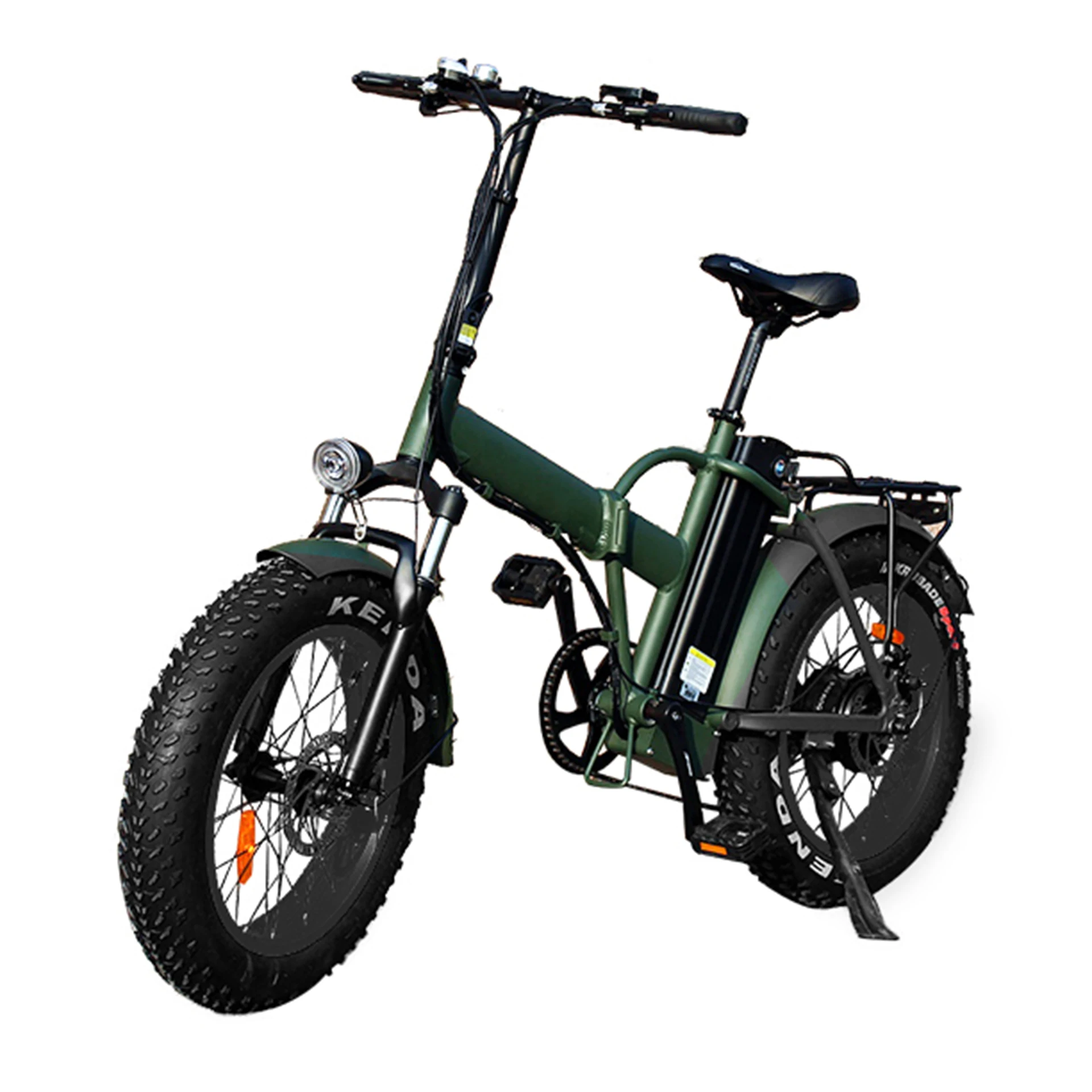

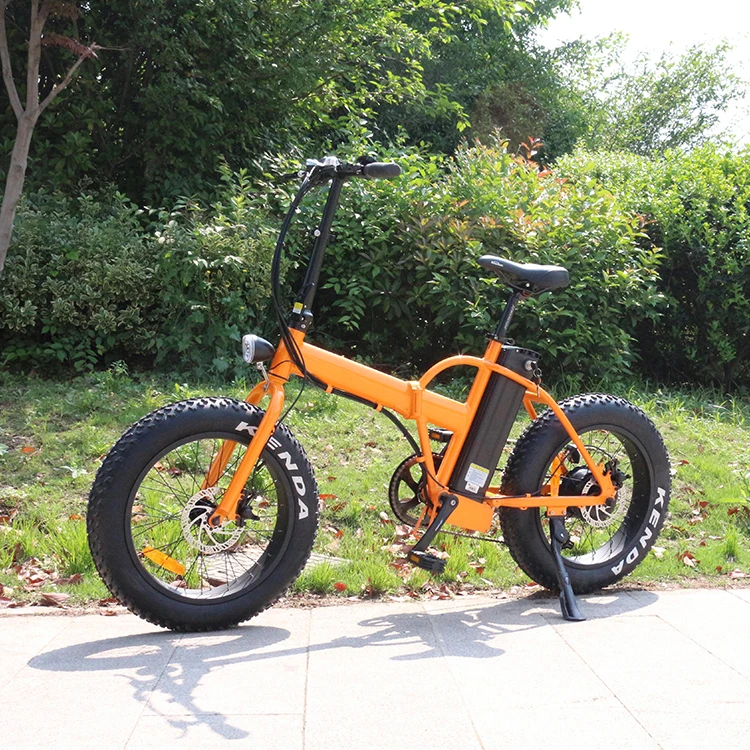

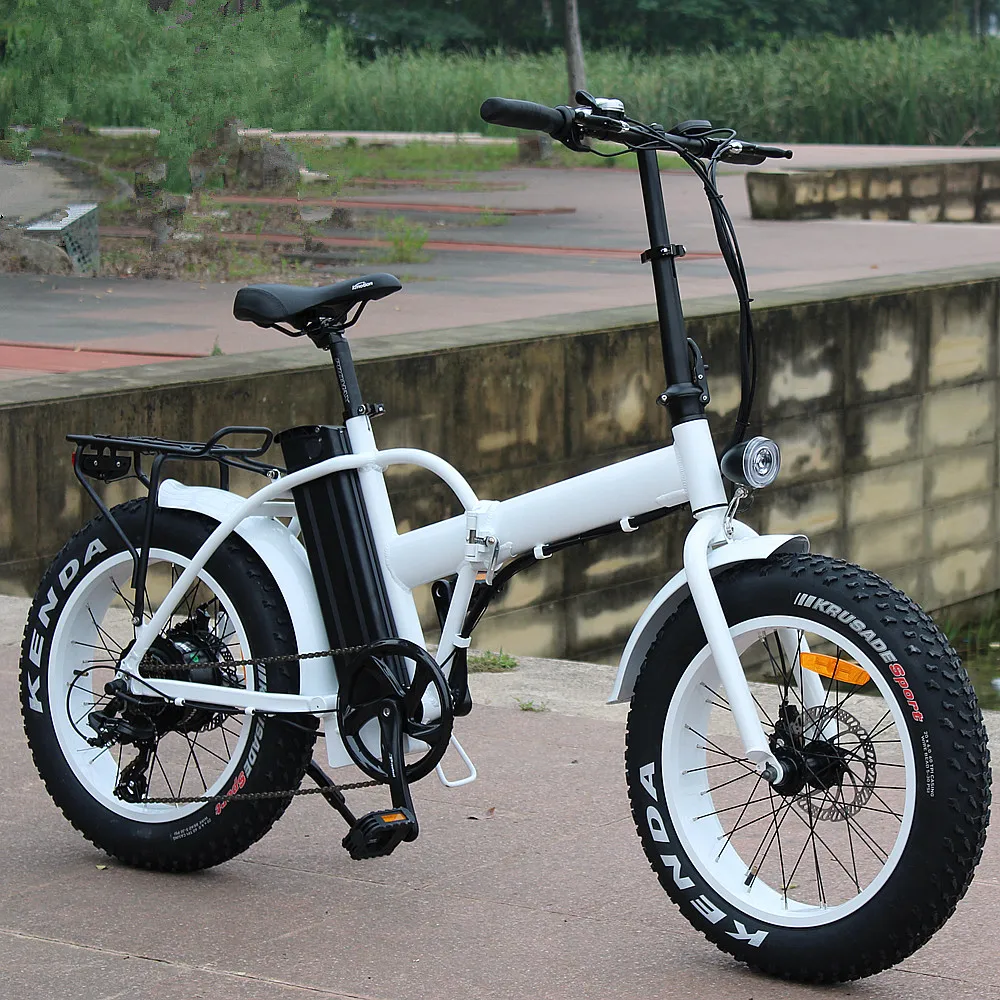

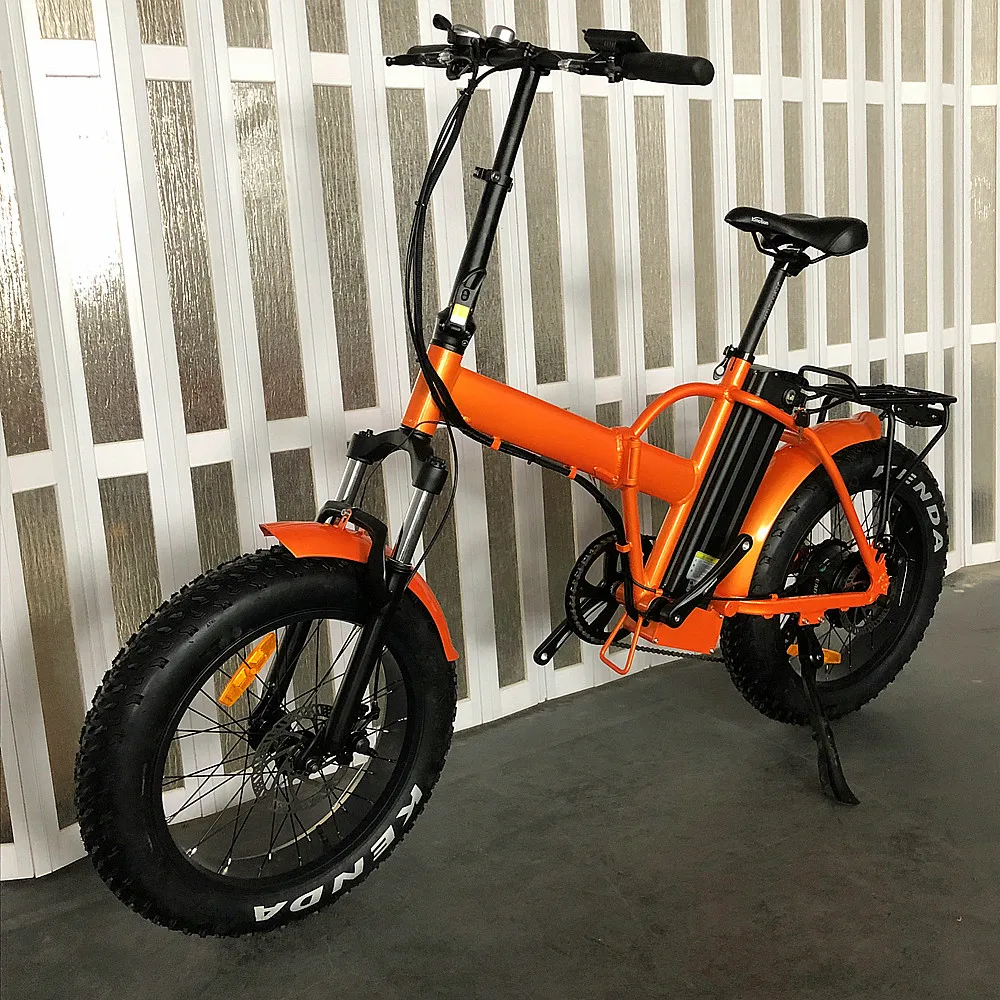

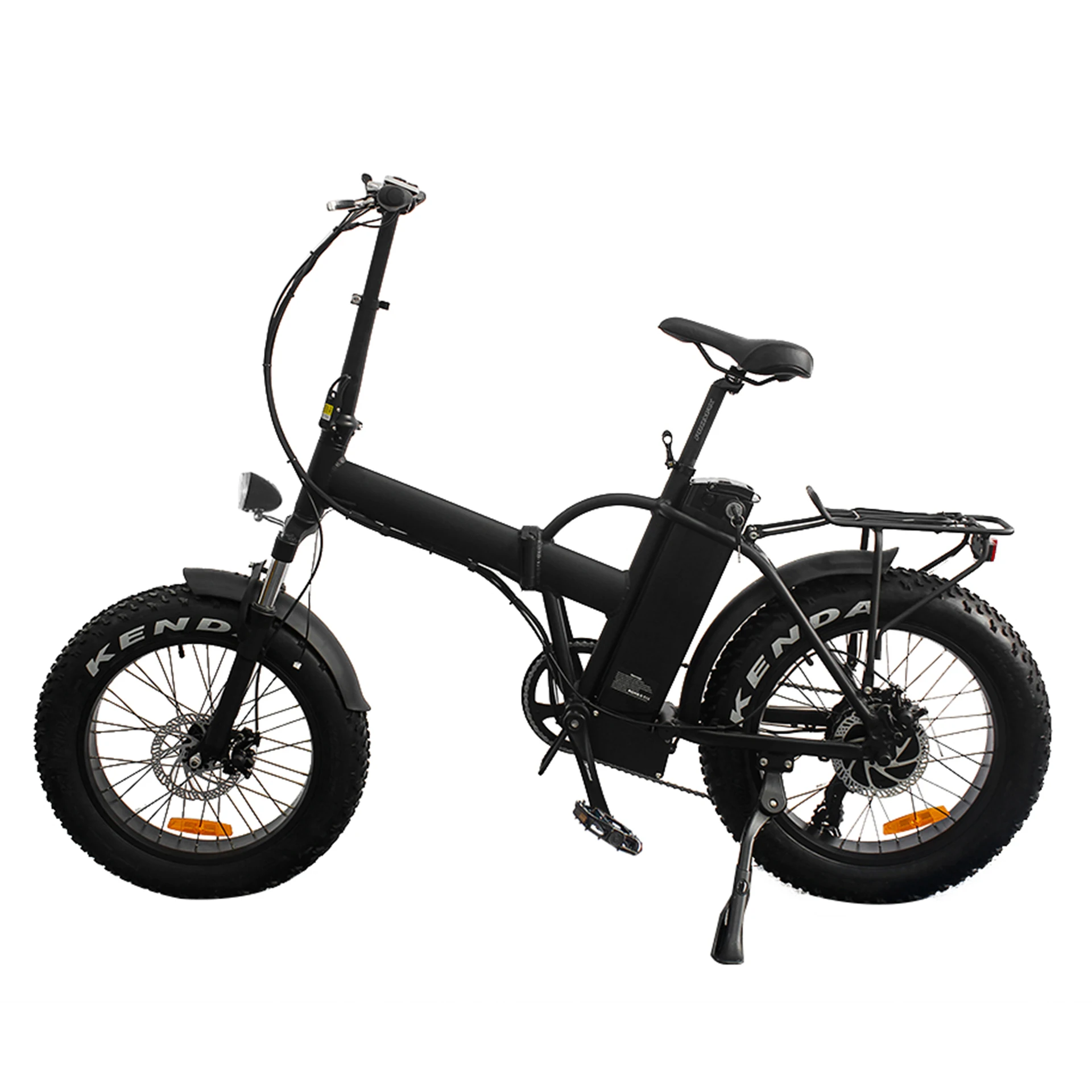

1.Product  pics



2. Warranty of the e-bike:

1) Frame:2 years quality warranty.

2) Battery: 18months quality guarantee for Li-ion battery.
3) Electric motor: we provide as long as 24 months quality warranty.
4) Charger/Controller: 18 months quality warranty.
5) The other electric parts: 18 months quality warranty

6) 1 year warranty for tire and V-brake  shoes



3. Factory overview:



4. Proudct's packing:



5. Delivery time:

if no special requirement of the parts, we can finish production of the e-bike in about 30-35DAYS



6. The Payment Term:

T/T: 30% deposite, the balance against copy of B/L   or   L/C at sight.



7. Certificate and approval:





8.  Fairs attended

9.  Photos with happy customer:



10. Our advantages:

1. Good knowledge and rich experience  on different market can meet special requirements.



2. Rich experience on manufacture field with 8year's export business of electric bicycles.



3. Strong professional technical team ensures to produce the high,stable quality  electric bicycle.



4. Special cost control system ensure to provide the most favorable price.



5. Newly developed 2-sides torque sensor system for e-bike . offer you a totally new riding experience than the common pedel sensor and torque sensor.



11.Product's detailed specification as below:

Electric system :



Motor	High speed brushless geared,250~350W 8FUN motor  for EU, 500W 8FUN motor for USA, 250W Motor for Australia
Battery	48V 10.4Ah/15.6AH/21AH Samsung Lthium battery ,with electric protection circuit
Pas	Pedal assistant sytem
Controller	48V 21A Intelligent brushless controller
Charger	AC 100V-240V,2A smart charger with approval
Charge time	4-6 hours
Throttle	Thumb Throttle
Display	LCD display



Main Specification:



Frame	6061 Alloy aluminum T6 heat treatment
Tyres	Kenda e bike tire  20"*4.0
Rim	Alloy aluminum double CNC side wall with stainless steel and copper nipple
Front Fork	Steel(suspension optional)
Brake	F/R Tektro Disc Brake or Promax Disc Brake (same quality, tektro cheaper)
Speed Gears	SHIMANO 7 speed gears
Handle Bar&Stem	Alloy aluminum and foldable stem
lighting	front & rear LED light can be  customizable
Brake Level	Alloy aluminum,cut-off when braking
Chain	Rust resistant chain
Chain wheel	Steel ,alloy aluminum crank
Hub	Joy aluminum alloy hub
Seat post	Fast release seat post
Mudguard	steel (optional)
Rear Carrier	(optional)
Pedal	VP
Paint color	Silver ,white, red,  blue ,military green, black



Performance



Speed	25Km/h(EU),32Km/h(USA)
Range	50-90Km full electric (48V/13Ah), 90km with PAS
Max Load	100Kg
Weight	22.5Kg including battery, 27.6Kg inclding package
Box size	1450*290*770 mm
Loading Qty	114pcs/20ft container, 254pcs/40HQ
HS code	8711901010
