Характеристики

Spiral blade cold rolling mill

Introduction of Spiral blade cold rolling mill

Raw material: Strip steel
Final products: Spiral balde
Capacity:0.6-1t/h
Features: 1.Easy to operation and adjustment
   2.Flexibility to adjust the production specification
   3.High efficiency production
   4.Saving raw materials
   5.High leaf hardness
   6.Good wear resistance
   7.Could you produce many kinds of spiral baldes by adjust some adjustments on the machine's adjustable parts,such as device dials and pressaure gauages

balde machine 2.jpg

Main data of Spiral blade cold rolling mill

Allows the thickness of rolled strip	2mm ~ 6mm
The maximum width of the strip rolling	110mm
The minimum diameter of the rolling leaf	35mm
The maximum diameter of the rolling blade	400mm
Maximum Efficient Rate of Production	0.6 ~ 1t/h
Processing spiral outside diameter	≤600mm
Roller speed	1-8r/min
Machining strip width	≤150mm
Main Power	37kw
Gross Weight	9500kg

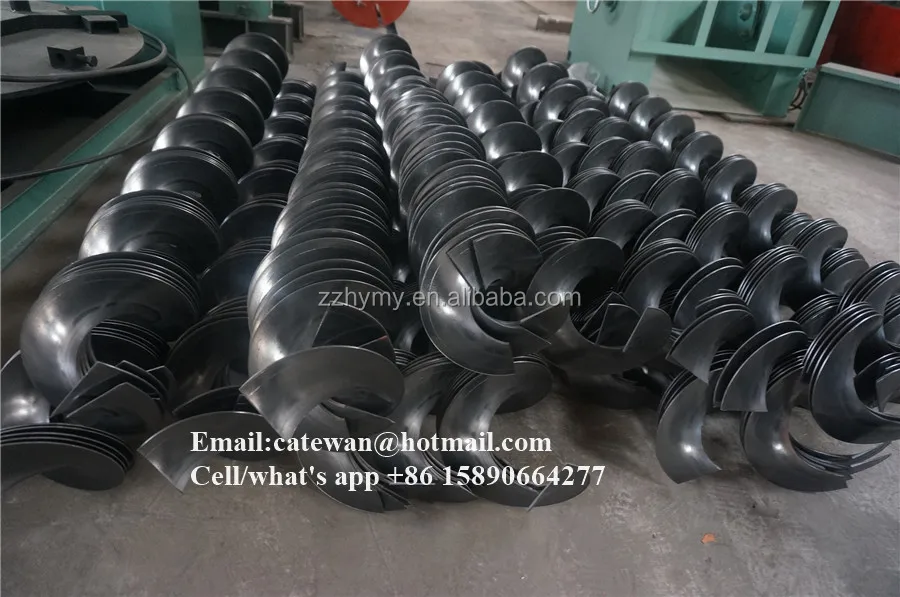

Final products of Spiral blade cold rolling mill

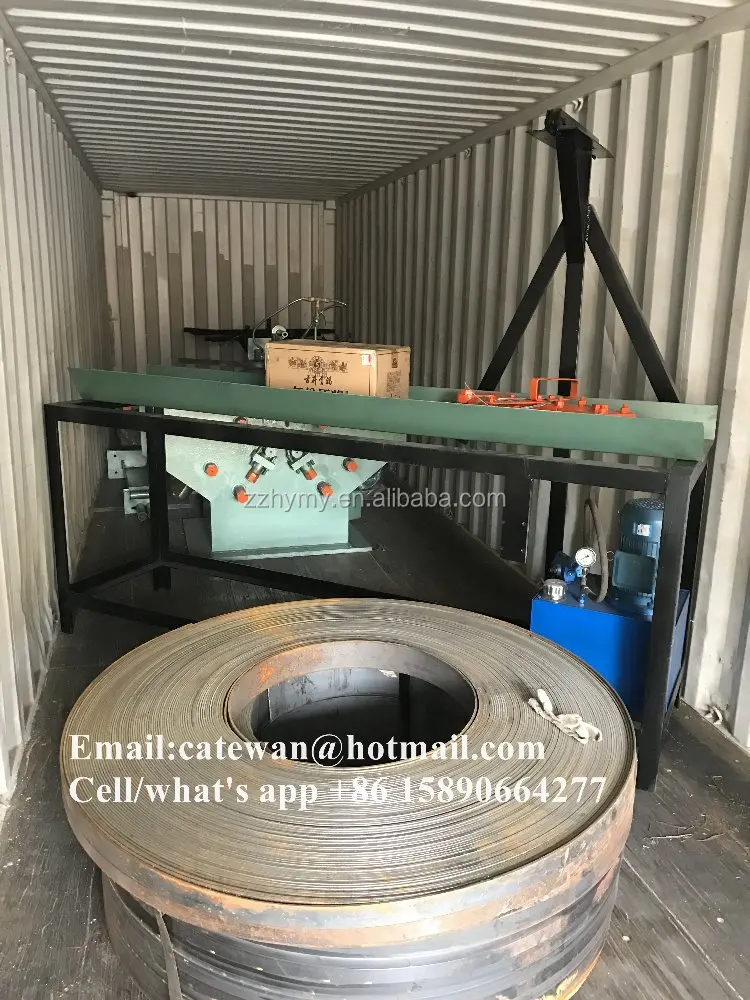

Packing and shipping

Packing:wooden case

Shipping:we also could use CIF terms,etc.

1. Other details info	for Spiral blade cold rolling mill
Steel strips strength	250-350 Mpa
Steel strips width error	xxmm 0.8mm
Steel strips inside and outside thickness different size	xxmm 8-5mm
Suitable for raw materials	Carbon steel,stainless and manganese steel
2.Helix blade making process	Uncoiling machine--guild plates --forming machine----hydraulic cutter--final helix blade
3. Machine components and its specification
1) uncoiling machine	Normally for steel strips inner diameter:450mm Steep strips outer diameter1200mm

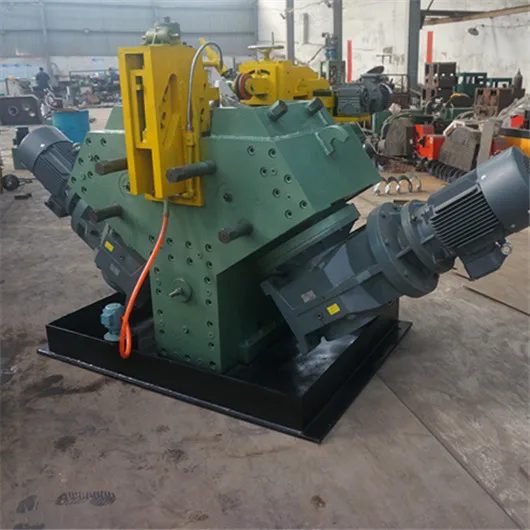

2) helix forming machine	Roller diameter:228mm, materials:9Cr2Mo Motor: Siemens Beide motor, PLC control parts:Siemens
3) hydraulic system	With hydraulic system, oil valves, shanxi yuci brand
4) cutter materials	It is alloy materials, with heat treatment
5) materials shaft	It is 6meters long, with 3steps
4. free spare parts	8m oil pipes, and one set cutter
5. shipment	It needs one 20ft for shipping all the items
6. Hs code	8455229090
