Характеристики



.jpg
































































































































(1) 5Tons un-coiler



Description



There are different choices, please turn to the catalogue of un-coiler



(2) Entry bench & Manual Pre-shearing device



Function



Smart cut control, to cut off the end of the final piece of sheet only



Shearing Thickness



Up to Max. 0.6mm (if thickness>0.6mm, then hydraulic pre-shearing device or electric pre-shearing device instead )



(3) The general machine parameter



Frame design



Wall-plate-frame-design /New-stand-frame-design



Material of forming roller



45# steel, CNC lathes, Hard Chrome Coated



Shafts Diameter



Φ75/Φ95mm



Roll stages



20 stages



Suitable roll forming material



Color steel sheet or galvanized steel sheet



Thickness



0.4mm-0.6mm



Max. Line speed of roll former



15m/min (Higher speed is available, depends on the specification required by the buyer)



Hydraulic group power



4KW



Feeding width



1000mm



Machine Dimensions



9700mm×1980mm×1680mm



Major Color of Machine Painted



RAL 5015 (Blue) or as per customer's requirements



Main motor power



7.5KW with reducer



Max. Line speed of roll former



15m/min (Higher speed is available, depends on the specification required by the buyer)



Material of cutting blade



Cr12, hear treatment



Electric Standard



380V /50Hz/3PH or as the customer's requirements



(4) PLC Control system



PLC



Siemens brand (ABB brand is available if required)



Touch Screen



Siemens brand (ABB brand is available if required)



Inverter



Schneider brand (ABB brand is available if required)



Encoder



Omron brand


Option:


Pneumatic stacker


Hydraulic pre-shearing device


CE certificate


Pl refer to the attached pictures for details






(5) Product rack



Description



un-powered, 3 units



In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.


Installation:


(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.


(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.


a) Position the machine in the buyer's factory.


b) Prepare necessary electric wiring.


c) Prepare material of trial running.


d) Provide labors for assistance and installation during installation.


e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.



(7) About us



Please visit the web site: www.xmliming.com.cn for detailed information

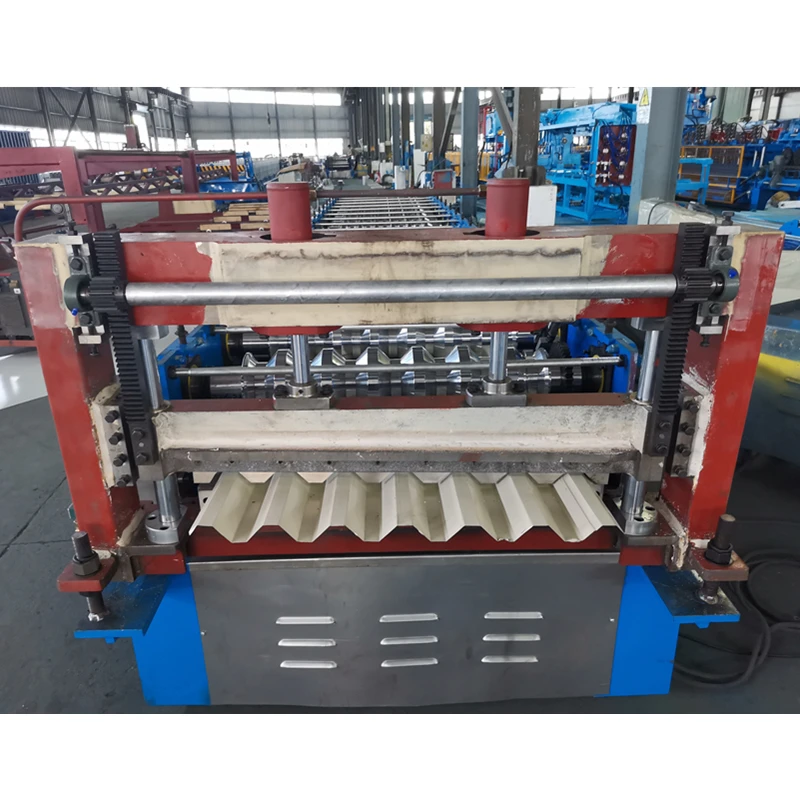

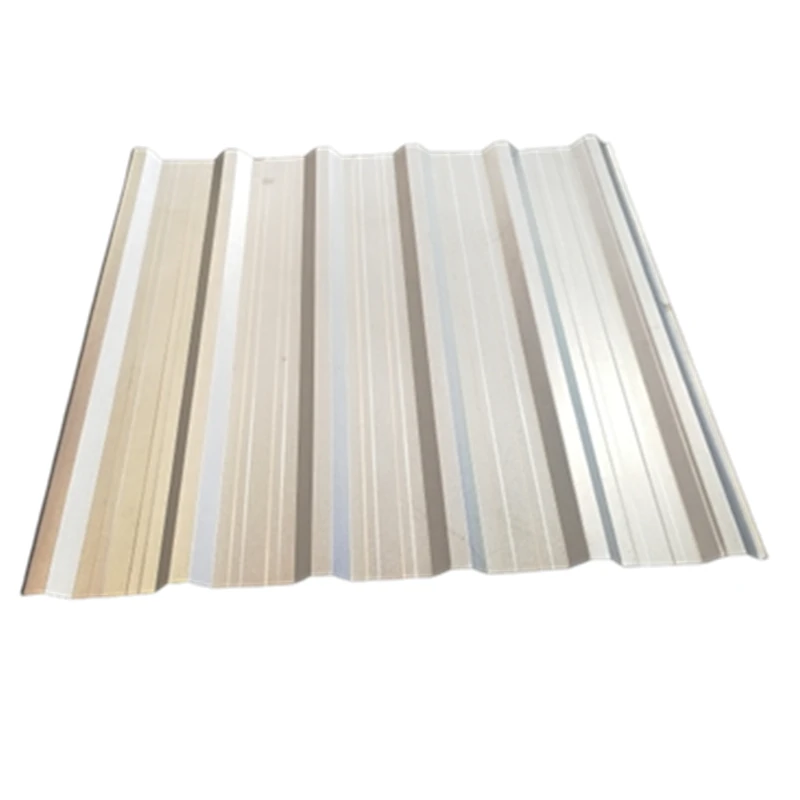

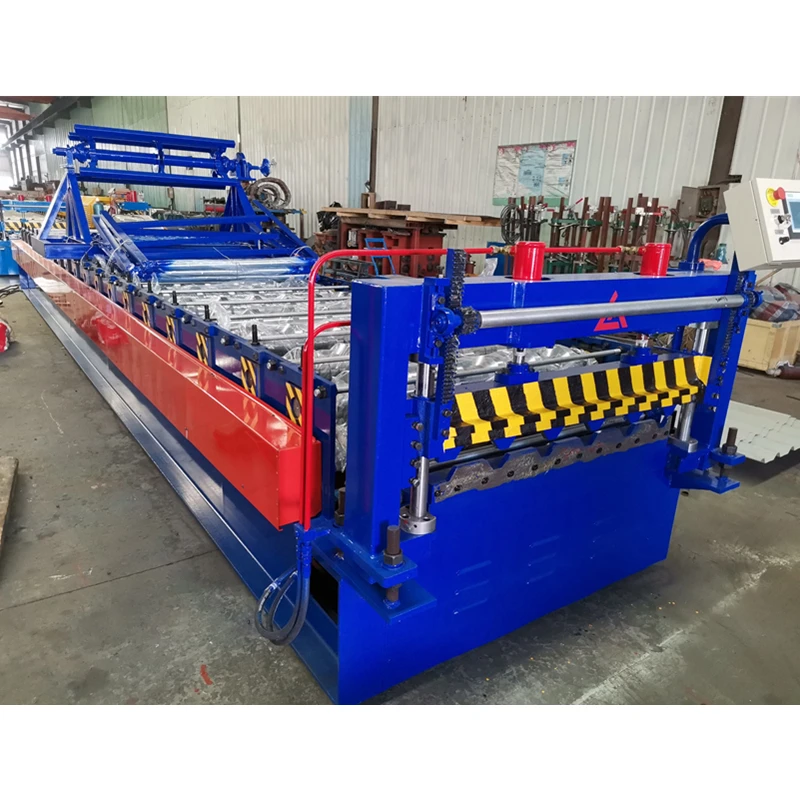

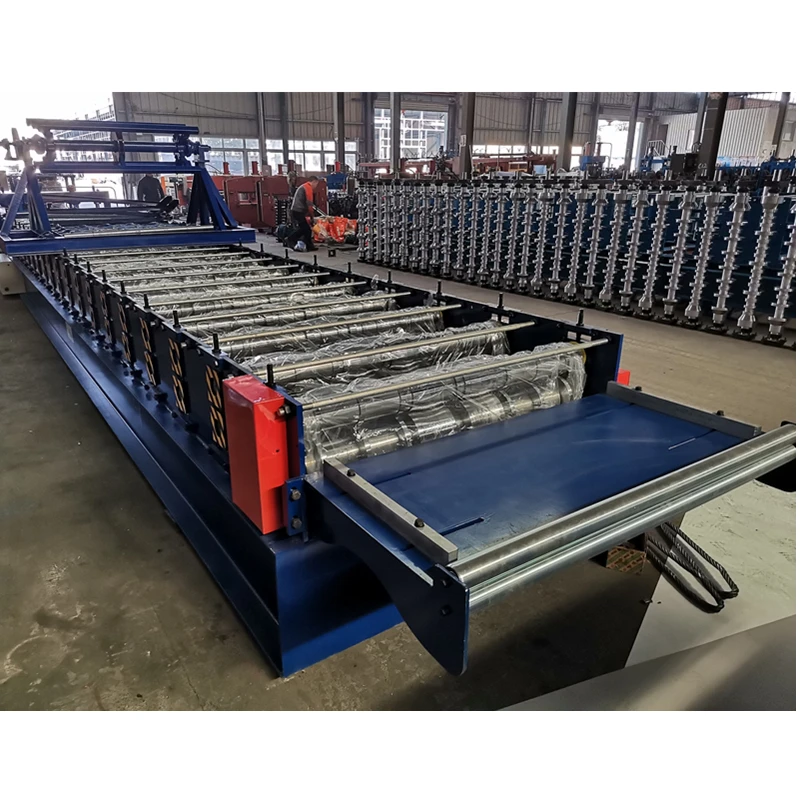

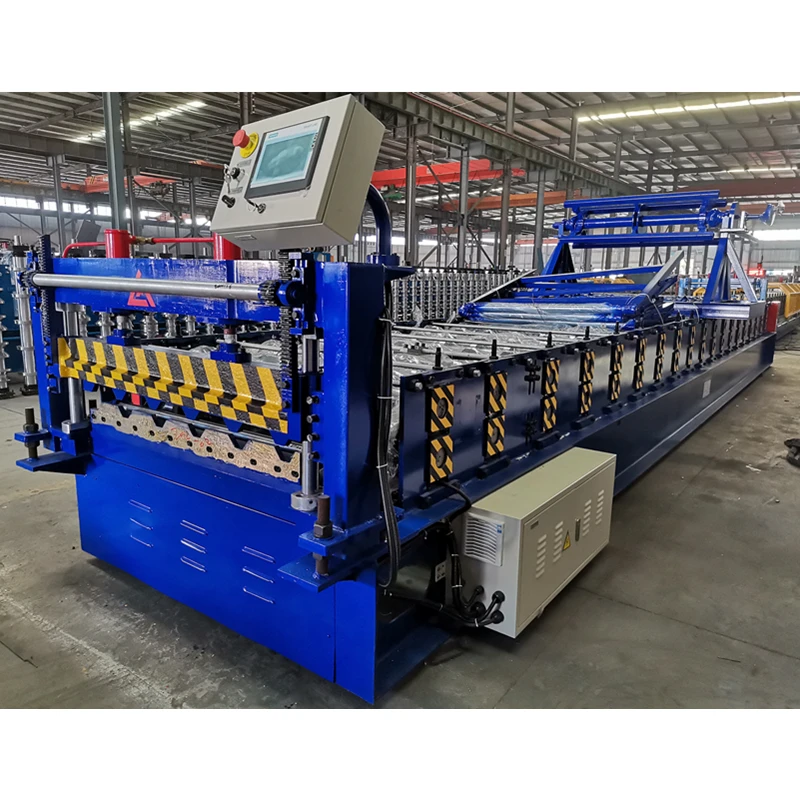

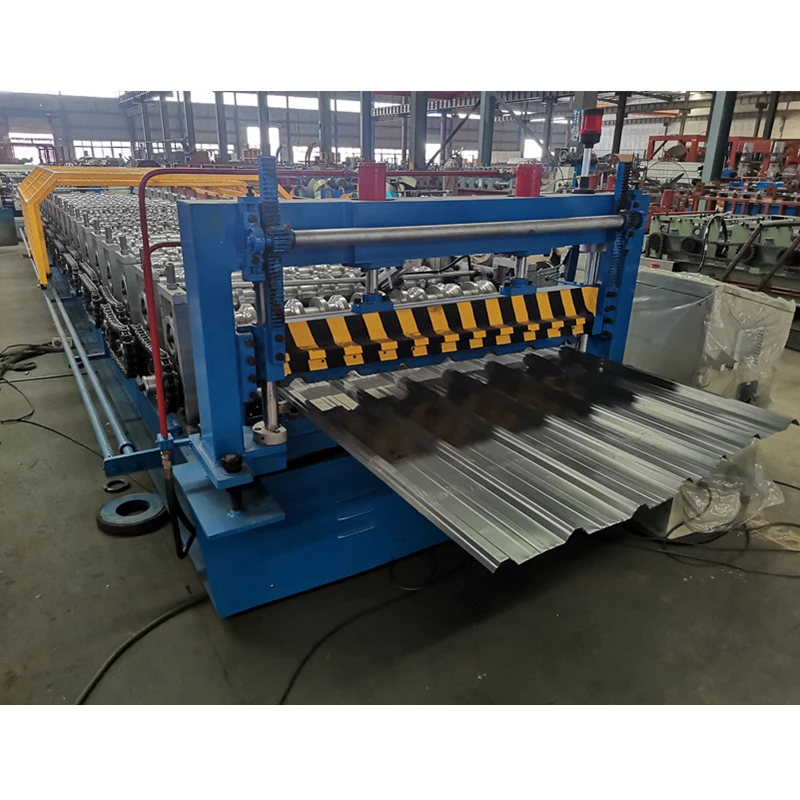

Below pictures are for your reference only
