Product Description

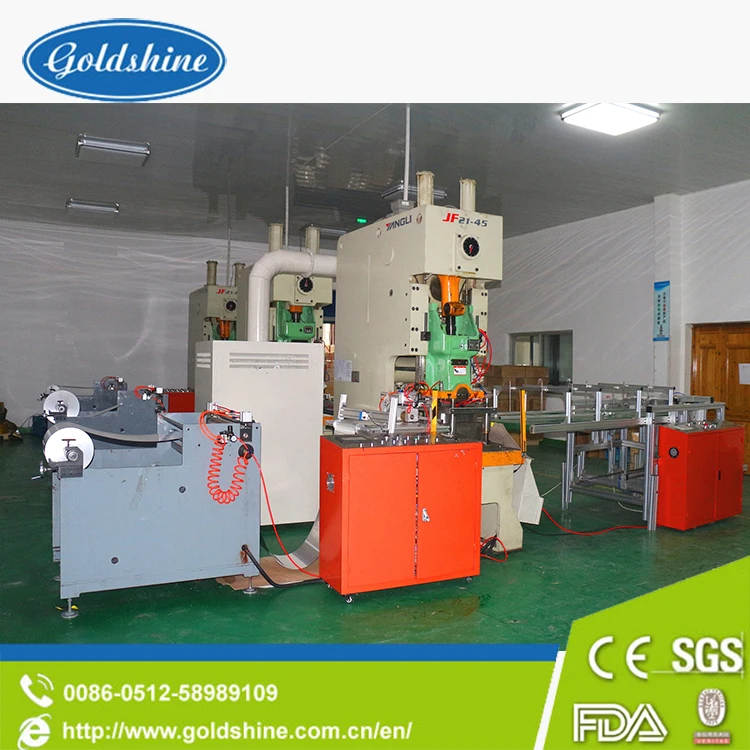

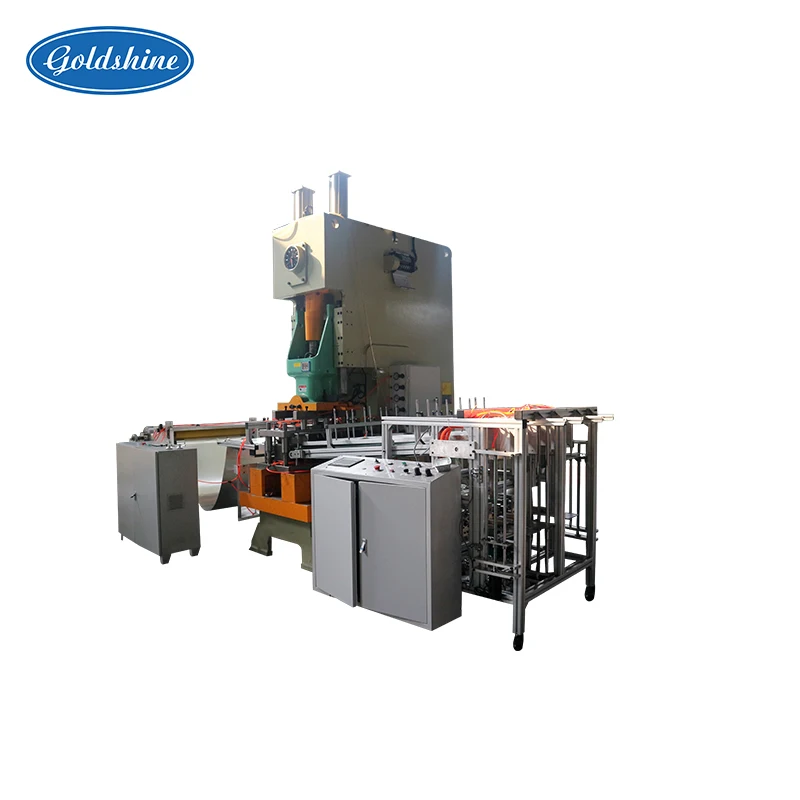

Performance Characteristic of aluminum foil tray pressing machine punching machinery
1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production.
2. Feeding, punching, scrap collecting is running automatically.
Main specifications and technical parameters of aluminum foil tray pressing machine punching machinery
1.Feeding machine
Model | XWSL-40 | XWSL-55 | XWSL-70 | XWSL-80 |
Max.Width of Roll (mm) | 350mm(13.78) | 500mm(19.68) | 650mm(25.59) | 750mm(29.52) |
Max.Unwind Roll Diameter(mm) | φ600mm(23.62) | φ600mm(23.62) | φ600mm(23.62) | φ600mm(23.62) |
Feeding Length (mm) | 20-999 | 20-999 | 20-999 | 20-999 |
Feeding Accuracy (mm) | ±0.3 | ±0.3 | ±0.3 | ±0.3 |
Weight of machine (Kg) | 700 | 850 | 1000 | 1150 |
Dimension (mm) | 2000x1150x900 | 2000x1300x900 | 2000x1450x900 | 2000x1550x900 |
2.High Accuracy Press
Model | JF21-45 | JF21-63 | JF21-80 | JF21-110 |
Nominal Pressure (KN) | ||||
Slide Block Strok (mm) | 100-260mm | 120-260mm | 140-260mm | 150-260mm |
Slide Stroke Per Minutes(/min) | 70-50 | |||
Maximum Die Set Height(mm) | 270-400 | 310-450 | 325-450 | 345-500 |
Die Set Height Adjustment(mm) | 60mm(2.36) | 70mm(2.76) | 80mm(3.15) | 90mm(3.54") |
Slide Bottom Size (mm) | 410*340mm | 480*400mm | 560*460mm | 630*520mm |
Stemhole Size(mm) | φ60*60mm | φ60*65mm | φ60*75mm | φ60*85mm |
Bolster Surface Size (mm) | 810*440/990*750mm | 870*520/1000*800 | 1000*600/1200*800 | 1100*680/1300*800mm |
Total Power (KW) | 5.5 | 5.5-7.5 | 7.5-11 | 11-15 |
Weight(kg) | 3800-4500 | 5500-6300 | 8000-9000 | 11000-12000 |
Overall Dimension Before Changed(mm) | 1440*1080*2300mm | 1610*1200*2500mm | 2000*1300*2900mm | 2030*1500*3130mm |
Overall Dimension After Changed(mm) | 1550*1150*2500mm | 1800*1300*2700mm | 2200*1450*3100mm | 2300*1600*3300mm |
3.Mould

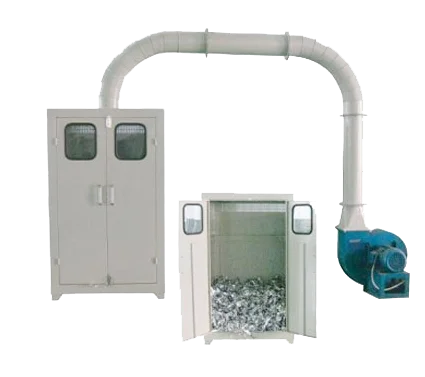

4.Scrap Collrcting Device
Detailed Images
Machine Parts

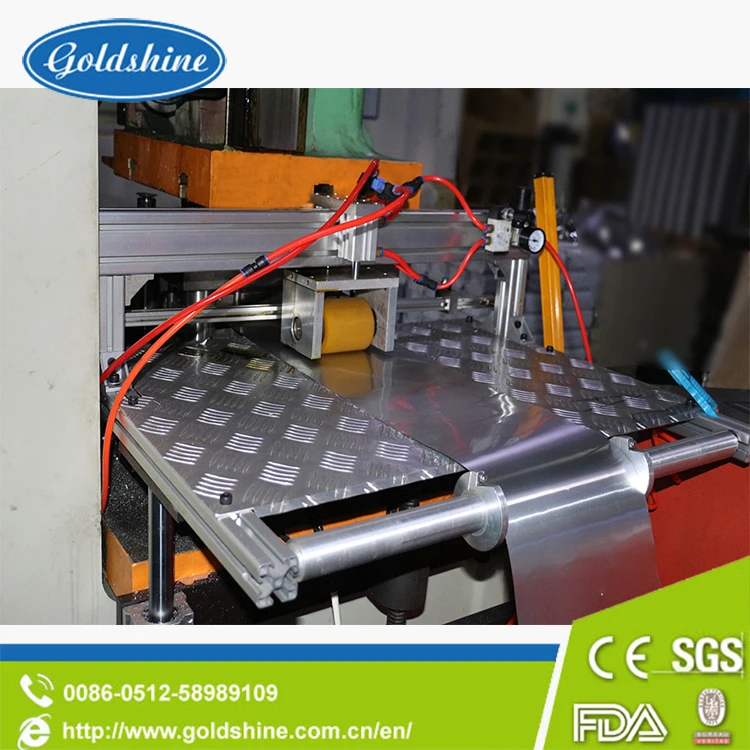

Name: Automatic feeding device
Brand: Goldshine
It can realize automatic oiling,automatic feeding ,automatic tracking features,automatically fedding 20-999mm in length.
Main Parts
Name: press parts
Flatten aluminum foil to make aluminum foil better fit the mold.
Machine Parts
Name: Control system
Brand: PLC
Duplex safety valve are used to achieve emergent stop,inching,sing action and continuous operation. Electric adjustment of mould load height is adoped,enabling eady operation.
Main Parts

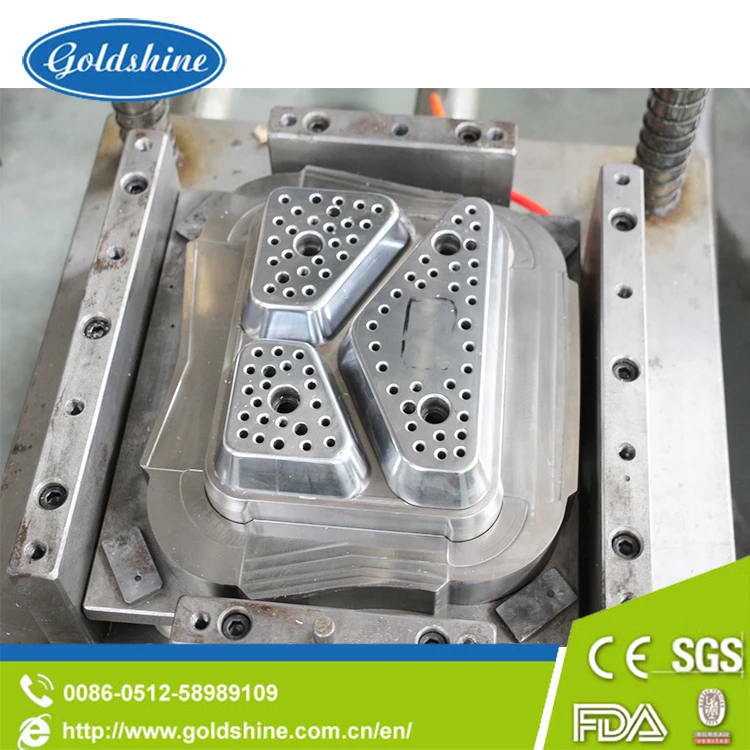

Name: Mould
The mould adopts aeroelasticily resilience device,and our advantages of the mould have kong shelf life,stable quality,high precision and resaonable desigh.
