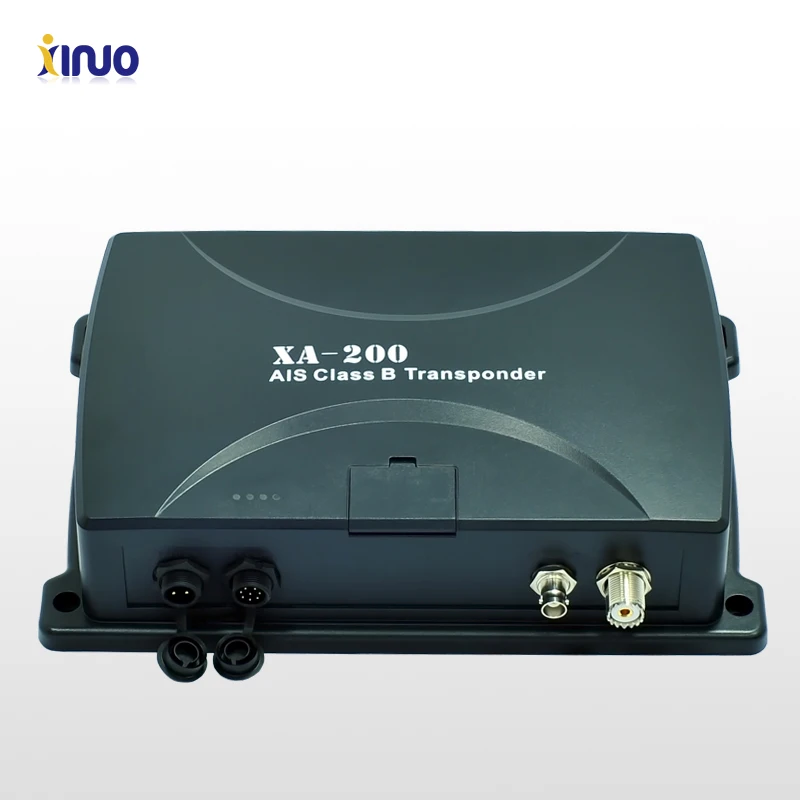

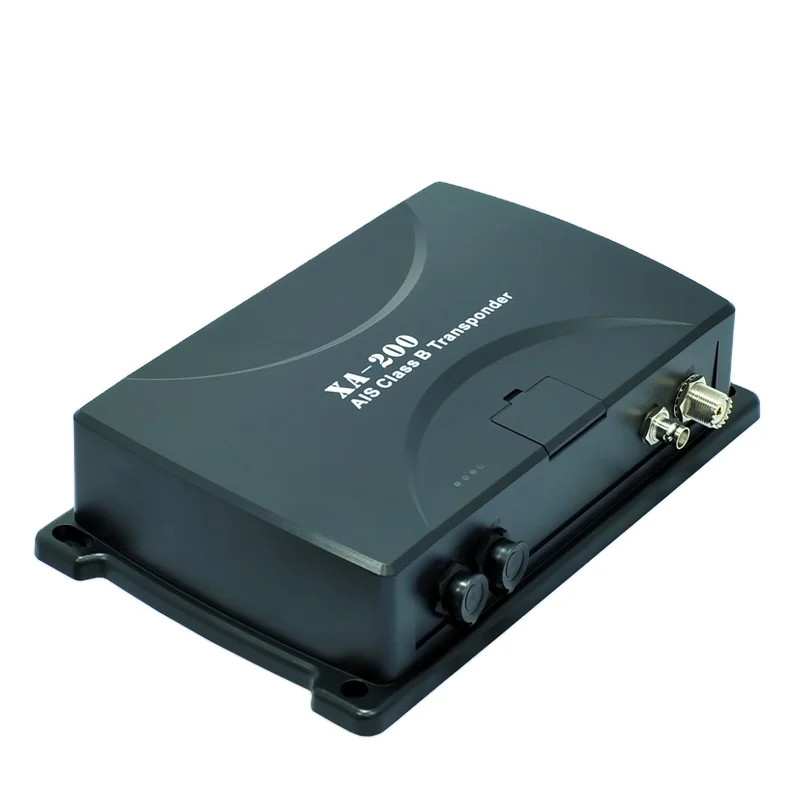

AIS трансивер штрих-кода с приемником и транспондер в черном коробка для зубочисток NMEA0183 выход XINUO
- Категория: Marine Parts & Accessories >>>
- Поставщик: Xinuo,Information,Technology,(xiamen),Corporation,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 238.16 $* | 250.73 $* |
| Aug-17-2025 | 236.6 $* | 248.89 $* |
| Jul-17-2025 | 198.83 $* | 208.49 $* |
| Jun-17-2025 | 232.44 $* | 244.7 $* |
| May-17-2025 | 202.11 $* | 212.76 $* |
| Apr-17-2025 | 228.17 $* | 239.85 $* |
| Mar-17-2025 | 226.19 $* | 237.88 $* |
| Feb-17-2025 | 224.9 $* | 235.57 $* |
| Jan-17-2025 | 222.96 $* | 233.19 $* |
Характеристики
Product Description
- Fashionable black box designed, connect with a display convenient, stable and reliable.
- Floating GND power design, more stable and reliable.
- Conform to IP65 water-proof standard.
- AIS SMS transceiver channel.
- Convenient to set AIS parameter configuration.
| Display unit | XA-200 |
|---|---|
| VHF TRANSCEIVER | |
| Frequency Range | 156.025 MHz ~ 162.025 Mhz |
| Channel Bandwidth | -20℃ ~ +60℃ |
| Modulation | GMSK / FM |
| Data Rate | 9600 bps |
| Number of AIS transmitter | 1 |
| Number of AIS Receiver | 2 |
| AIS Channel 1 | CH 87 (161.975 Mhz) |
| AIS Channel 2 | CH 88 (162.025 Mhz) |
| Tx Power Output | 2W/5W |
| Rx Sensivity | < -107 dBm @ 20% PER |
| ENVIRONMENTAL | |
| Operating Temperature | -15°C ~ 55°C |
| Waterproofing | IP65 |
| POWER SUPPLY | |
| Supply Voltage | 12-36V DC |
| LED INDICATION | |
| RX LED | AIS signal receive |
| TX LED | AIS signal transmit |
| CONNECTION INTERFACE | |
| GPS Antenna Connector | BNC |
| VHF Antenna Connector | SL-259(Female) |
| NMEA0183(RS-422) | IEC 61162-1/IEC 61162-2, Baud rate 38,400 (default), programmable, input/output at same baud rate. |
| RS-232 | Baud rate 115,200 (default), programmable |
| Standards | |
IEC 62287-1 Ed. 2, 2010; IEC 61108-1 Ed. 1, 2003 IEC 60945 :2002 EMC related items IEC 60950-1:2006 IEC 60529:2006 EMC related items
| |
| Packing List | |
| Main Unit×1set | User’s Manual ×1 pc |
| Power Cable ×1 pc | Certification ×1pc |
| Data Cable with 8 pins plug×1 pc | Warranty Card ×1pc |
| GPS Antenna×1 pc | |
Company Information
Xinuo Information Technology (Xiamen) Corporation Limited Founded in March 2003, XINUO focuses on design, development, manufacture & sales for 14 years in marine electronic industry. XINUO has a number of property rights of embedded software and hardware core technology. With a complete development, manufacture and sales network chain, XINUO is one of the biggest original design manufacturers of marine electronics, and one stop solution provider. The major products of XINUO are GPS navigator and chart plotter, AIS class B, AIS class A, fish finder, ECS, ECDIS, GPS compass, marine LCD monitor, etc. Our business philosophy is “Keep improving, strive for excellence”, XINUO aspires to become an international competitive brand of marine electronic industry.
Headquarters: No.17-701 Wanghai Road Software Park Second Phase, Xiamen, Fujian, China
Factory: No.19-2 Xianghong Road Xiang'an Industrial Park, Xiamen, Fujian, China
- XINUO format Electronic Chart
- GPS Navigator & Chart Plotter
- AIS Class B , AIS Class A
- Fish Finder, Echo Sounder
- GPS Compass
- Marine LCD Monitor
- Solution Provider & Professional Manufacturer for Marine Electronics
