XINUO 10 4 дюйма морские GPS плоттер поддержка C-карта диаграммы XF-1069 навигатор маленький
- Категория: Marine Parts & Accessories >>>
- Поставщик: Xinuo,Information,Technology,(xiamen),Corporation,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.85 $* | 0.97 $* |
| Aug-15-2025 | 0.46 $* | 0.22 $* |
| Jul-15-2025 | 0.7 $* | 0.73 $* |
| Jun-15-2025 | 0.90 $* | 0.99 $* |
| May-15-2025 | 0.33 $* | 0.60 $* |
| Apr-15-2025 | 0.95 $* | 0.25 $* |
| Mar-15-2025 | 0.91 $* | 0.6 $* |
| Feb-15-2025 | 0.29 $* | 0.42 $* |
| Jan-15-2025 | 0.48 $* | 0.67 $* |
Характеристики
Product Description

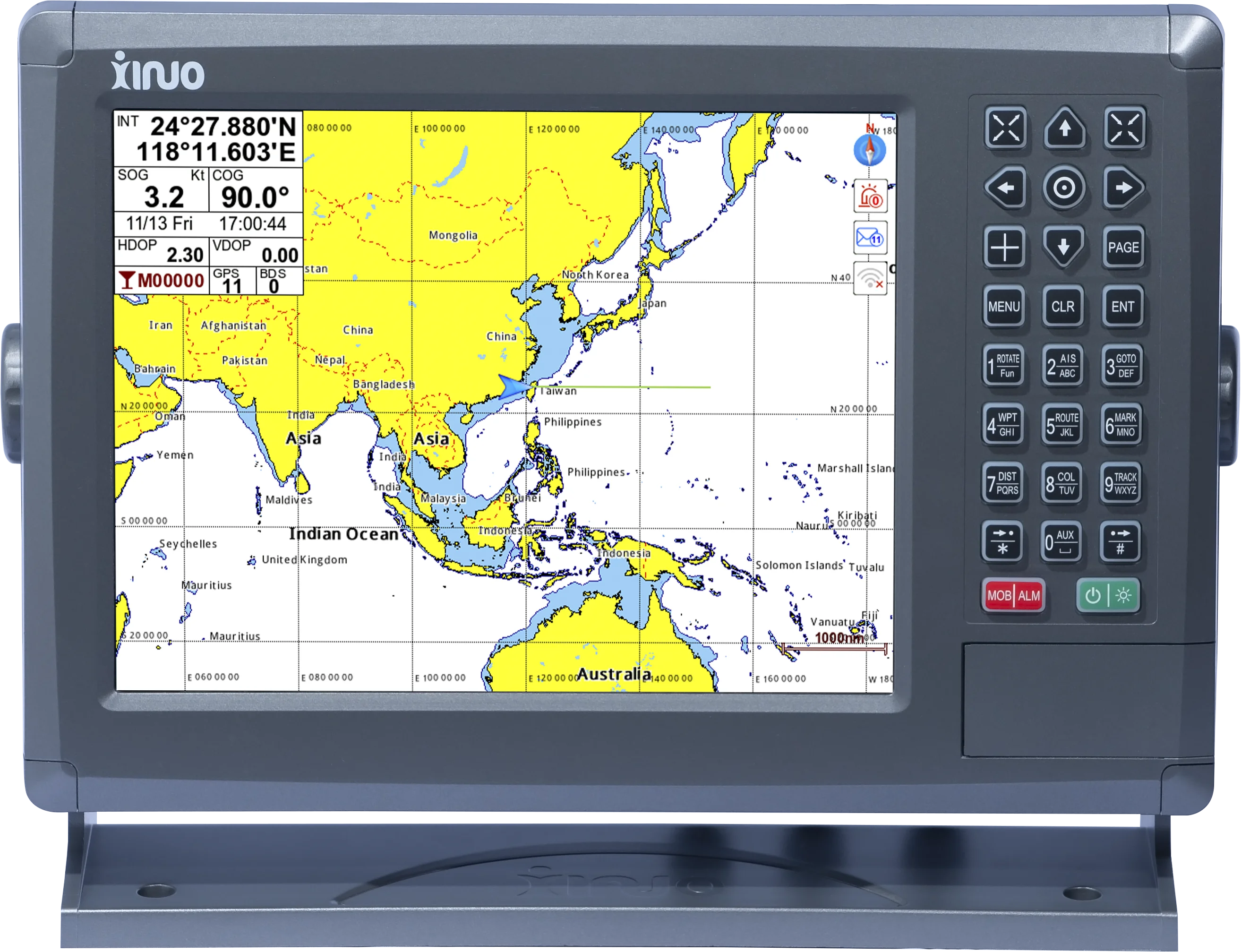

- 10.4” Color LCD with 800 x 600 resolution, high brightness and wide angle of view.
- C-MAP ( MAX ) & XINUO-MAP dual chart systems for user to choose.
- Built-in global chart, upgrade chart regularly with free of charge.
- Floating GND power design, more stable and reliable.
Conform to IPX5 water-proof standard.
| Display unit | XF-1069 |
|---|---|
| Display Type | Color TFT LCD |
| Display Size | 10.4 inch |
| Display Resolution | 800 × 600 pixels (SVGA) |
| Display Brightness | 300cd/m2 |
| Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish; Burmese |
| Display Modes | Standard Chart View, Simple Chart View, AIS Data , GPS Data, 3D Navigation, Compass |
| Memory Capacity | 6000 waypoints;10000 marks; 800 tracks; 200 routes (48 points each route); 200drawlines (40 points each drawline); |

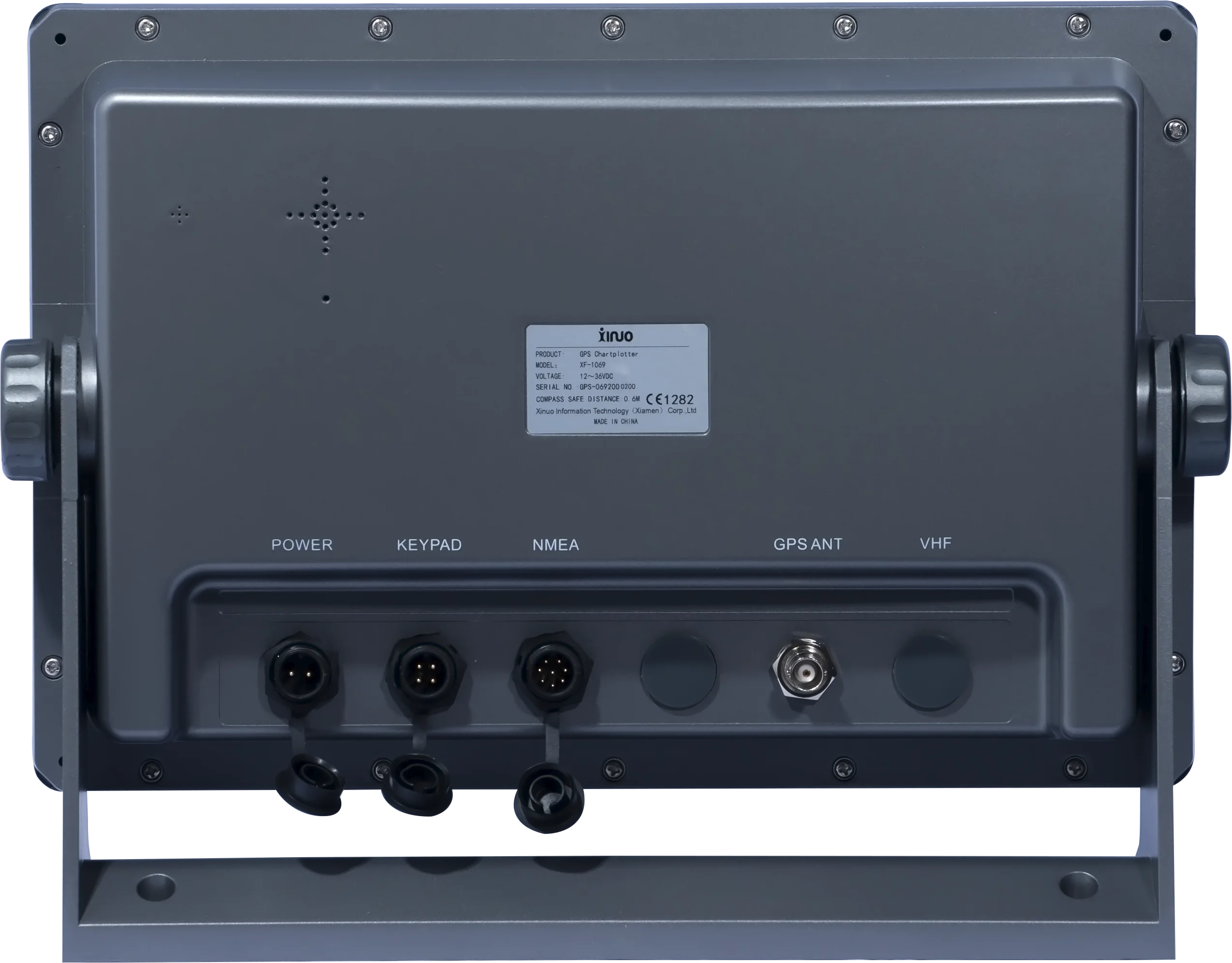

| Interface | 1 serial Iutput 1 Ports , 2 serial Output 2 Ports, AIS Input 1Ports, |
| Chart | C-MAP (MAX) & XINUO MAP |
| Power Supply | DC10V-36 V |
| Enviromental | |
| Working temperature | -15℃~+55℃ |
| Storage temperature | -20℃ ~ +60℃ |
| Waterproofing | IPX5 |
| GNSS | |
| GNSS Receiver | 32 channels (Support WAAS/EGNOS/MSAS/GAGAN ) |
| Receive Frequency | L1 (1575.42MHz) B1 (1561.098MHz) |
| Position Accuracy | GPS&BDS 2.5m |
| GPS 3m | |
| BDS 5m | |
| Speed Accuracy | 0.1m/s(50%@10m/s) |
| Acquisition Time | Cold Start: <32s ,Hot Start:<1s |
| Tracking Velocity | 999 knots |
| Coordinate Systems | WGS-84 (and others) |
| Standards | |
IEC 60945 :2002 EMC related items ETSI EN 301 489-1V1.8.1:2008 EMC related items
IEC 60950-1:2006 ETSI EN 301 489-3 V1.4.1:2002 EMC related items
IEC 60529:2006 EMC related items ETSI EN 300 440-2 V1.4.1:2010 Spurious related items ETSI EN 300 440-1 V1.6.1:2010 Spurious related items
| |
| Packing List | |
| Main Unit×1set | GPS Antenna×1 pc |
| Mounting Bracket×1pc | User’s Manual ×1 pc |
| Knob ×2 pcs | Quick Guide ×1pc |
| Power Cable ×1 pc | Certification ×1pc |
| Data Cable with 8 pins plug×1 pc | Warranty Card ×1pc |
Company Information
Xinuo Information Technology (Xiamen) Corporation Limited Founded in March 2003, XINUO focuses on design, development, manufacture & sales for 14 years in marine electronic industry. XINUO has a number of property rights of embedded software and hardware core technology. With a complete development, manufacture and sales network chain, XINUO is one of the biggest original design manufacturers of marine electronics, and one stop solution provider. The major products of XINUO are GPS navigator and chart plotter, AIS class B, AIS class A, fish finder, ECS, ECDIS, GPS compass, marine LCD monitor, etc. Our business philosophy is “Keep improving, strive for excellence”, XINUO aspires to become an international competitive brand of marine electronic industry.
Headquarters: No.17-701 Wanghai Road Software Park Second Phase, Xiamen, Fujian, China
Factory: No.19-2 Xianghong Road Xiang'an Industrial Park, Xiamen, Fujian, China
- XINUO format Electronic Chart
- GPS Navigator & Chart Plotter
- AIS Class B , AIS Class A
- Fish Finder, Echo Sounder
- GPS Compass
- Marine LCD Monitor
- Solution Provider & Professional Manufacturer for Marine Electronics
