3/4 дюйма инжектор PVDF venturi озона трубка Вентури удобрений

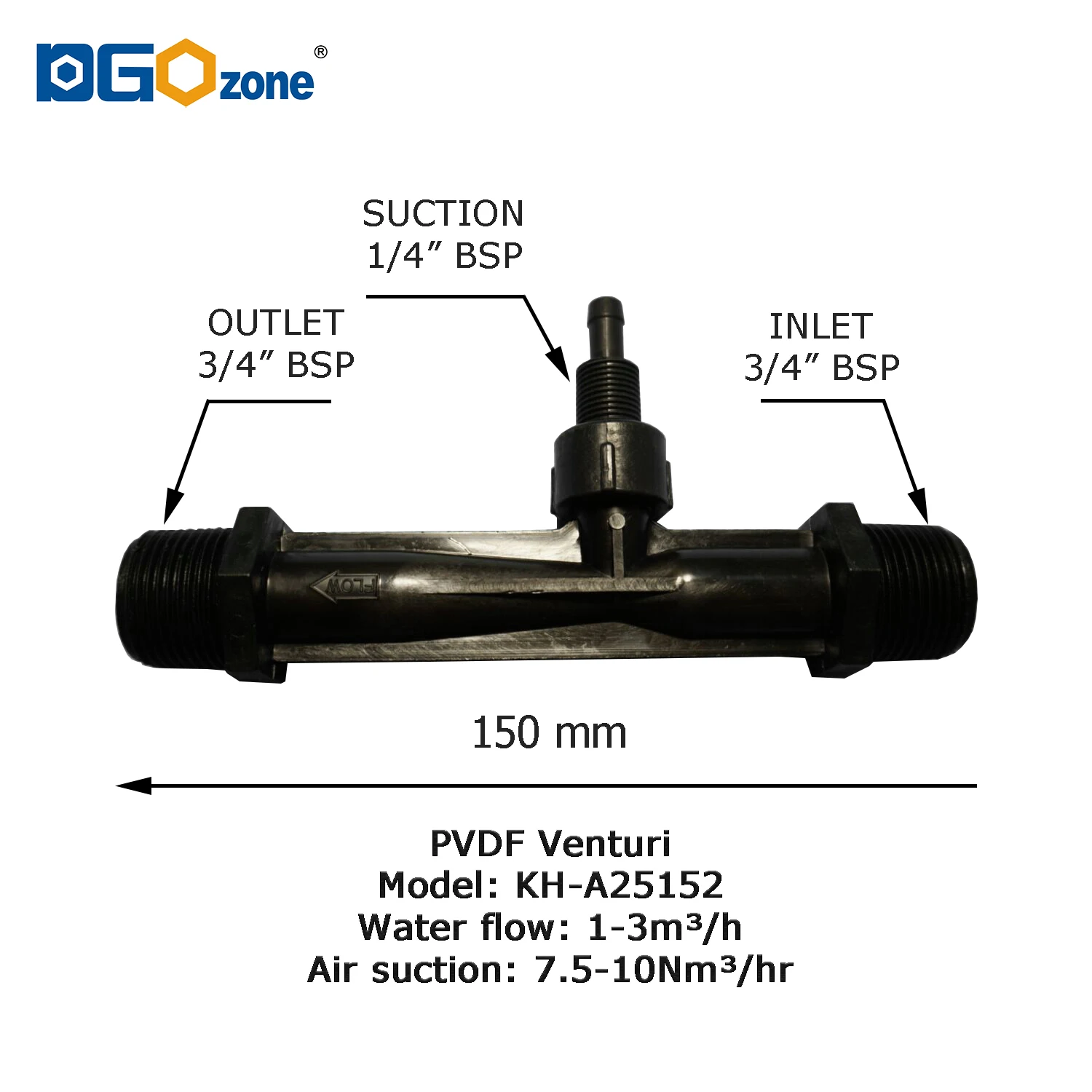

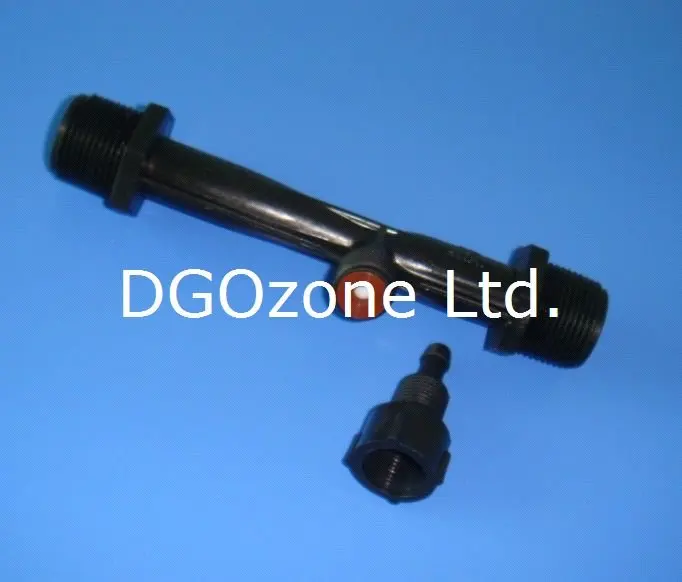

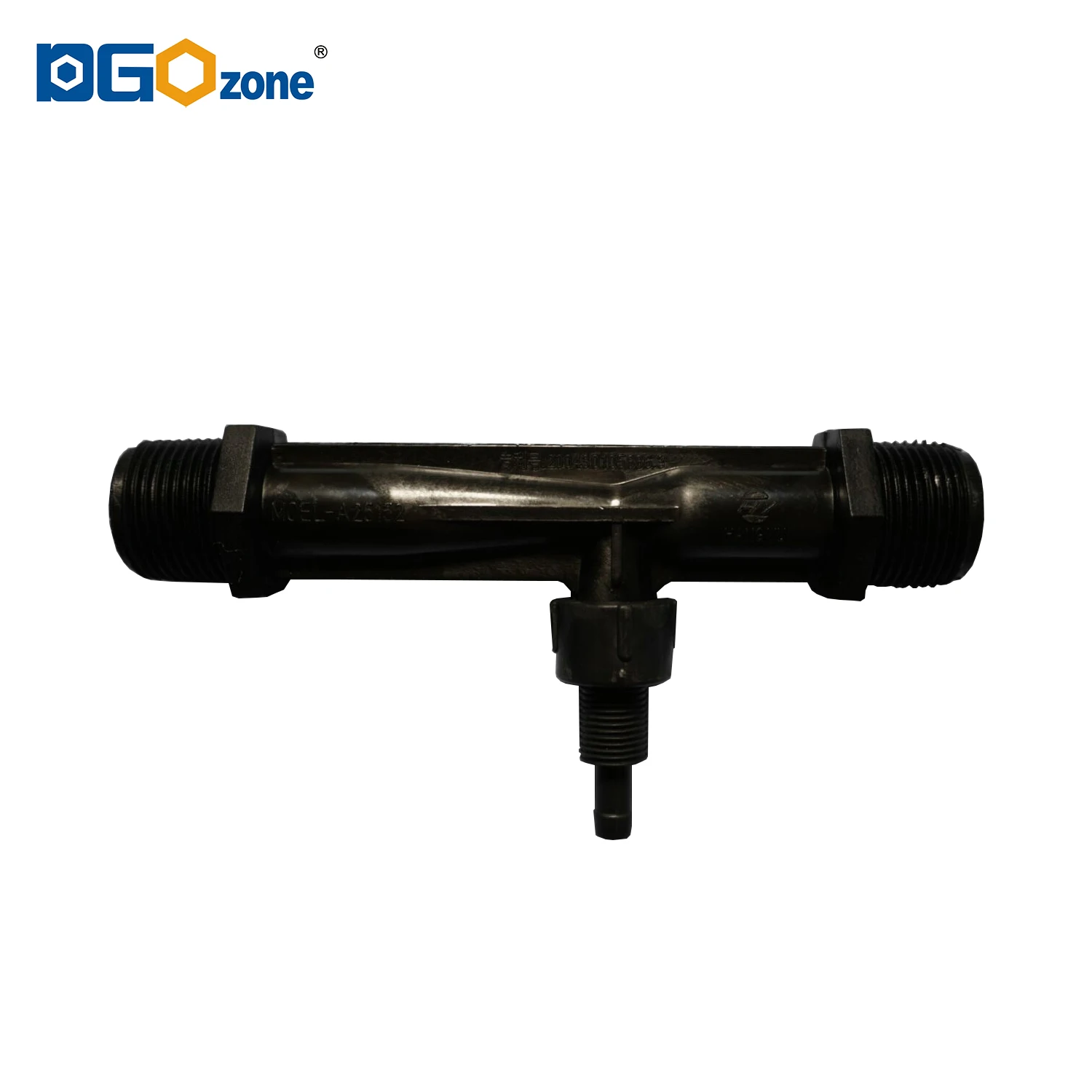

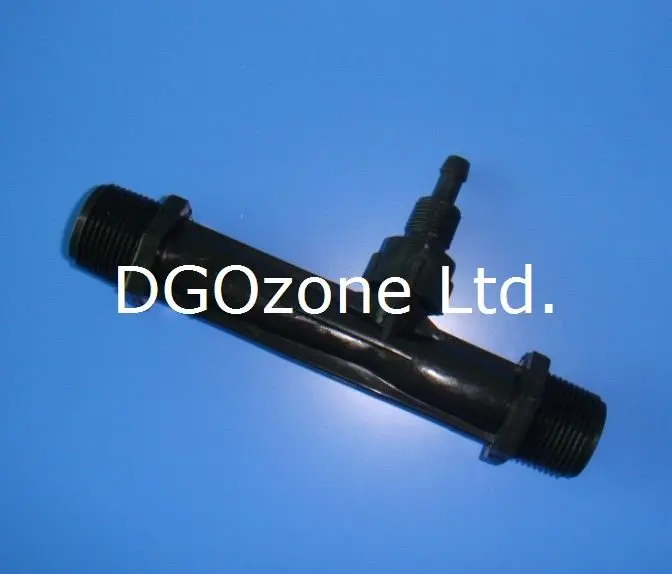

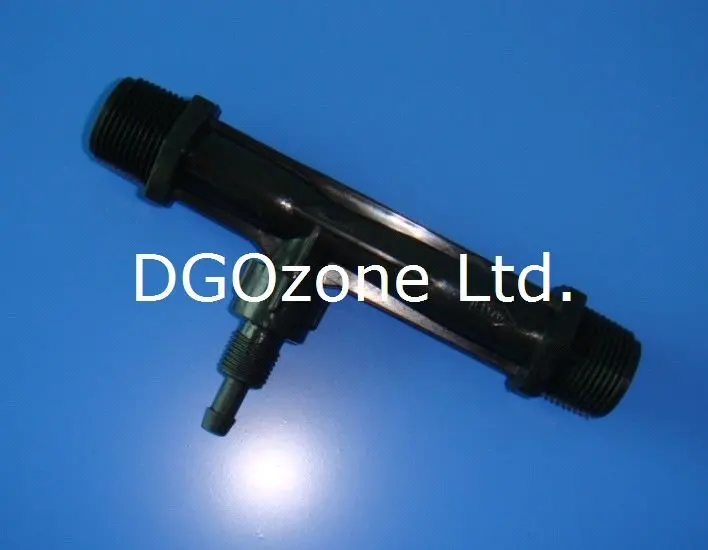

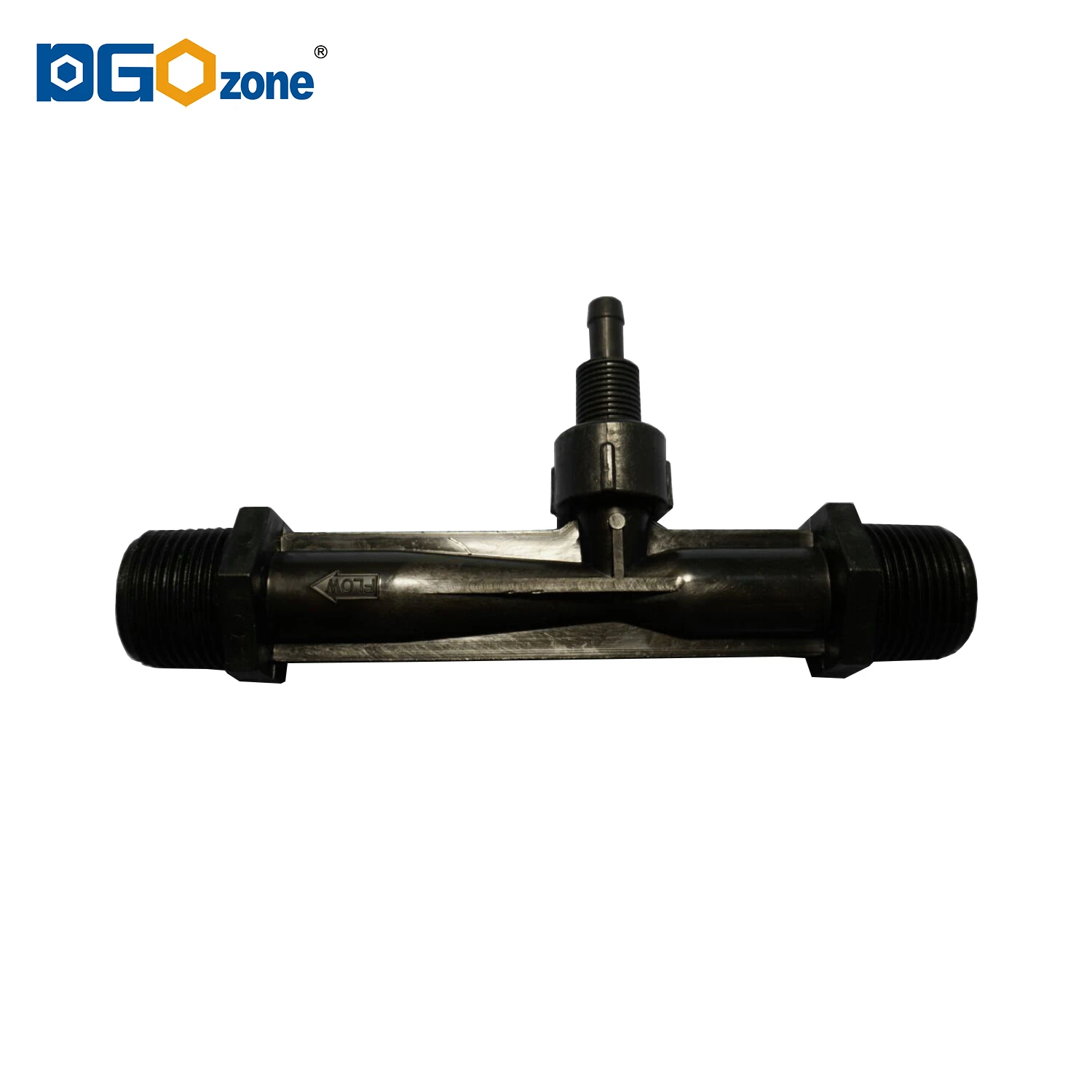

We provide ozone resistant venturi tube(ozone and water mixer/ozone injector), whose length are from 57mm to 660mm.

1) Capacity: 1-3 CMH
2) Water Inlet & Outlet Connection: 3/4-in BSP
3) Suction Port: 1/4-in NPT
4) Construction Material: PVDF body, PTFE ball, Kel-F seat, Hastelloy-C spring
5) Check Valve: Included - in the suction port
6) Supply Water Requirement: Water temperature between 0℃-60℃, water PH value between 5-11
7) Length:5.9" (150 mm)
8) Net Weight: 0.16-lb (0.07 kg)
9) The power of supporting water pump (KW): 0.55
10) Input pressure (kg/cm2): 2.0-5.0
11) Output pressure (kg/cm2): 0.0-1.0
12) Air suction capacity (Nm3/hr): 7.5-10
13) Dissolved oxygen (kgO2/hr): 0.5-0.7
14) Water flow (L/h): 1000-3000
15) Working water depth (m): 0-2.5

1) No moving parts
2) Durable PVDF construction
3) Completely ozone compatible
4) Check valve included in injection port
5) Quick installation

This ozone venturi is designed to be used with an ozone generator for water treatment. It is excellent for ozone mass transfer. Molded PVDF & rugged construction ensure years of life. Ozone suction port quickly transfers ozone gas into water stream under pressure.

          Remark: We use 304 stainless steel ball for KH-A12057. For other Models, we use PTFE ball.
