Автоматическая двойная рабочая станция динамик двигатель статор катушка обмоточная машина для


Поделиться:


Цена:38 255,10 ₽ - 3 825 510,00 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 48584.13 $* 49556.72 $*
Jul-15-2025 39403.81 $* 40191.11 $*
Jun-15-2025 47819.77 $* 48775.35 $*
May-15-2025 47436.71 $* 48385.64 $*
Apr-15-2025 37872.96 $* 38629.90 $*
Mar-15-2025 46671.43 $* 47604.63 $*
Feb-15-2025 46289.21 $* 47215.91 $*
Jan-15-2025 45906.4 $* 46824.41 $*

Характеристики

Product Description

This automatic stator coil winding machine could winding two stators at the same time. Fixtures are in cycle operation automatically. No need to assemble fixture on the stator.It is benefit for the on-line operation

Function:

1. Cast iron or steel frame can absorb the shock. Accuracy is stable. The maximum winding speed is up to 450RPM (according to the wire diameter).

2. All the actions are fully automatic (including loading and unloading). The winding could be more stable and efficient.

3. The cutting part structure is in compact.Wire clamping and cutting is finished at the same time.

4. Easily to change the fixture for different types of stators.

5. Fixtures are in cycle operation automatically.It is benefit for the on-line operation.

6. Permanent magnet tensioning device enables the tension adjustment.

7. Travel and swing angle is adjusted within 150-220mm (mechanical adjustment).It could adapt to different requirement of different stator models.

8. Two working stations.

Parameter:



Stator O.D

50~90mm

Wire diameter

0.25~0.8mm

Stator stack length

20~45mmm(standard);30~60mm(lengthen)

Stator I.D

30~50mm

Slot number

2 poles

Air pressure

0.4~0.7MPa

Lubrication mode

Continuous lubrication oiling machine

Voltage

AC380V,50/60Hz

Weight

1800Kgs

Dimension

2100*1250*1830mm

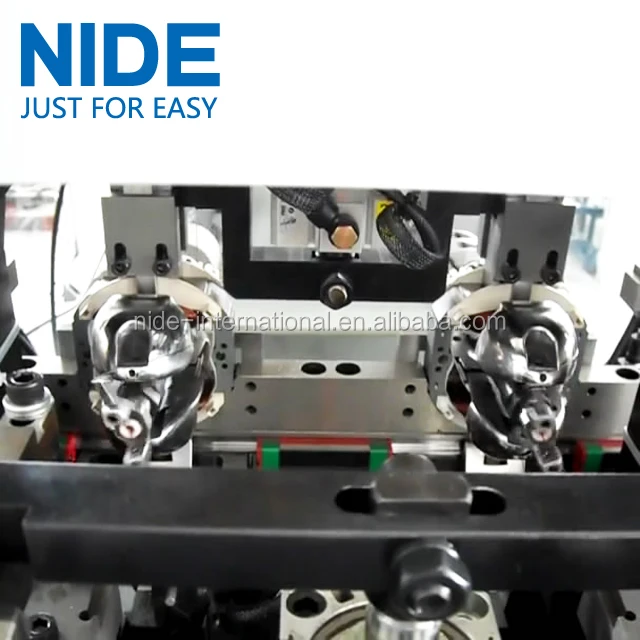

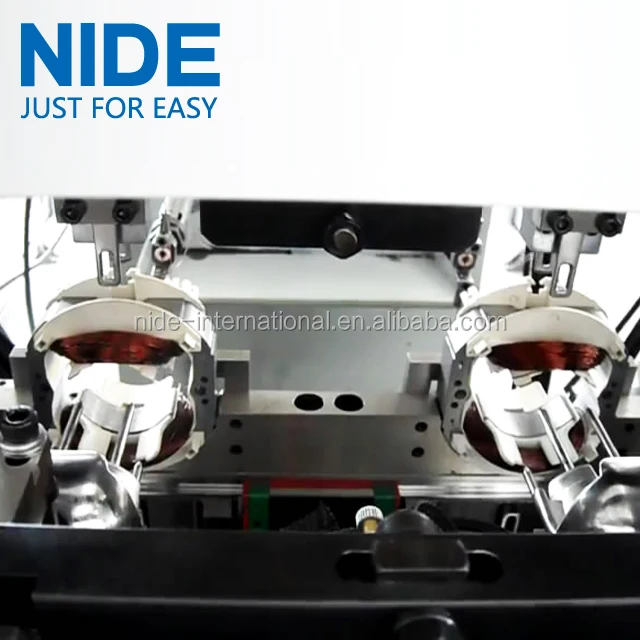

Motor coil winding machine working process

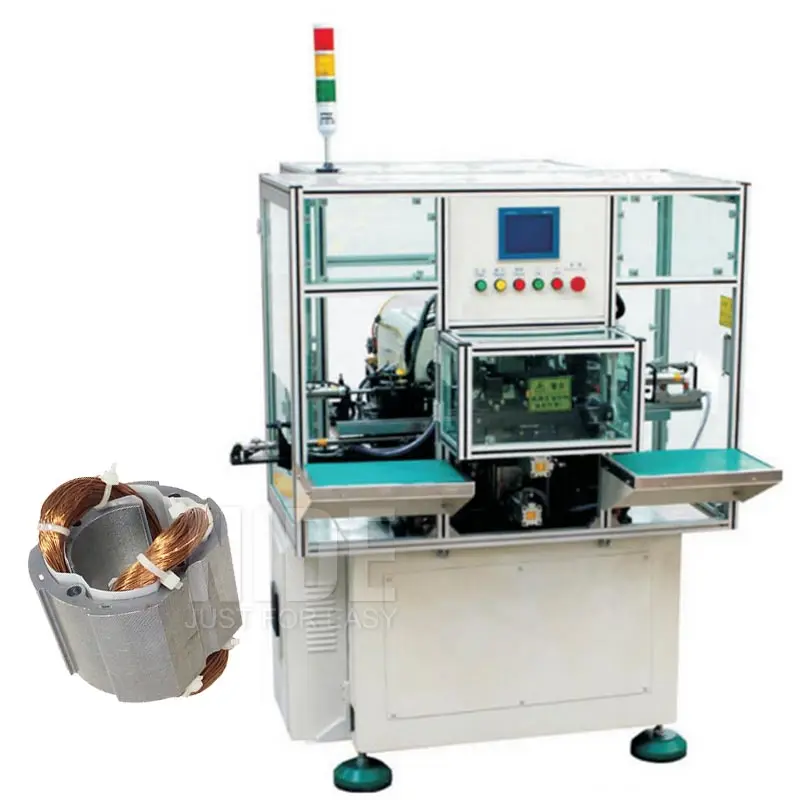

DDDND-SW-2 Automatic stator winding machine.jpg
Stator production

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

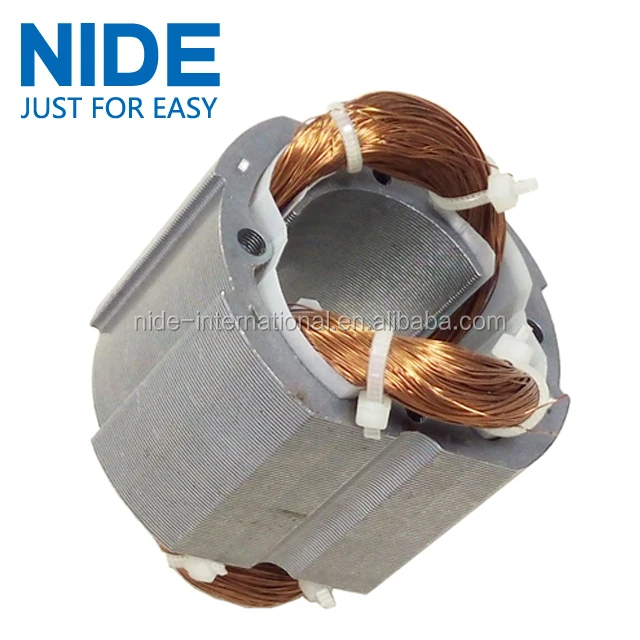

stator winding machine.jpg

More Information


With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas



Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

.jpg


Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.


Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
