-->> MINI PC Intel NUC i5-4250U D54250WYK and D54250WYB SKUs <<--

Intel? NUC with Intel? Core? i5 Processor (D54250WYK)
Comes complete with Intel? HD Graphics 5000 to ensure a brilliant HD experience, Intel? Quick Sync Video for fast video encoding, and DisplayPort* 1.2 for driving 4K displays.

http://www.intel.com/content/www/us/en/nuc/nuc-kit-d54250wyk-board-d54250wyb.html
Mini PC: Intel? NUC Kit D54250WYK and Board D54250WYB

Product Overview

Sleek, shiny, and with a smaller footprint than a wireless modem, the Intel? NUC with the 4th generation Intel? Core? i5 processor is at home in your living room, your office, or your media center. The D54250WYK and D54250WYB SKUs of Intel NUC are equipped with Intel? Turbo Boost Technology 2.0, automatically allowing processor cores to safely run faster than the base operating frequency. It also includes Intel? Rapid Start Technology, ensuring you are quickly up and running, and Intel? Smart Connect Technology to keep you up to date at all times.

The Intel NUC comes complete with Intel? HD Graphics 5000 to ensure a brilliant HD experience, Intel? Quick Sync Video for fast video encoding, and DisplayPort 1.2* for driving 4k displays. Couple this with a stereo/mic jack along with four USB 3.0 ports and an infrared sensor for your remote control, and you can create a home entertainment system, a gaming machine, a digital jukebox, or all of the above. You can immerse yourself in movies, TV, or games in 4 inches square without the need for discrete hardware. The Intel NUC: as small as a game controller, as powerful as a jackhammer.

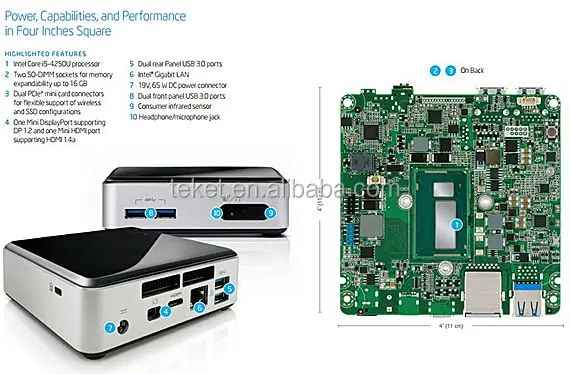

Features and Configurations
All specifications are the same across board and kit unless otherwise noted.

Form factor UCFF
AA# (altered assembly)
Kit: H13922-302
Board: G99254-302
BIOS ID string WYLPT10H.86A
Processor 4th generation Intel? Core? i5-4250U processor (soldered down) with active fan heatsink
Memory Two SO-DIMM slots supporting up to 16 GB of 1600/1333 MHz 1.35V DDR3L memory (Note: 1.5V DDR3 memory is not supported)
Display One mini DisplayPort* 1.2 with audio support
One mini HDMI* port 1.4a with audio support
Audio Intel? High Definition Audio (Intel? HD Audio)1 subsystem in the following configuration:
? 8-channel (7.1) digital audio via HDMI 1.4a output and via one DisplayPort 1.2 connector
? Headphone/microphone jack on the front panel
LAN support Intel? Gigabit Ethernet Controller
Peripheral interfaces Two USB 3.0 connectors (front panel)
Two USB 3.0 connectors (back panel)
Two USB 2.0 ports (internal headers)
One SATA port (internal header)
Consumer infrared sensor on the front panel
Expansion capabilities One full-length mini PCI Express* slot with mSATA support
One half-length mini PCI Express slot
Included in the box Kit:
19V, 65W power adapter (brick)
Power cord options (Types B, E, G, or no cord)
VESA* mounting bracket
Integration guide
Wireless antennae (integrated into the chassis)
Intel Core i5 logo
Board: Fan heatsink (integrated onto board)
Intel Core i5 logo
Warranty 3-year limited warranty



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)



2.4G Wireless Keyboard with Trackball Mouse K5



2.4G Wireless Keyboard with Touchpad Mouse K9
