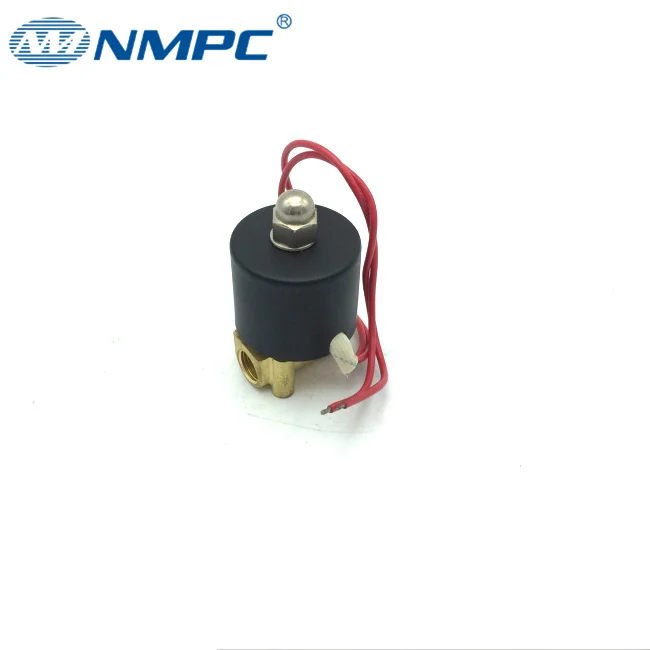

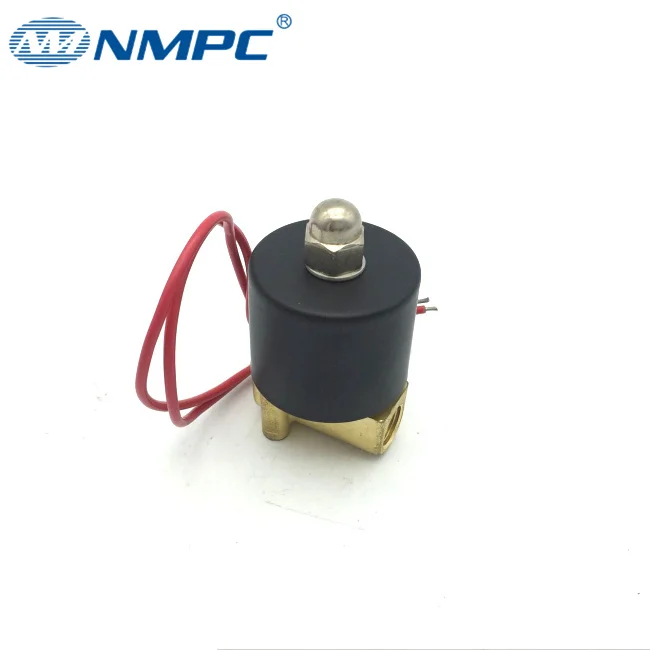

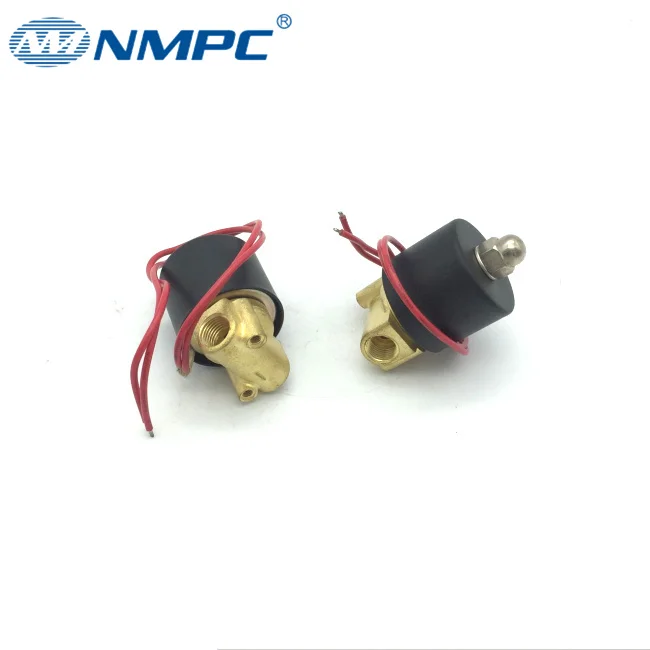

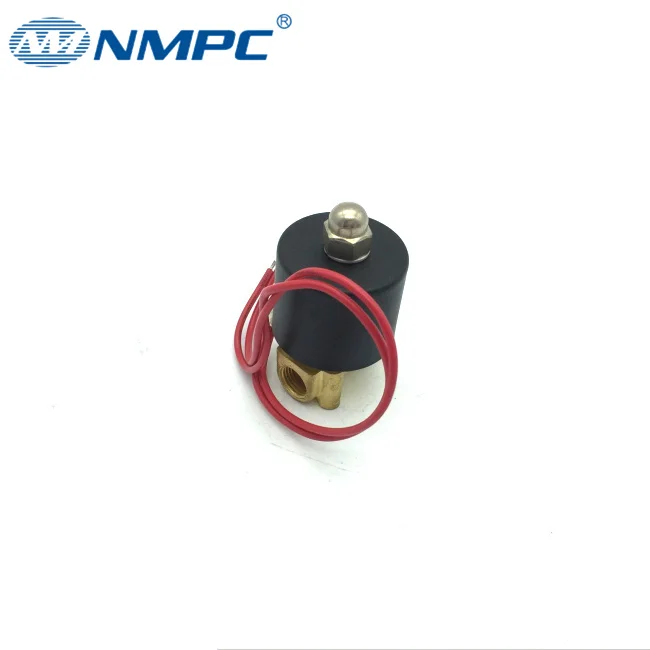

Электромагнитный регулирующий клапан 2W025-08 медный корпус 12 В постоянного тока Миниатюрный электромагнитный среднего
- Категория: Сантехника >>>
- Поставщик: Ningbo,Fenghua,Ningmao,Pneumatic,Components,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 4.55 $* | 4.47 $* |
| Jul-18-2025 | 3.56 $* | 3.77 $* |
| Jun-18-2025 | 4.65 $* | 4.4 $* |
| May-18-2025 | 4.30 $* | 4.82 $* |
| Apr-18-2025 | 3.11 $* | 3.42 $* |
| Mar-18-2025 | 4.5 $* | 4.14 $* |
| Feb-18-2025 | 4.94 $* | 4.67 $* |
| Jan-18-2025 | 4.34 $* | 4.11 $* |
Характеристики
2W025-08 natural gas solenoid valve
Features:
Working Medium:Air,Water,Oil
Operating Method:Direct action
Type:Normal Closed
Flow bore(mm):6~8
Pipe Size:1/8" 1/4"
Liquid Viscosity <20CST
Working Pressure Air,Water,Oil:0~0.8Mpa
Max Pressure:1.0Mpa
Working Temperature: -5~85
Voltage Range 10%
Specification:
Thread Option: G and NPT
Standard Voltage Option: DC12V,DC24V,AC110V,AC220V
Material Option: Brass and Stainless Steel
Oil Seal Option:NBR,EPDM,VITON
normally closed 12v gas solenoid valve

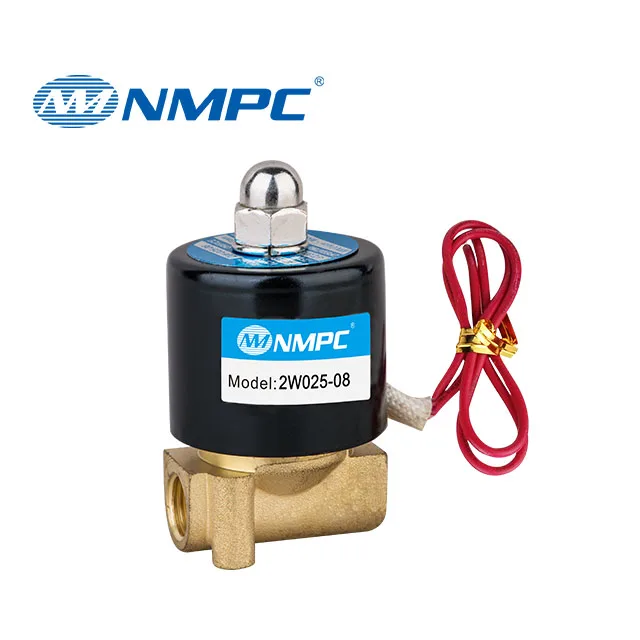

Model | 2W025-08 |
Fluid | Air, Water, Oil, Gas |
Operation | Direct Drive Type |
Type | Normal Close Type |
Aperture of flow rate | 2.5 |
Cv value | 0.23 |
Port size | G1/4(Option:NPT1/4'') |
Operation fluid viscosity | 20 CST Below |
Operation pressure | 0 ~ 0.7MPa |
Max.Proof pressure | 1.0MPa |
Operation temperature | -5 ~ +80C |
Voltage | DC12V(Option:AC110V,220V, DC24V) |
Voltage range | ±10% |
Metarial of body | 2W: Brass (Option:2S: Stainless Steel) |
Material og oil seal | NBR (Option:EPDM or VITON) |
Dimension Size (mm) :
