0 5-3 мм Hdpe геомембрана сварщик с


Поделиться:


Цена:2 000,00 $ - 2 400,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 2380.13 $* 2499.74 $*
Aug-15-2025 2360.66 $* 2478.9 $*
Jul-15-2025 1980.16 $* 2079.97 $*
Jun-15-2025 2320.83 $* 2436.67 $*
May-15-2025 2020.10 $* 2121.88 $*
Apr-15-2025 2280.2 $* 2394.53 $*
Mar-15-2025 2260.12 $* 2373.48 $*
Feb-15-2025 2240.13 $* 2352.31 $*
Jan-15-2025 2220.68 $* 2331.8 $*

Характеристики





Product Features




Hot Wedge Welder SWT-NS900D
SWT - NS900D HDPE Geomembrane Hot Air wedge welder Hand held plastic extruder welding machine
Brief Introduction :

SWT - NS900D adopts advanced hot air heating system. With small, light and high speed, it perfects the welding quality even if corrosive materials and bad working environment. This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.
Tips:
1. This machine is welded with steel pressure roller to suite the hot air welding.
2. Any customized demands, you can ask us directly. We have professional technicians team.

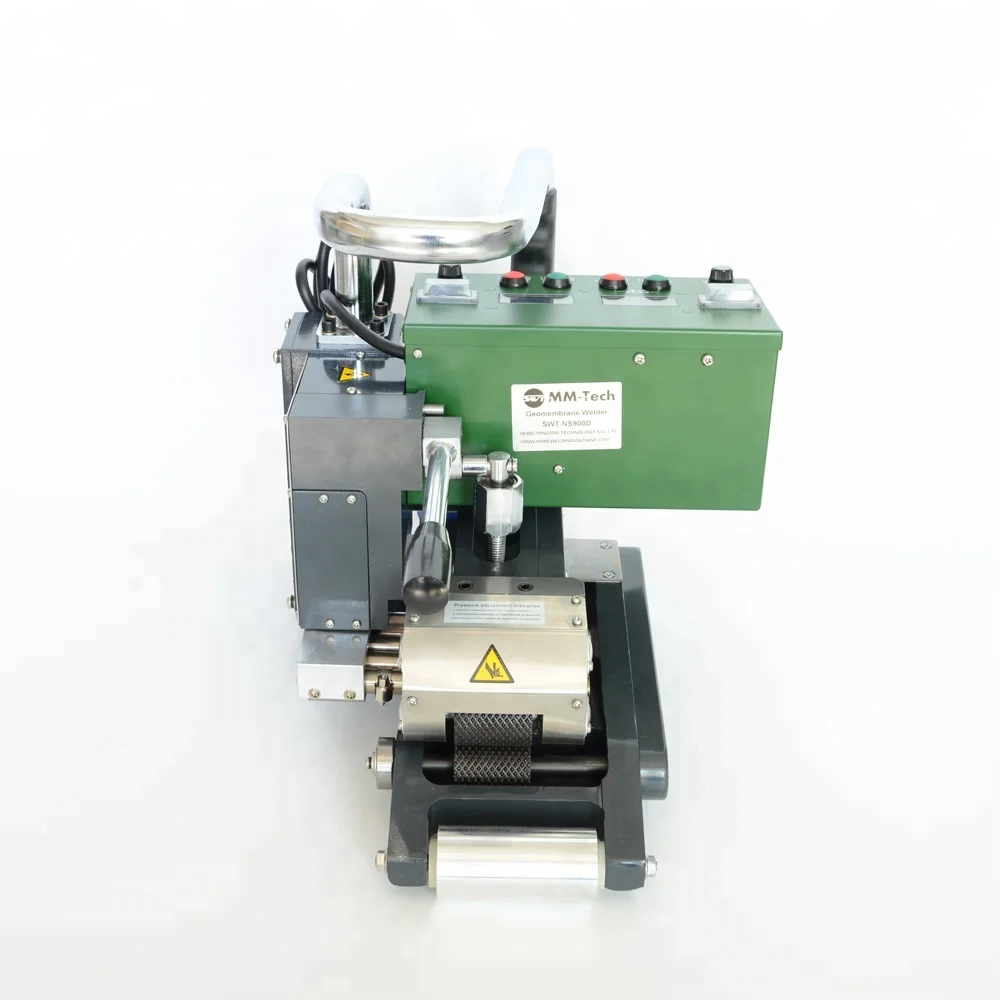

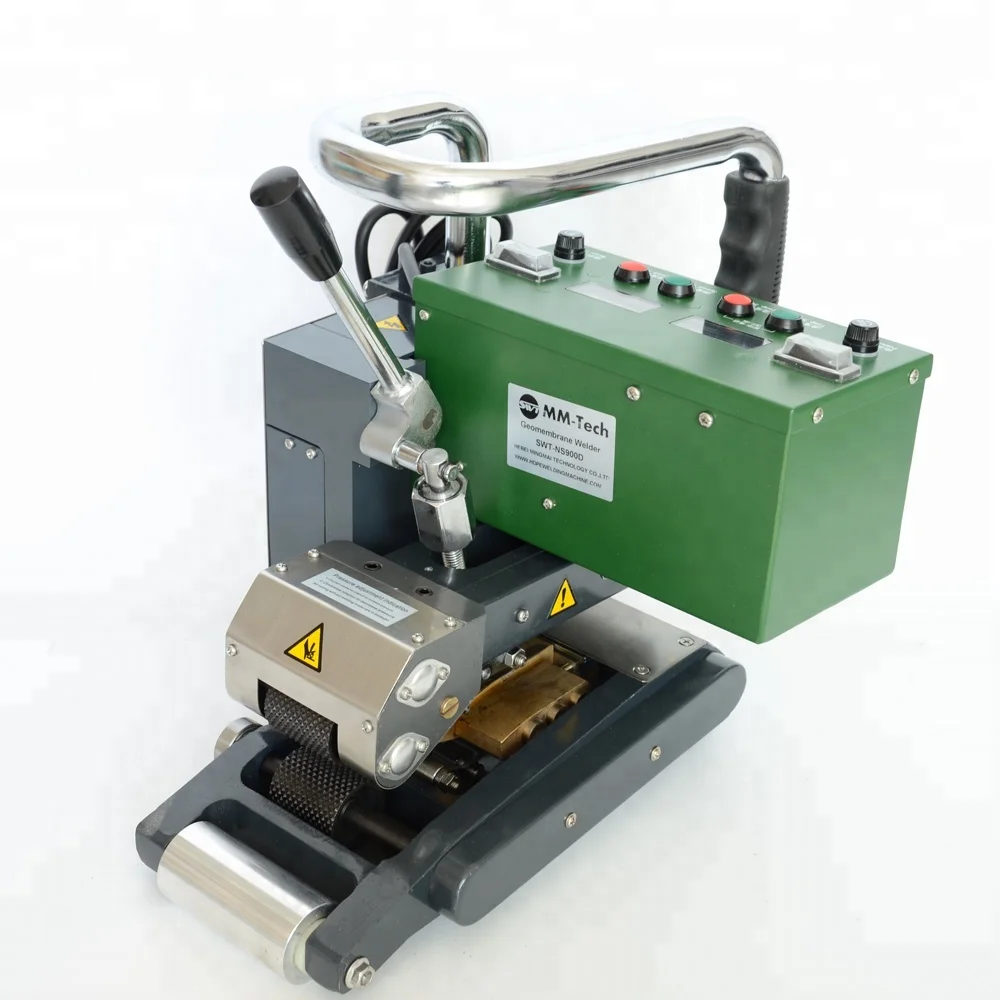

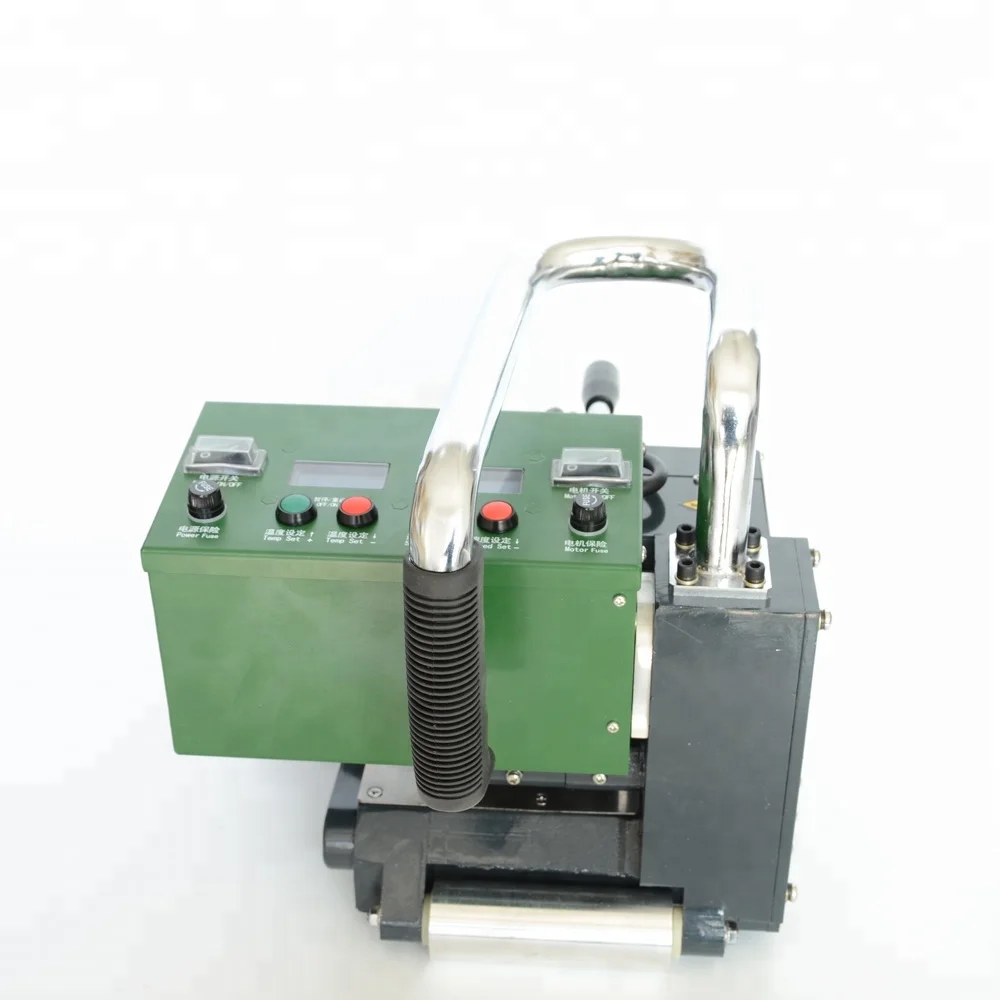

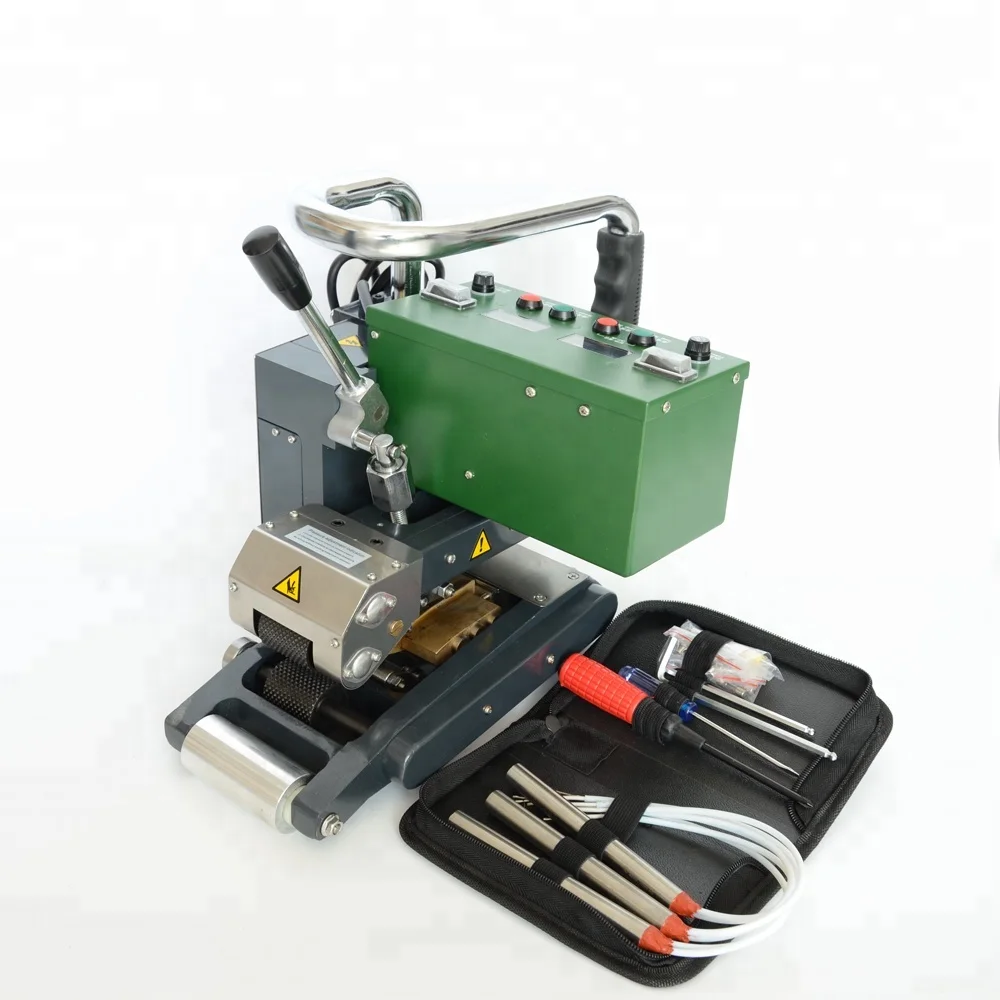

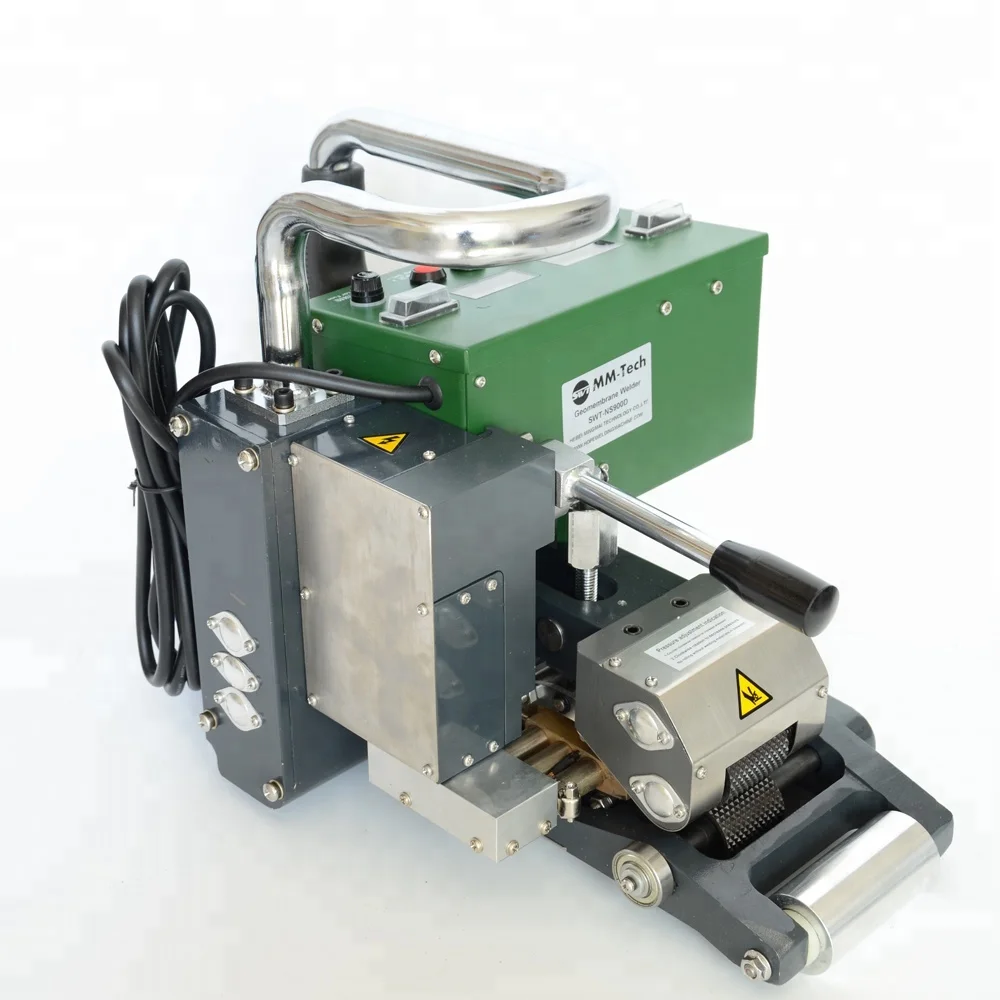

Products Pictures




Technical Parameters


Parameters of Hot Wedge Welding Machine:


Item no.:
SWT-NS900D
Voltage:
220V
Frequency:
50/60HZ
power
1800W
Welding Speed
0.5-5 m/min
Thickness of material
1.0-3.0 mm
Welding width
15 mm *2, interior cavity 15 mm
Overlap width
120 mm
Seam Strength
≥85% base material ( tensile resistant in shear direction)




SWT-NS900D Parameter Settings
Reference Speed
Reference Temperature
Reference Pressure Value (When upper and lower pressure roller in 0 pressure state)
HDPE 1.0mm
3.0-4.5
380-430
Counterclockwise adjustment is recommended at 4
HDPE 1.5mm
2.5-4.0
380-430
Counterclockwise adjustment is recommended at 3
HDPE 2.0mm
2.0-3.5
380-430
Counterclockwise adjustment is recommended at 2
HDPE 3.0mm
1.5-2.5
380-430
Clockwise adjustment is recommended to be 1-2


Operation Video


Application of Hot Wedge Welding Machine:
Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as PE,PVDF,LDPE, PVC, HDPE, EVA, PP and HDPE,EVA,PP.
Geomembrane Welding equipments are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.




Packing & After-Sales Service




International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.


Shipping & Payment
