Product Description

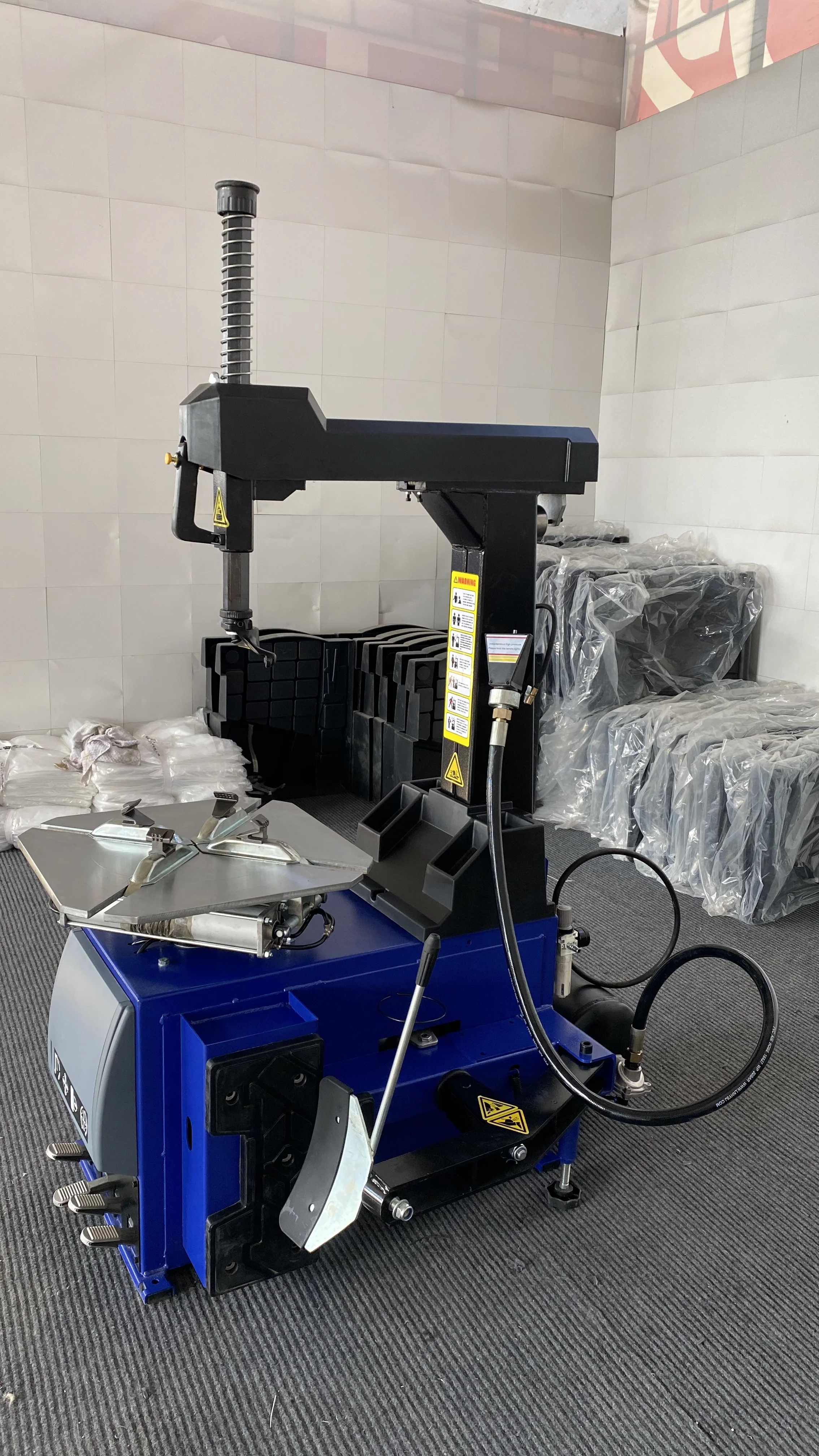

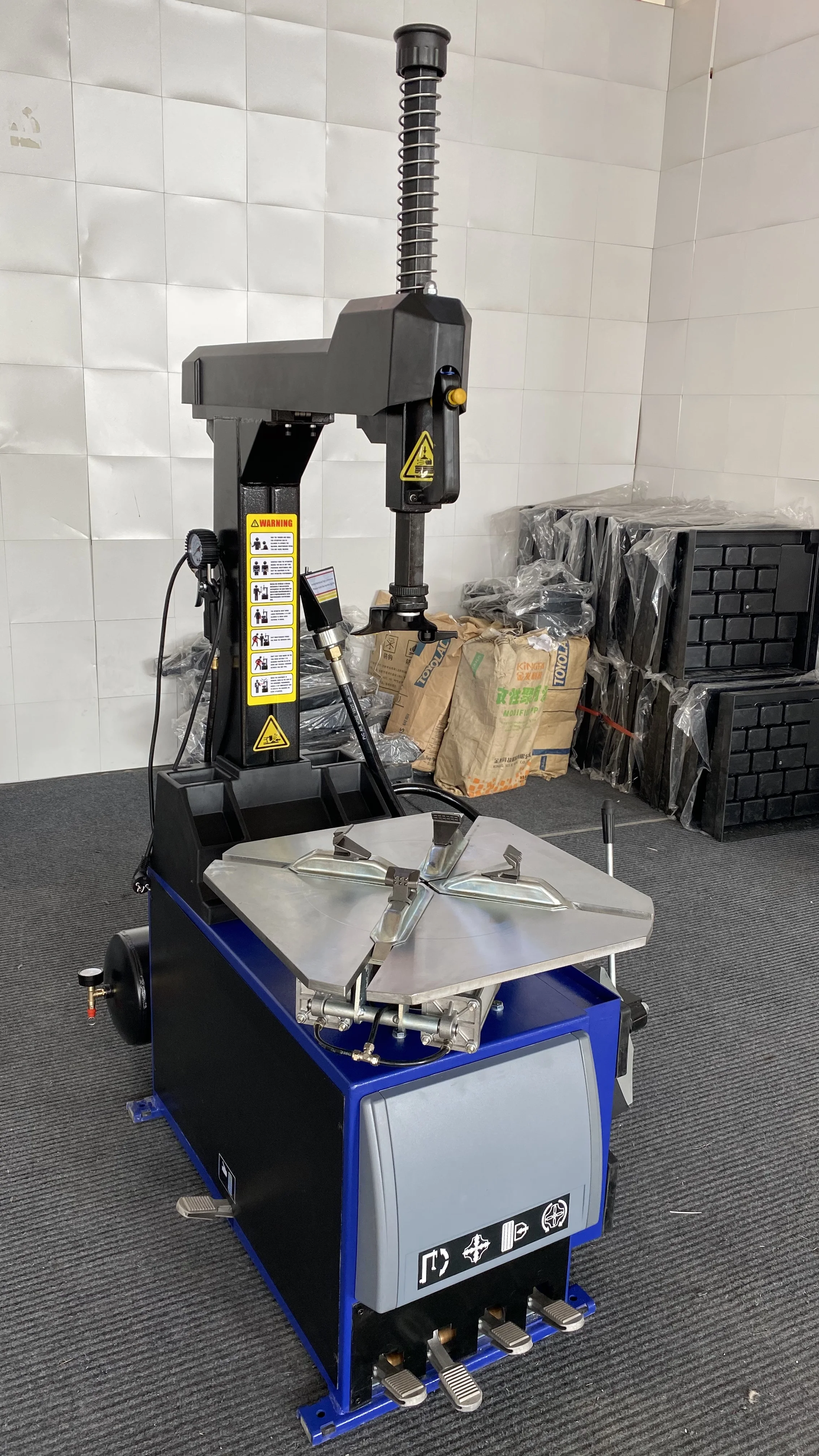

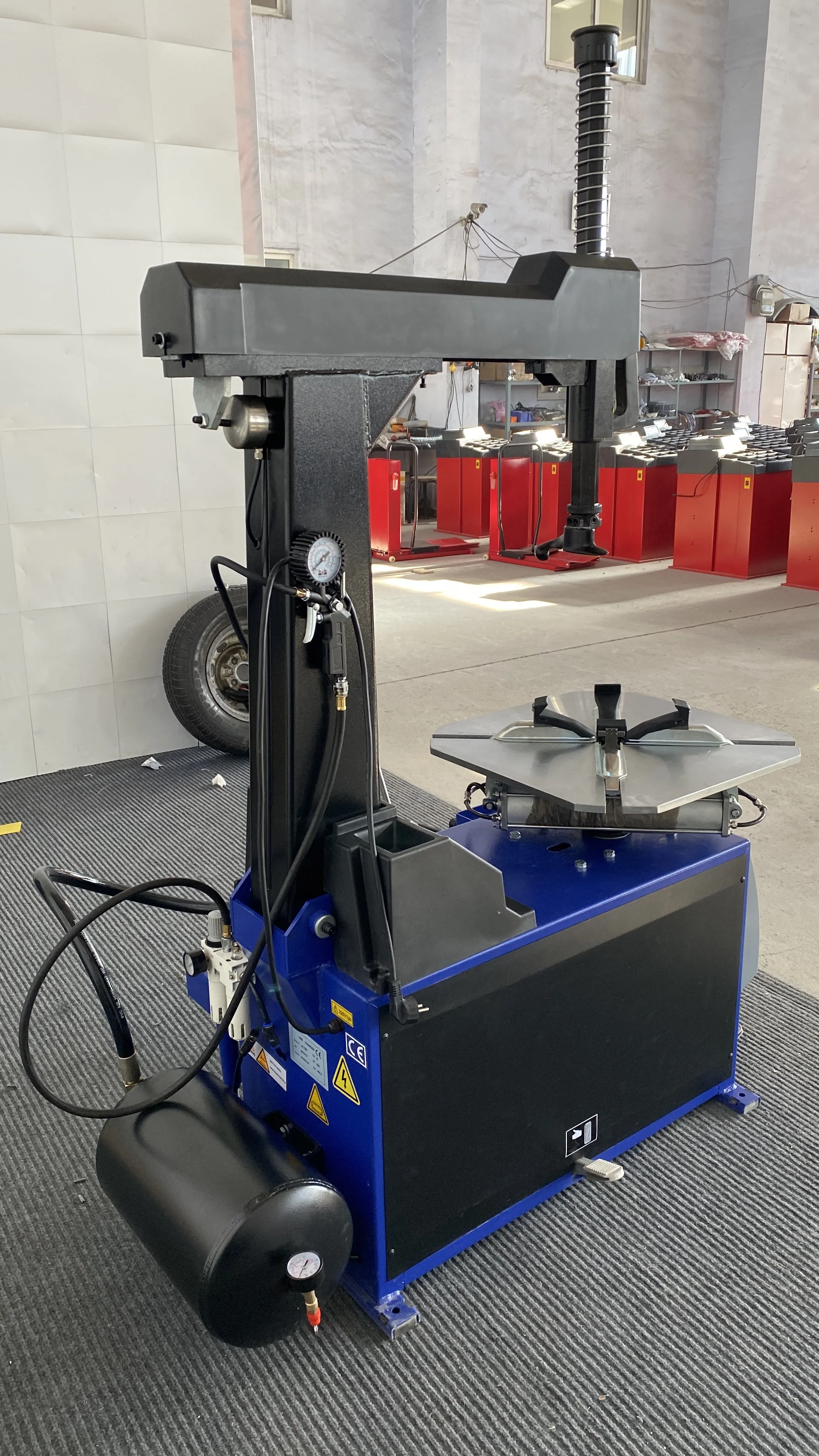

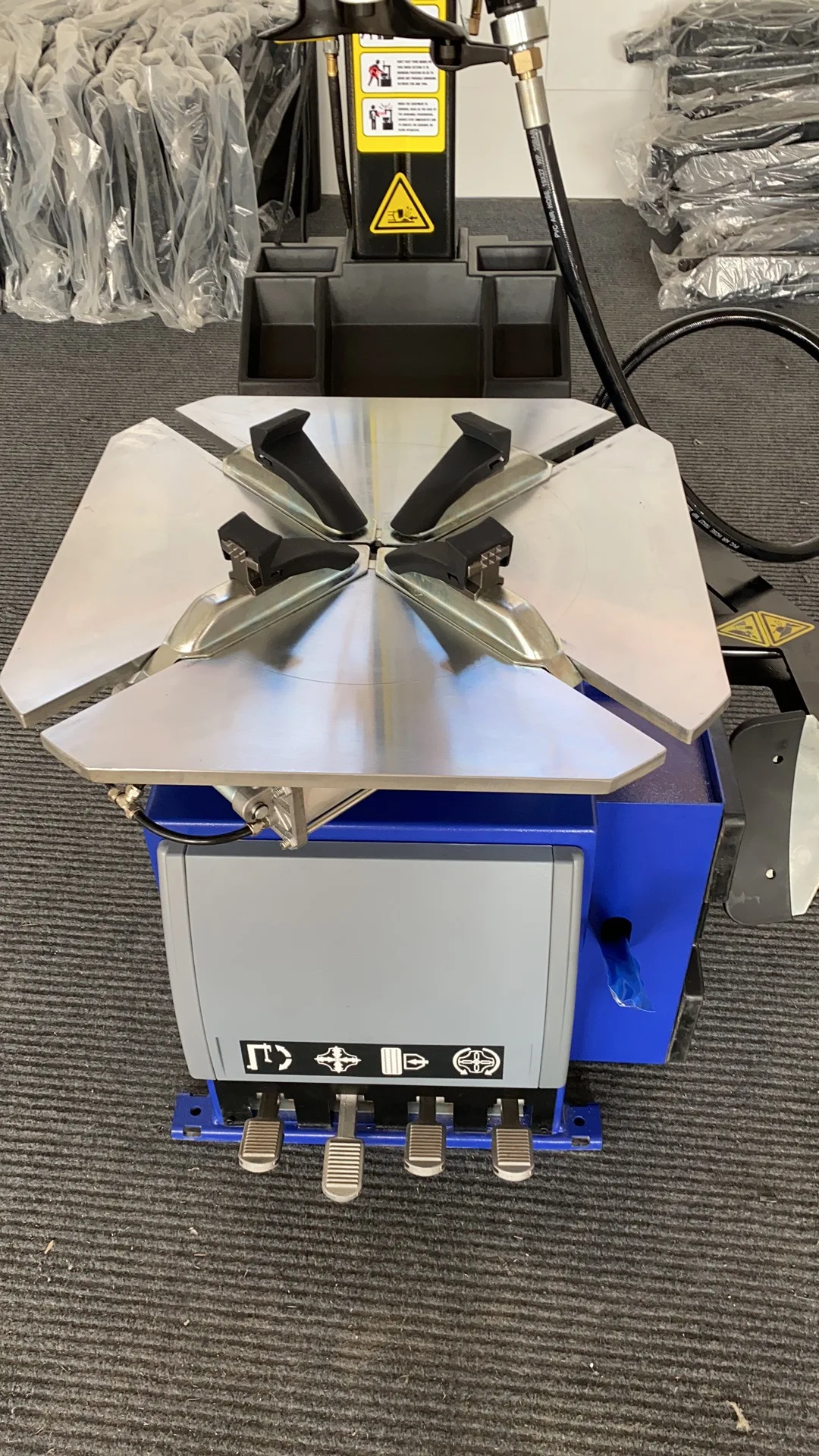

1. Pictures of tire changer

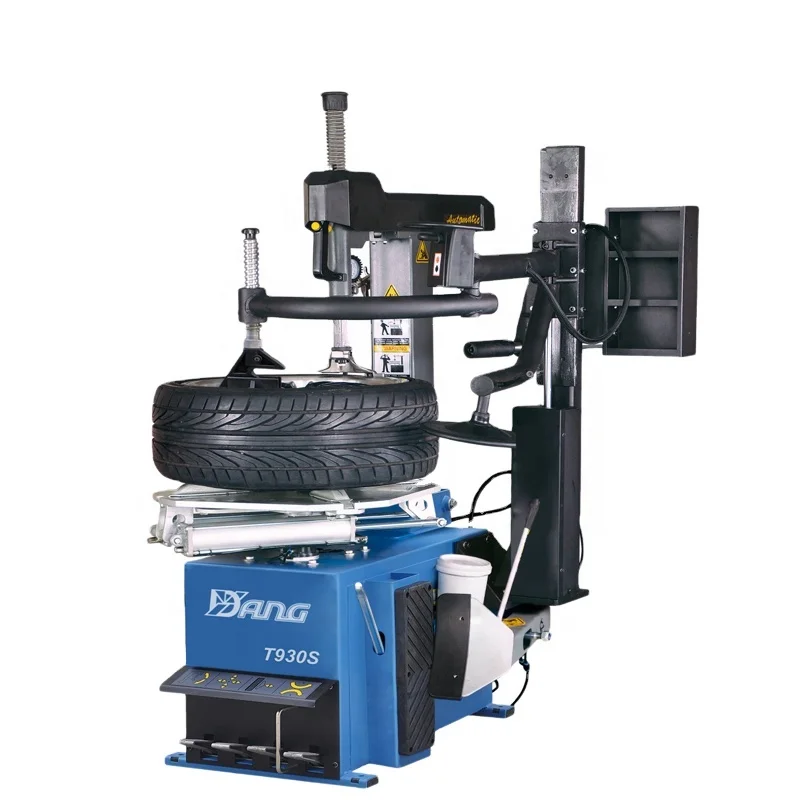

T930S


Important reminder:


1. We have DY-T930S Italian quality tire changer in store (220V/50HZ and 380V/50HZ), we will arrange delivery within 3 days after receiving payment.





2. Other special voltage should be reserved 30 days in advance.


tire changer parts.jpg





2. Main features of  tire changer





1. Automatic tire changer, backward, forward and tilt of column is controlled pneumatically.





2. Special working head, wear-resistance, no bending, no rupture.





3. Assistant arm is easy to operate flat wide tires.





4. Universal switch is 40A with a pure silver touching point, it can bear great load with a ling using life.





5. Clamp jaws made by USA 8640 alloy steel, high strength, wear resistant and anti-rust.





6. Six-axis S41, avoid deformation effectively.








Technical Specification of tire changer





Motor power--------------- 0.75/1.1KW/0.55KW


Rim Clamping outside-----------10"-20"


Rim Clamping inside-------------12"-24"


Max. tire diameter------------- 37”(930mm)


Max. tire width----------------- 12”(305mm)


Working pressure------------8-10bar


Bead breaker force----------2500kg


Power supply-----------------100V-415V,50/60HZ


N.W-----------------------------349kg


Package size---------------- 980*760*1010mm &12800*550*450mm


tire changer size.jpgtire changer specifications.jpg


  3.Exploded View of tire changer


exploded view.jpg


A vertical shaft spring   B. manual valve lock button  C. hex shaft  D. tool head



E. clamping jaw F. turntable G. front panel  H. column tilt back pedal



I. clamping pedal J. bead breaker pedal K. turntable rotation pedal L. crowbar



M. tire support N. blade O. blade handle P. bead breaker arm Q. clamping cylinder



R. bead breaker cylinder S. air regulator T. air tank U. column





4.More Products To Choose





T800







5.Production process equipment1.jpg



6.CE Certification





Packaging & Shipping




1*20GP container-------------26 sets


1*40GP container-------------60 sets













Related products







Our Services


Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.





Warranty Conditions:


1. This warranty is valid from the date of receiving equipments.





2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.





3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.





4. This warranty does not apply to damage or deterioration, which is caused by human.





5. During warranty period, shipping cost of replacement products or parts are our responsibility.





6. Beyond the warranty period, we provide spare parts to customers at factory cost.
