Характеристики
Product Description

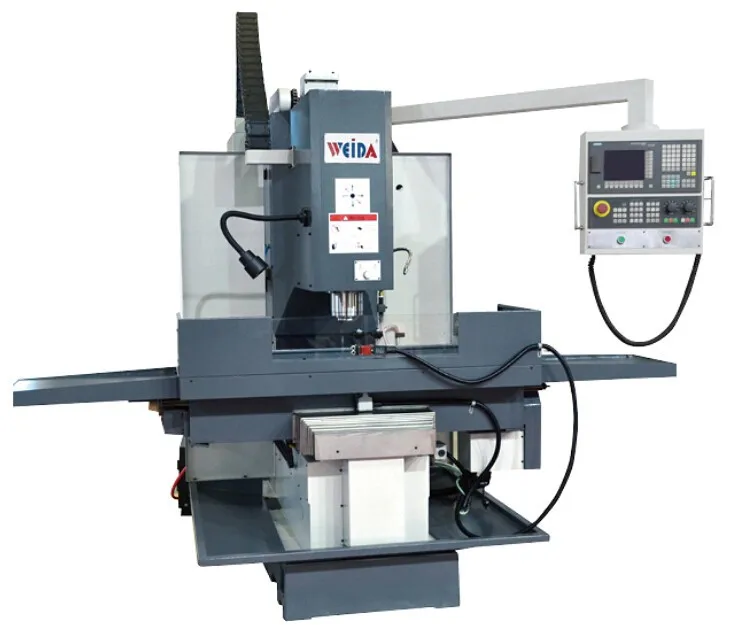

XKW7136C turret cnc machine
Specification
No. | Specification | Parameter |
1 | Spindle taper | BT40 |
2 | Spindle speed range | 40~6000 r.p.m |
3 | Spindle speed steps | stepless |
4 | Distance between spindle center line and surface ofcolumn (mm) | 475 |
5 | Distance between spindle nose and table surface (mm) | 100 ~560 |
6 | Distance between spindle nose and column guideway (mm) | 500 |
7 | Table size (mm) | 1325×360 |
8 | Table travel (mm) | 1050×400 |
9 | T slots | 3/14/95 |
10 | Max. rapid speed(X,Y,Z) | 3000mm/min |
11 | Cutting speed(X,Y,Z) | 2-2000mm/min |
12 | Min. Moving unit | 0.005mm |
13 | Main motor power | 5.5KW |
14 | Servo motor power | 1.5/1.5/2 |
15 | Positioning accuracy | 0.025mm |
16 | Repeat positioning accuracy | 0.015 |
17 | Overall dimension (L×W×H) (mm) | 2600×1950×2300 |
18 | Net weight (kg) | 2500 |
Packaging & Shipping
Machine: XKW7136C turret cnc machine
Type of package: Plywood case
Packing dimension:225x175x240cm N.W./G.W.: 2500/2800KG
Suitable Container and quantity:
40HC: 6SETS
Company Introduction
Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an area
500,000 square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500million,
there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.
We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed to
8 series:cnc gantry type machining center, vertical/horizontal machining center,cnc boring and milling machine,
radial drilling machine, cnc small milling machine ,vertical milling machine, milling drilling machine,altogether more
than 90 specifications.
We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.
Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to realize mutual
development.
Certifications
Trade Shows
Various activity
FAQ
Guarantee and After-sale service
*********************************************
•One year guarantee for whole machine
• technical support by email ,also can make a call at any time according to the following contact information.
