Tianjin SS Строительная конструкция регулируемая балка стальная опора штатив столб колонна
- Категория: Scaffoldings >>>
- Поставщик: Tianjin,Shisheng,Scaffolding,&,Formwork,Group,Co.,Ltd.Tianjin,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 730.96 $* | 745.21 $* |
| Jul-18-2025 | 592.73 $* | 604.45 $* |
| Jun-18-2025 | 719.82 $* | 733.54 $* |
| May-18-2025 | 713.2 $* | 727.85 $* |
| Apr-18-2025 | 569.73 $* | 580.94 $* |
| Mar-18-2025 | 702.35 $* | 716.47 $* |
| Feb-18-2025 | 696.94 $* | 710.98 $* |
| Jan-18-2025 | 690.54 $* | 704.78 $* |
Характеристики
Product Description
SGS Certificated Adjustable Q235 Steel Post Support
Product parts

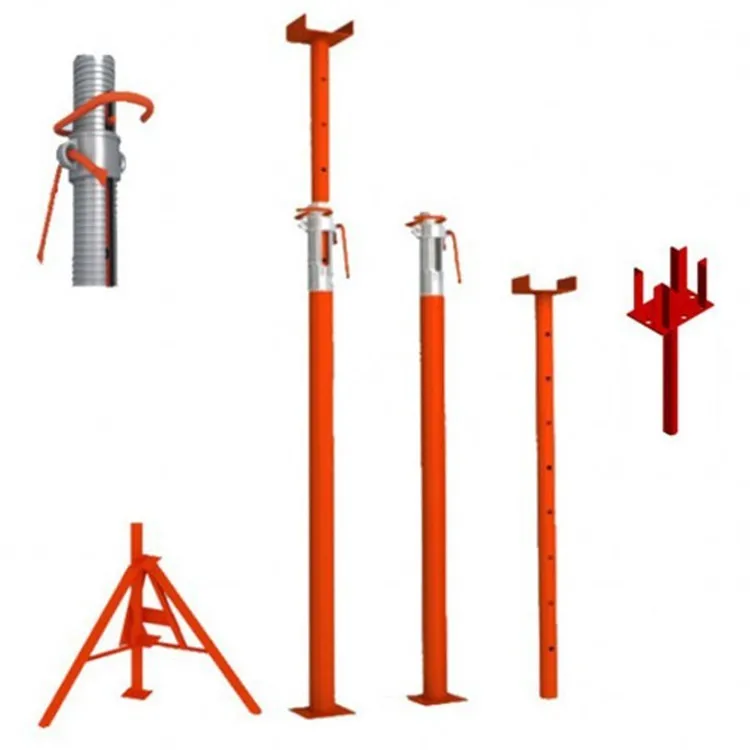

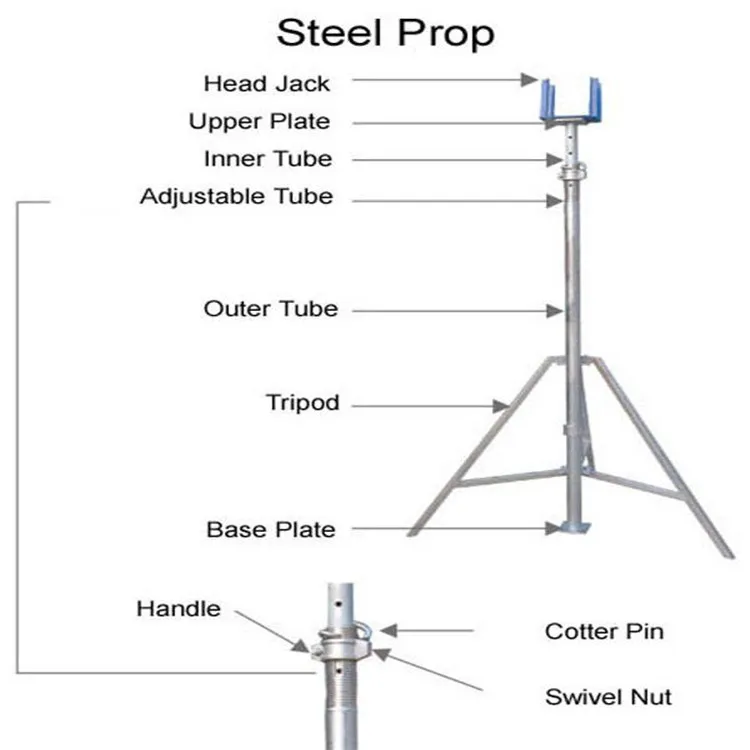

1. A complete set of steel prop consists of top plate,base plate,inner pipe,outer pipe, sleeve,nut and pin.
2.The top plates of steel prop can be square plate, flower plate, U-shaped or T-shaped.
2.The top plates of steel prop can be square plate, flower plate, U-shaped or T-shaped.
3.The pins of steel prop can be cap pin, g pin, line pin or chain pin.
4.The nuts of steel prop can be wing nut or cup nut.
5.The outer tube of steel porp can be welded or cold rolled.
Performance
The load capacity of steel support is mainly determined by the wall thickness. We can provide 3.5mm wall thickness steel post supports. Its appearance is mainly determined by the way of surface treatment. Powder coating and pre galvanizing make its appearance smooth and bright. The more firmly the plastic coating or zinc coating is attached to the steel support, the better the antirust effect and the longer the service life.
Welded Outer Tube VS Cold Rolled Inner Tube
Cold rolled outer tube is stronger and more expensive than welded outer tube.
Powder Coated VS Painted VS Pre Galvanized
Powder coated steel prop is smoother and brighter than painted steel prop. And the powder coated is stronger, so it has a longer service life. The pre galvanized steel prop is more environmentally friendly.
Hot Dip Galvanized VS Pre Galvanized VS Electro Galvanized
Types | Mass of Zinc Coating | Antirust |
Hot Dip Galvanized | 200g/m2~600g/m2 | Best |
Pre Dip Galvanized | 60g/m2~80g/m2 | Better |
Electro Galvanized | 10g/m2~30g/m2 | Good |
Wing Nut VS Cup Nut
They are all cast nuts. Cup nuts are easier to handle than wing nuts
Special Service
Detailed inspection photos are provided before each shipment.
We are familiar with the steel prop market, and we can recommend the most popular products in your market.
Specification
Place of origin | Tianjin, China | ||||||
Brand | SS Group | ||||||
Type | Heavy duty or Light duty | ||||||
Color | Red/Orange/Blue/ Green or as costomers requirements | ||||||
Main Materials | Q235/Q345 | ||||||
Wall thickness | 1.4-4.0mm | ||||||
Size | Inner tube diameter(mm) | Outer tube diameter(mm) | Adjustable length(mm) | Wall Thickness(mm) | |||
more customized size available | 48 | 56/60 | 800-1250 | 1.4-4.0 | |||
1250-1700 | |||||||
1550-2500 | |||||||
2200-3500 | |||||||
2500-3950 | |||||||
2200-4000 | |||||||
Technique | ERW(Electric Resistance Welding) | ||||||
Surface Treatment | Galvanized/painted/powder costed | ||||||
Aplication | Constrution Building | ||||||
Certificate | SGS | ||||||
MOQ | 100 pcs | ||||||
Type of plate | Flower/Square/U-head Plate | ||||||
Type of nut | Wing nut/Cup nut | ||||||
Type of pin | Line pin/G pin/Wire pin | ||||||
Package | Packed in bulk or in bundle | ||||||
Main markets | MIddle East, Southeast Asia and all over the world | ||||||
Production Capacity | 100000pcs/month | ||||||
Packing & Delivery
Description | External pipe (mm) | Internal pipe (mm) | 20GP (pcs) |
Middle east | 60x3.0x1500 | 48x3.5x2100 | 1500 |
60x3.0x2800 | 48x3.3x3000 | 1000 | |
German prop | 60x2.0x1340 | 48x2.0x1400 | 2300 |
60x2.0x1540 | 48x2.0x2000 | 2000 | |
60x2.0x1840 | 48x2.0x2200 | 1750 | |
60x2.0x2540 | 48x2.0x3000 | 1500 | |
Italian prop | 56x1.6x1510 | 48x1.8x1600 | 2200 |
56x1.6x1510 | 48x1.8x1800 | 2100 | |
56x1.6x1750 | 48x1.8x2000 | 2000 | |
56x1.6x2010 | 48x1.8x2200 | 1750 | |
Spanish prop | 48x1.6x765 | 40x1.8x835 | 3500 |
48x1.6x1600 | 40x1.8x1600 | 2200 | |
48x1.6x1700 | 40x1.8x2000 | 2000 | |
48x1.6x2000 | 40x1.8x2200 | 1750 |
Certifications
Production Process
Company Profie
Tianjin Shisheng Scaffolding & Formwork Co., Ltd. has been engaged in steel building materials for 16 years. The factory is located in Daqiuzhuang Town, Jinghai District, Tianjin, close to national highway 205, 70 kilometers away from Tianjin Xingang Port, 50 kilometers away from Tianjin airport, with convenient water, land and air transportation. The factory covers an area of 100000 square meters, has 130 employees and can produce about 400000 tons of construction products annually.
The company's main products are scaffolding, steel support, formwork, pedal, steel pipe. The company pays attention to product quality, advanced detection means, complete equipment, strict and standardized quality assurance system, and has passed ISO9001:2000, SGS and other international quality management system certification. According to API, ASTM, en, JIS, BS, DIN, GB and other standards, the company can produce various types and specifications of seamless steel pipes, such as straight welded pipes, spiral welded pipes, etc. The available steel grades are gr.a, gr.b, x42-x100, H40, J55, K55, s195t, s235jrh s355joh, s355j2h, st33, ST42, stk400, stk500, Q235, Q345, etc.
Excellent quality and first-class service make our products not only sell well all over the country, but also in Europe, America and Oceania.
Advantages of the company:
1. Fast delivery: 2 weeks delivery, steel pipes available
2. Visualization of production process
3. SGS inspection: steel support, scaffold, steel pipe
ISO9000: formwork, scaffold, steel support, steel pipe
4. Customized product parameters, product accessories and product packaging
The company's main products are scaffolding, steel support, formwork, pedal, steel pipe. The company pays attention to product quality, advanced detection means, complete equipment, strict and standardized quality assurance system, and has passed ISO9001:2000, SGS and other international quality management system certification. According to API, ASTM, en, JIS, BS, DIN, GB and other standards, the company can produce various types and specifications of seamless steel pipes, such as straight welded pipes, spiral welded pipes, etc. The available steel grades are gr.a, gr.b, x42-x100, H40, J55, K55, s195t, s235jrh s355joh, s355j2h, st33, ST42, stk400, stk500, Q235, Q345, etc.
Excellent quality and first-class service make our products not only sell well all over the country, but also in Europe, America and Oceania.
Advantages of the company:
1. Fast delivery: 2 weeks delivery, steel pipes available
2. Visualization of production process
3. SGS inspection: steel support, scaffold, steel pipe
ISO9000: formwork, scaffold, steel support, steel pipe
4. Customized product parameters, product accessories and product packaging
