Подвесная платформа a7355 для строительства двигателя подъемник дискотеки
- Категория: Scaffoldings >>>
- Поставщик: Beijing,Go,Higher,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.8 $* | 0.74 $* |
| Aug-15-2025 | 0.8 $* | 0.48 $* |
| Jul-15-2025 | 0.83 $* | 0.22 $* |
| Jun-15-2025 | 0.11 $* | 0.34 $* |
| May-15-2025 | 0.79 $* | 0.54 $* |
| Apr-15-2025 | 0.50 $* | 0.6 $* |
| Mar-15-2025 | 0.16 $* | 0.66 $* |
| Feb-15-2025 | 0.2 $* | 0.67 $* |
| Jan-15-2025 | 0.33 $* | 0.19 $* |
Характеристики
Product Overview
ZLP250/ZLP630/ZLP800/ZLP1000 Suspended Platform
ZLP series Temporarily installed suspended access equipment developed and produced by Gohigher Company which is an electric climbing type decoration machine, which is mainly applied to the external wall construction, decoration, cleaning and maintenance of high-rise and multi-storey buildings. It can also be applied to elevator installation, large tanks, bridges, dams and other engineering operations.
FEATURES AT A GLANCE
1.The length can be adjusted within 1m-30m.
2.The working height can be adjusted with customers' need.
3.The voltage meet different countries standards
4.Materials 3 Types :
2.The working height can be adjusted with customers' need.
3.The voltage meet different countries standards
4.Materials 3 Types :
1)Aluminum alloy
2)steel
3)Hot dipping zinc or galvanized
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |||
1 | Rated Load | 500KG | 630KG | 800KG | 1000KG | |||
2 | Platform Size | 5M | 6M | 7.5M | 7.5M | |||
3 | Hoist Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2KW*2 | |||
4 | Hoist Type | LTD630 a Type | LTD630 a Type | LTD800 a type | LTD80 S type | |||
5 | Voltage/Frequency/Phase | 380V/220V/415V,50HZ/60HZ,3Phse/Single Phase | ||||||
6 | Safety Lock | Anti tiling LSB30 | ||||||
7 | Cable | 100M | ||||||
8 | Wire Rope | 8.3MM | 8.3MM | 8.3/9.1MM | 8.6MM | |||
PRODUCT CONFIGURATION

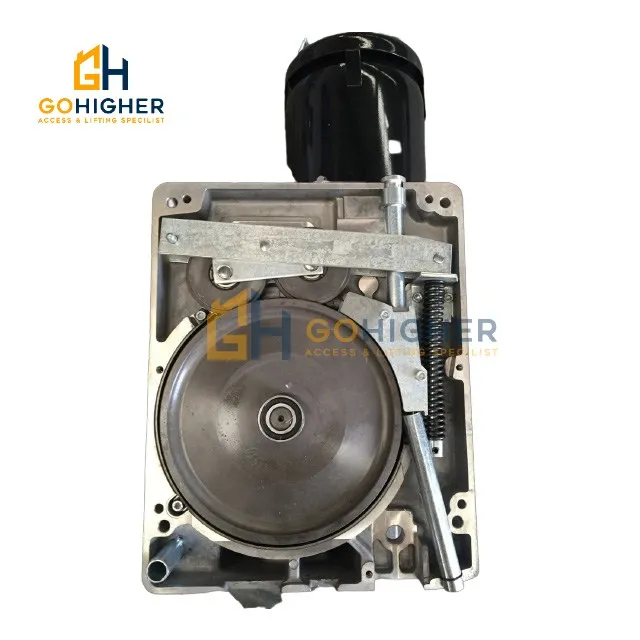

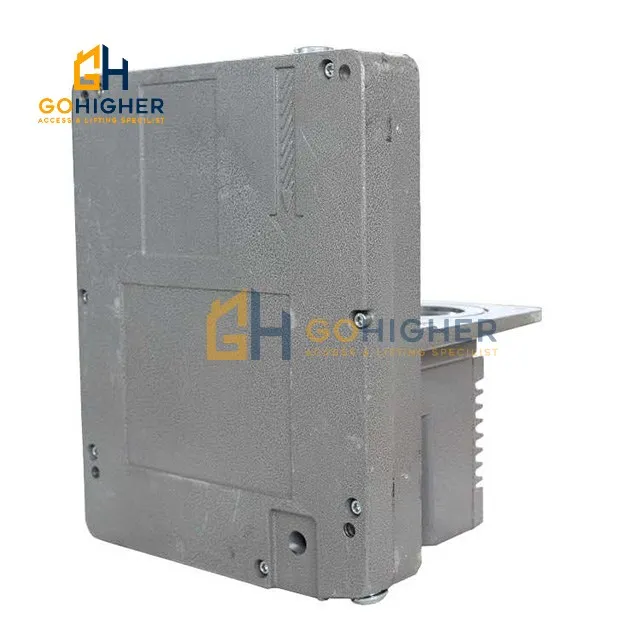

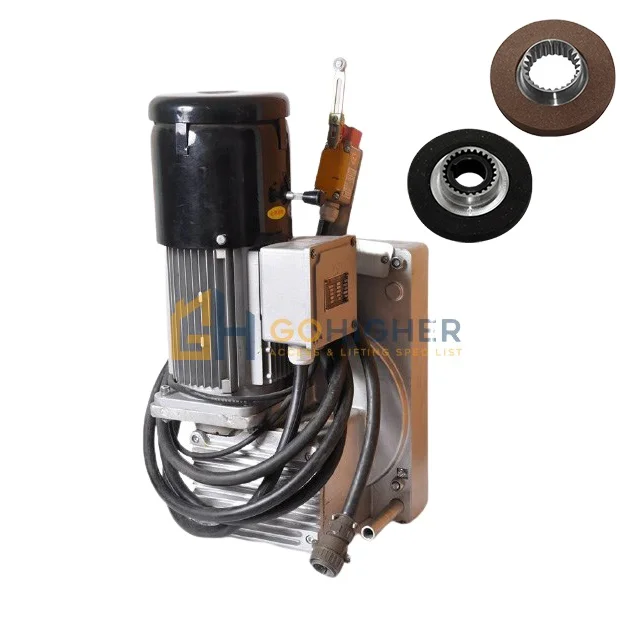

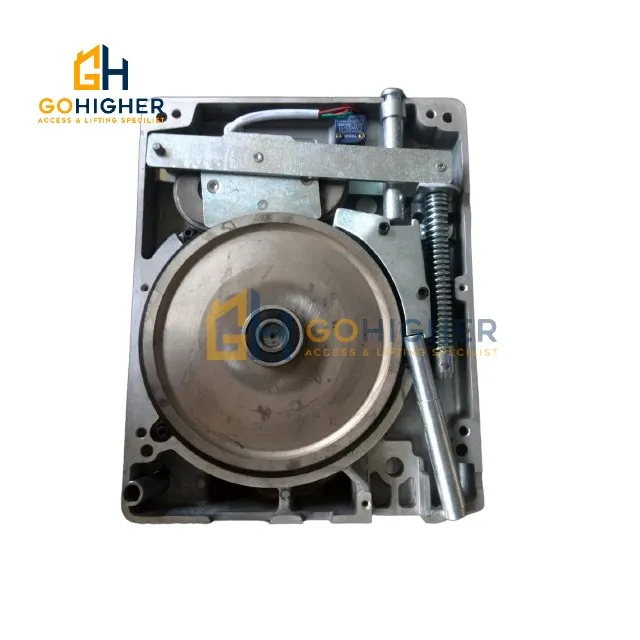

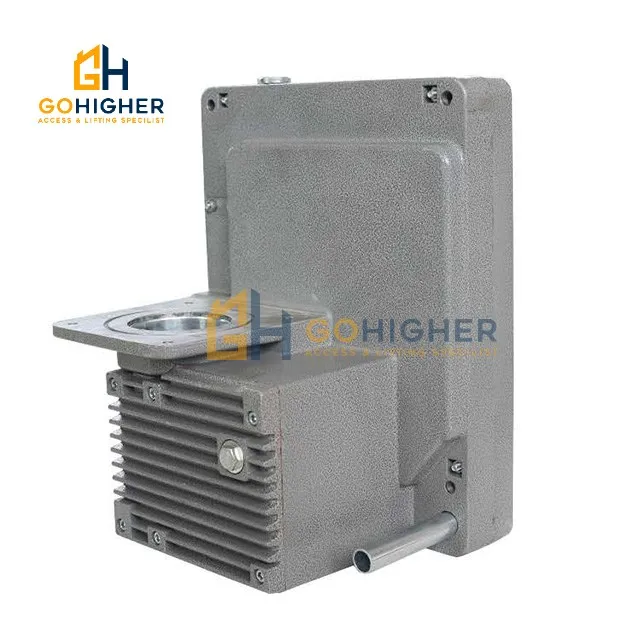

LTD Aluminum Motor
Safety Lock with leg or without leg
Anti water control box
Counterweight
Wire Rope
Cable
Successful Project
Project in Thailand
Project in India
Project in Russia
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q1: Delivery Time
A1: 3days for standard type,7-10 days for special made;
Q2: Suspended Platform Guarantee?
A2:3 Years Guarantee;
Q3: After Sales service?
A3: Free Parts offered, 24hours on line service; Video Guide 24/7
Q4: Installation?
A4: Suspended Platform Manuel instruction book +Video guide;
