Машина GRP/ FRP для производства панелей из армированного стекловолокна кузова холодильного грузовика/кузова

  This production line can produce 3.2m ultra-wide flat gel-coat sheet (special for Truck body)

peration staff: 4-10     speed of production: 2-5m/min

Sheet width: Maximum effective width is 3200mm

Thickness of sheet: 0.4-4.0mm

Main dimension of equipment: 75m×5m×3.5m

Power requirement: 280 kva

Power consumption: actual consumption is 150KW/h

This production line has EU certification, certified model FRP3200

Number of certificate: No.M7, 1302, 8307, 002

 1,  Chain clip flattening techniques developed by Dnuo Technology Company, domesticallyfirst, this is the only equipment that could satisfy the requirement of high-levelness of truck body sheets.

2,  Temperature-control raw material mixing techniques, real-time control on temperature and dosage of raw material, control the quality from the origin of production.

3,  Able to conduct on-line spontaneous re-coiling of sheet by certain quantities, convenient for storage and transportation.

4,  Width of product could be made on demand.

5,  Whole line applies Ethernet total line communication, high speed, good stability. System is strong-expandable, able to connect host computer to conduct management to production, able to conduct remote service. Brands of electric control system could choose: DELTA, AB, Siemens to satisfy needs of various customers.

6,  Impregnation platform multi-line independent temperature control, temperature control is precise, able to better adapt change of ambient temperature, quick impregnation, speed of production could be improved effectively;

7,  Pulse-free metering system, metering is precise, wide range on flow rate adjustment, able to add powder fillers.

8,  Easy operation based on PLC intellectual control system. Operate by computers, the production task and equipment operating data is faster and intuitional. Only short-term training can make operators complete production independently..

9,  Multi-point temperature control chamber, unique arithmetic on temperature control, speed of heating is fast and temperature control is precise, improving quality of product and reduces energy consumption of equipment, degree of sheet curing is high.

10,Special cross cutting machine, good synchronization performance make accurate cutting.

11,Particular parts adopt special purpose wire, durable in use.

12, Size and layout of machine can be made according to customer requirements

 Successful Case

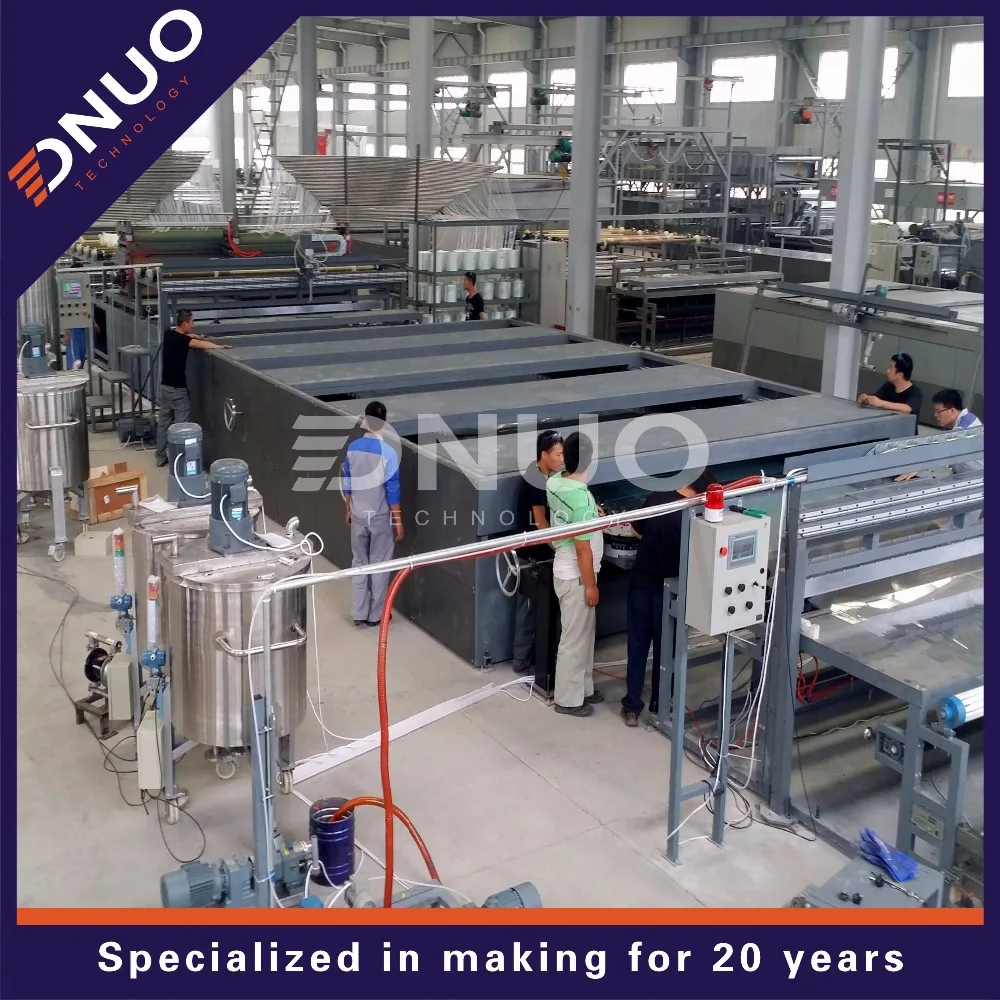

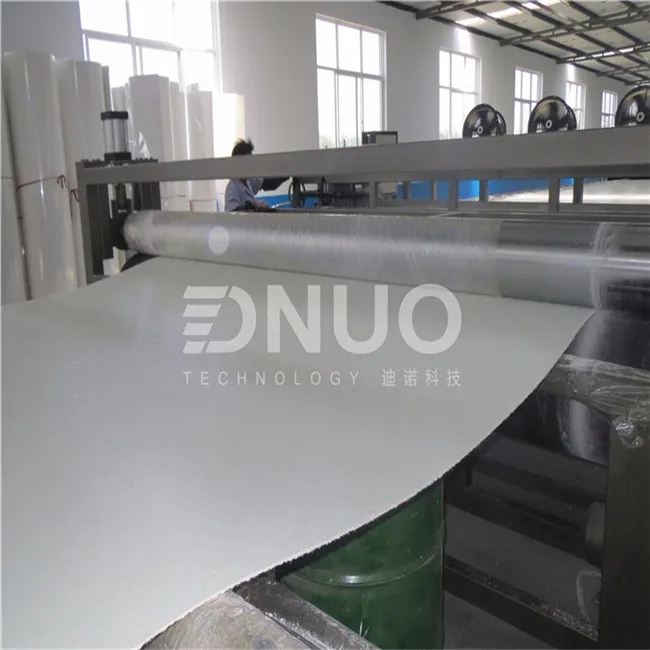

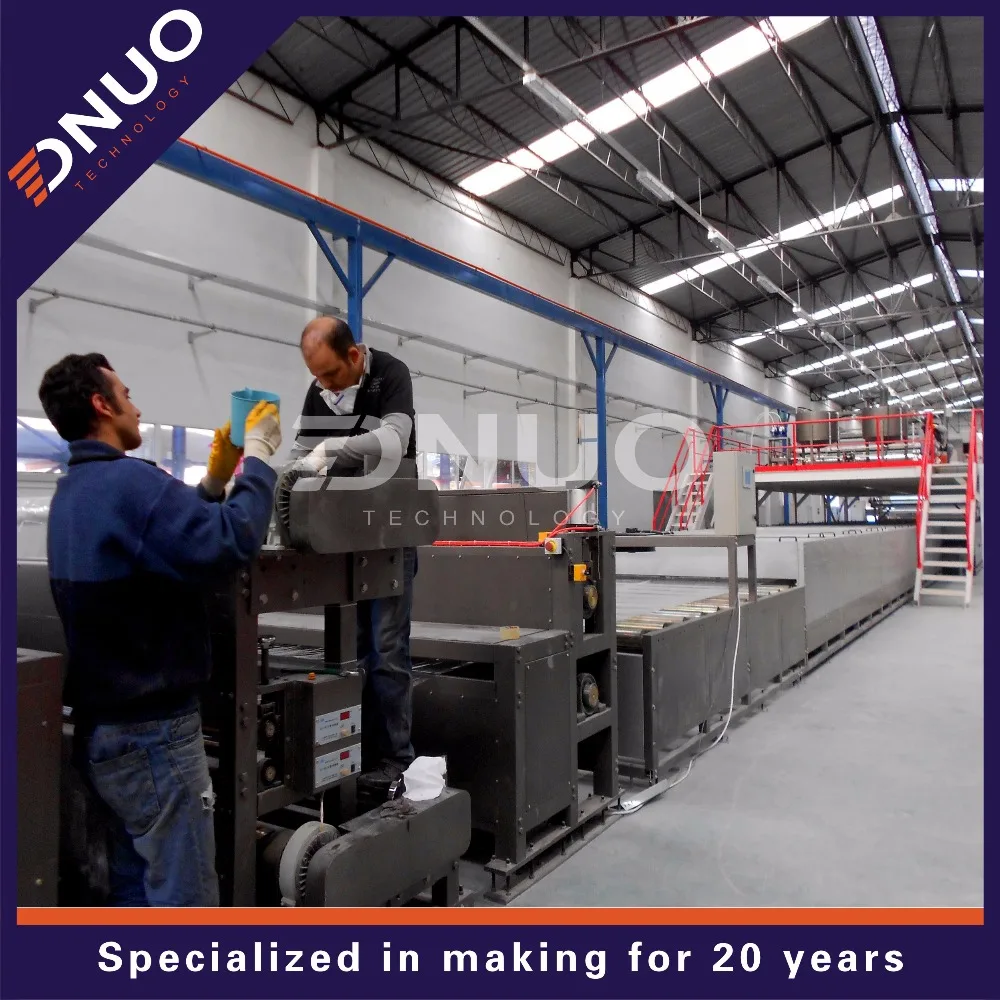

Machine

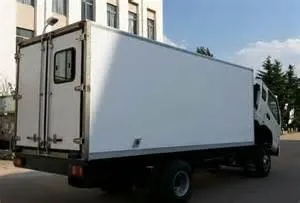

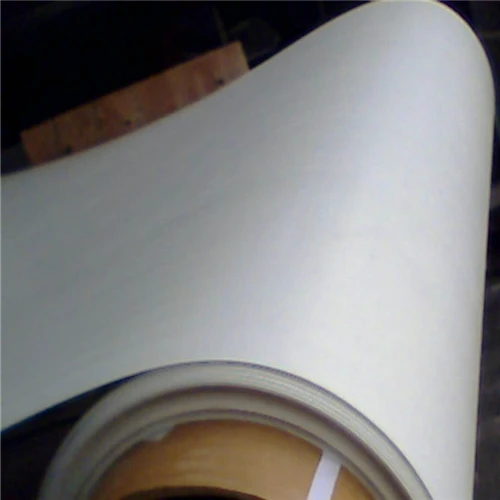

Product

Guarantee and After-sale Service

1. Guarantee for 1 year excluding wear and electrical parts. Extra fee is paid if out of date. Any damage to the damage to the machine caused by the improper use will be charged.

2. The equipment is fully test before delivery

3.  Free installation, training and commissioning on site to help the operators operate as soon as possible

4.  We will provide wear and electrical parts at an agency price when you need replacement.

Guarantee and After-sale Service
1. Guarantee for 1 year excluding wear and electrical parts. Extra fee is paid if out of date.

     Any damage to the machine caused by improper use will be charged.

2.  The equipment is fully test before delivery

3.  Free installation, training and commissioning on site to help the operators operate as soon

     as possible

4.  We will provide wear and electrical parts at an agency price when you need replacement.

Package

 For the large-sized parts, we take some measures to fix them. For the other parts,

we pack them with polywood. Hereby, we declare that we will try our best to pack

your goods well make them arrive in destination safely.

Exhibition

Certificate

FAQ

1.Are you manufacturer or trader?

Yes, we are real manufacturer, if you need other special product, we will do our bestto help you, so we can build a long-term business relationship.
2. Can I order the product with special size?
Of course you can, also we will produce the products according to your detail requests.
3. Why we are your best choice?
We have direct factory and many years of export experience, and offer the best price withhigh quality product, timely delivery, also have good after-sales service, therefore with goodreputation on boards and with many clients have good long-term business relationship.
