Машина для скручивания пряжи/скручиватель

Машина для скручивания пряжи/скручиватель

Категория: >>>
Поставщик: Wuxi,Huawen,Machinery,&,Electronics,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.91 $*	0.23 $*
Aug-16-2025	0.60 $*	0.89 $*
Jul-16-2025	0.70 $*	0.88 $*
Jun-16-2025	0.49 $*	0.14 $*
May-16-2025	0.4 $*	0.99 $*
Apr-16-2025	0.30 $*	0.32 $*
Mar-16-2025	0.59 $*	0.87 $*
Feb-16-2025	0.79 $*	0.38 $*
Jan-16-2025	0.63 $*	0.28 $*

Характеристики

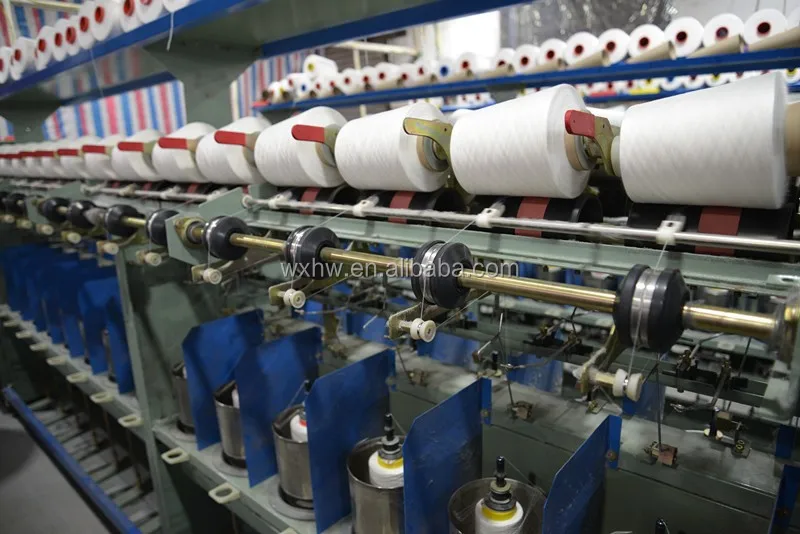

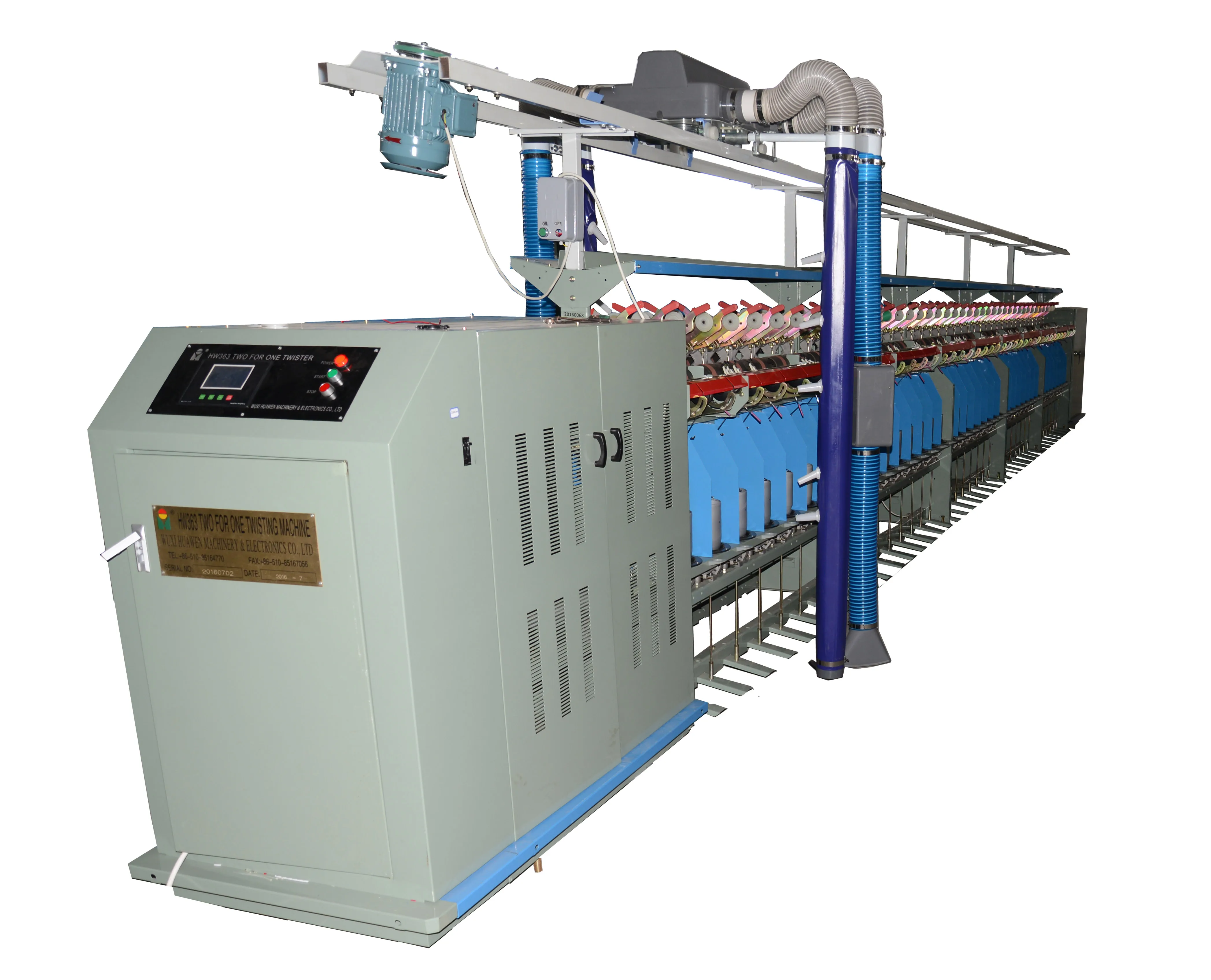

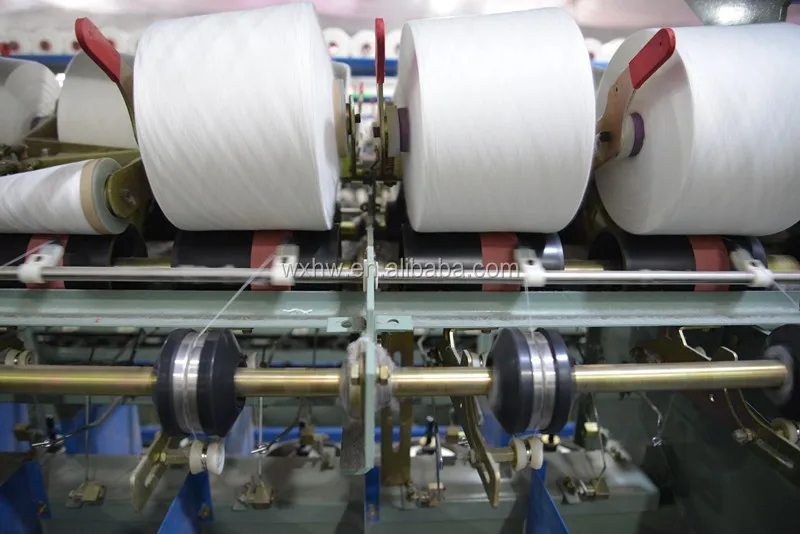

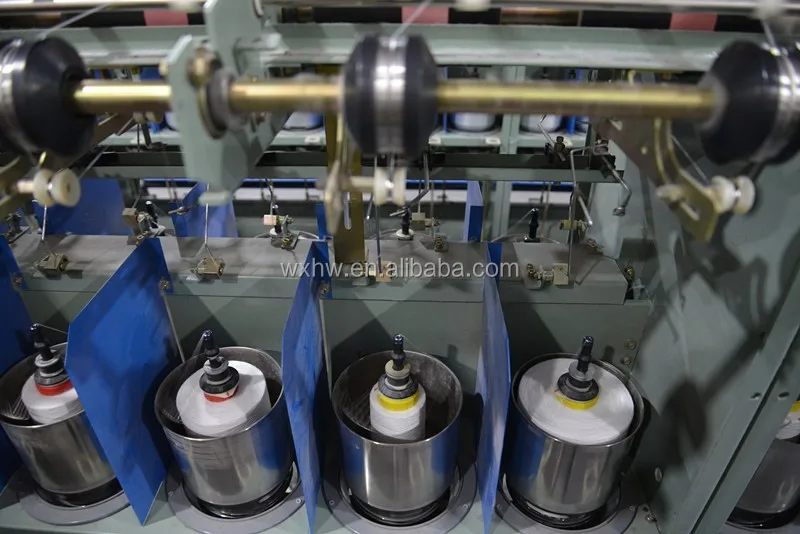

Yarn Twisting Machine/ Yarn twister machine HW363J-2

Product Description

Application

Cotton yarn, wool yarn, acrylic yarn, polyester yarn and other blended yarns,etc.

Main Features:

1. Single side, single layer, beautiful aspect, logic structure, easy operation;

2. High quality spindles perform a long-lasting stability under high speed running.

3. At the same time a capsule-type tension regulator is applied, accepting more extensive twisting conditions;

4. Winding tension is regulatable on the overfeed roller at will, so it is applicable to a loose and soft winding for dyeing purpose;

5. Foot pedal barking to remove tangential belt from spindles, constant spindle speed, easy operation, also extending service life both of tangential belt and spindles;

6. Logic end remaining yarn structure makes latter operation job easy and handy;

7. Easily removable waxing device of air loop housing, bringing more adaptabity to extensive yarn variety.

Main Specifications

Main Specifications:

1	Machine Form	Double sides, single layer
2	Spindle Number	144 Spindles (16 spindles/section )
3	Spindle	Φ146 (twist plate), Φ34 (spindle pulley)
4	Spindle driving	Tangential belt transmission
5	Spindle speed	5000~10000r/m frequency inverter speed adjustment
6	Application	Cotton yarn: 16/2~100/2 Ne Wool yarn: 2/17~2/76 Nm Blended yarn: 20/2~45/2 Ne
7	Twist direction	S or Z
8	Spindle fixing	Magnetic steel, magnetic force
9	Spindle distance	225mm
10	Twist range	108~2368 T/m
11	Tex range	36.44~7.288 (16s'/2~80s'/2)
12	Feeding bobbin specification	Φ43.5 x Φ37.5 x 170; Φ66 x Φ26.5 x 170
13	Winding capacity	Max.1500g
14	Winding stroke	152mm
15	Winding mode	Flangeless cone bobbins cross winding
16	Winding angle	10°51'~23°19'
17	Winding bobbins	A type head with groove d1=Φ46, d2=17, L1=175 B type head without groove d1=Φ46, d2=24.7, L2=175
18	Motor power	11Kw (or 15Kw)
19	Starting mode	Frequency inverter starting
20	Tension device	Pressure spring in tension capsule (or steel ball), brake washer, counterweight using together
21	Spindle brake device	Pedal brake
22	Overall dimension	16880 x 750 x 1520mm

FAQ

FAQ:

Are you the manufacturer or the trading company?

We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.

What is your advantage compared with other textile manufacturers?

We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco, Indonesia and so on.

What kind of service can you offer?

Design with your requirements by professional team.

ISO 9001:2008 certificates and letters patent.

Engineers go overseas for training.

How to check my order at last?

We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.

Customer Visiting

Customer Visiting:

Packaging & Shipping

Packaging & Shipping:

We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into the container.
