Горизонтальная Машина Для Сушки Осадка Сточных Вод
US $15000-$350000
Поворотные сушилки Охладители и кальцинирующие поворотные
- Категория: Поворотное оборудование для сушки >>>
- Поставщик: Henan,Bailing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.21 $* | 0.44 $* |
| Aug-16-2025 | 0.19 $* | 0.19 $* |
| Jul-16-2025 | 0.8 $* | 0.84 $* |
| Jun-16-2025 | 0.11 $* | 0.80 $* |
| May-16-2025 | 0.28 $* | 0.82 $* |
| Apr-16-2025 | 0.31 $* | 0.91 $* |
| Mar-16-2025 | 0.25 $* | 0.32 $* |
| Feb-16-2025 | 0.5 $* | 0.74 $* |
| Jan-16-2025 | 0.25 $* | 0.9 $* |
Характеристики
Product Description

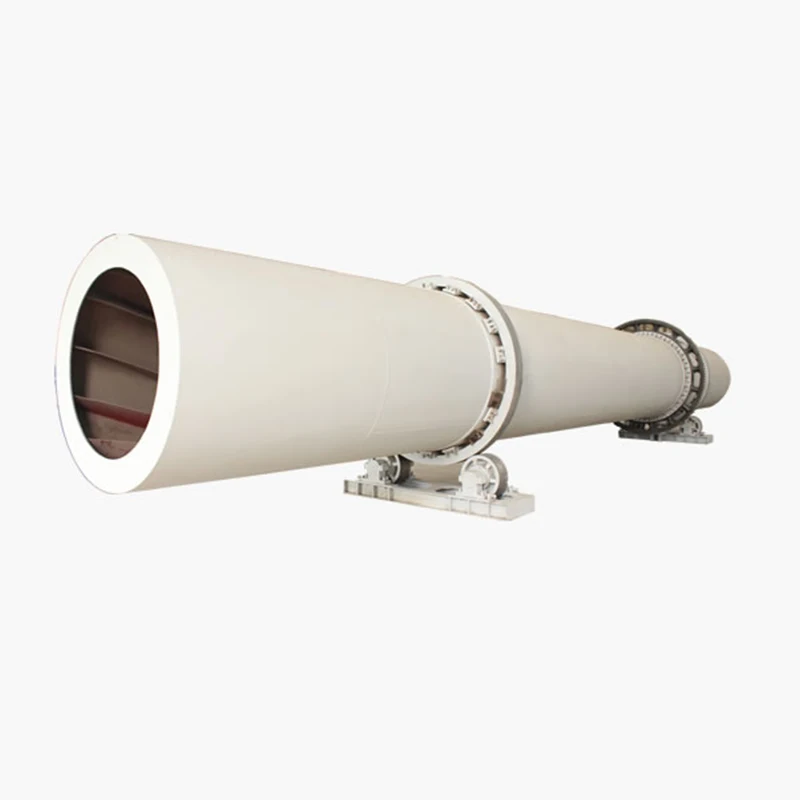

Rotary Dryers Coolers and Calciners Rotary Tube Dryers
Rotary Dryers Coolers and Calciners Rotary Tube Dryers Product Description |
We've built a reputation on building the best rotary dryer in the industry. All of our dryers are custom designed to suit the unique processing needs of your material. Whether you require low or high inlet temperatures, short or long residence times, counter-current or co-current flow, Bailing's design team can design a rotary drum dryer for your application.
Advantages of Rotary Dryer |
We can offer cost competitive designs for pilot scale units that process as little as one ton per hour to heavy duty units in excess of 17 foot in diameter that process hundreds of tons per hour.
1,Specially designed lifting flights to maximize heat transfer between the material and hot gas stream.
2,Heavy duty design and construction for many years of service.
3,Process and Mechanical Warranties.
Working Principle of Rotary Dryer |
Rotary dryer working prinple: Wet material goes into the feeding hopper by belt conveyor or bucket elevator, then through the feeder goes into the feed pipe. The feed pipe slope is greater than the natural inclination of the materials, so that the material can inflow the rotary dryer smoothly.

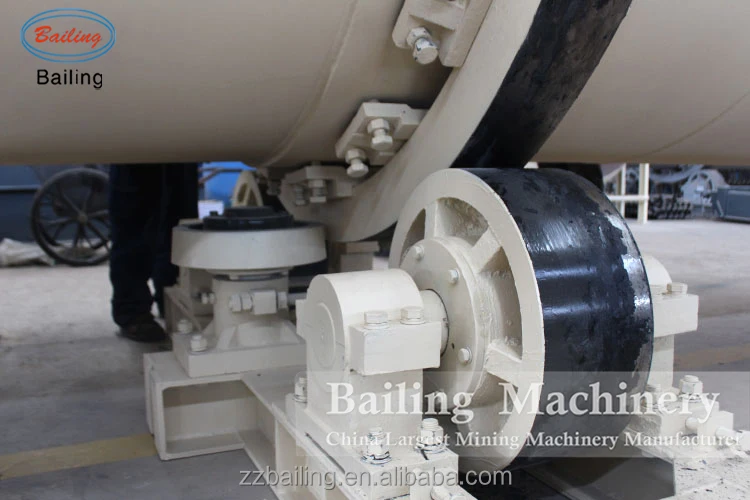

Detailed Parts |
Technical Data |
| Model | Volume(m³) | Capacity(t/h) | Obliquity(%) | Highest inlet air temperature(℃) | Main motor power(kw) | Weight(t) |
| Φ0.6×8.0 | 2.2 | 0.4~0.6 | 3~5 | 700~850 | 3 | 3.2 |
| Φ0.8×10 | 5 | 1.0~1.3 | 3~5 | 700~850 | 4 | 4.4 |
| Φ1.0×10 | 7.8 | 1.5~2.0 | 3~5 | 700~850 | 5.5 | 5.3 |
| Φ1.2×10 | 11.3 | 2.4~3.0 | 3~5 | 700~850 | 7.5 | 8.1 |
| Φ1.2×12 | 13.5 | 2.7~3.4 | 3~5 | 700~850 | 11 | 9.1 |
| Φ1.5×12 | 21.2 | 4.5~5.7 | 3~5 | 700~850 | 15 | 14.6 |
| Φ1.5×15 | 26.5 | 5.7~7.1 | 3~5 | 700~850 | 15 | 16.5 |
| Φ1.8×12 | 30.5 | 6.5~8.1 | 3~5 | 700~850 | 18.5 | 21.90 |
| Φ1.8×18 | 45.8 | 9.0~11 | 3~5 | 700~850 | 18.5 | 26.6 |
| Φ2.0×20 | 62.8 | 12~16 | 3~5 | 700~850 | 22 | 36.50 |
| Φ2.2×22 | 83.6 | 17~21 | 3~5 | 700~850 | 30 | 43.90 |
| Φ2.4×22 | 99.5 | 21~27 | 3~5 | 700~850 | 45 | 53.10 |
| Φ2.5×25 | 122.7 | 24~30 | 3~5 | 700~850 | 45 | 62.00 |
| Φ2.6×24 | 127.4 | 27~34 | 3~5 | 700~850 | 45 | 63.00 |
| Φ2.8×28 | 172.4 | 34~43 | 3~5 | 700~850 | 45 | 85.00 |
| Φ3.0×25 | 176.6 | 36~47 | 3~5 | 700~850 | 75 | 89.00 |
| Φ3.2×25 | 201 | 40~54 | 3~5 | 700~850 | 90 | 95.00 |
| Φ3.4×28 | 254 | 51~64 | 3~5 | 700~850 | 110 | 122.00 |
| Φ3.6×28 | 285 | 57~76 | 3~5 | 700~850 | 160 | 129.00 |
Main Product

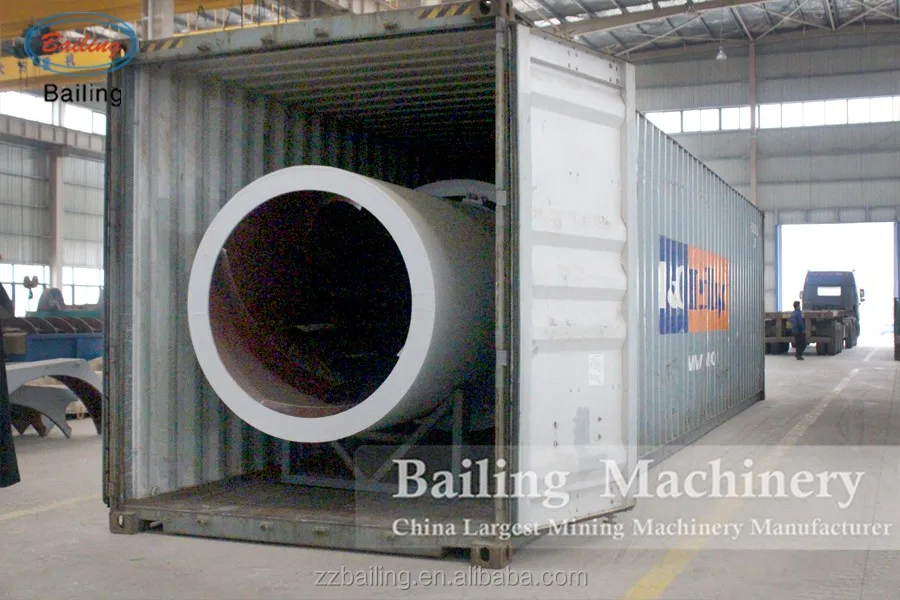

Packaging & Shipping
Packaging & Shipping
Customer Site
Customer Site
1. If the customers inquiry our machines, we will quote as soon as possible.
2. Our engineer will design the project according to the information our customers provide us, which is included the flow chart, the flash of project.
3. After our customer makes sure our project, please pay 30% of total amount, then we will arrange our workshop to produce the products.
4. Twenty days later, we will package and ship the goods to ours customers after recieving the whole price.
5. If our customer needs our guide, we will send our after-sales person to guide the installtion.
6. We will provide the best price of wear parts to our customers in the lifetime of the machine.
International Cooperation
International Cooperation
Company View
Company View
Company Honor
Company Honor
FAQ
Q: 1.Are you factory or trade company?
A:We are factory.
Q: 2. To which country your products have been exported before?
A: Our products have been sold to America, Brazil, Chile, Sudan, Zambia, Kenya,Turkey, Indonesia,Malaysia, Philipines, Australia, Iran, India and so on.
Q: 3. How will you help the customer install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q: 4. How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.
Q: 5.What about the payment method?
A:T/T, Paypal, Western Union, L/C is available
Q: 6.What about the Shipment?
A:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment such as DHL,FEDEX,TNT or UPS.
Q: 7.What about after-sale service?
A:12 months warranty for all kinds of products;
