Шлифовальная машина Raizi для бетона 1550 мм 11 кВт *

Описание и отзывы

Трекер стоимости

Характеристики

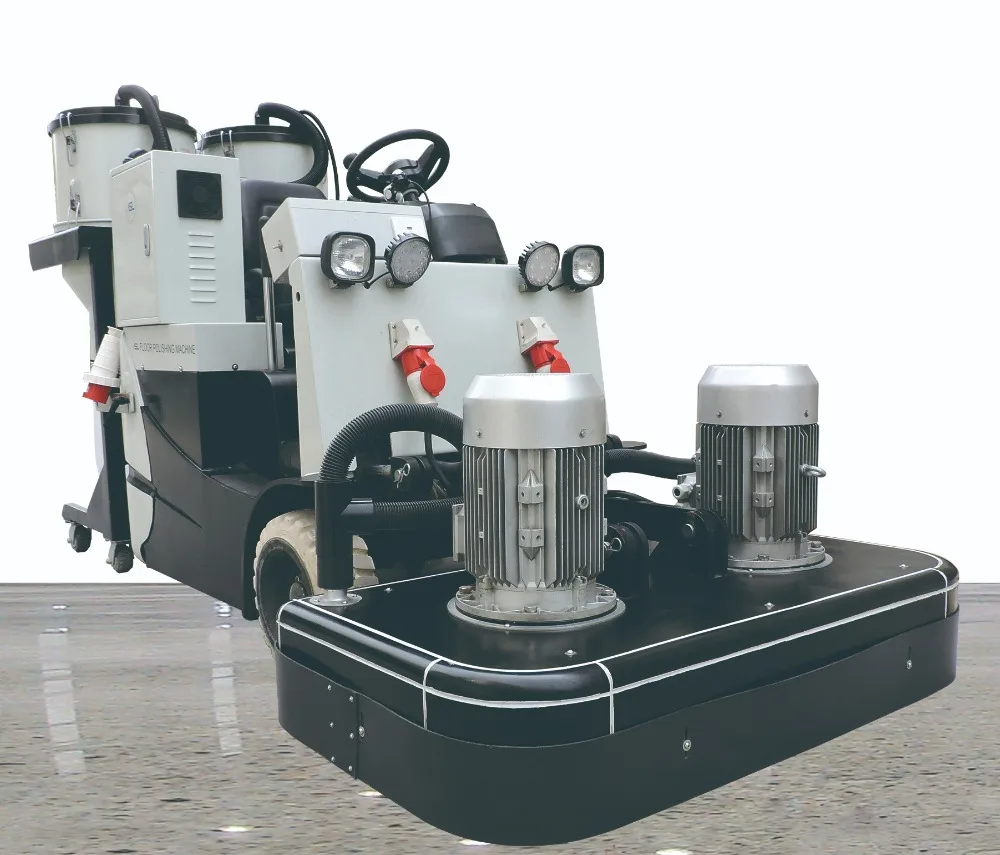

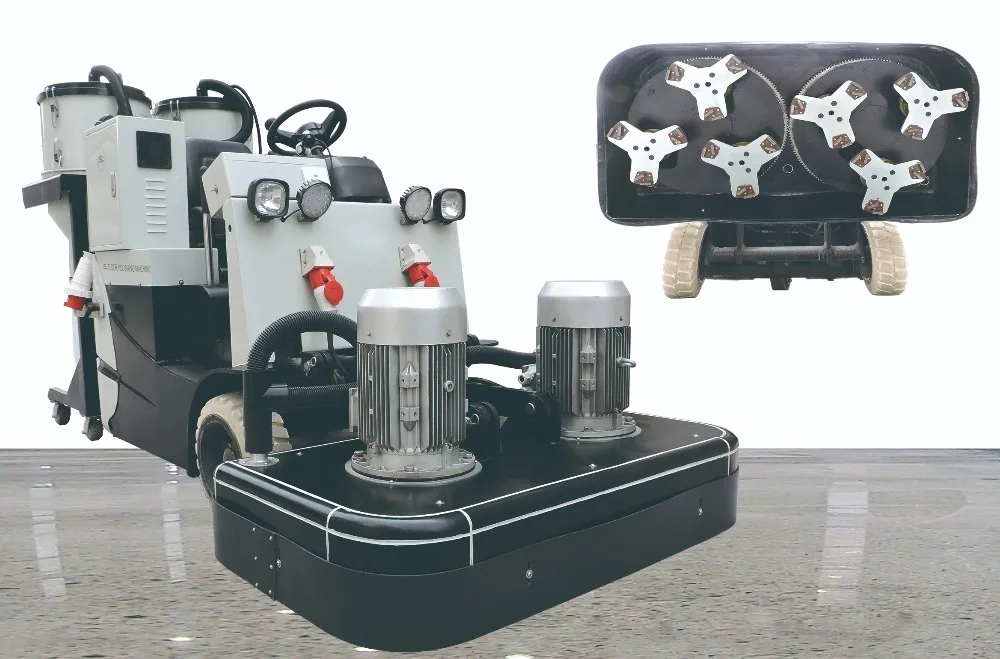

Raizi 1550mm 11kw*2 Ride on planetary Concrete Floor Grinder

The RAIZI RZ1500-P15 concrete floor grinder is equipped with an 8HP, 460 volt ride-on Floor Grinder system that can work in both large or small areas. The ergonomic industry design and the simple control panel make this ride on floor grinding machine easy to operate. This floor grinder is electric powered, but it also has a battery-powered option for easy transport solutions. The RAIZI RZ1500-P15 rotates 180-degrees, and the modified grinding head consists of two 650 HDX heads, the grinding width is 1.5m and the motors are 1kw each. This floor grinding system also comes with an on-board Mist Cooling System and two integrated suction devices that offer a cleaner, safer, and more environment friendly working site.



The floor grinding machine is extremely effective, grinds and polishes a large area flat in a short time, which means huge time-savings for the operators and the conctractor. The AIZI RZ1500-P15 concrete floor grinder is compact and easy to operate. The floor grinder is incredibly maneuverable for small areas. This concrete floor grinding machine creates incredible shine finish on the concrete floor.







TECHNICAL   PARAMETER
Model		RZ1500-G015	Electric Motor	Drive Motor Power	2.2KW
Voltage		380-440V		Lift Motor Power	3KW
Current		20A		Battery voltage/Rated Capacity	24/400V/AH
Motor		11KW×2		Battery Weight	330KG
Inverter		22KW		Battery Size	812mm*322mm*490mm
Frequency		50/60HZ	Vacuum Cleaner	Model	CH-1000
Disc Speed		300-1600rpm		Voltage	220V/60Hzsingle phase×2
Grinding Width		1500mm		Power	3600W/4.8HP×2
Disc Diameter		390mm×6		Max.Vacuum	3000mmAq×2
Running speed		2-6km/h		Max.Airflow	10m3/min×2
Machine Width		1500mm		Weight	63kg×2
Machine Length		2100mm		Dimension	780*500*1550mm(L×W×H)
Weight	Curb weight	2000KG		Hose	50Φ/75Φ×2
	Nose weight	550KG		Motor Type	Dry/Wet
	Body weight	1450KG		Noise	75db×2
Storage Battery		220V Voltage,12 hours after fully charged
