Изоляционная насадка Vespel SP1 PI для горячего
- Категория: Other Plastic Products >>>
- Поставщик: Guangzhou,Ideal,Plastic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.90 $* | 0.56 $* |
| Aug-15-2025 | 0.35 $* | 0.77 $* |
| Jul-15-2025 | 0.22 $* | 0.99 $* |
| Jun-15-2025 | 0.27 $* | 0.18 $* |
| May-15-2025 | 0.44 $* | 0.18 $* |
| Apr-15-2025 | 0.55 $* | 0.96 $* |
| Mar-15-2025 | 0.40 $* | 0.77 $* |
| Feb-15-2025 | 0.0 $* | 0.1 $* |
| Jan-15-2025 | 0.80 $* | 0.31 $* |
Характеристики
PI description
PI properties:
Polyimide is a kind of Heteroaromatic polymers,whose Molecular structure containing polyimide-based monomeric unit.It is a super-performancde Engineering Plastic (250 degree heat can be a long-term job),and has an excellent mechnical and thermal dimensional stability,dielectric properties, wear-resistant,weather resistance,permeability wave,self-lubricating properties,and non-toxic,flame retardant,high temperature sterilization available.
The typical profermance of PI for each grade:
| product type | J33AG | J33AGLW | J43AG | M1 | ||
| 30% carbon fiber | 30% carbon fiber and Antifriction lubricant | 30% glass fiber | pure resin | |||
| Item | Test standard | unit | test value | |||
| Apprearance | − | − | black | black | yellow | dark brown |
| Density | GB1033-1970 | g/cm³ | 1.44 | 1.53 | 1.6 | 1.35 |
| Bibulous rate (25°C,24Hrs) | GB1034-1970 | % | 0.5 | 0.5 | 0.5 | 0.2 |
Molding shrinkage (25°C-340°C) | % | 0.3 | 0.6 | 0.5 | 0.8 | |
Melt index (360°C 2.16Kg) | GB3682-1983 | g/10min | 1.0 | 2.0 | 1.0 | − |
tensile strength (20°C) | GB/T1040-1992 | MPa | 200 | 100 | 130 | 95 |
| Elongation(20°C) | GB/T1040-1992 | % | 4 | 8 | 5 | 7 |
Bending strength (20°C) | GB1042-1979 | MPa | 220 | 160 | 200 | 150 |
| compression strength(20°C) | GB/T1041-1992 | MPa | 200 | 130 | 180 | 120 |
Charpy impact strength (no notch) | GB/T16420-1996 | KJ/m² | 20 | 15 | 20 | 25 |
Dielectric constant (1MHz,20°C) | GB1409-1978 | − | − | − | 3.4 | 3.2 |
| Volume resistivity | GB1410-1978 | Ω-cm | − | − | 1016 | 1016 |
| Friction coefficient | GB3960-1983 | − | 0.25 | 0.05-0.08 | 0.27 | − |

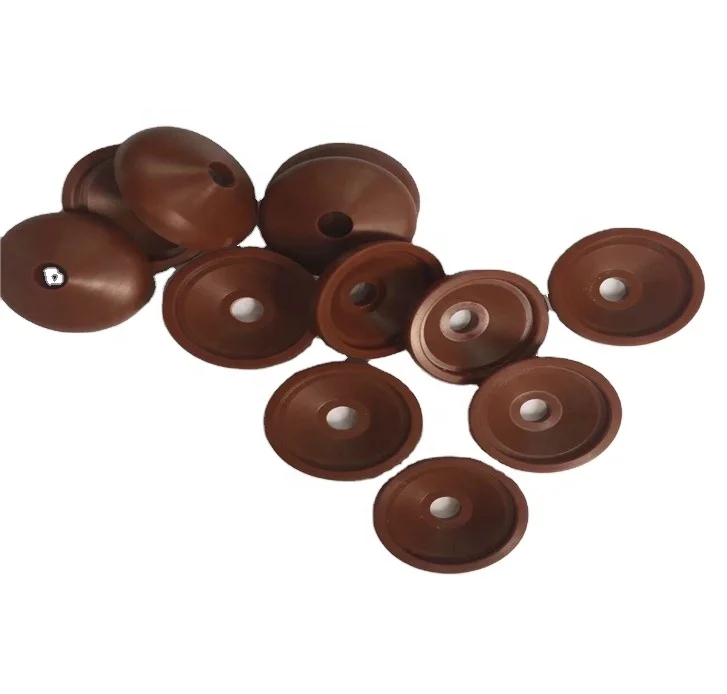

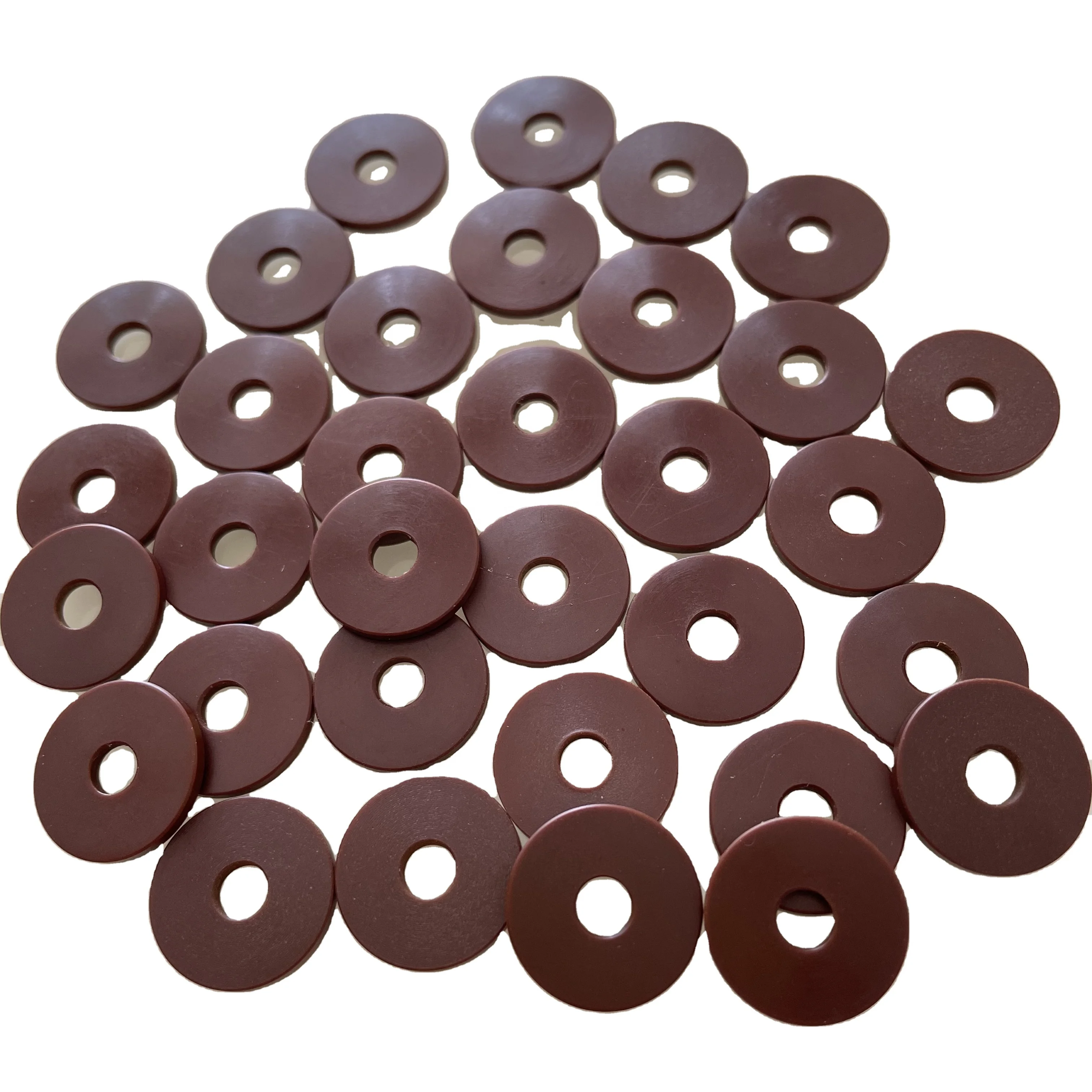

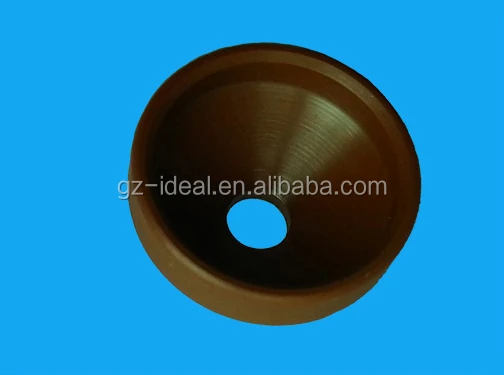

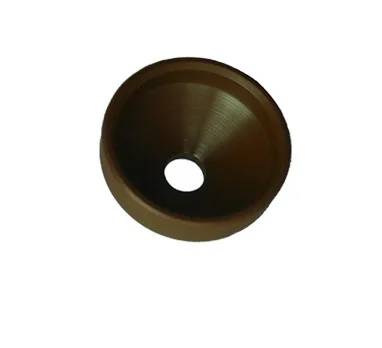

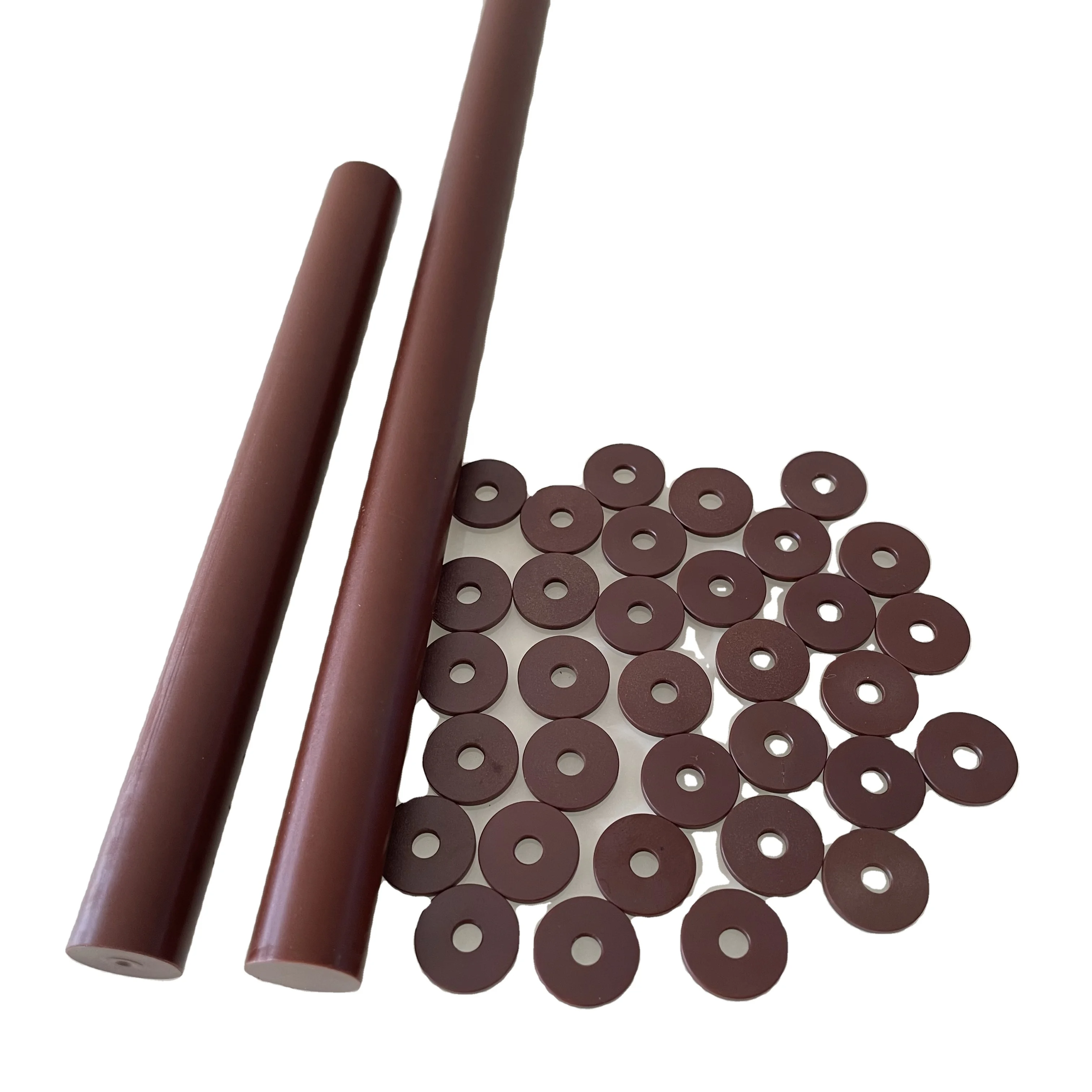

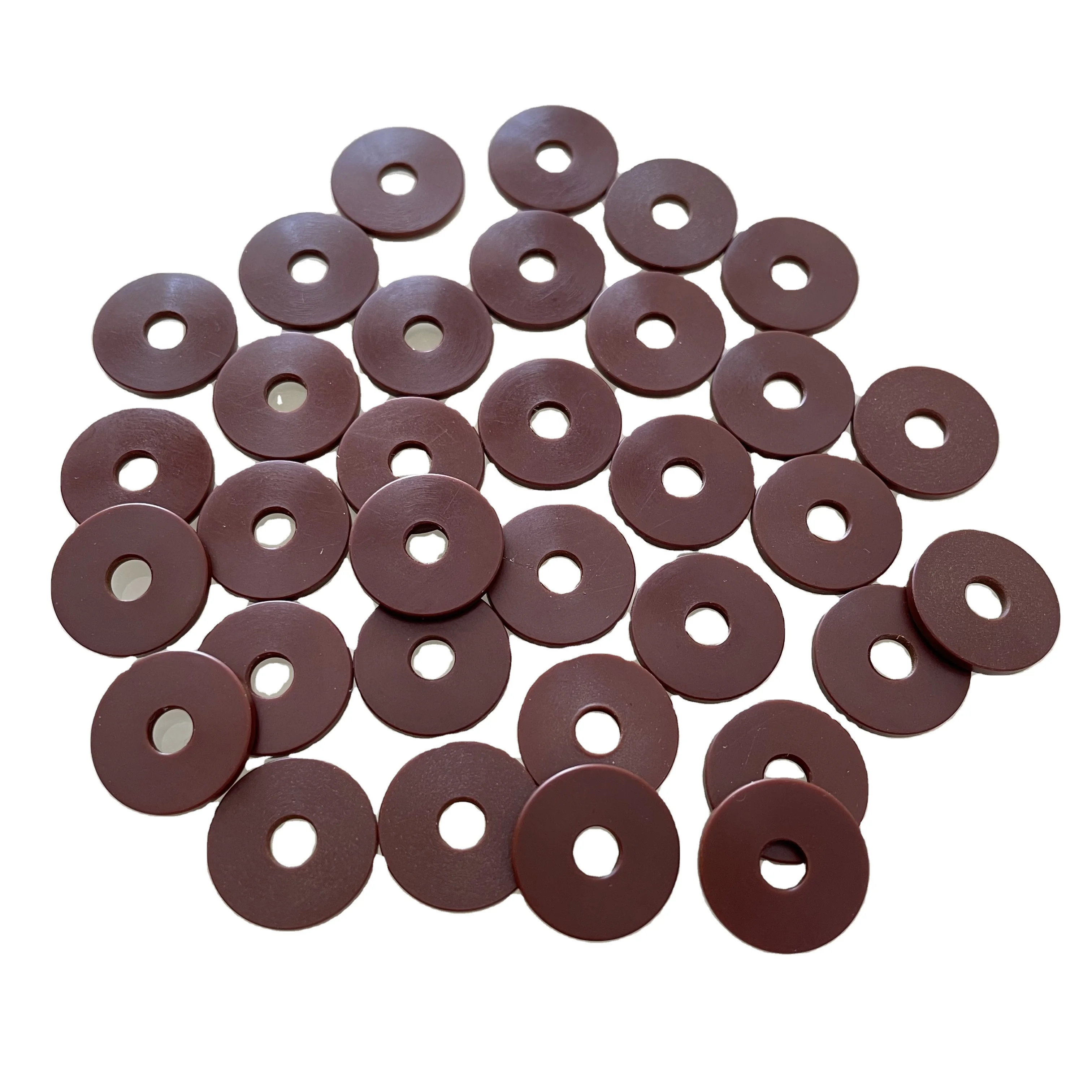

Item: Polyimide parts.
Material: PI virgin, PI with carbon or fiber reinforced
Color: white, black, natural, beige
Size: according to custom's requirement, drawing will be highly appreciated.
Weight: from 0.01gram to 10kgs
Tolerence: +/-0.04-0.1mm, according to requriement
Processing: precision CNC machine or injection molding.
Properties:
Working temperature: 300 centigrade, short-time working temperature reach up to 400 degree
Flame retardant: V-0
Excellent thermal properties: high and low temperature resisting
Very good mechanical properties
High-radiation resistant
Outstanding electrical properties
Industry Application:
1.Aerospace parts
2.Sealing part for compressor/motor/valve
3.Electrical components
4.Medical instrument parts
5.Oil intrutry
6.Automatic intrutry
If you have any inquiry to our company, please feel free to contact with us. Thank you !
