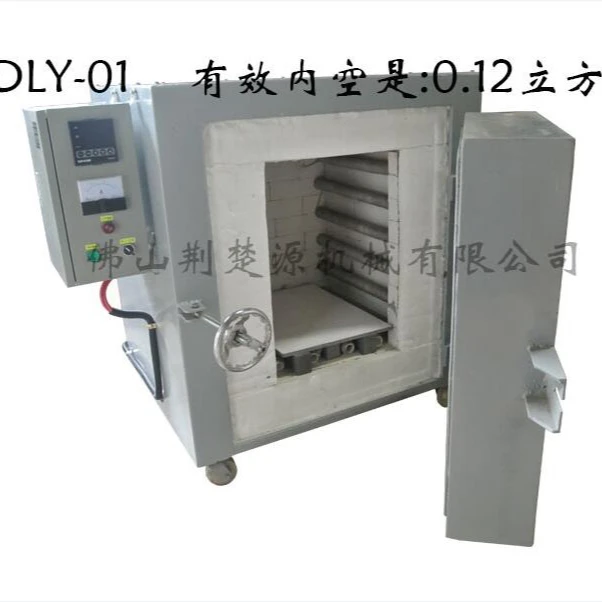

JCY cdly-01 маленькая электрическая глиняная печь с выкатным подом печи для обжига керамики гончарные изделия
- Категория: Industrial Furnace >>>
- Поставщик: Foshan,Jingchuyuan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.86 $* | 0.58 $* |
| Aug-15-2025 | 0.25 $* | 0.25 $* |
| Jul-15-2025 | 0.19 $* | 0.50 $* |
| Jun-15-2025 | 0.8 $* | 0.42 $* |
| May-15-2025 | 0.50 $* | 0.99 $* |
| Apr-15-2025 | 0.30 $* | 0.20 $* |
| Mar-15-2025 | 0.43 $* | 0.0 $* |
| Feb-15-2025 | 0.71 $* | 0.13 $* |
| Jan-15-2025 | 0.49 $* | 0.92 $* |
Характеристики
Can make for customer's product request
| Item no | Votage ( V ) | Power ( KW ) | Inner space(CBM) |
Inner size(L*W*H mm)
|
| CDLY-006 | 220 50/60HZ | 10 | 0.06 | 350*350*500 |
| CDLY-01 | 380 50/60HZ | 15 | 0.1 | 550*530*420 |
| CDLY-02 | 380 50/60HZ | 21 | 0.2 | 550*400*800 |
| CDLY-03 | 380 50/60HZ | 28 | 0.3 | 550*600*950 |
| CDLY-05 | 380 50/60HZ | 45 | 0.5 | 800*600*1000 |
| CDLY-1 | 380 50/60HZ | 70 | 1 | 1600*600*1000 |
Main features of kiln:
| 1. The maximum temperature of 1300 °C |
| 2. Working temperature RT ~ 1250°C |
| 3. Program temperature controller: Japan imported FP93, 40-segment program temperature controller, LED digital display PV, SV parameters, can set 4 programs, each program 10 curve, can also set 1*40 or 2*20, 4*10 segment program, PID parameter self-tuning, over temperature protection, burnout alarm and other protection. |
| 4.Over-temperature protection function, when the temperature exceeds the allowable set value, it will automatically power off. |
| 5. Safety protection. When the furnace body leaks, it will automatically power off. |
| 6. Open the door and power off, high security. |
| 7. Imported components imported from the United States Crest SSR high precision, no noise |
| 8. High precision temperature measurement using Taiwan thermoway, S type platinum crucible international grade I precision thermocouple |
| 9. The imported resistance wire is spirally wound around the corundum tube on five sides for heating. The uniformity of the temperature field is excellent, the consistency is high, the repeatability is good, and the replacement is convenient. |
| 10. Intake and exhaust: At the bottom, an adjustable new air inlet is reserved, and an exhaust outlet is reserved at the top. |
| 11. silicon carbide setter board, good load bearing, mechanical shock resistance, load-bearing up to 200kg or more. |
Product
Process
Related product
Packaging & Shipping
Our Services
Company Information
Foshan JingChuYuan Machinary Co.Ltd was founded in 2014 in GuangDong province China, throeat improvement in pottery craft equipment! Through our efforts and more than 10years of development,has been making great improvement in pottery craft equipment!
Technology accumulation, production experience, the company's products continue to improve, update, the "energy saving, environmental protection" as the basic positioning of the product.
We are specialized in supply products to large and medium sized ceramic factory,school class ,kid's barn, personal studio etc .With Stable product quality and supply, professional service with most sincere manners,Our facotry has a good public praise and reputation.
Our main products are pottery machine, kiln and rotational equipment , Rotational molding products,which is produce in two factory but the same legal presentive person.Rotational molding machine which we are proud to provide enlightened solutions to anyone looking to reduce electrical consumption and carbon footprints while improving their working condition and living environments.
We are integrated facotry of inducstry and trade,which from design to manufacture and sales by ourselves.Save energy,protect environment,lower carbon,higher effective is our core idea! You may happy to find us as your cooperative parner!
We are sincerely looking forward to be your parnership soon!
FAQ
1.Q: How do I pay for my purchase order?
A: Alibaba trade assurane , T/T, Western union ect.
2.Q: Can I buy one sample to check quanlity frist and how long will it take?
A: Yes ,we are factory outlet,you can buy one sample to test the quanlity! Just the sample price will be different from wholesale price. For one pcs sample we sugguest send by air express.After payment it ususally takes 3-9days to arrive your country.
3.Q: what's the delivery time?
A: It will take about 25-30days to finish an order ,but the exact time is according to actual situation.
4.Q: Can I have my own customized product ?
A: Yes, of course. We provide customized service for material,color, logo,design ,package ,etc.
5.Q: Do you have quality control?
A: Yes, We have full time QC. We supervise every order from production to delivery.
6.Q: How about the warranty?
A: One year warrantty, if quality problems occurs after that ,please feel free to contact with us ,we are willing to give your solution at once.
