Характеристики
Product Description

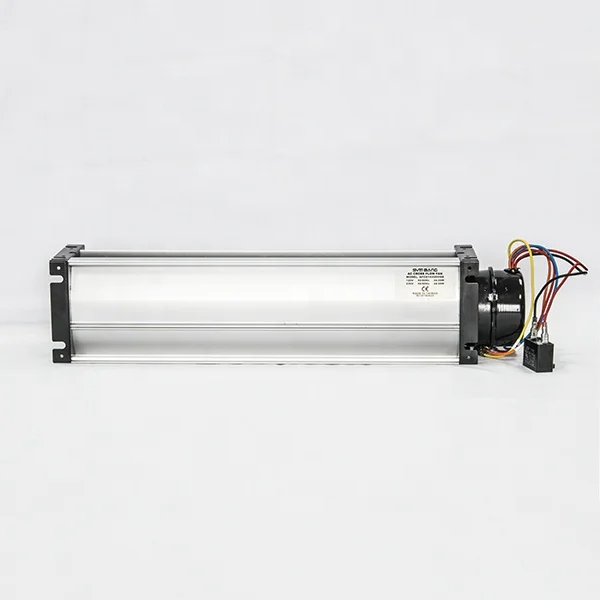

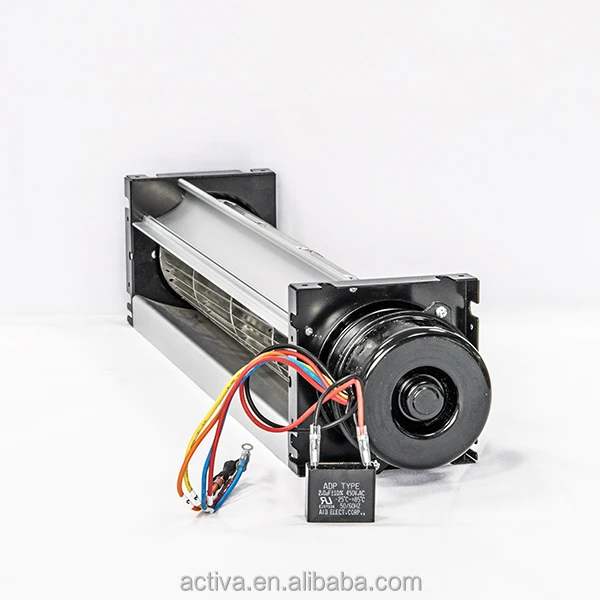

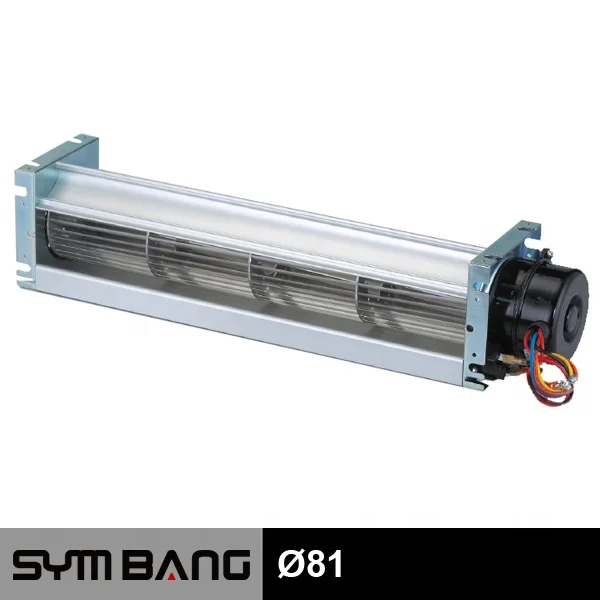

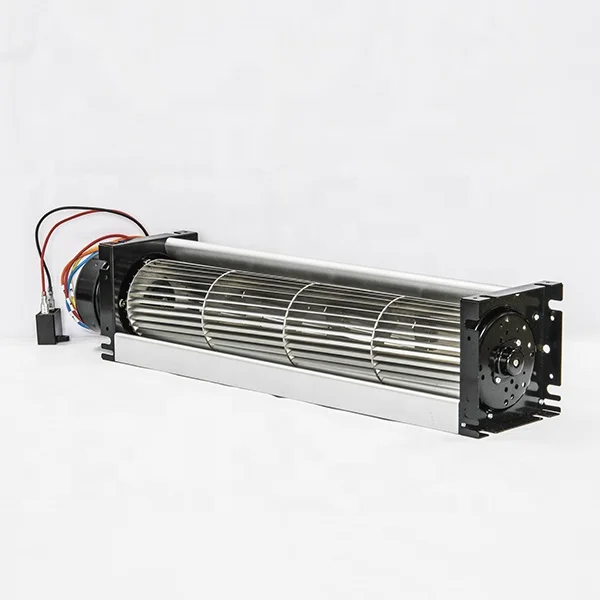

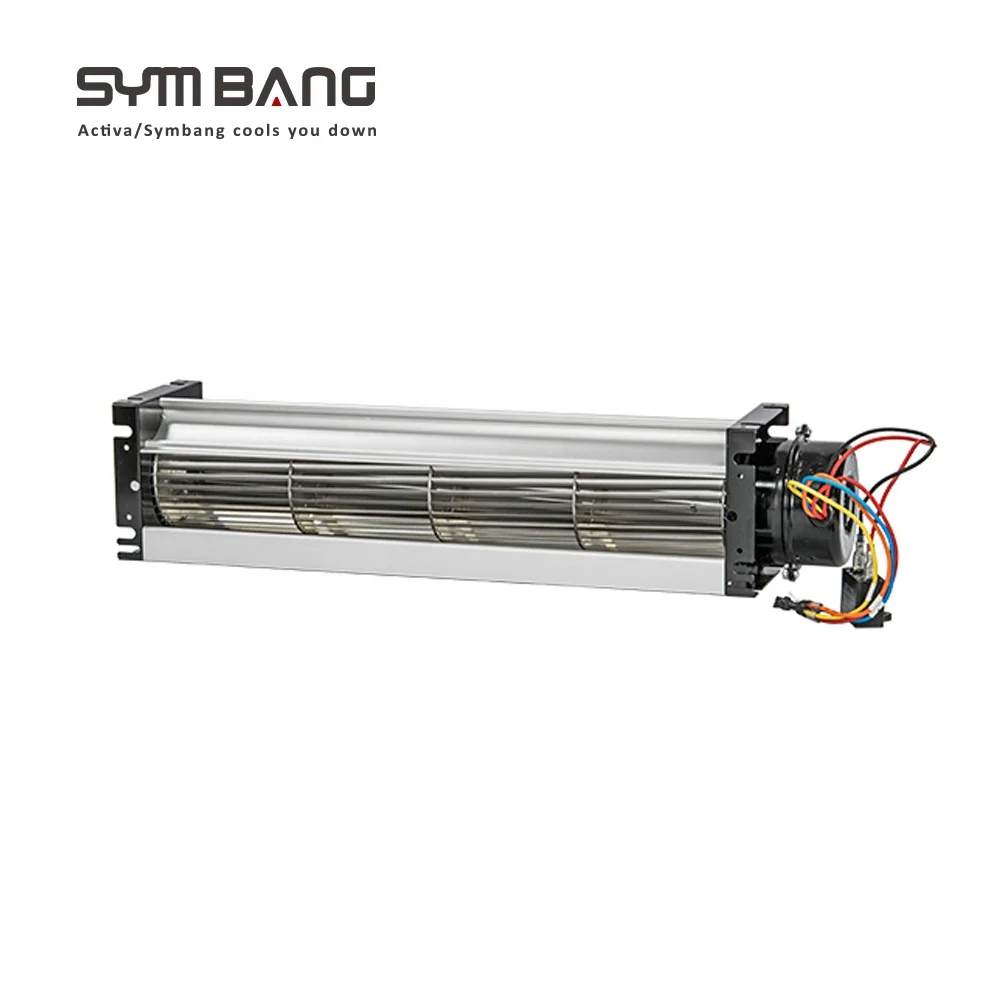

AFC81 120V 230V Cross Flow Fan
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum,Ø81mm |
| BEARING | Ball |
| INSULATION | Class A |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING VOLTAGE RANGE | 85 VAC to 125 VAC for 115V Type |
| 185 VAC to 245 VAC for 230V Type | |
| DUAL VOLTAGE | 115/230VAC |
| DIELECTRIC STRENGTH | 1,500 VAC for 1 second |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| SAFETY | Thermally Protected |
| MOTOR TYPE | Capacitor Motor |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
| FAN IS FOR HORIZONTAL USE ONLY | |
Model No. | RATED VOLTAGE (V) | FREQUENCY (Hz) | RATED CURRENT (A) | INPUT POWER (W) | SPEED (RPM) | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | |||||||
AFC81420DVHB | 120 | 50/60 | 0.25/0.29 | 26/31 | 1300/1450 | 0.05/0.07 | 1.3/1.8 | 183/204 | 5.2/5.8 | 44/47 |
AFC81420DVHB | 230 | 50/60 | 0.14/0.16 | 27/31 | 1300/1350 | 0.05/0.07 | 1.3/1.8 | 183/194 | 5.2/5.5 | 44/46 |
AFC81500DVHB | 120 | 50/60 | 0.25/0.29 | 27/32 | 1300/1400 | 0.06/0.07 | 1.4/1.9 | 233/251 | 6.6/7.1 | 44/46 |
AFC81500DVHB | 230 | 50/60 | 0.15/0.16 | 27/32 | 1250/1300 | 0.05/0.07 | 1.3/1.8 | 223/233 | 6.3/6.6 | 43/44 |
AFC81600DVHB | 120 | 50/60 | 0.33/0.37 | 35/41 | 1250/1300 | 0.06/0.07 | 1.4/1.8 | 261/279 | 7.4/7.9 | 45/46 |
AFC81600DVHB | 230 | 50/60 | 0.18/0.20 | 35/40 | 1200/1200 | 0.05/0.07 | 1.3/1.8 | 257/257 | 7.3/7.3 | 44/44 |
AFC81700DVHB | 120 | 50/60 | 0.34/0.38 | 36/42 | 1250/1250 | 0.05/0.06 | 1.2/1.6 | 300/300 | 8.5/8.5 | 45/45 |
AFC81700DVHB | 230 | 50/60 | 0.19/0.21 | 36/40 | 1150/1100 | 0.05/0.06 | 1.2/1.5 | 279/272 | 7.9/7.7 | 43/42 |
Company Information
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
