Новейший оригинальный автомобильный программатор Xhorse VVDI PROG V4.8.7
- Категория: Инструменты для автомобиля >>>
- Поставщик: Shenzhen,Shunxiang,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 489.15 $* | 499.3 $* |
| Jul-15-2025 | 397.93 $* | 405.38 $* |
| Jun-15-2025 | 481.72 $* | 491.89 $* |
| May-15-2025 | 477.77 $* | 487.27 $* |
| Apr-15-2025 | 381.43 $* | 389.86 $* |
| Mar-15-2025 | 470.6 $* | 479.59 $* |
| Feb-15-2025 | 466.27 $* | 475.36 $* |
| Jan-15-2025 | 462.30 $* | 471.7 $* |
Характеристики
Newest Original Xhorse for VVDI PROG Programmer V4.9.5 AKP109
Item Description
The built-in update software allows user to update VVDIProg firmware timely.
High-speed USB communication interface enable the software automatically connect.
Smart operation mode: the possible causes of error will be listed
Reserve ports: for future update.
The self-test function enable you check if the machine works well.
Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.
VVDI PROG Programmer
Latest Software Version: V4.9.5
Firmware Version: 2.1.0
1. The built-in update software allows user to update VVDIProg firmware timely.
2. High-speed USB communication interface enable the software automatically connect.
3. Smart operation mode: the possible causes of error will be listed
4. Reserve ports: for future update.
5. The self-test function enable you check if the machine works well.
6. Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.
Update Information:
V3.4.0 Update (2015-09-10):
* This version DON't need update firmware
+ Add Porsche BCM (1L15Y/2M25J/5M48H) options
+ Add MC9S12XEQ512,MC9S12XET512 options in <2-MCU>-->Motorola
+ Add BENZ EIS-W203 in <4-IMMOBILIZER>
* Fix some display BUGs in EnglishVersion
* Change the name of upgrade button as "Start Firmware Upgrade"
* Change the Voltage name as "VCC" "VPP"
Supported chip list
EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Can erase the first 32 bytes |
| M35080 | R | Can erase the first 32 bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported soon in the future
MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | Can automatically determine D-FLASH/EEE space |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | £ | ||
| MC9S12HA | £ | ||
| MC9S12HZ | £ | ||
| MC9S12XHZ | £ | ||
| MC9S12B | £ | ||
| MC9S12GC | £ | ||
| MC9S12XS | £ | ||
| MC9S12K | £ | ||
| MC9S12Q | £ | ||
| MC9S12C | £ | ||
| MC9S12P | £ | ||
| MC9HC(9)08 | £ | ||
| ATMEL | ATTINY | £ | |
| ATMEGEA | £ | ||
| NEC | uPD70F | £ | |
| ST | TMS370 | £ |
Note: R means the type is supported £ means the type will be supported soon in the future.
ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | £ | |
| MED17.11-TC1796 | £ | ||
| VAG MEG17.5-TC1766 | £ | ||
| VAG MED17.5.1-TC1796 | £ | ||
| VAG MED17.5.2-TC1767 | £ | ||
| VAG MED17.5.5-TC1766 | £ | ||
| VAG MED17.5.20-TC1766 | £ | ||
| VAG EDC17 CP14/CP20-TC1796 | £ | ||
| VAG EDC17 CP04-TC1796 | £ | ||
| VAG EDC17 C46-TC1767 | £ | ||
| VAG EDC17 CP24-TC1796 | £ | ||
| VAG EDC17 CP44-TC1797 | £ | ||
| VAG EDC17 U01-TC1766 | £ | ||
| VAG EDC17 U05-TC1796 | £ | ||
| VAG/Porsche Siemens Continental SDI 3- TC1796 | £ | ||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |
Note: R means the type is supported £ means the type will be supported soon in the future.

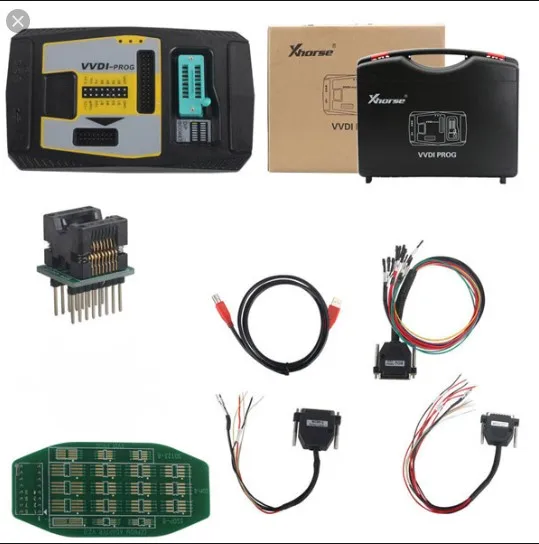

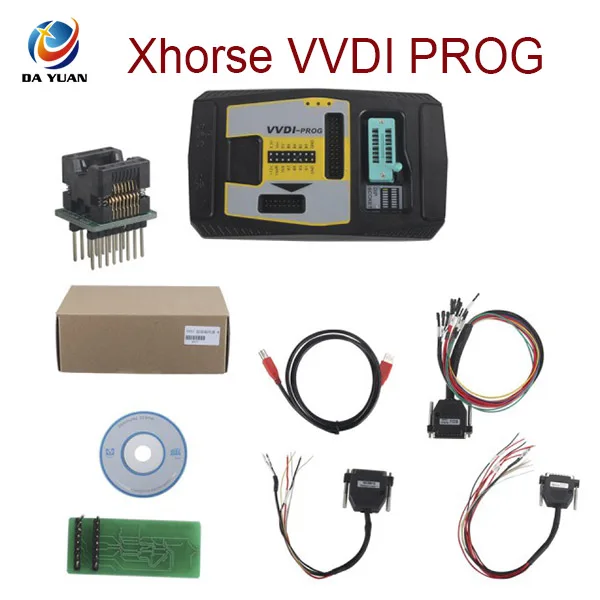

Package List:
| Parts | Number | Remark |
| Programmer multiplexer | 1 | |
| Square USB cable | 1 | |
| SOP16 test socket | 1 | |
| 16pin converter | 1 | Support SOP/SOT/SSOP |
| MCU reflash cable | 1 | |
| ECU reflash cable | 1 | |
| MC9S12 reflash cable | 1 | Used to program MC9S12 series chip |
| 12V3A power adapter | 1 | High quality power supply |
Product Display
