Суперконденсатор 400F 2 7
- Категория: Passive Components >>>
- Поставщик: Jinzhou,Kaimei,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.17 $* | 0.10 $* |
| Aug-18-2025 | 0.65 $* | 0.99 $* |
| Jul-18-2025 | 0.33 $* | 0.83 $* |
| Jun-18-2025 | 0.85 $* | 0.67 $* |
| May-18-2025 | 0.51 $* | 0.0 $* |
| Apr-18-2025 | 0.93 $* | 0.14 $* |
| Mar-18-2025 | 0.15 $* | 0.84 $* |
| Feb-18-2025 | 0.58 $* | 0.1 $* |
| Jan-18-2025 | 0.1 $* | 0.68 $* |
Характеристики
Specifications

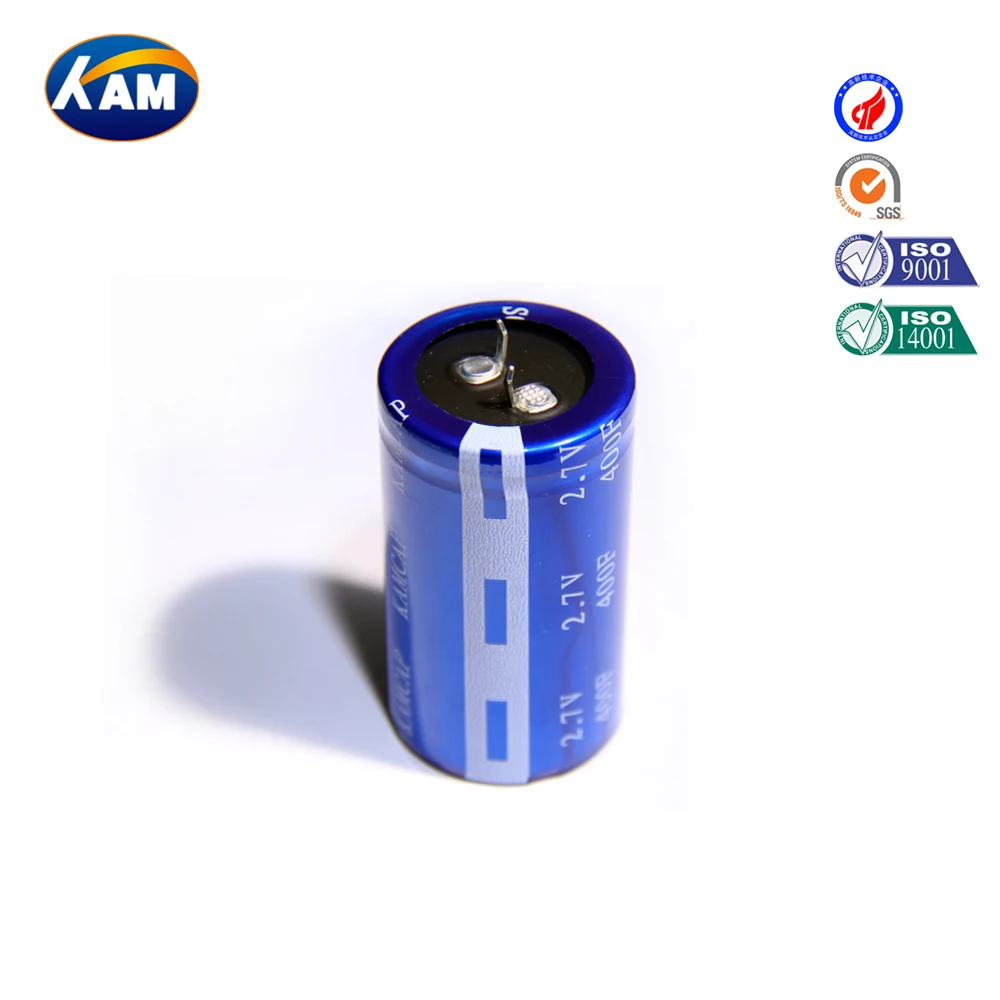

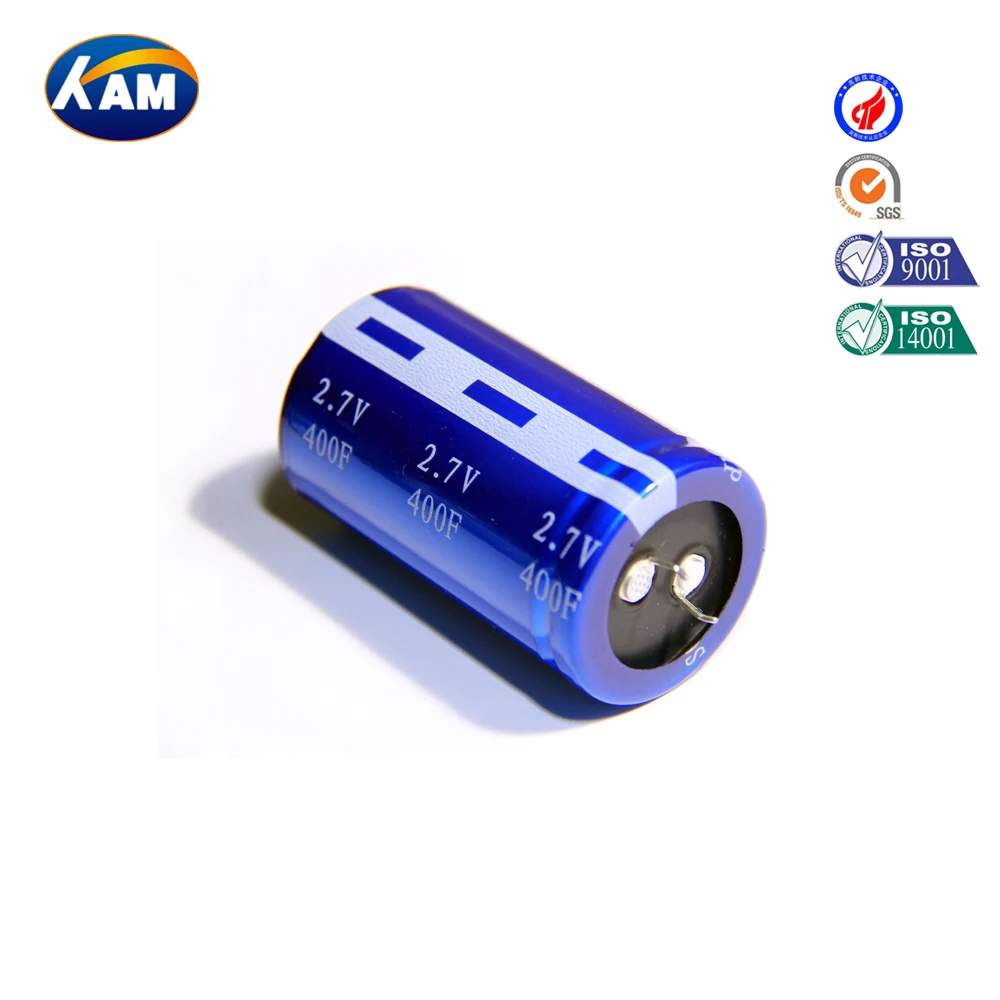

Farad Capacitor ------- 2.7V 400F
Part no.HP-2R7-J407UY LR
Working temperature:-40C~+70C
Max ESR : 10 mΩ
Dimension:35*62mm
Part NO. | Voltage (V) | Capacitance | ESR | 30min Leakage Current | Size |
(F) | Max(mΩ) | Max(μA) | ΦDxL (mm) | ||
HP-2R7-J354UY | 2.7V | 0.35 | 250 | 50 | 5x11.5 |
HP-2R7-J105VY | 1 | 300 | 200 | 8x13 | |
HP-2R7-J205VY | 2 | 120 | 350 | 10x20 | |
HP-2R7-J335TY | 3.3 | 75 | 450 | 8x20 | |
HP-2R7-J335VY | 3.3 | 70 | 450 | 10x20 | |
HP-2R7-J475VY | 4.7 | 60 | 1000 | 12.5x21 | |
HP-2R7-J805VY | 8 | 50 | 1000 | 12.5x21 |
Part NO. | Voltage (V) | Capacitance | ESR | 24h Self Discharge | Size |
(F) | Max (mΩ) | Min(V) | ΦDxL (mm) | ||
HP-2R7-J106UY | 2.7 | 10 | 25 | 2.4 | 12.5x34 |
HP-2R7-J106UY | 10 | 40 | 2.4 | 12.5x25 | |
HP-2R7-J156UY | 15 | 30 | 2.4 | 12.5x34 | |
HP-2R7-J206UY | 20 | 20 | 2.4 | 16x34 | |
HP-2R7-J256UY | 25 | 20 | 2.4 | 16x34 | |
HP-2R7-J306UY | 30 | 25 | 2.4 | 16x34 | |
HP-2R7-J356UY | 35 | 20 | 2.4 | 18x34 | |
HP-2R7-J506UY | 50 | 25 | 2.4 | 18x41 | |
HP-2R7-J906UY | 90 | 20 | 2.4 | 22x45 | |
HP-2R7-J107UY | 100 | 20 | 2.4 | 22x45 | |
HP-2R7-J127UY | 120 | 15 | 2.4 | 25x54 | |
HP-2R7-J157UY | 150 | 15 | 2.4 | 25x54 | |
HP-2R7-J207UY | 200 | 10 | 2.4 | 35x62 | |
HP-2R7-J307UY | 300 | 10 | 2.4 | 35x62 | |
HP-2R7-J407UY | 400 | 10 | 2.4 | 35x62 |
