Product Description

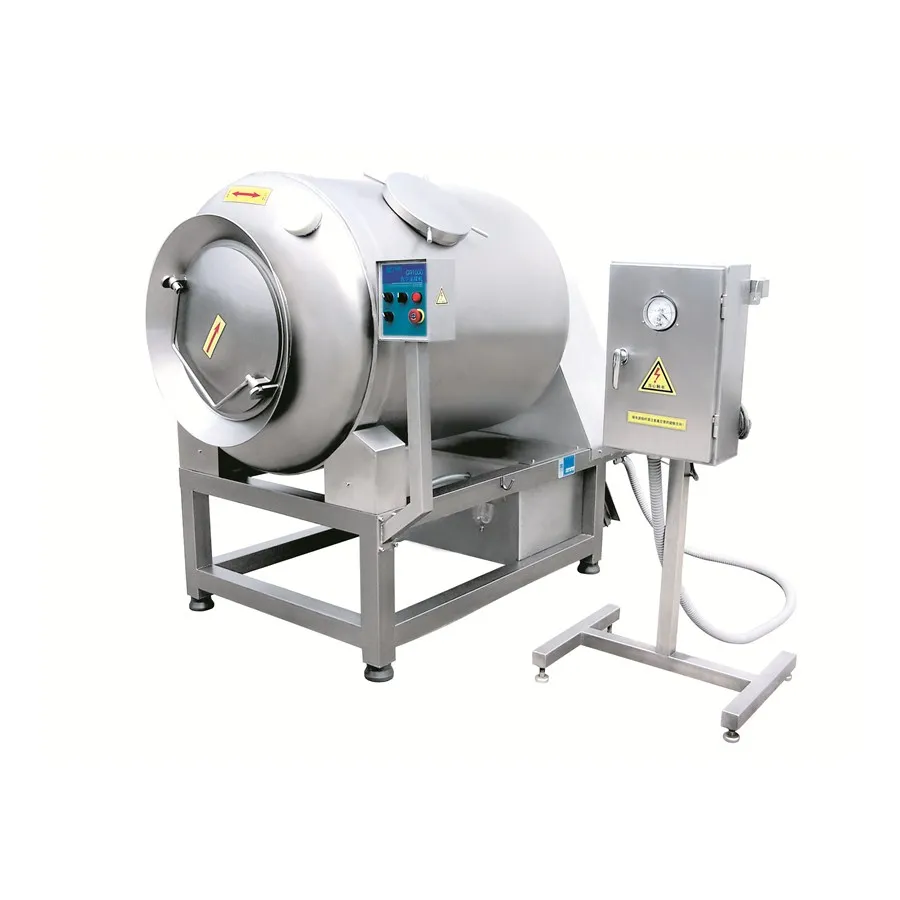

Vacuum Tumbler Marinator/Vacuum Marinating machine/meat salting tumbler equipment

 1000gr





Below vacuum tumbler is PLC controled , operation by TOUCH SCREEN , all the programmer are input in the screen.

DSC05213

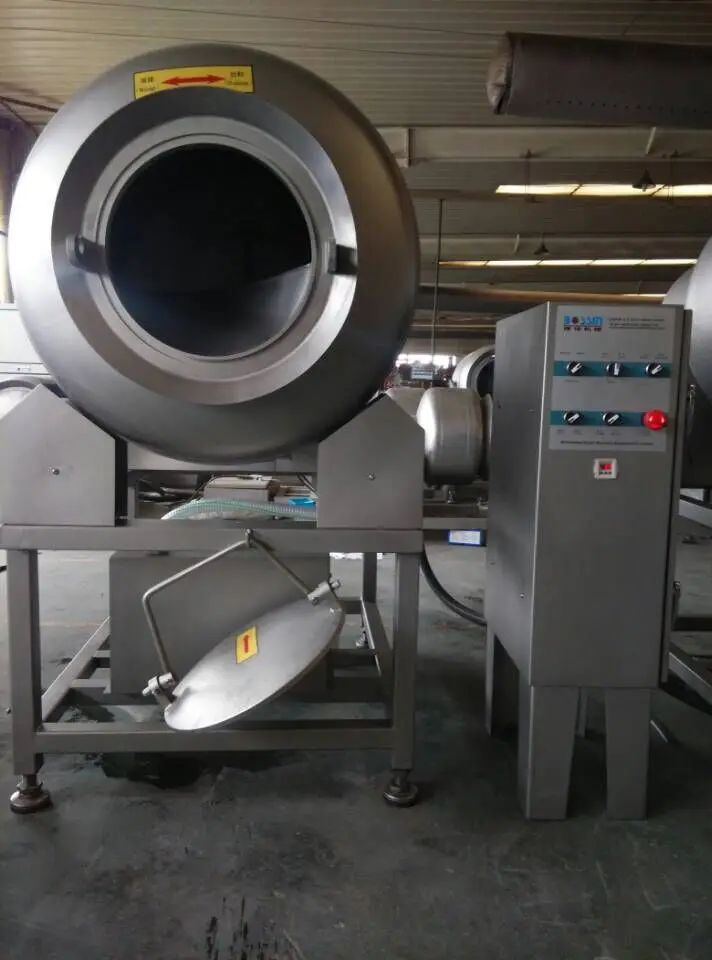

GR vacuum tumbler for meat processing



Keywords:  vacuum tumbler vacuum meat tumbler

           Vacuum massage machine

            Meat machine

            Meat marinating machine  vacuum marinator

meat tumbler



Product description of vacuum tumbler for meat processing :

GR vacuum tumbler

            Meat machine

            Meat marinating machine



Function and Working Principle of vacuum meat tumbler

1.The meat will be roll massaged, threshed and held by rotating paddle under forced circulation and be processed under vacuum and natural pressure condition alternately and that will accelerate the brine infiltration and the dissolving and extraction of parapeptone. By this method, the product ratio will be improved.

2. Vacuum tumbler is sued for pork ,beef meat , chicken, fish etc meat marinating ,massaging ,kneading, can make the meat absorb food spices water fully. Then can make the product much more tender and tasteful.

3. Vacuum tumbler Machine can provide a physical processing of meat energy transformation, an indispensable technology of meat processing, and is assort of available approach to accelerate souse speed, proceed mechanical treatment to diced meat through rolling and kneading, increase the abstraction of salt soluble albuminoidal, improve the rate of manufacture and product quality.

Characteristics of meat tumbler

  1. Two kinds ,one is key buttons operation, simple operation.
  2. The other is adopt PLC controller. It operates automatically and any kind of data can be set easily by touch screen. The operation is safe and reliable.

2.1 Continuously variable speed by inverter and the start is stable. The operation speed can  be   adjusted within the range of 4-12 rpm. It suits many kind of processing condition.

2.2 Control positive rotations, inversion rotation speed , intermission, charge air, rotation rate, vacuum and atmospheric pressure according to customer’s requirement and could realize independent assortment. Adopt PLC, soft startups; touch screen control that can store 100 formulations.You can set the parameters, the vacuum time, speed, positive and reserve rotation times, total time can be set on the touch screen.

  1. Using breathing tumbling that makes the raw meat be processed under vacuum and natural pressure condition alternately and processing time will be shortened effectively.
  2. Vacuum suction system assisting for the loading. Over 1000L have this function.

   Vacuum intake. Meat output in inverse rotation.

   Bigger intake hole can put in powder or other additives easily.

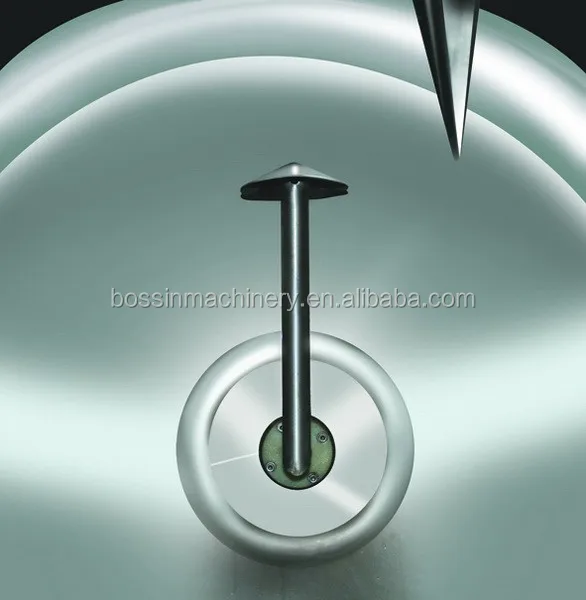

  1. There is a hole designed in the middle of the drum especially for cleaning and drain, which will enable the drum be cleaned completely.
  2. It is made of high quality stainless steel and the component adopted for electrical controlling and vacuum controlling are world-famous brand, which are reliable and durable.
  3. Propeller is designed distinctively, positive rotation for rolling, kneading and knocking, inversion for massaging



Mode

External Dimension

mm

Volume

L

Capacity

kg

Power kw

Vacuum

mpa

Rotation Speed rpm

Weight

kg

motor

Vacuum Pump

Double speed

Single

Regulating speed

GR20

945×515×800

20

10

0.37

0.25

-0.09

9

1.8-9

130

GR50

1300×860×940

50

20

0.45/0.75(0.55)

0.55

6/12

8

4-12

200

GR100

1370×860×940

100

20-50

0.45/0.75(0.55)

250

GR200

1300×915×1265

200

50-100

0.45/0.75(0.55)

285

GR500

1580×1115×1530

500

200-300

0.85/1.5(1.1)

1.1

440

GR1000

2190×1300×1720

1000

400-600

1.5/2.4(1.5)

1.1

6/12

6

730

GR1600

2225×1500×1940

1600

800-1000

2.2/3.3(3)

2.2

6/12

12

4-12

1242

GR2500

2695×1745×2130

2500

1200-1400

5.5

4

 /

3-12

1598

GR3500

2750×1945×2300

3500

1600-1800

7.5

 /

3-12

1794

GRHT250

1560*980*1650

250

50-150

0.75

0.55



/

1.6-8

300






rbgr 6

rbgr 3 rbgr 4



rbgr 5603bd5cdt6a6551688a1d&690gunrou

Advantages

ALL ARE BASED ON ISO QUALITY MANAGEMENT SYSTEM AND WITH CE MARK

429933538_0121dd059399c7ab1365abc41a55c85105422416469

1.European technology ,adopt SUS304/316 stainless steel in compliance with HACCP standard, easy to be cleaned up.

2.PLC control ,CAD programmed control ,seting the data as different products.

3.Wholly welded machine body stable and low noises.

4.Adopted international advanced technology. Be changeable with imported cutters.

5.Auto protection design to make sure safe operation.

6.Little meat temperature change , benefit to preserve freshness.

7.Adopt good quality stainless steel ,knives are made of imported material,and imported knives can be another option . for the sasuaeg stuffer, our parts can exchangable with HAMDTMANN ,VEMAG etc brand. our GC6200 is toatally same with VF620 handtmann brand. the meat pump parts are the same with handtmann.

8.Key parts produced by advanced machine processing center(CNC lathe machine), ensure the precision of process.

9.Application include the processing of meat and also the processing of cheese ,vegetable , fruits, sweets and products of the chemical industry.

10.Parts:is built with INNOVANCE,EMERSON servo motor drive as drive system ,Mitsubish, BECHHOFF and ABB water-proof button etc imported famous brand.



Packaging & Shipping

 wooden case or suit for shipment

Our Services



Excellent After-sale Service of vacuum marinator :
1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides,

     train your workers for the correct usage and daily maintenance.
2. Any spare parts you need will be sent to you directly from us.
3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sen

    to your working site if you can not solve it under our guidance.
