Натуральный высококачественный регулируемый термостат KTO 011 KTS 12 В постоянного тока Профессиональный Ведущий

Натуральный высококачественный регулируемый термостат KTO 011 KTS 12 В постоянного тока Профессиональный Ведущий

Цена:*

Количество:

Product Description

• Large setting range

• Small size

• Simple to mount

• High switching performance

NTL 10A-F / NTL 10A-M: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens

when temperature is rising.

NTL 10B-F / NTL 10B-M: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers

or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is

rising

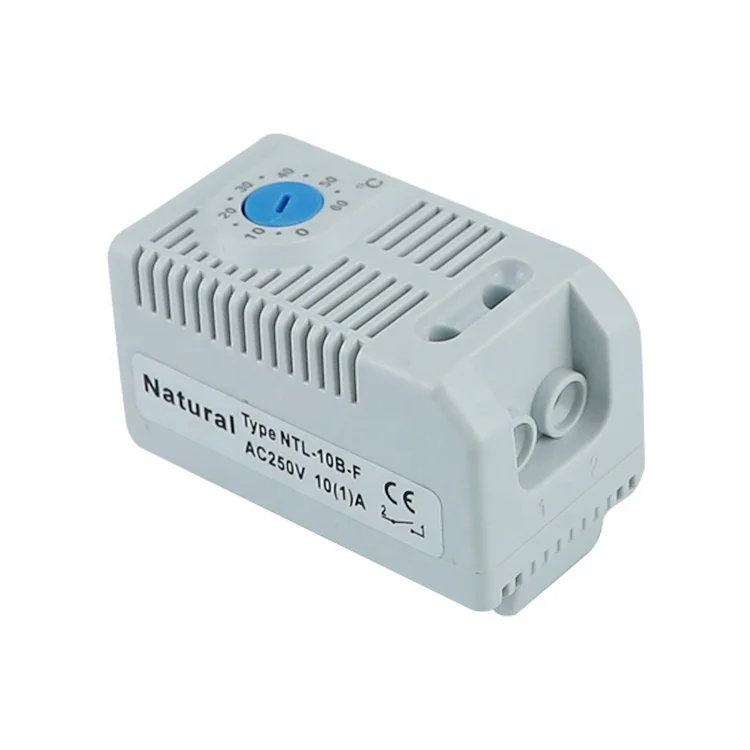

NTL 10A-F / NTL 10B-F
Switch temperature difference	+/-5°C
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Service life	>100,000 cycles
Max. switching capacity	250VAC, 10 (2) A / 120VAC, 15 (2) A DC 30W at 24VDC to 72VDC
Max. inrush current	AC 16A for 10 sec.

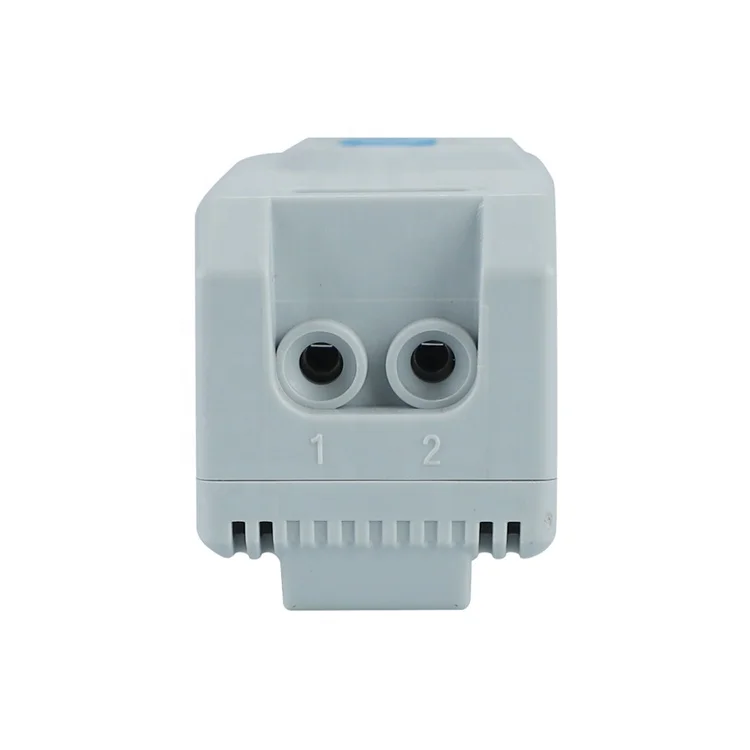

Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14)stranded wire¹ 1.5mm² (AWG 16)

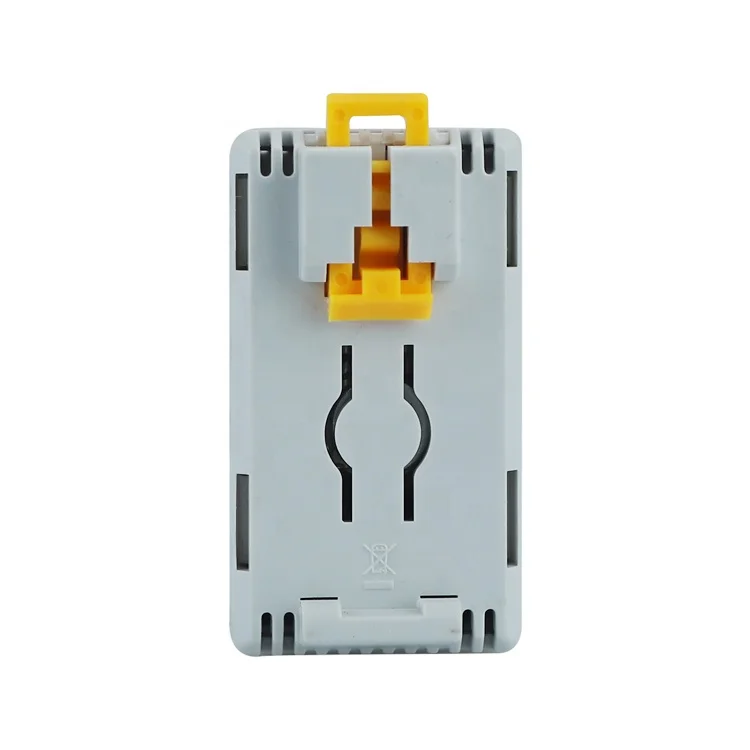

Mounting	clip for 35mm DIN rail, EN 60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating/Storage temperature	-45 to +80°C (-49 to +176°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type	IP20

¹ When connecting with wires, wire end ferrules must be used.

Important note: The contact system of the regulator is subjected to environmental influences, thus the contact

resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
