1.DESCRIPTION

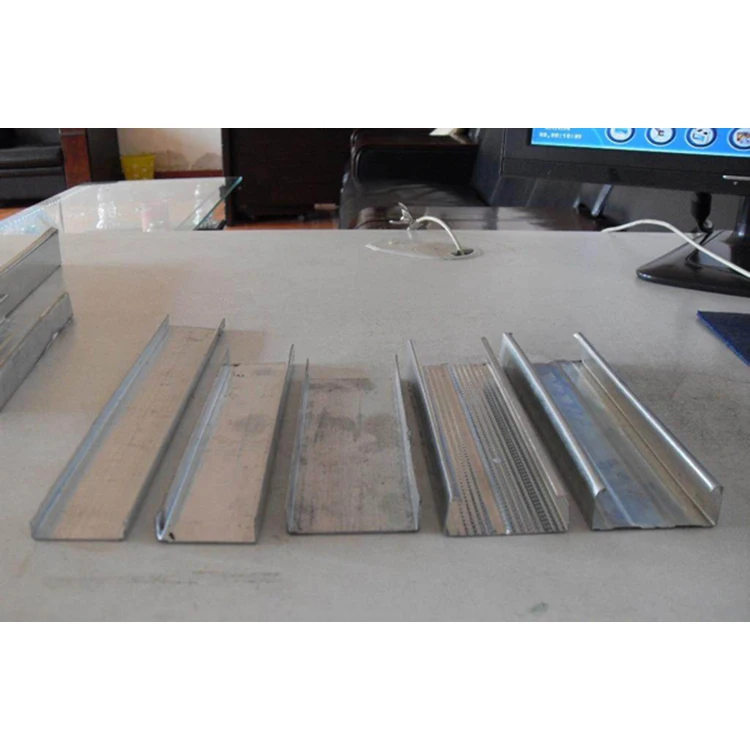

TRUSUS steel channel is made from hot cold-rolled galvanized steel, and we adopt advanced

process and technology to produce it. According to customer's requirement, special specification

is accepted for OEM.

2. ADVANTAGE

Good quality galvanized steel is produced from large and advanced production line, high strength and good flexibility
Continuous hot dip galvanizing process, deep zinc thickness, corrosion resistance.
Nice and special design on surface, easily to fix the screw
High strength framework for gypsum

3. SPECIFICATION

Ceiling Channel Specification

Item		Size(mm)	Thickness(mm)
Load Channel	38 DU	38×12	1.0 1.2
	50 DU	50×15	1.0 1.2
	60 DU	60×27	1.2 1.5
Cover Channel	50DC	50×19	0.5 0.6
	60DC	60×27	0.6
	50 Wall Angle	20×20×30	0.45 0.5
Remark: Special size is accepted according to customer's requirement

Drywall Channel Specification

Item	Size(mm)	Thickness(mm)
C Steel Channel	50*35/40	0.35-1.2
(Stud)	75*35/40	0.35-1.2
	100*35/40	0.35-1.2
U Steel Channel	50*40/45	0.35-1.2
(Runner)	75*40/45	0.35-1.2
	100*40/45	0.35-1.2
Remark: Special size is accepted according to customer’s requirement

4. TECHNICAL PERFORMANCE

Inspection Item		Standard	Inspection Value
Appearance		No corrosion, no damage, no black speckle and no pock points	Pass
Both surface galvanization		≥100g/m²	115g/m²
Load Channel	Dimension difference A	Dimension A:±0.4mm	-0.3——0.2mm
Load Channel	Dimension difference B	Dimension B: ±1.0mm	-0.5——0.5mm
Cover Channel	Dimension difference A	Dimension A:±1.0mm	-0.4——0.1mm
Cover Channel	Dimension difference B	Dimension B:±0.4mm	-0.3——0.1mm
Side flatness		≤1.5mm/1000mm	0.6mm/1000mm
Underside flatness		≤1.5mm/1000mm	0.5mm/1000mm
Angle difference		≤1°15′	1° 5′
Load Channel	Load test	Strengthen flexibility limitation 5.0mm Remainder distortion limitation2.0mm	Strengthen flexibility 4.2mm Remainder distortion1.4mm
Cover Channel	Load test	Strengthen flexibility limitation10.0mm Remainder distortion limitation 2.0mm	Strengthen flexibility 8.9mm Remainder distortion 1.5mm
Test table above ,load keel is 50151.2mm, cover channel is 50190.5mm
