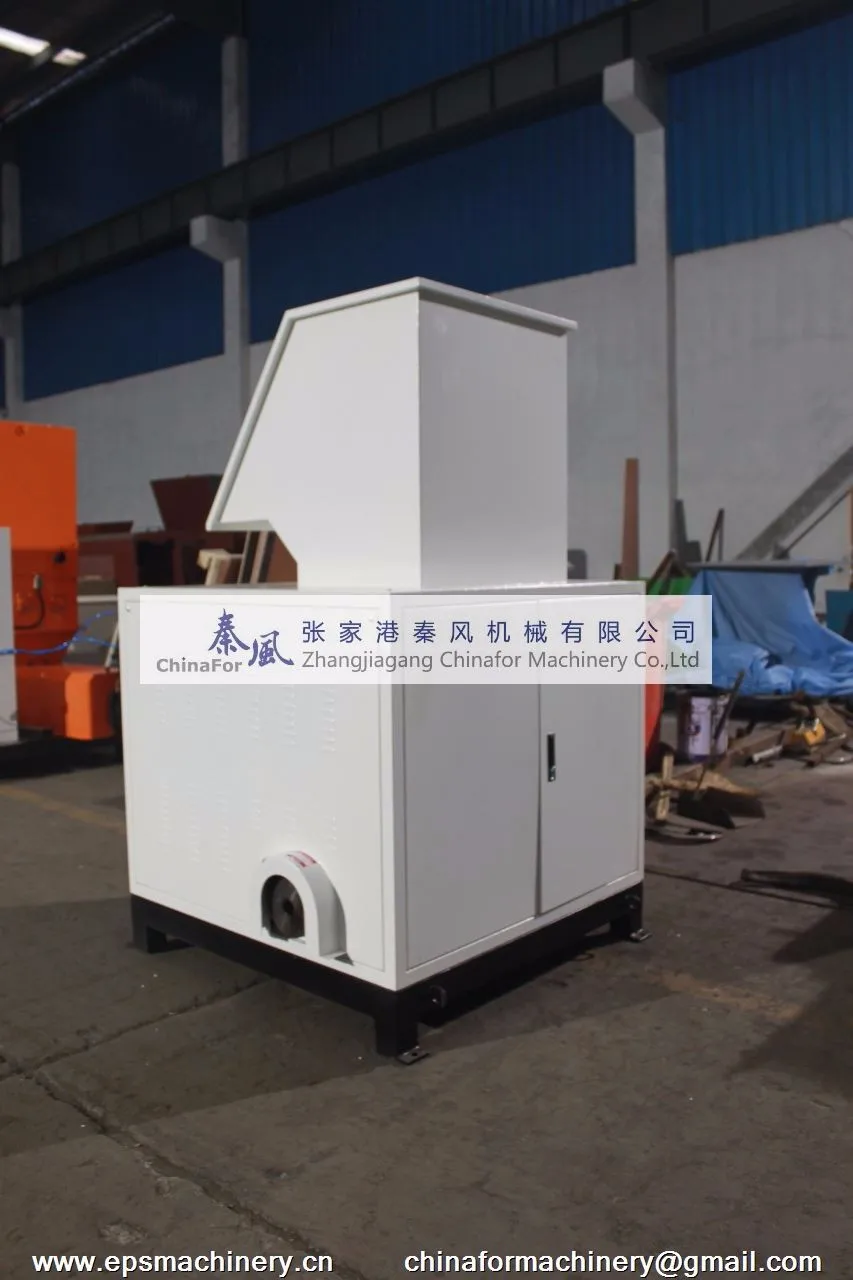

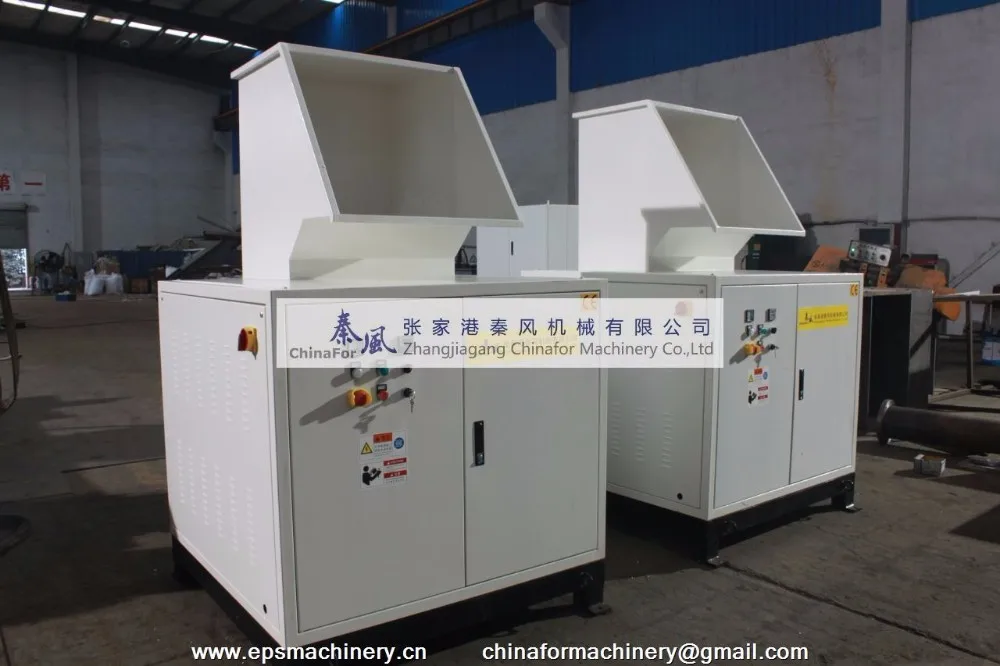

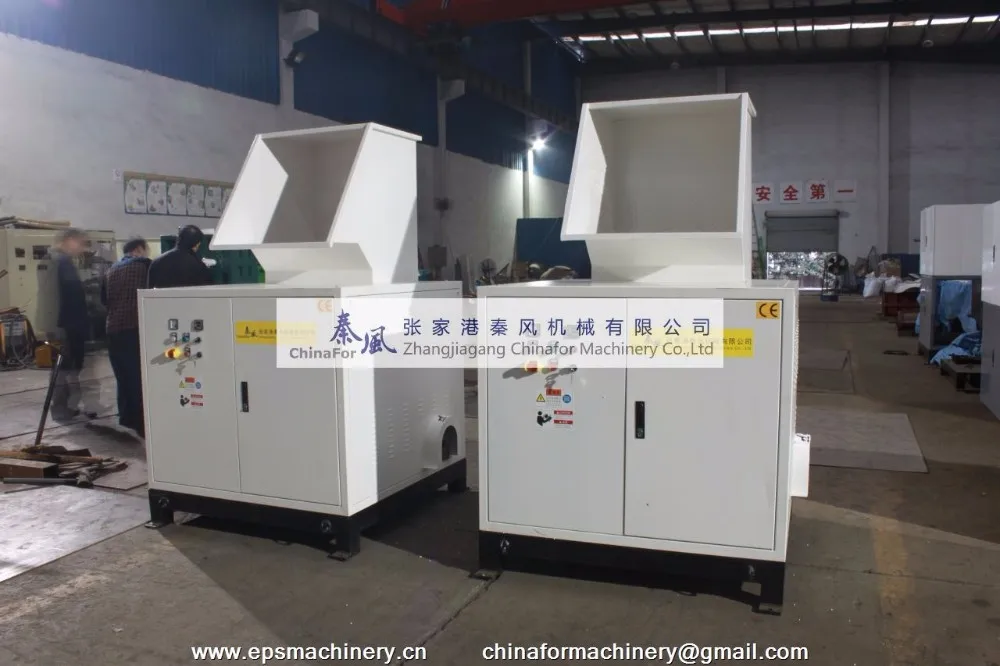

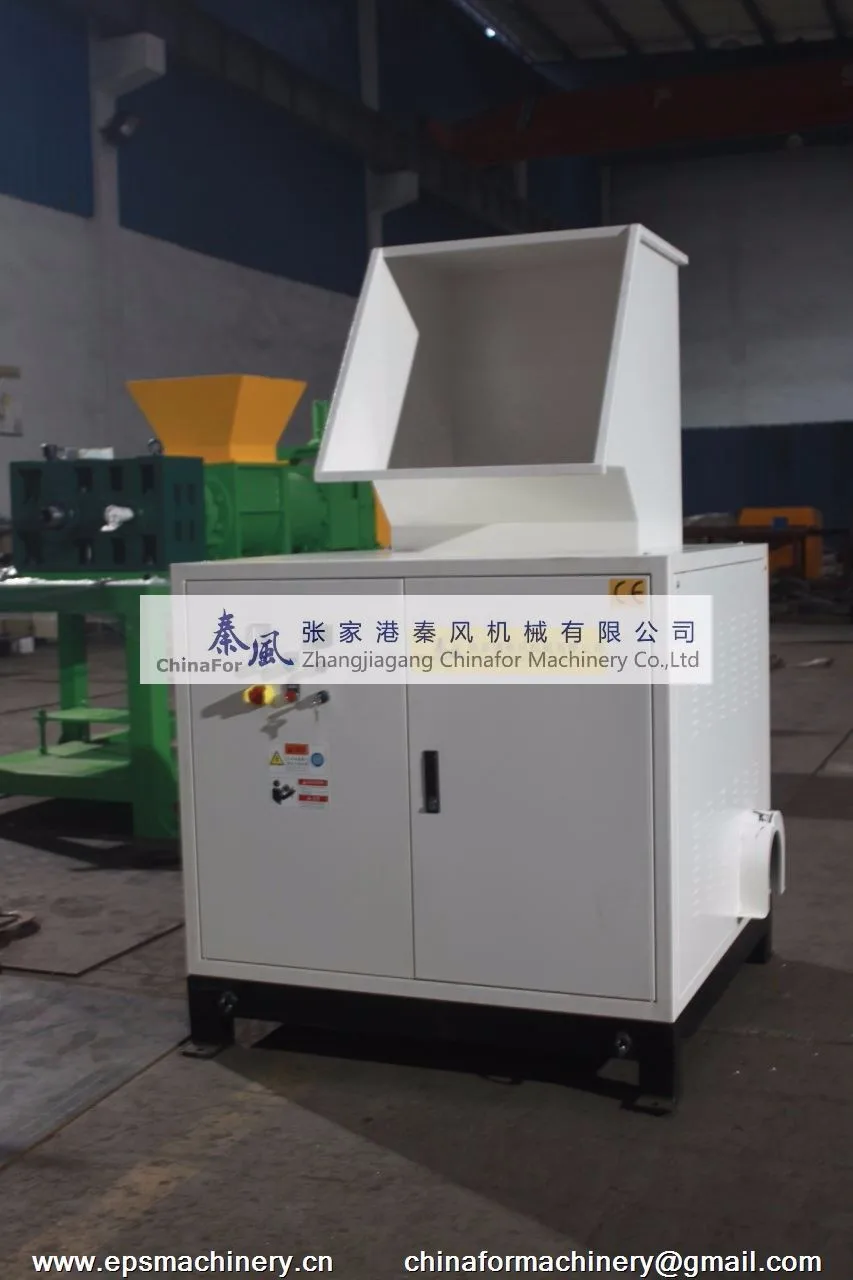

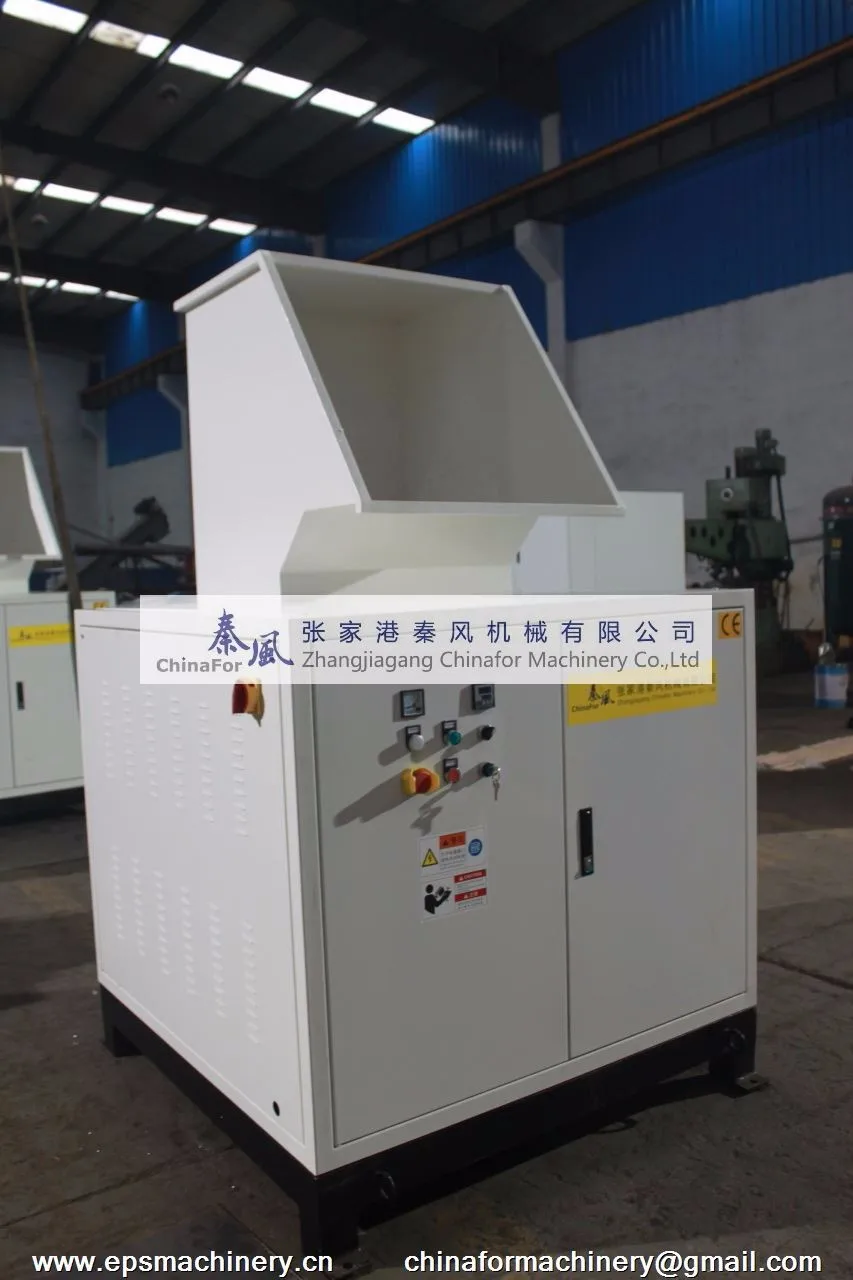

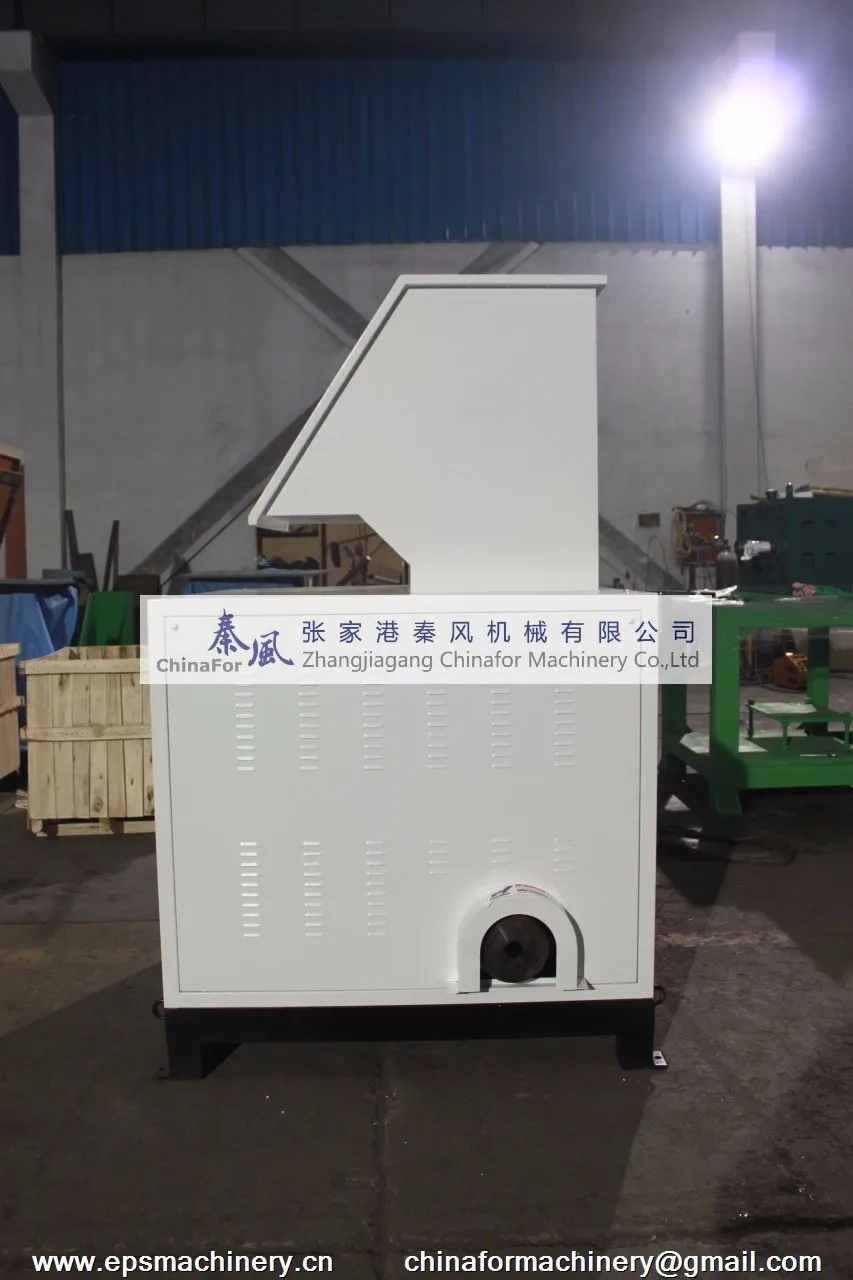

polystyrene hot melting machine,CE small EPS hot melting recycling machinery for EPS





Our  EPS hot melter recycling machine adopts manual feeding,thematerial will be crushed by the four shaft blades and conveywd to the barrel of the main machine through the screen.This screw of the main machine can convey the heat the material to melt condition,then and air jam bladecut them to pieces for easy storage and transportation. Chinafor EPS hot melter recycling machine has organized technical staff to make research  on both domestic and abroad markets and absorb the international advanced technologies to develop the EPS waste plastic recycling equipment successfully,under the guide idelogy of reducing the size of the waste plastic and advoiding secondary pollution.





Model	CF-HM100  polystyrene hot melting machine,CE small EPS hot melting recycling machinery for EPS
Feeding Size	612mmx600mm
Screw diameter	φ138mm
Screw Length	1090mm
Screw Speed	165rpm
Extrusion center hight	250mm
Heating power	Two zones,3kw each
Main motor power	5.5kw
Screen Size	40mm
Blade rotation diameter	250mm
Blades quatity	12sets
Blades rotation speed	150rpm
Size	1200x1000x1400
Weight	800kg
Capacity	50kg/h









Configuration Item	Standard Configuration	Luxury configuration
Motor	Dongya	SIEMENS
Control	Yatai	PLC Control(SIEMENS)
Inverter control	(NONE)	ABB Inverter
Touch screen	(NONE)	Siemens touch screen
Gearbox	GUOMAO	GUOMAO
Bearing	ZWZ	NSK
Air Valve	CHNT	Yadek
Electricity Elements	CHNT	All the elements use SIEMENS
