Высокоскоростной ручной токарный станок

Категория: Machine Tool Equipment >>>
Поставщик: Jiangsu,Hoston,Machine,Tools,Co.,Ltd.

Цена:4 100,00 $ - 4 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	4879.7 $*	5123.88 $*
Aug-16-2025	4838.13 $*	5080.34 $*
Jul-16-2025	4059.28 $*	4262.79 $*
Jun-16-2025	4756.79 $*	4994.67 $*
May-16-2025	4141.38 $*	4348.96 $*
Apr-16-2025	4674.29 $*	4908.63 $*
Mar-16-2025	4633.63 $*	4865.48 $*
Feb-16-2025	4592.18 $*	4822.44 $*
Jan-16-2025	4551.84 $*	4779.26 $*

Характеристики

3. Product Description

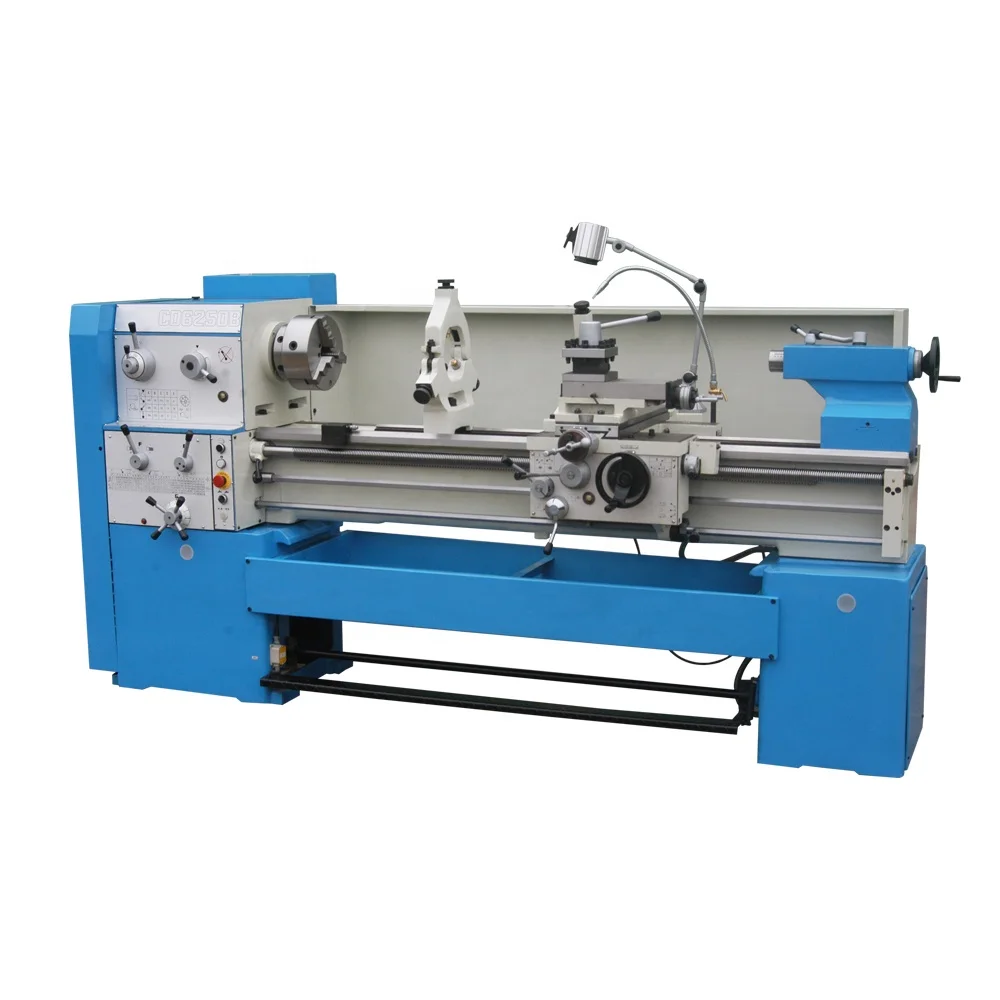

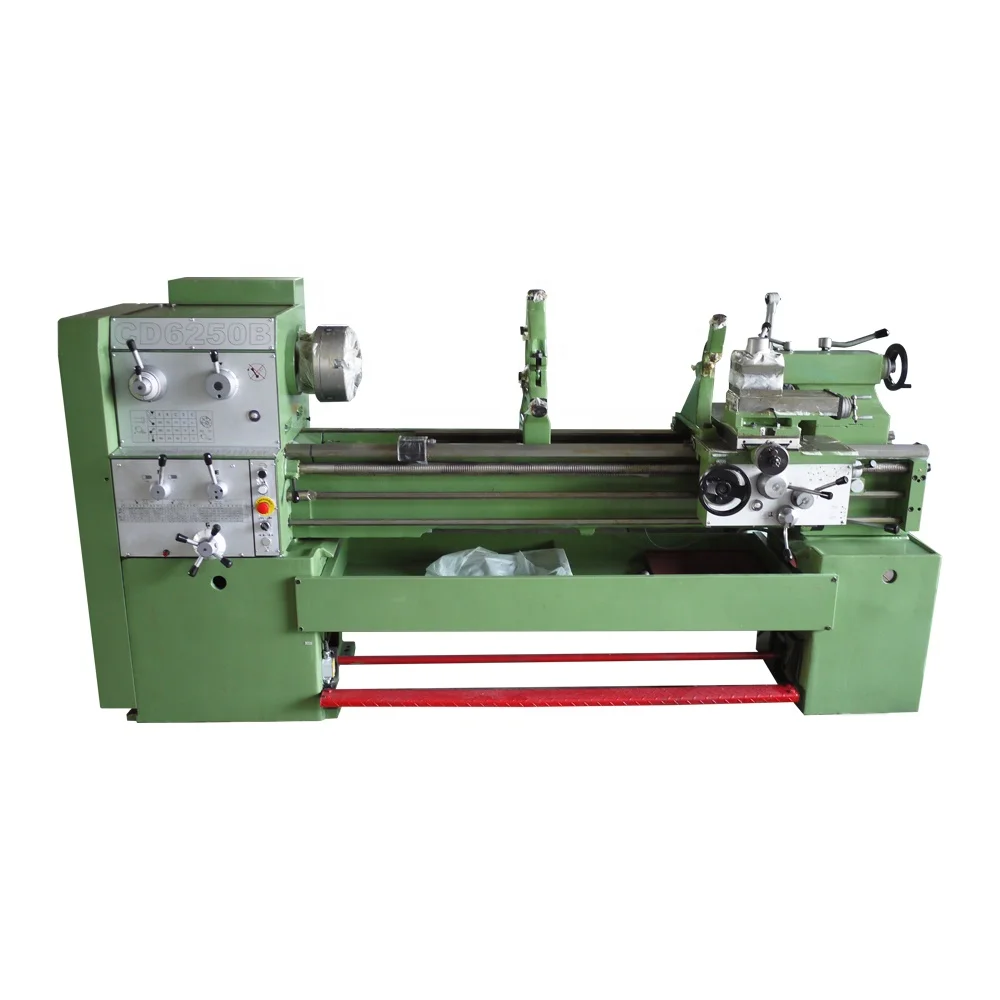

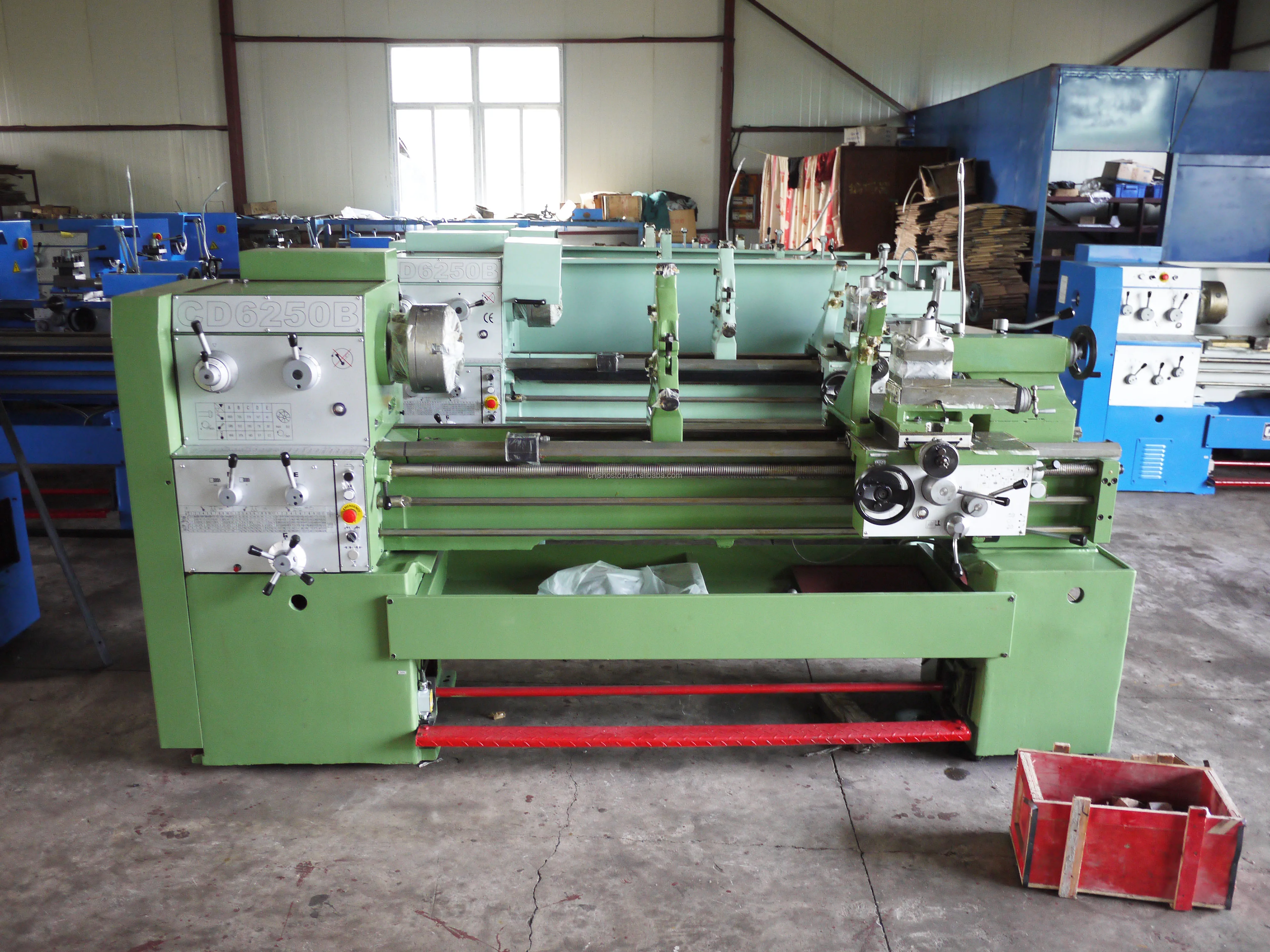

High Speed CD6250B Manual Lathe Machine

♦Bed rail grinding, high precision

♦CE conformity, electromagnetic brake can be amounted

♦Screw overload torque protection

♦ Light bars overload protection

♦Fast feed (special order)

♦Precision ball bearings supporting

♦Customizable CD6166B/CD6266B & Mechanical clutch

4. Technical Parameter

High Speed CD6250B Manual Lathe Machine

	MODEL		CD6240B	CD6250B	CD6260B
CAPACITIES	Max swing over bed		420mm (16”)	500mm(19 3/5” )	600mm(23 3/5”)
	Max swing over slide		225mn(9”)	325mm(13")	360mm(14")
	Workpiece cutting length		1000mm, 1500mm, 2000mm. 3000mm
	Max swing over gap		550mm(21 1/2”) 630mm(25”) 730mm (29”)
	Effective length of gap		260mm (10 1/4")
	Bed width		330mm (13")

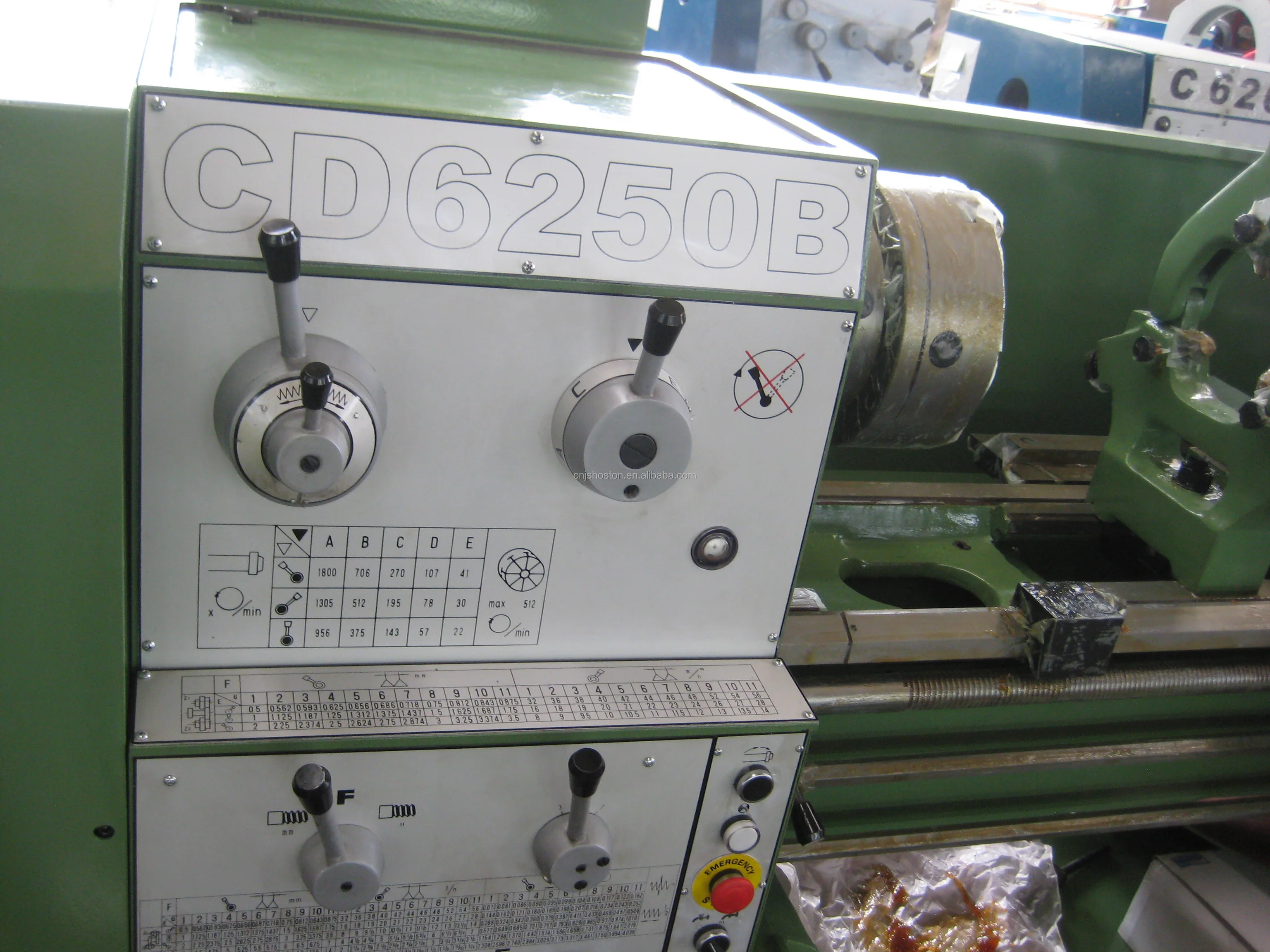

HEADSTOCK	Spindle hole		65mm (2 3/5”)
	Spindle nose		IS0-D6
	Spindle taper		Metric 70mm (1:20)
	Spindle speeds (number)		22-1800 rpm (15 steps)
FEEDS	Metric threads range (kinds)		0. 5-28mm (66 kinds)
	Inch threads range (kinds)		1-56inch (66 kinds)
	Module threads range (kinds)		0. 5-3. 5m π(33 kinds)
	Pitch threads range (kinds)		8-56D.P (33 kinds)
	Longitudinal feeds range (kinds)		0.072-4.038mm/rev (0.0027-0.15 inch/rev) (66 kinds)
	Cross feeds range (kinds)		0.036-2.019mm/rev (0.0013-0.075 inch/rev) (66 kinds)
	Rapid traverse speed		5m/min (16.4 ft/min)

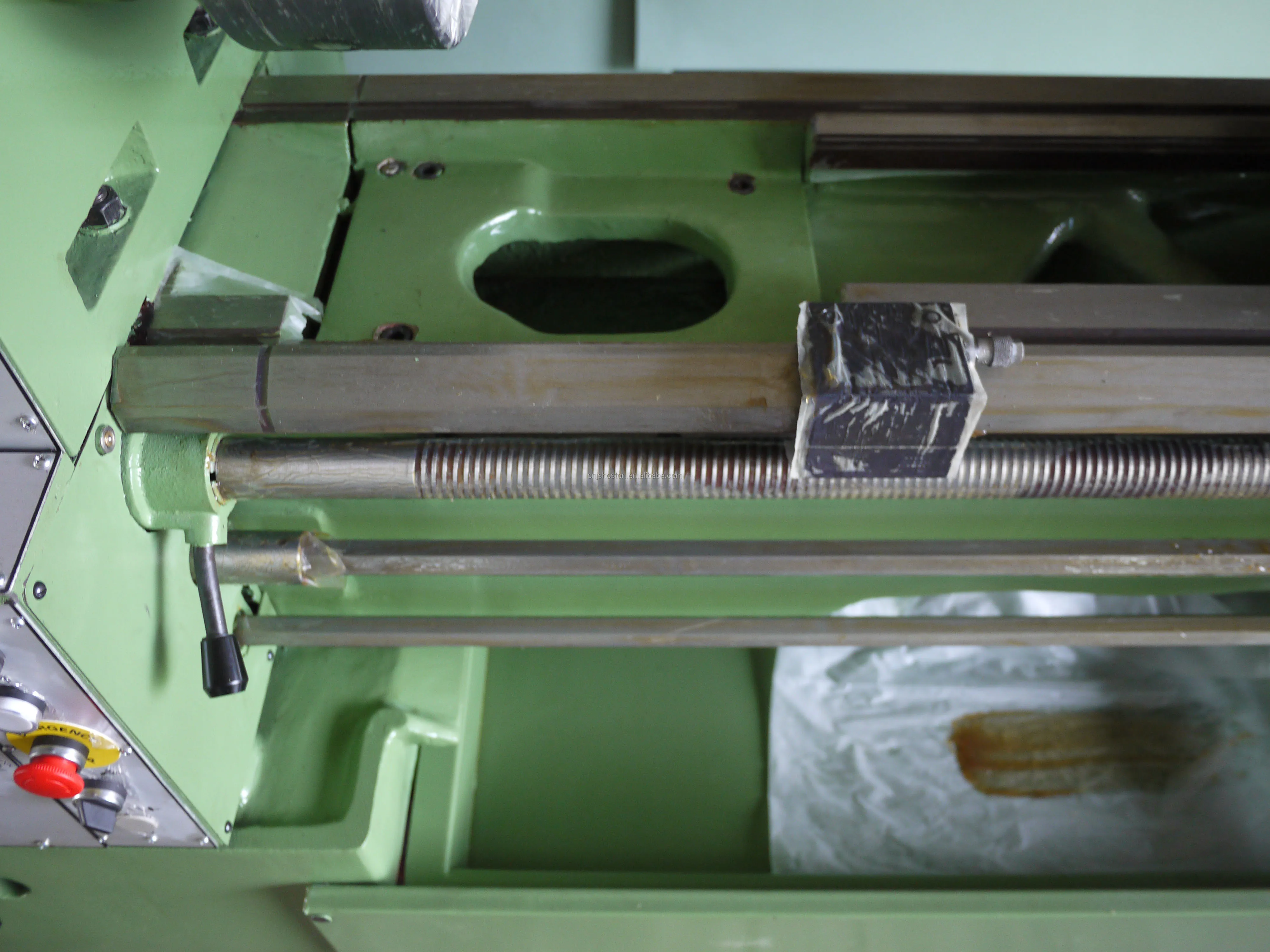

	Leadscrew size: diameter/ pitch		35mm/6mm or 35mm 1/4"
CARRIAGE	Cross slide travel		300mm (12")
	Compound rest travel		130mm (5")
	Cross-section size of tool shank		25mm X 25mm
TAILSTOCK	Taper of tailstock sleeve		MT5
	Diameter of tailstock sleeve		65mm (2 1/2”)
	Travel of tailstock sleeve		120mm (4 3/4")
MOTOR	Main motor power		5. 5kw or 7. 5kw
	Cooling bump motor		0.125kw
	Rapid motor		0.12kw
Center Distance Packing size(LWH)		1000mm 2420X1150X 1800mm (96X46X71 inch) 1500mm 2920X1150X 1800mm (115X46X71 inch) 2000mm 3460X1150X1800mm (137X46X71 inch) 3000mm 4720X1150X 1800mm (186X46X71 inch)
Center Distance Net weight / Gross weight (Kgs)		1000mm 1560/2210kg 1600/2250kg 1640/2290kg 1500mm 1770/2410kg 1830/2470kg 1870/2530kg 2000mm 2010/2780kg 2070/2820kg 2130/2860kg 3000mm 2400/3200kg 2460/3260kg 2580/3400k
