Штрангпресс одиночного винта редуктора и редуктор zlyj
- Категория: Gearboxes >>>
- Поставщик: Zhejiang,Pinbo,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.29 $* | 0.85 $* |
| Aug-17-2025 | 0.38 $* | 0.82 $* |
| Jul-17-2025 | 0.56 $* | 0.79 $* |
| Jun-17-2025 | 0.11 $* | 0.99 $* |
| May-17-2025 | 0.54 $* | 0.88 $* |
| Apr-17-2025 | 0.35 $* | 0.99 $* |
| Mar-17-2025 | 0.27 $* | 0.49 $* |
| Feb-17-2025 | 0.29 $* | 0.86 $* |
| Jan-17-2025 | 0.46 $* | 0.0 $* |
Характеристики
Product Description
ZLYJ gearbox series are transmission devices, which are specially designed for single-screw extruder with high precision, hard gear surface, accompany with
thrust. Adopting the technical specifications stipulated in JB/T9050. 1-1999,
all ZLYJ gearboxes are designed accordingly.
1.Main Technical parameters:
Type | Spec | Input Power(kw) | N( enter) | N(output) | Output Torque | Permitted axial thrust of output shaft(KN) | Screw Diameter | Length-diameter ratio |
(N·m) | ||||||||
ZLYJ gearbox | 112-8 | 5.5 | 800 | 100 | 525 | 35 | Ø35 | 25:01:00 |
133-8 | 8 | 800 | 100 | 764 | 39 | Ø50 | 25:01:00 | |
146-10 | 11 | 1000 | 100 | 1050 | 54 | Ø55 | 25:01:00 | |
173-10 | 18.5 | 900 | 90 | 1962 | 110 | Ø65 | 25:01:00 | |
200-12.5 | 30 | 1000 | 80 | 3581 | 155 | Ø75 | 25:01:00 | |
225-12.5 | 45 | 1000 | 80 | 5371 | 180 | Ø90 | 25:01:00 | |
250-16 | 55 | 1120 | 70 | 7503 | 192 | Ø105 | 25:01:00 | |
280-16 | 75 | 960 | 60 | 7643 | 258 | Ø110 | 25:01:00 | |
315-16 | 85 | 960 | 60 | 13528 | 287 | Ø120 | 25:01:00 | |
330-16 | 110 | 960 | 60 | 17507 | 360 | Ø135 | 25:01:00 | |
375-16 | 132 | 960 | 60 | 21008 | 390 | Ø150 | 25:01:00 | |
395-16 | 185 | 960 | 60 | 29442 | 400 | Ø160 | 25:01:00 | |
420-16 | 160 | 960 | 60 | 31831 | 430 | Ø160 | 25:01:00 | |
420-16 | 220 | 960 | 60 | 31831 | 430 | Ø170 | 25:01:00 | |
450-20 | 213 | 1000 | 60 | 40640 | 500 | Ø160/Ø170 | 25:01:00 | |
560-17 | 540 | 1000 | 50 | 84034 | 700 | Ø200 | 25:01:00 | |
630-10 | 540 | 1000 | 50 | 103132 | 770 | Ø250 | 25:01:00 |
ZLYJ gearbox series are transmission devices, which are specially designed forsingle-screw extruder with high precision, hard gear surface, accompany withthrust. Adopting the technical specifications stipulated in JB/T9050. 1-1999,all ZLYJ gearboxes are designed accordingly.
Service condition:
Rotate speed of decelerator high-speed shaft1500r/min
Ambient temperature for service is 0-35. If the temperature is beyond this range, the lubrication heating or cooling device is otherwise supplied as required by user.
Decelerator code and earmark
Decelerator code is composed of type, output stage center distance, nominal drive ratio and assemblage mode respectively
Example of earmark: ZLYJ 225-- 12.5 -- (,)
ZLYJ series 133, 146, 173, 200, 225, 250, 280, 315, 330 are available.

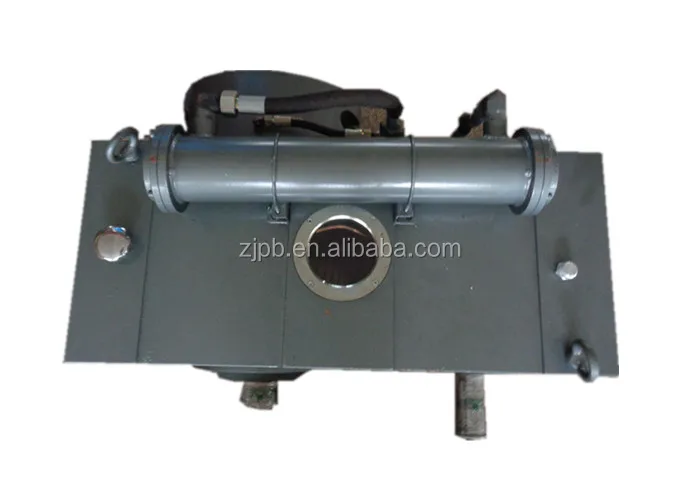

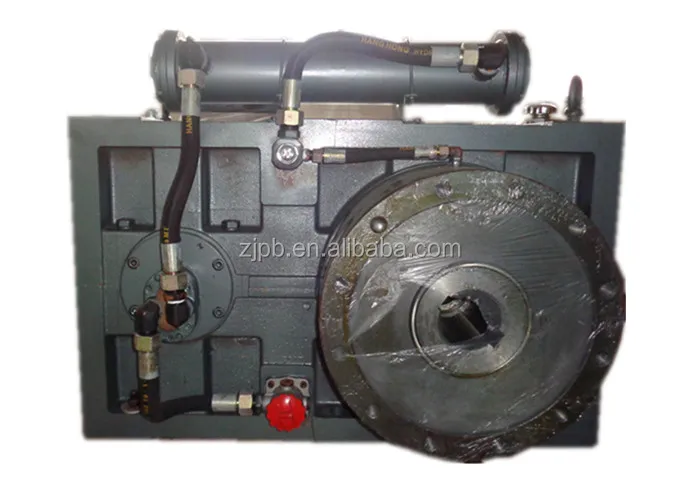

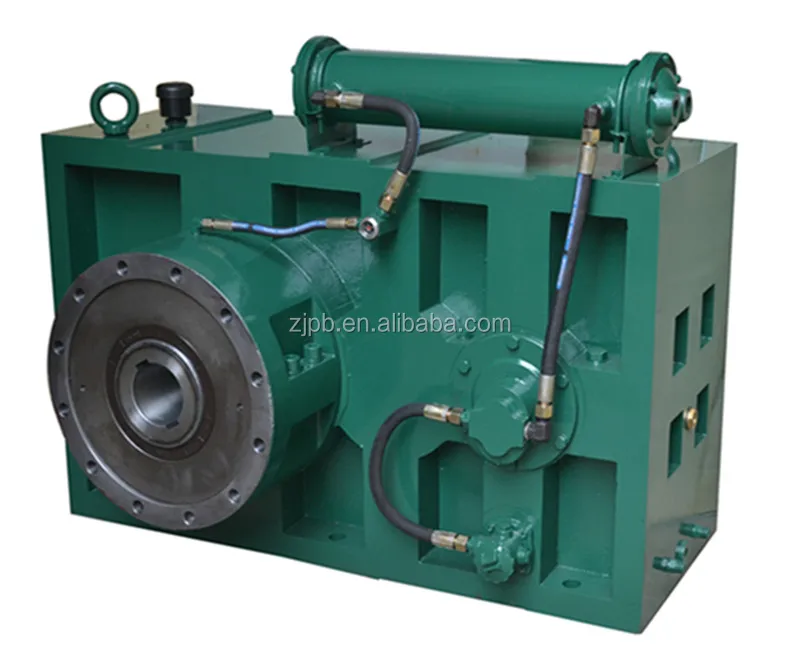

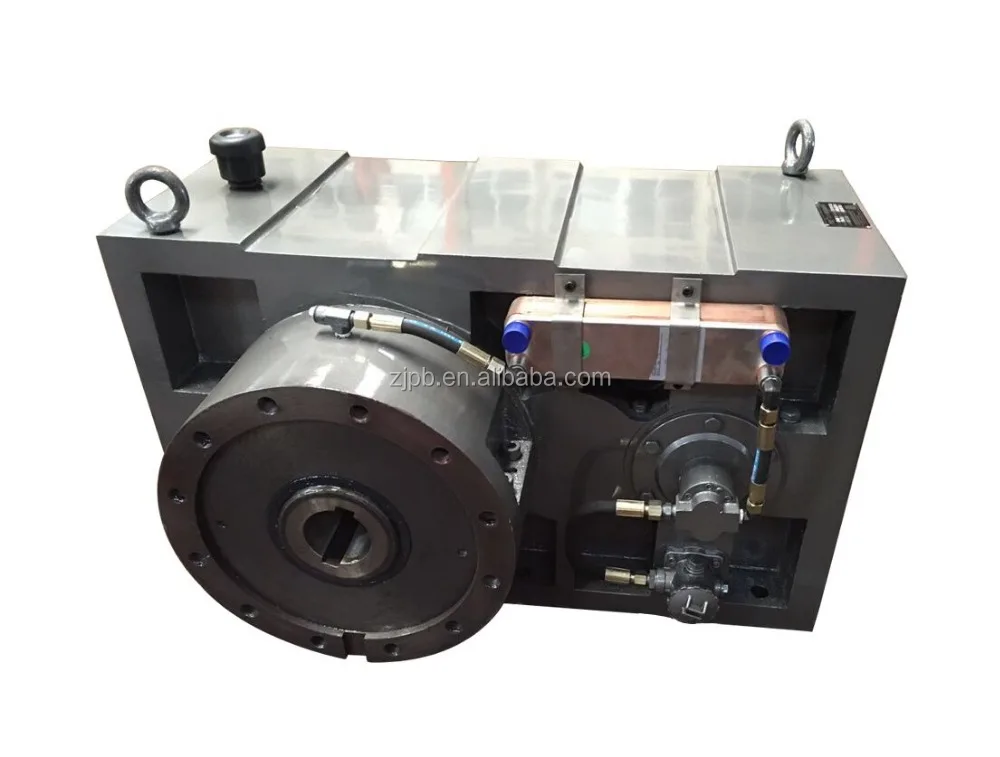

Gearbox show :
2.Main Features:1.The material of gear is the high strength alloy steel, it is manufactured by carburizing, quenching (and other heat treatment), gringding process at last. The gear is in high precison ( 6 grade ) and high hardness ( reaches HRC54-62). Besides, it features low noise when operating.
2. It contains high bearing ability thrust, which is performed reliable and can withstand larger axial thrust.
3.All the items are treated by forced lubrication and cooling system except very few small specificationproducts
4. ZLYJ series gearbox is adopted by six-side processing box. Its normal installation is horizontal, butcan also be changed to vertical installation according to customer's requirment.
Application :
Packaging & Shipping
Company Information
Zhejiang pinbo plastic machinery co.,ltd is located in ruian wenzhou city with brand of PYM (Former Ruian yumin machine screw co.ltd since 1988). The company is specialized in making screw barrel, gearbox zlyj series, t die, filter and extruder machine. It has become one of the largest supplier of main parts in Ruian city which is the basement of plastic machines.
FAQ
1.Q:What are we?
A:We are factory, with license of import and export goods by ourself.
2.Q:How to get to us?
A:The nearest airport is Wenzhou airport, and the nearest train station is Ruian station.
3.More details of our products ,pls feel free to contact us,thanks so much !
