Характеристики
Product Description

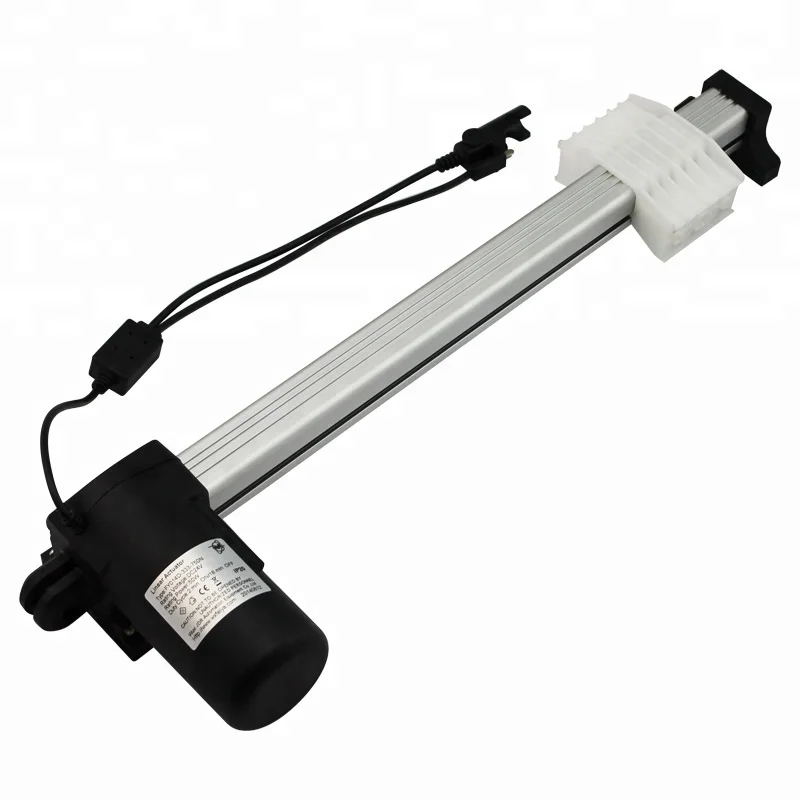

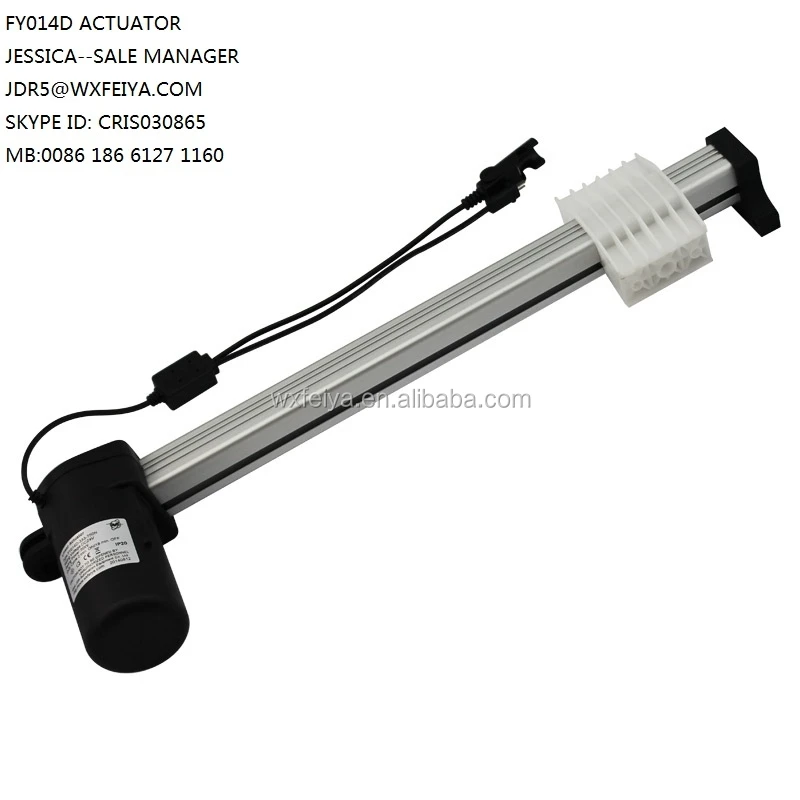

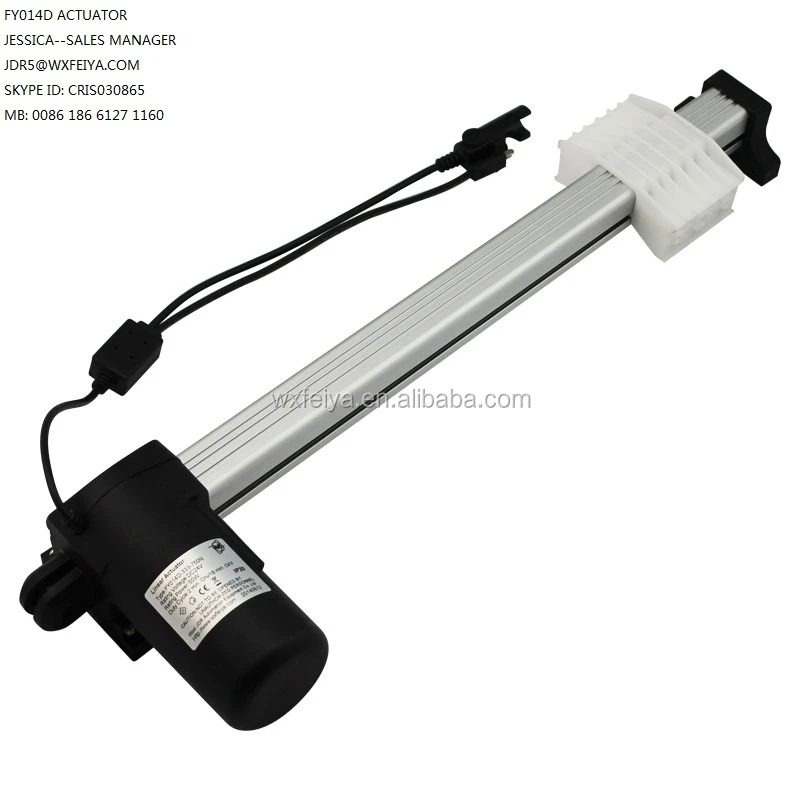

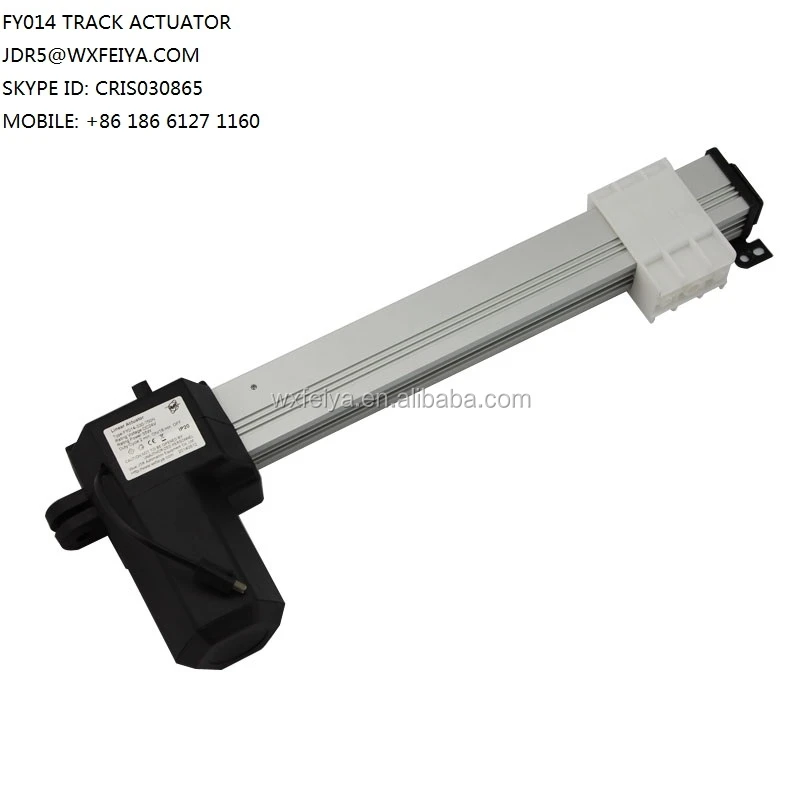

Electric Linear Actuator FY014 for the recliner sofa and chair
It can be used in sofa and chairs, Raising or falling of the back of electric sofa is based on the raise and falling of its white slider.
Specifications :
1) Thrust up to 4000N
2) 12V / 24V DC input voltage
3) Min Installation Dimension : S + 155mm
4) Standard protection class, IP43
5) High-strength plastic housing protecting motor and gears
6) Black plastic parts and anodized aluminium profile
7) Noise level, 48 dB, actuator not loaded.
8) Elegant and compact design with small installation dimensions
9) Colour, black plastic parts and natural anodiz ed Aluminium profile.
10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use
Name: | Slide Linear Actuator |
Model: | FY014 |
Usage: | Electric Sofa, Recliner Sofa, Electric TV Lift, Electric Cabinet Lift, other Application use |
Input Voltage: | 12v or 24v DC |
Load Capacity: | 750N, 1500N, 4000N |
Free Load Speed: | 35mm/s, 18mm/s, 8mm/s |
Standard Stroke: | 50 mm --- 1000mm (Optional) |
Installation Dimension: | S + 205mm |
Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
Work Temp.: | -26 to 65 centigrade |
Protection Grade: | IP43 |
Certificate: | CE / EMC + LVD, RoHS |

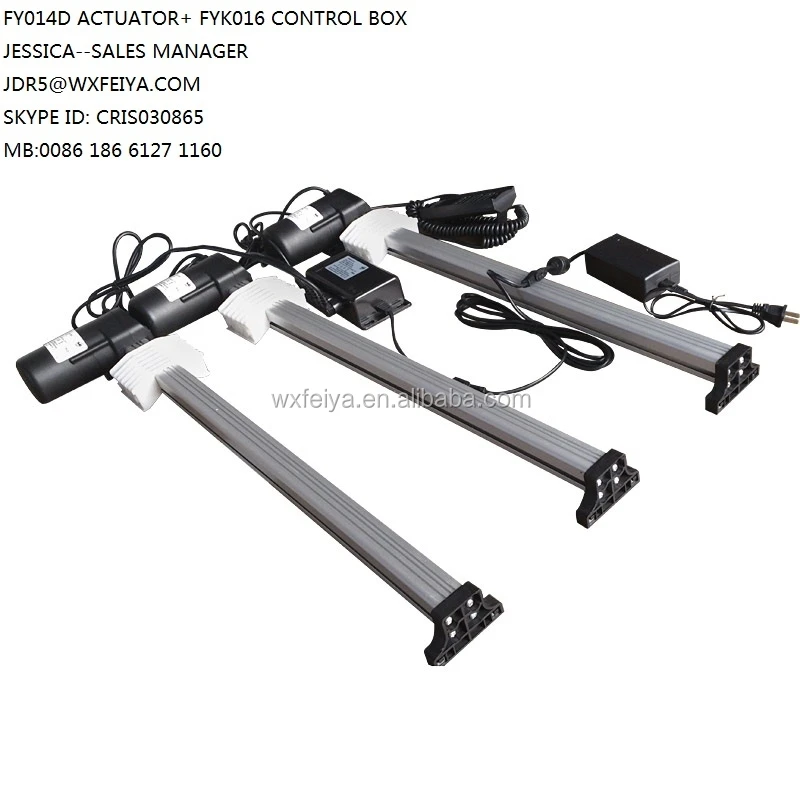

Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 | |
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 | |
Control 4 Linear Actuators: FYK012-4, FYK016-4 | |
Control 5 Linear Actuators: FYK012-5, FYK016-5 | |
Control 6 Linear Actuators: FYK016-6 | |
Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
Option :
Stroke : 100~500mm, can design as customers' requirements
Free load speed : 4mm/s~35mm/s
Rated load speed : 3mm/s~30mm/s
Description :
This type linear actuators allow you to screw the sliding block to your device giving flexibility and can also come complete ready to plug in and play out of the control box , include hand controller and power supply .

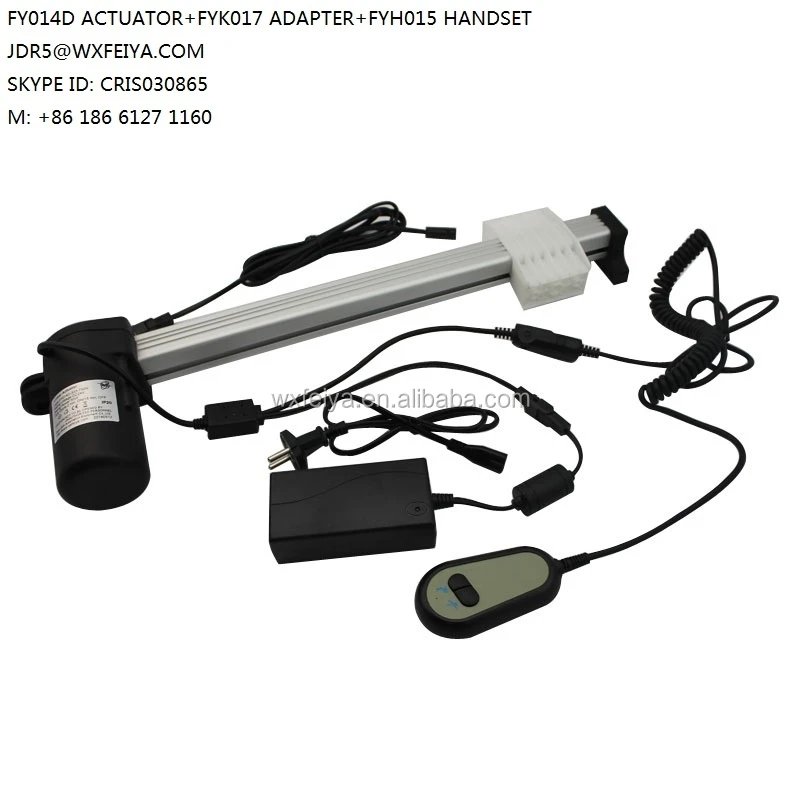

Complete sets Introduction
1.There are linear actuator FY014, handset FYH017-B, switch power FYK017-A .
2.The handset FYH017-B could control one linear actuator.
3.The stroke of the FY014 can be designed as customer’s requirement.
4.This complete set could be used in the leisure chair, function chair, function sofa, medical bed, automatic doors, automatic windows, smoke windows, other drive systems.
5.It could be changed for any parts by customers need.
Packaging & Shipping
Our Services
High quality of electric linear actuator to worldwide customers. We are professional manufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
Company Information
FAQ
Q1: What is our factory product range?
A1: Furniture linear actuator, industrial linear actuator, adjustable height desk etc.
Q2: What’s your MOQ of this linear actuator ?
A2: 10pcs.Small quantity is available.
Q3: Is it all right to make customer’s own brand name?
A3: that’s all right. if customer required, we’ll make customer’s brand name. otherwise we make our own brand name
Q4: So how is the lead time of our order?
A4: Normally 3-5days, the lead time is according to the quantity.
Q5: How do i know the products' quality and the packing ways are the ones we required?
A5: Each product will be tested before sending out. We will send you photos for the goods to confirm again the packing ways.
Q6:How to assure the quality ?
A6:Firstly, all of our materials and components pass the serious China Quality Standard and Control.
Secondly, all of our finished products should pass
quality Check System before export.
Thirdly, our products can be provided to test and cetify by Authories according to customer's special needs.
