Машина для производства доски mgo с хорошей

Описание и отзывы

Трекер стоимости

Характеристики



Product name	mgo board production line
Other name	Fireproof mgo board Line
Model	DYMGO4000
Brand	Dongyue
Feature	Automatic
Size	1400*1800cm
Weight	2t



The main parts are: fully automatic sucker machine, multi functional mgo board production machine, fully automatic cutting machine, fully automatic loading machine, fully automatic unloading machine, fully automatic detaching machine, fully automatic edge cutting machine 4sides, horizontal dual spindle mixer, foaming machine and so on.



Features



1. unique design and manufacture to give you the best machine and lowest cost

2. separate adjustment to guarantee massive production tusk.

3. 4 roller, double drive roll-in technique, automatic feeding, spreading, double pressing and cutting.

4. dual vibration device, no bubble.



Introduction of main equipment

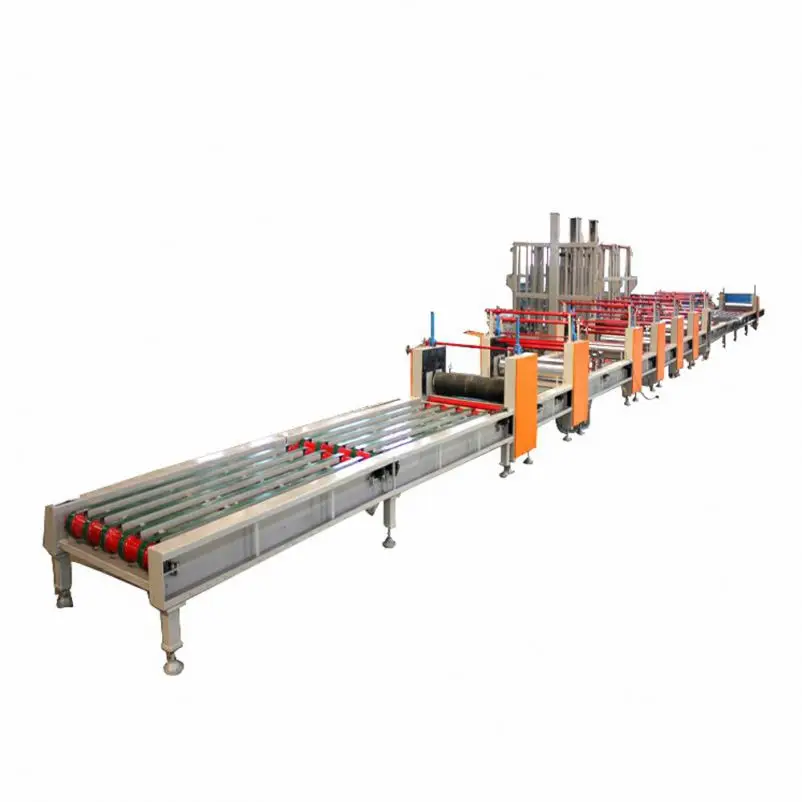

1. Board making production line



Total length of the production line is 27.8m, width 1.45m, height 0.75m. Belt drive for the whole production line, fully automatic feeding board, oil adding. The main roller diameter is 215mm, 304 stainless steel, fully automatic cutting machine, PLC controlled. Production speed is more than 15m/hr. Products thickness range from 3mm to 40mm, length 2200-4000mm, width 1280mm.



2. Board making and mould release lift

Fully automatic single and dual life, 4 pillar hydraulic automatic lift, stainless steel roller conveying device for length 2350mm. Highest weight limit 3000kg, PLC controlled.



3. Mould release line

Automatic mould release and cleaning face/back of the board. Mould release speed is in line with production speed.



4. Up/down machine arms

Automatic hydraulic lift, powerful vacuum to catch both the glossy and matt board. Single sucker 5pcs/min, dual sucker 8pcs/min. PLC controlled and can be programmed, server motor.



5. Mixer

Dual spindle mixer, 11kw motor, hydraulic turn unloading, 250kg magnesium oxide one shot, 3mins can be ready mixed, unloading time will be no more than 20 seconds.
