HJG-200 зажим для бумаги угол доска машина производства изделий
- Категория: Оборудование для производства бумаги >>>
- Поставщик: Jinan,Chengdong,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 26180.46 $* | 27489.71 $* |
| Aug-18-2025 | 25960.20 $* | 27258.78 $* |
| Jul-18-2025 | 21780.42 $* | 22869.80 $* |
| Jun-18-2025 | 25520.62 $* | 26796.28 $* |
| May-18-2025 | 22220.5 $* | 23331.84 $* |
| Apr-18-2025 | 25080.95 $* | 26334.18 $* |
| Mar-18-2025 | 24860.16 $* | 26103.50 $* |
| Feb-18-2025 | 24640.8 $* | 25872.55 $* |
| Jan-18-2025 | 24420.35 $* | 25641.85 $* |
Характеристики
Product Description

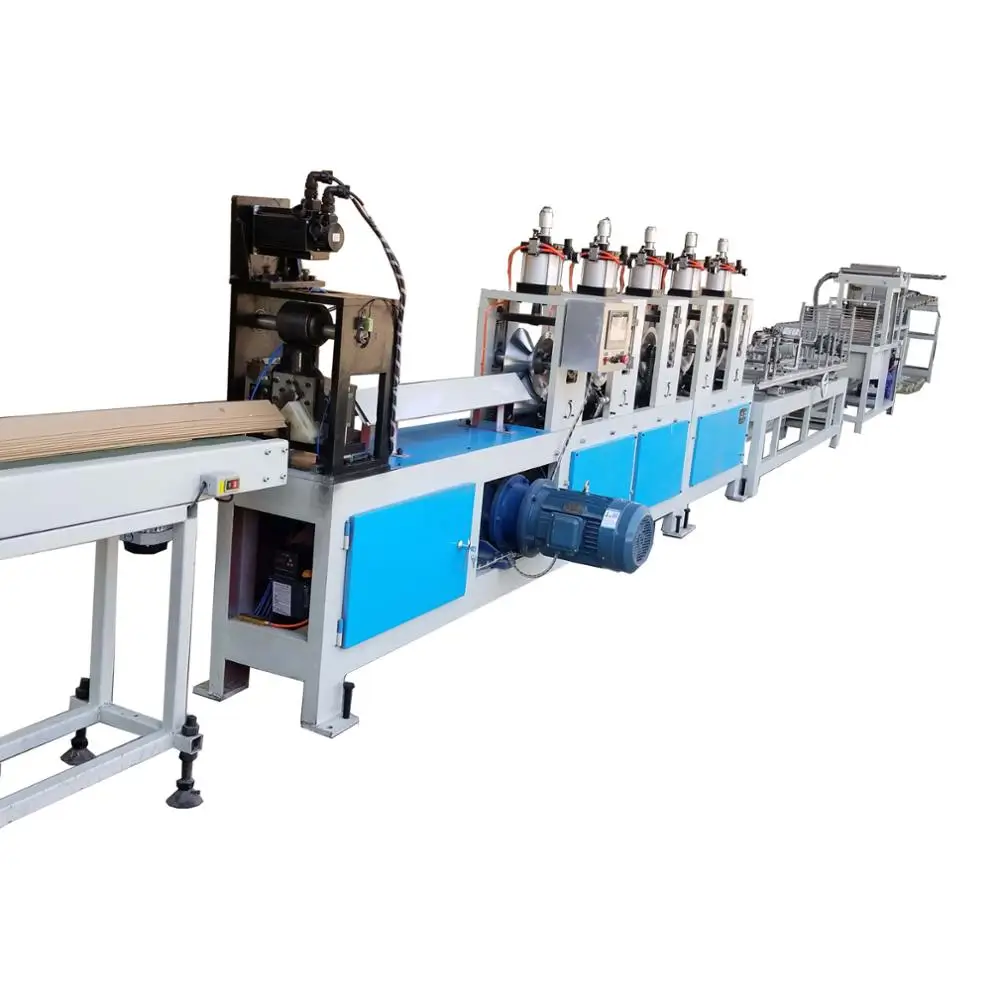

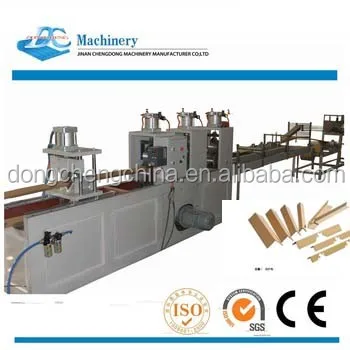

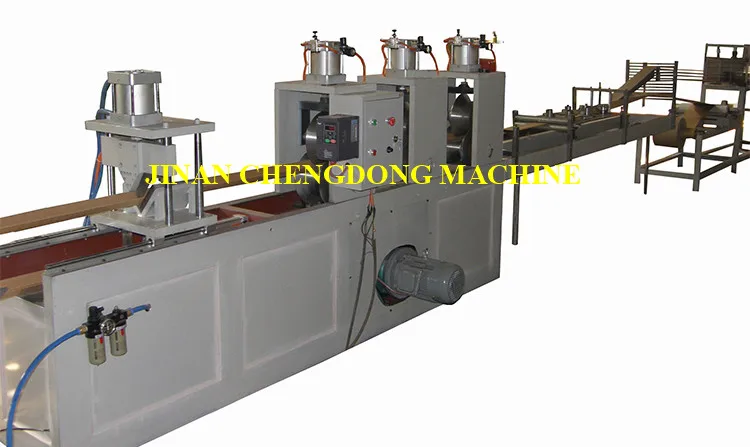

PAPER CORNER PROTECTOR MAKING MACHINE MODEL HJG-100
Usage and Features:
This machine is used to produce high strength paper edge protectors which are very ideal to prevent damages to edges of various palletized goods and circular goods like paper reels, steel coils etc
The main features as follows:
1. Pressing and forming mould choose steel material and process electroplated
2. Servo cutting unit, high efficiency and good cutting quality.
3.Paper roll stand choose integral structure, with electric hoist for loading paper reel.
4. Glue tank choose stainless steel material, with heating device
This machine is used to produce high strength paper edge protectors which are very ideal to prevent damages to edges of various palletized goods and circular goods like paper reels, steel coils etc
The main features as follows:
1. Pressing and forming mould choose steel material and process electroplated
2. Servo cutting unit, high efficiency and good cutting quality.
3.Paper roll stand choose integral structure, with electric hoist for loading paper reel.
4. Glue tank choose stainless steel material, with heating device
Parameter/Model | HJG-100 | ZFJ-1600 | ZFJ-1800 | ZFJ-2200 | |||
Angle board size | width 30*30~100*100mm | Max.1600mm | Max.1800mm | Max.2200mm | |||
Angle board thickness | 1~6mm | Max.1350mm | Max.1350mm | Max.1350mm | |||
Working speed | 40m/min | 76mm | 76mm | 76mm | |||
Cutting Type | Servo motor control | Hydraulic | Hydraulic | Hydraulic | |||
No. of loading reels | 12 layers(can be customized) | 50~1600mm | 50~1800mm | 50~2200mm | |||
Control type | HMI input, PLC control | Max.1350mm | Max.1350mm | Max.1350mm | |||
Machine power | 5.5/7.5KW | Hydraulic | Hydraulic | Hydraulic | |||
Overall Size | 18000*1500*1600mm | 200m/min | 200m/min | 200m/min | |||
Detailed Images
Introduction of product advantages or application effect or application mode
Gluing Unit
Equipped with pneumatic diaphragm pump for glue driving
Each layer have separate small glue tank ,easy for paper feeding
With guiding frame in front of the glue tank, and glue squeegee device behind it
Folding Unit
Structure easy for adjustment
The unit could be movement on the guide rail integrally,
Convenient while change angle board type and size

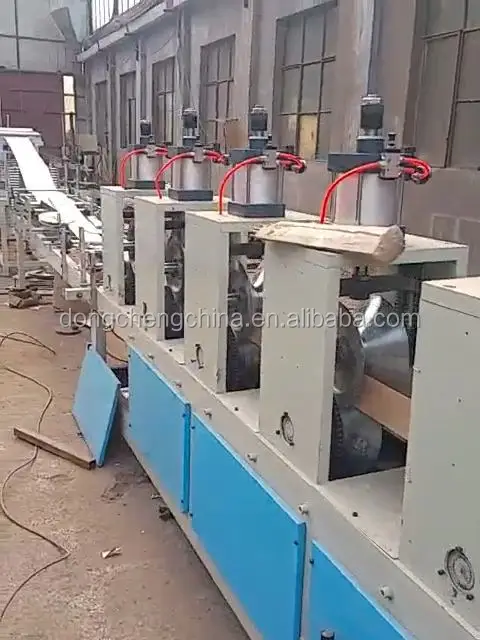

Forming and Pressing Unit
With 5 or 8 sets of pressing wheels which done electroplating treatment to get smooth surface and anti-wearing
High and even pressing force to get smooth and hardness product
With pneumatic pressure control and adjustment spring device to ensure good product quality
Cutting Unit
Adopt Servo driven system control cutting blade, get high accuracy
The upper blade is V type blade, the bottom blade is nylon block, it could adjust forward and backward, So it could extend the
using life.
using life.
Two material follows：
1. A small roll of Bobbin Paper / kraft paper made from a large roll of paper by a slitting rewinder
2. Special glue for Bobbin Paper / kraft paper.

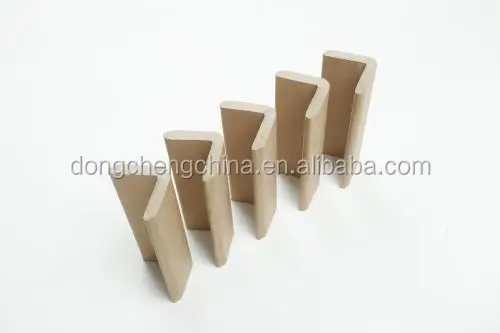

Sample product
"Paper corner protection:
It can protect the edge, corner, top and bottom of the product. The paper corner protector is formed by laminating several pieces of kraft paper and shaping and pressing by the corner protector. After stacking goods, it can strengthen the edge support of the package and protect the overall packaging strength. It belongs to green environmental protection packaging materials. The paper corner protection and the product bundle together can make the whole package more solid and firm.
Certificate
Company Introduction
JINAN CHENGDONG MACHINERY MANUFACTURE CO.,LTD. was founded in 1993 and have more than 20 years for manufacturing experience of paper-processing equipment in China. There are a group of senior engineers and technicians and R&D department to ensure the producing capacity and high quality. The company successively develops a group of leading products in homeland based on the ideology of constant development and creation. The main products including Paper roll slitting and rewinding machine, Spiral paper tube/core winding machine, Fibre/Paper drum production line, Composite can production line, Paper tube/core cutting machine, High-speed rotary paper roll to sheet cutting machine, paper board laminating machine, paper corner protector machine, Paper tube polishing machine and other different paper processing machines.
