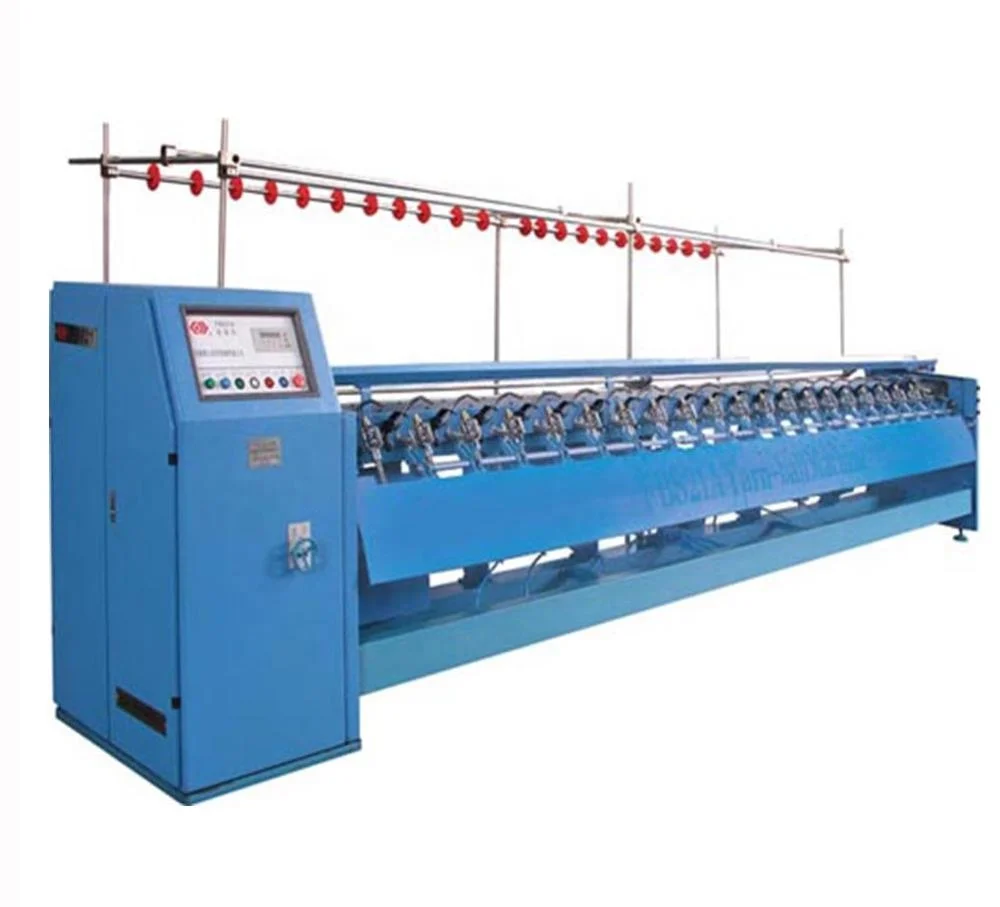

Машина для намотки шариков машина


Поделиться:


Цена:5 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 5950.99 $* 6248.89 $*
Aug-16-2025 5900.40 $* 6195.66 $*
Jul-16-2025 4950.73 $* 5198.36 $*
Jun-16-2025 5800.88 $* 6090.45 $*
May-16-2025 5050.94 $* 5303.16 $*
Apr-16-2025 5700.0 $* 5985.88 $*
Mar-16-2025 5650.19 $* 5933.1 $*
Feb-16-2025 5600.92 $* 5880.14 $*
Jan-16-2025 5550.62 $* 5828.65 $*

Характеристики




Application
 ·Feed spinning fibers of cone roller processed by Bobbin Winder spooler or rolling fibers fallen by bobbin Reversing Machine into this machine, coil to spinning ball with specified ,weight and various winding appearance by relative motion of spindle ,wings of spindle and spine. Put spinning ball into market after covered with brands and boxes by manual.

Main features
 ·Adopt touch indication operation board, which can set up and indicate each processing parameters of forming ball so that it is convenient for monitoring and control

·Adopt frequency converter and PLC to achieve step-less speed adjustment and motion control during forming balls.

·Adopt structure type spinning spindle for flexible fold and unfold with round sphere, Adopt plate cutting and remaining head to be convenient for forming ball repeatedly.



 Main Technical Parameter

1

Spinning

Various pure spinning of cotton,rayon,linen and chemical fibers

2

Ball of Spinning Weight

50--100g/Pc

3

Spindle Gauge

256mm

4

Number of Spindle

20per/set

5

Rot.Number of Spindle Wing

332.31--797.54r/min

6

Rot.Number of Spindle

0.96-398.39r/min

7

Feed Coil

Cone roller φ380×200(W)Long rollerφ380×900(W)mm

8

Comp.Air Pressure

>0.45MPa

9

Speed adjustment and motion

Frequency converted and step-less speed adjustment and action controlled by PLC

10

Power of motor

4KW

11

Measurement

L6650×W3070×H1900mm

12

Gross Weight

Appr.2000KGS



balling machine2.jpg
