Инфракрасная паяльная духовая машина


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.32 $* 0.74 $*
Aug-19-2025 0.77 $* 0.81 $*
Jul-19-2025 0.75 $* 0.38 $*
Jun-19-2025 0.50 $* 0.98 $*
May-19-2025 0.8 $* 0.17 $*
Apr-19-2025 0.97 $* 0.11 $*
Mar-19-2025 0.81 $* 0.89 $*
Feb-19-2025 0.60 $* 0.80 $*
Jan-19-2025 0.90 $* 0.75 $*

Характеристики

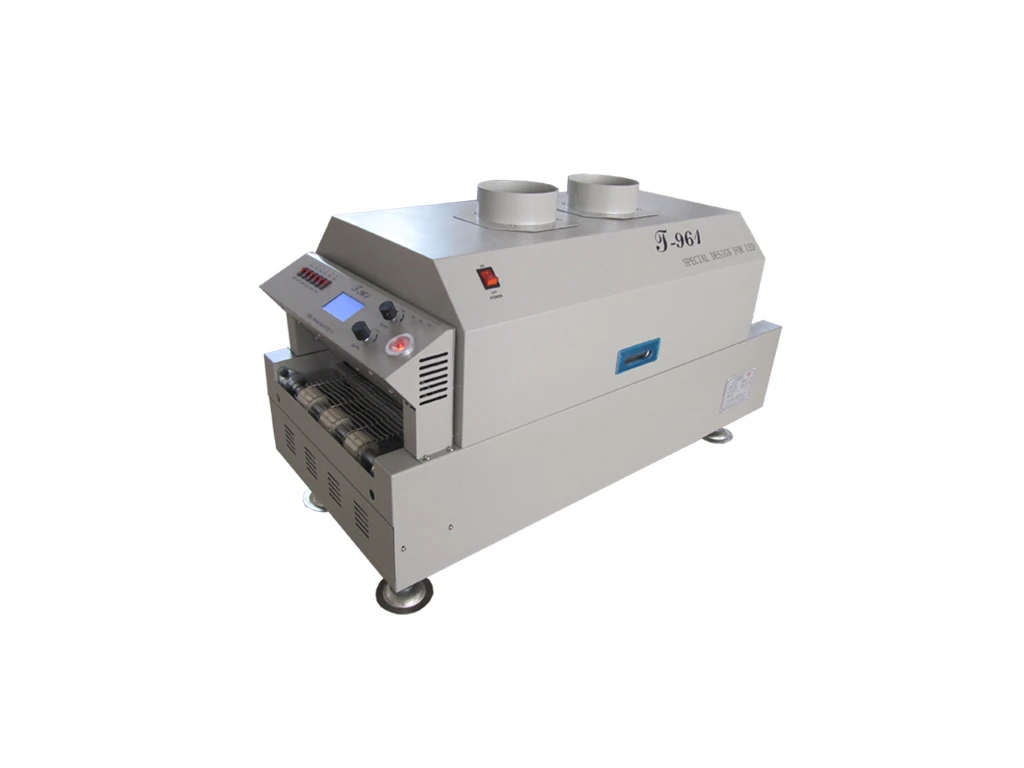

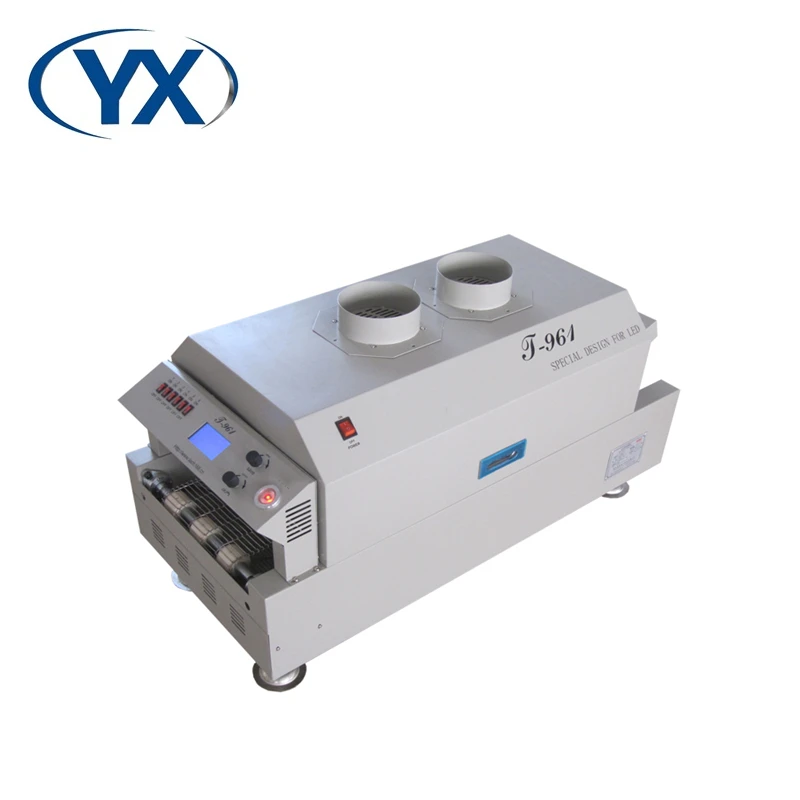

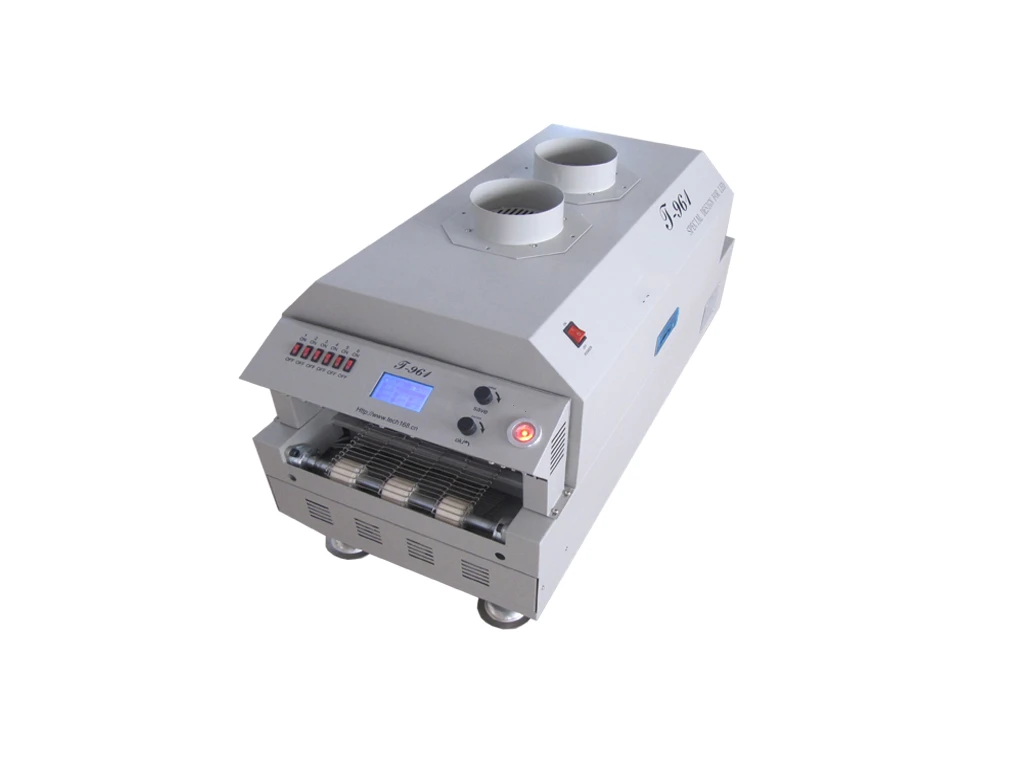

Mini SMT Reflow Oven T961





Technical parameters:

















































































Model



T-961



The heating zone quantity



upper3/down3



The length of the heating zone



730mm



The heating type



intelligent level sirocco and rapid infrared heating



The cooling zone quantity



1



Maximum width of PCB board



230mm



The operation direction



left right



Delivery options



Net transmission+chain transmission



The speed of conveyer belt



0-290mm/min



The power supply



220V  50/60Hz



Peak power



3.5KW



Heating up time



Around 7mins



Temperature control range



Room temperature~300



Temperature control mode



PID closed-loop control



Temperature control accuracy



±1



PCB temperature distribution deviation



±2



Overall dimensions



1000×466×445mm



Machine weight



70KG















Complete machine



                                                      1



User manual



                                                      1






Features:


1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling,


equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted


soldering the LED and BGA components.


2. This machine is equipped with the crawlertype and six temperature area heating systems, and each


temperature area uses independent PID controlling and updown heating type, can make the inside


temperature more accurate and wellproportioned, just take about 7 minutes can let it heat up to the working


 temperature from the room temperature.


3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature


waves can satisfy various welding technological requirements.


4. Use programmable technology, preset the temperature wave memory storage function, can complete the


whole welding process automatically according to your presetting wave.


5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature


measurement more accurate, the wave more perfect.


6. Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the


 imported large current solid-state relay noncontact output can effectively avoid the IC or circuit board damage due to the rapid or


uninterrupted warming up, make the whole welding process more scientific safety.


7. Transmission system adopt imported frequency conversion motor, PID closedloop speed, smooth operation,


 speed adjustable range 0-290mm/min.


8. Adopt independent wheel structure and special stainless steel strut, durable wearresisting runs smoothly,


speed precision can reach ±10mm/min.


9. Independent cooling zone, to ensure the PCB board of low temperature when the required.


10. Friendly humanmachine operation interface, perfect LCD display, no need to connect with the PC, can


watch the whole repairing process very clearly.


11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and


a small footprint allows the T-960 to be easily bench positioned, transported or stored.
