Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Полностью автоматическая машина для производства пластиковых/ПЭТ бутылок
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,King,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.97 $* | 0.49 $* |
| Aug-19-2025 | 0.92 $* | 0.37 $* |
| Jul-19-2025 | 0.97 $* | 0.80 $* |
| Jun-19-2025 | 0.70 $* | 0.70 $* |
| May-19-2025 | 0.0 $* | 0.66 $* |
| Apr-19-2025 | 0.76 $* | 0.82 $* |
| Mar-19-2025 | 0.98 $* | 0.64 $* |
| Feb-19-2025 | 0.26 $* | 0.0 $* |
| Jan-19-2025 | 0.7 $* | 0.0 $* |
Характеристики
Specifications
Full Automatic PET/Plastic Water Bottle Making Machine
1.Full Automatic Blowing Machine
2.Used for PET bottle
3.Bottle Making Machine
4.CE,ISO
Product Description
Full Automatic PET/Plastic Water Bottle Making Machine
KM-A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: Automatic and manual.
10). Safe\\reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost\\high efficiency\\easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to install\\test and start up.
14). Low rejection rate: Less than 0.2 percent.
| Model | KM-A4 | |
| Productivity | Depend on bottle design | 3200-4000PCS/H |
| Product type | Body diameter | 20mm-100mm |
| Height | 50mm-350mm | |
| Neck diameter | 15mm-38mm | |
| Mold | Cavity | 4cavities |
| Mold thick | 240mm | |
| Mold | 500*500mm | |
| Main machine power | Electrical source power | 380v 3Phase /220v 3Phase 50/60HZ |
| Rated Power | 49kw | |
| Really use power | 14kw | |
| Air source | LP air compressor | 1.6m3/min 1.0MPa 1set (15KW) |
| HP air compressor | 1.0m3/min 3.0MPa 2sets (each set 11KW) | |
| Air dryer | 2.0m3/min 3.0MPa 1set | |
| Cooling water | Cooling water | 15L/min |
| Size | L*W*H | 1908*1858*1920mm |
| Weight | 3600kg | |
| preform unscrambler | L*W*H | 2000*950*2480mm |
| Weight | 250kg | |
| Resin available | PET | |
Detailed Photos:

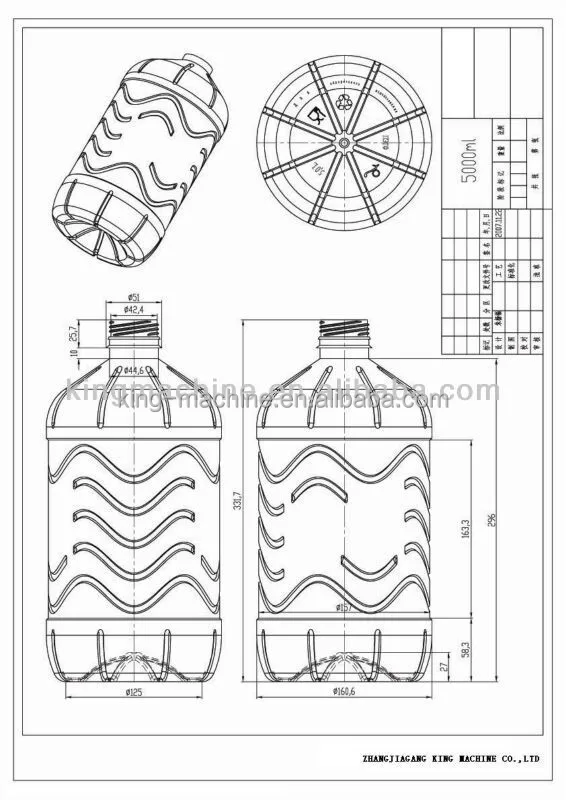

PET PREFORM and MOULD

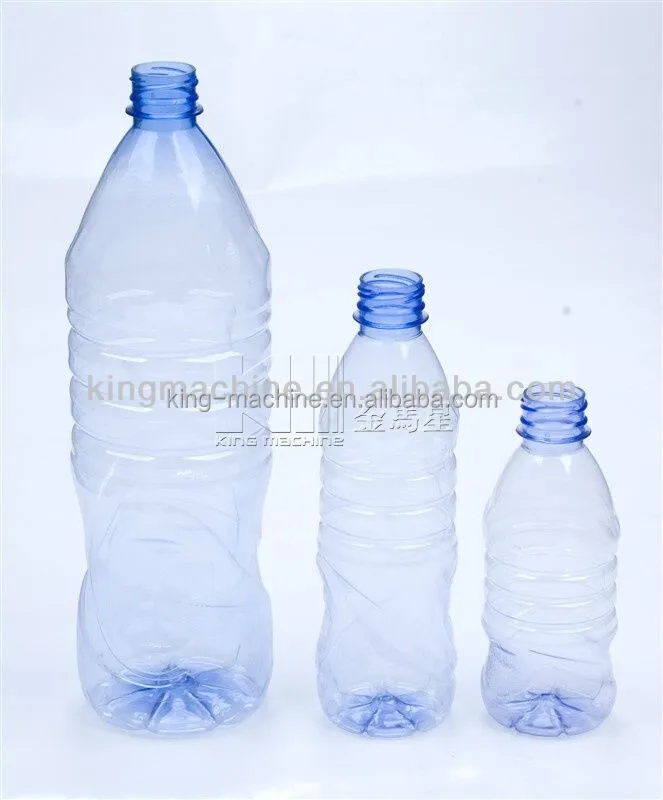

Products:
Certifications
Packaging & Shipping
Our Services
Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
Company Information
Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.
Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.
O
Our Factory
Our production workshop
Our workers are working
FAQ
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
