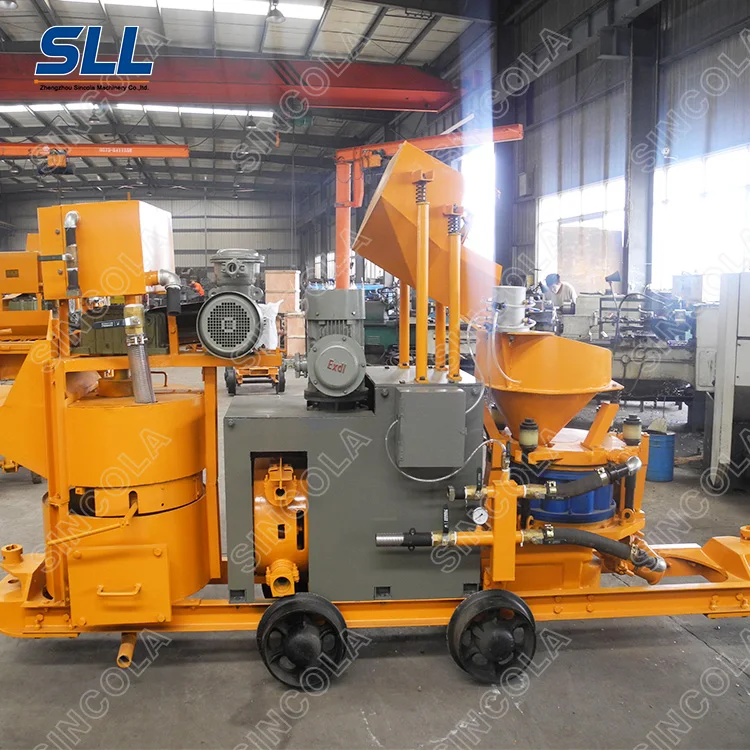

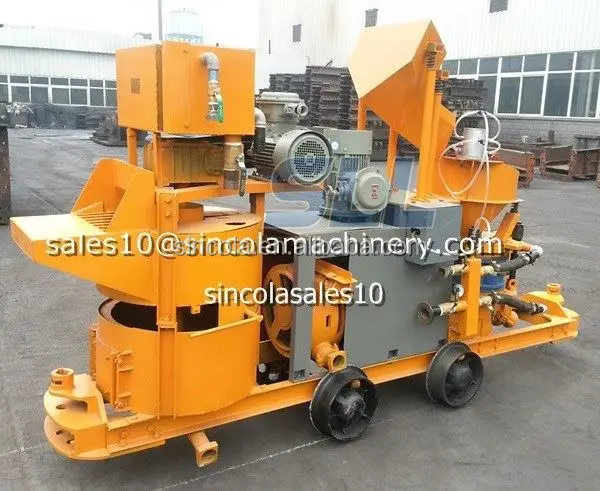

Multifunction portable air compressor shotcrete machine



Concrete injection unit is special equipment for wet sprayed concrete underground coal mining

industry. Scientific and technological achievements reached the international advanced level and

won second prize of the henan province scientific and technological progress. It has advantages

like lng conveying distance, small dust near the machine, compact structure, reliable performance,

simple operation and convenient maintenance and cleaning, etc, at the same time, this method

does not need stirring equipment but relies on high pressure wind to realize concrete mixing,

can support in the coal mine narrow space for normal operation. It is the ideal choice for the wet

shotcrete assignments in the coal mine.



Function of portble air compressor for shotcrete machine

Explosion proof concrete injection machine,Integration can stir, conveying, grouting and jet.



Paremeter of portble air compressor for shotcrete machine

Type	JPS6IH
Output	6 m3/h
Conveying distance(level/vertical)	(wet type)60m
Water cement ratio	>0.40
Max.Aggregate.size	15mm
Hose inner size	51mm/64mm
Operating air pressure	0.4 MPa
Voltage	380V/660V
Mixing drum rotate speed	10r/min
Air consumption	10 m3/min
Gauge	600m/900m
Dimension	3179×820×1700 mm
Weight	1500KG





Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are the one of the big manufacturer and supplierin China .



Our products are dry and wet portble air compressor for shotcrete machine and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.



Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts. Our products are well known to international market such as Russia, UzbekistanRussia,Uzbekistan,Cyprus,Algeria,Cameroon,Macedonia,Malaysia,Austrialia,Yemen,Oman etc.



Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.
