    2017 dry and wet mix shotcrete machine price



Product Description


 2017 dry and wet mix shotcrete machine price Descriptions:


Shotcrete machines   2015 New concrete ready mixed shotcreting machine intex above ground pools use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life w ith low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.





shotcreting machine





 SPZ-58








Features of 2017 dry and wet mix shotcrete machine price:





Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.





Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality





Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life





Technology





Technical parameters for 2017 dry and wet mix shotcrete machine price:






















































































Model$Model1$$Model2$$Model3$
Output (m3/h)3 m3/h5.5 m3/h9 m3/h
Max.conv.dist200200150
Water cement ratio< 0.4< 0.4< 0.35
Max.Aggregate.size10mm15mm20mm
Hose inner sizeφ42/50 mmφ50 mmφ60 mm
Operating air pressure0.2-0.6 MPa0.2-0.6 MPa0.2-0.6 MPa
Air consumption5-6 m3/min7-8 m3/min9-10 m3/min
Motor power3 kW(4hp)5.5 kW(7hp)7.5 kW(10hp)
Dimension(LxHxW)1130x1020x540mm1350x1020x750mm1500x1320x830mm
Weight520kg780kg980kg
Voltages220V/380V/400V/415V/440V/660V 50Hz/60Hz
Basic chassisTyre, Skid, Rail-wheel
Driving TypeElectric Motor










2017 dry and wet mix shotcrete machine price



Packaging & Shipping






  • Packaging DetailExport standard veneer cases or wooden cases or according to customers'requirements

  • Delivery Detail: within 7-15 days after received your advance payment.


 shotcreting machine





FAQ


FAQ:


1. what kind of project?


Shotcrete machines can be used in engineering and construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations.


2. drive type mode? If you want electric type, then what about the electric voltage in you local place?


We provide  Electric, Air or Diesel models, it all depend on your choice.


3. any other special requirment for the machine?


We can produce the shotcrete machine by customized.








Company Information





Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise professionally engaged in the R&D and manufacturing of shotcrete machine plaster machine and mortar pump,wall rendering machine,concrete pump etc.





Needs and development of a comprehensive analysis of international users, our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.


Domestically, we have offices in major cities with the rich-experience designers, which is convenient for analyzing and designing product line for customers and provides prompt, exquisite, considerate after-sales service. At present, our equipments have been exported to many countries and regions such as Southeast Asia, Mideast, Africa, Europe etc and highly appreciated by our customers. "Sincola" has become one of the most important manufacture and export bases of dry mortar machine in China.




Our Advantages:


1.The shotcrete machines are designed for easy opearating which only need two workers to opearate so as to saved you human resources and much labour charge.


2.All the fittings of the shotcrete machines are made by China's most famous manufactures which ensured its high quality with low cost.


3.It has a long lifetime which can reached 6-10years long.


4.Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.


5.The machine always works with efficiency and silence with air valve remote-contral function.


6.The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any  circumstance





BILL OF LADING

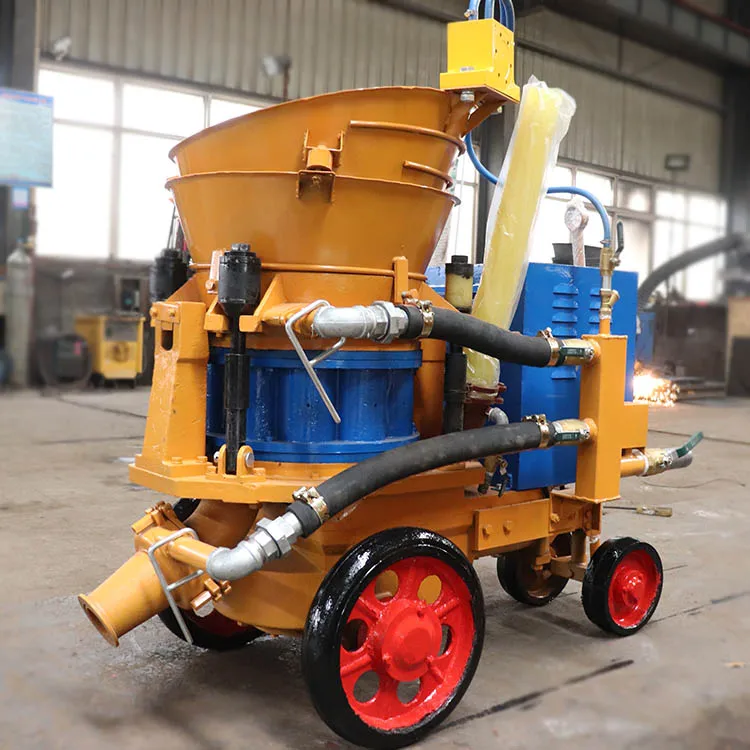

shotcreting machine
