Тайваньский гибкий нагревательный элемент фольгированный нагреватель высокая
- Категория: Heating Equipment >>>
- Поставщик: HEATACT,SUPER,CONDUCTIVE,HEAT-TECH,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.71 $* | 0.87 $* |
| Aug-15-2025 | 0.29 $* | 0.23 $* |
| Jul-15-2025 | 0.54 $* | 0.1 $* |
| Jun-15-2025 | 0.14 $* | 0.35 $* |
| May-15-2025 | 0.51 $* | 0.67 $* |
| Apr-15-2025 | 0.45 $* | 0.13 $* |
| Mar-15-2025 | 0.43 $* | 0.32 $* |
| Feb-15-2025 | 0.37 $* | 0.0 $* |
| Jan-15-2025 | 0.79 $* | 0.50 $* |
Характеристики

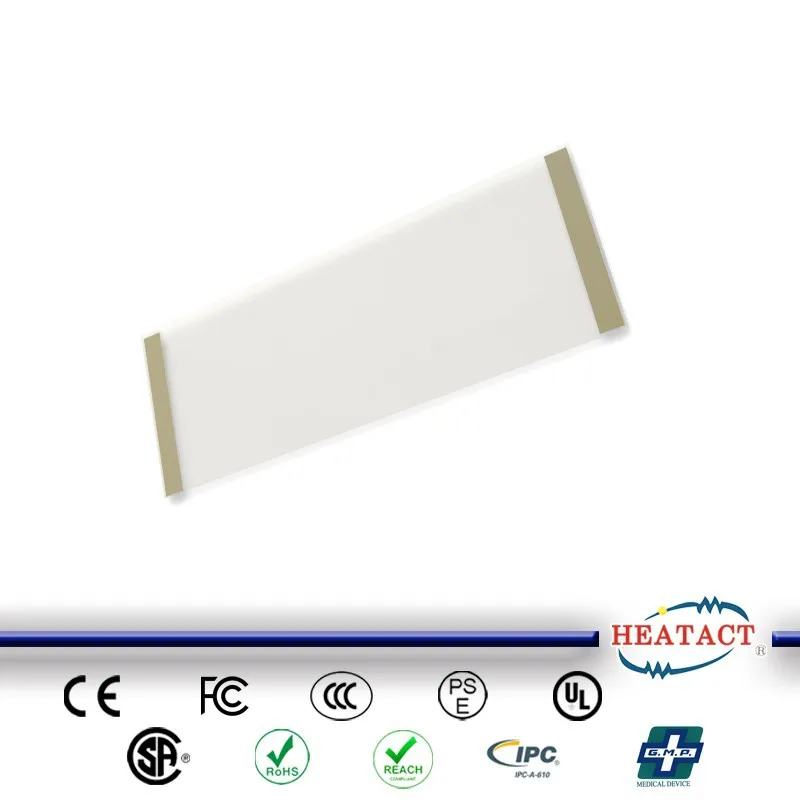

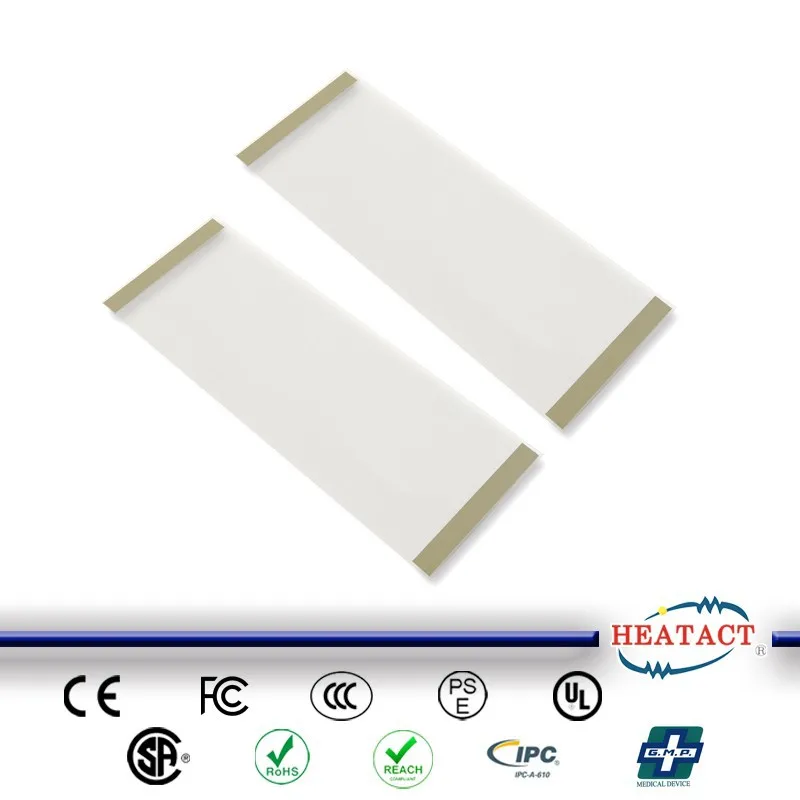

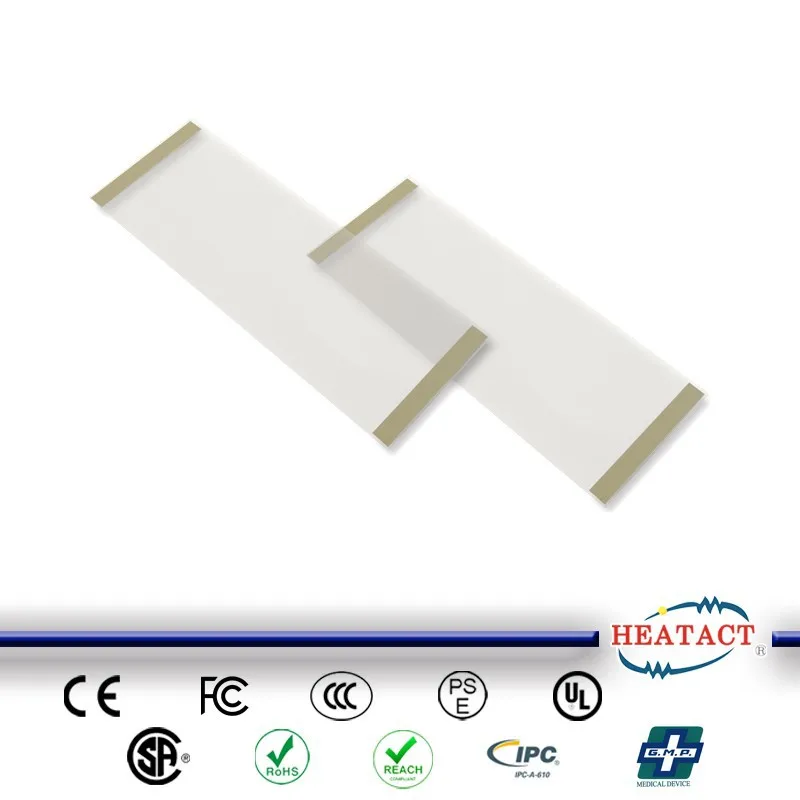

Taiwan customized Flexible Heating Element PET Heating Film
CATALOGUE
Comparison
INSULATION MATERIALS | ||||
HEATER | Silicone Rubber Heater | Mica Heater | ||
COLOR | Transparent | Transparent, | Red | Silver/Green Color |
TEMPERATURE | -65 to 130℃ | -100 to 200℃ | -200 to 260℃ | -200 to 1000℃ |
DIELECTRIC | 1000 VRMS | 1000 VRMS | 1000 VRMS | 1000 VRMS |
HEATER | Better: 0.039 inch | Best: 0.03 inch | Good: 0.125 inch | Better: 0.006 inch |
Max. watts per square inch in air at 25℃ | 1inch²/3.5w | 1inch²/7w | 1inch²/7w | 1inch²/15w |
Max. thickness over element | 0.008 inch (0.2mm) | 0.010 inch (0.25mm) | 0.020 inch (0.5mm) | 0.017 inch (0.43mm) |
INSTALLATION METHODS | *Shrink bands *#11 epoxy film *#10 PSA | *Shrink bands *#11 epoxy film *#10 PSA | *Shrink bands *#6 cement *#12 PSA *Vulcanization | *Shrink bands *#11 epoxy film *#10 PSA |
APPLICATION DESCRIPTION | POLYESTER has many properties of KAPTON and it’s the cheapest one. | KAPTON is special for its stability in vacuum & solvent resistance, often used in medical & aerospace applications. | Silicon rubber, often vulcanized to a metal part and be used in industrial and commercial applications. | Mica has many properties of KAPTON. It usually used on cup warmer , iron and any other high temperature product. |
Related Products
Packaging & Shipping
About us
In 1982-1993 | Passed the certification, developed the KAPTON foil heating elements, EMH-100 super-conductive heating fans, Industrial high efficient super conductive heating dryer, Piping heating equipment and Super conductive heating recycler. In 1990, HEATACT be wrote in the special column of DU PONT TECHNOLOGY with Ultra-thin flexible heating elements. In 1993,we honorably selected by the National Space Program Office to participate in the research of the national first satelite. |
In 1997-2009 | Heatact continually developed series of Warming finished products, such as, heating vests, heating gloves, etc. The new office building and factory were completed in 2000. In 1999-2002, Heatact participated in the space project to jointly develop and manufacture the heating elements for ROCSAT-2 & 3. In 2003, we developed Transparent and ATC heating element and in the same year, acquired certificates of the National Space Organization, Taiwan and Orbital ,U.S.A. To proved our quality, we passed ISO9001-2000 and GMP good manufacturer certificate since 2007. |
In 2010-Now | NEW FACTORY EXPANSION TIMEFRAME SCHEDULE: For starting the new factory expansion plan from February, the relevant documents of the new factory expansion plan have been sending to the governmental authority for the evaluation. The new factory will be started to begin a construction project by digging for the foundation in July, will completed in December, 2015. |
Company Information
FAQ
Q1. Where is your company and factory? Ans: All in TAIWAN, and manufacture in Taiwan. |
Q2. Do you have the MOQ? Ans: HEATACT don't have the MOQ issue, even 1 pcs. |
Q3. Can I have the I-Type product? Ans: Sure! That's what HEATACT do! We customized product for what you expect. |
Q4. What is the Payment Term? Ans: T/T or L/C. |
Q5. How can I get my product? Ans: Via FEDEX, DHL, UPS, TNT or any other shipping provide as you specified. |
Q6. Why choose us? Ans: We-HEATACT has more than 37 years experiences in manufacture heating element, with strong and relaible R&D team to give the best solutions for you. |
