Говорил растягивающее усилие датчик

Категория: Force Measuring Instruments >>>
Поставщик: Manyyear,Technology,Company,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.6 $*	0.80 $*
Aug-20-2025	0.95 $*	0.94 $*
Jul-20-2025	0.55 $*	0.50 $*
Jun-20-2025	0.55 $*	0.79 $*
May-20-2025	0.50 $*	0.69 $*
Apr-20-2025	0.87 $*	0.92 $*
Mar-20-2025	0.17 $*	0.67 $*
Feb-20-2025	0.54 $*	0.87 $*
Jan-20-2025	0.12 $*	0.62 $*

Характеристики

Product Description

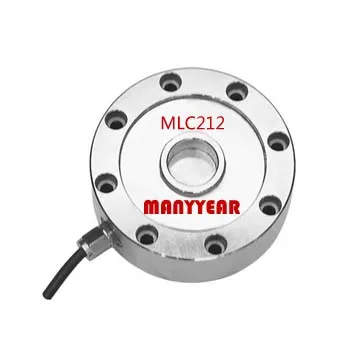

spoke compression force sensor load cell

Model: MLC212
Catalog: Button load cell
Rated load: 2-5ton
Over load: 150% / 200%
Material: alloy steel, stainless steel, alloy aluminum
Apply to: hopper scale, packing scale, platform scale, dynamic weighing system

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

Comprehensive error:	0.05%FS	Output resistance:	352±5Ω
Rated output:	2.0±0.005mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10Min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	350±10Ω	Defend grade:	IP66 & IP68

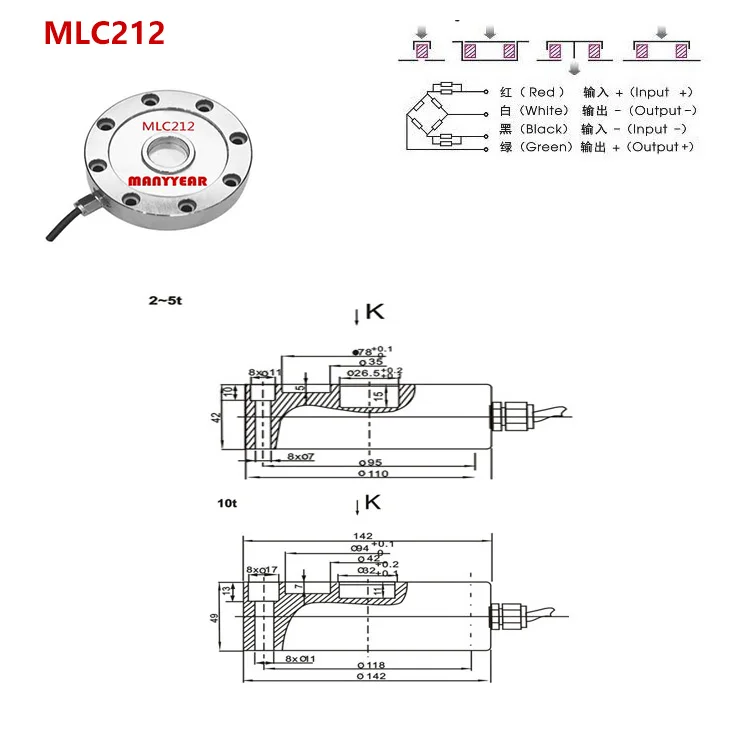

Product Assembly Structure

Blow force structure is for reference.

Product Process

for the load cell product process, include total 26 word step, take about 20days.

Product Application

this load cell can apply to pricing scale, packing scale, platform scale.

Delivery and Shipment

this load cell can apply to pricing scale, packing scale, platform scale.
