Full automatic Gypsum/plaster board production line/making machine

Product Description

Product Name	Full automatic Gypsum/plaster board production line/making machine
Annual capacity	2 to 30 million sq.m
Method for dryer	Hot air and hot oil
Length for occupied area	85M to 400M
Width for occupied area	15M to 40M
Degree of automation	Fully automatic and semi automatic
Final product specification	Common,fireproof,waterproof gypsum board           7 to 15mm in thickness           1800 to 3600mm in length           1200 and 1220mm in width
Fuel for the boiler	Natural gas,coal,desel,heavy oil,light oil etc
Guarantee	3 years
Checking	SGS CIQ
Export experience	12 years till 2015
Industry experience	16 years till 2015

Detailed Images

1.Paper supply system

The special pneumatic shaft

Magnetic powder brake

Exact paper connection device

High definition automatic device

High definition automatic alignment device

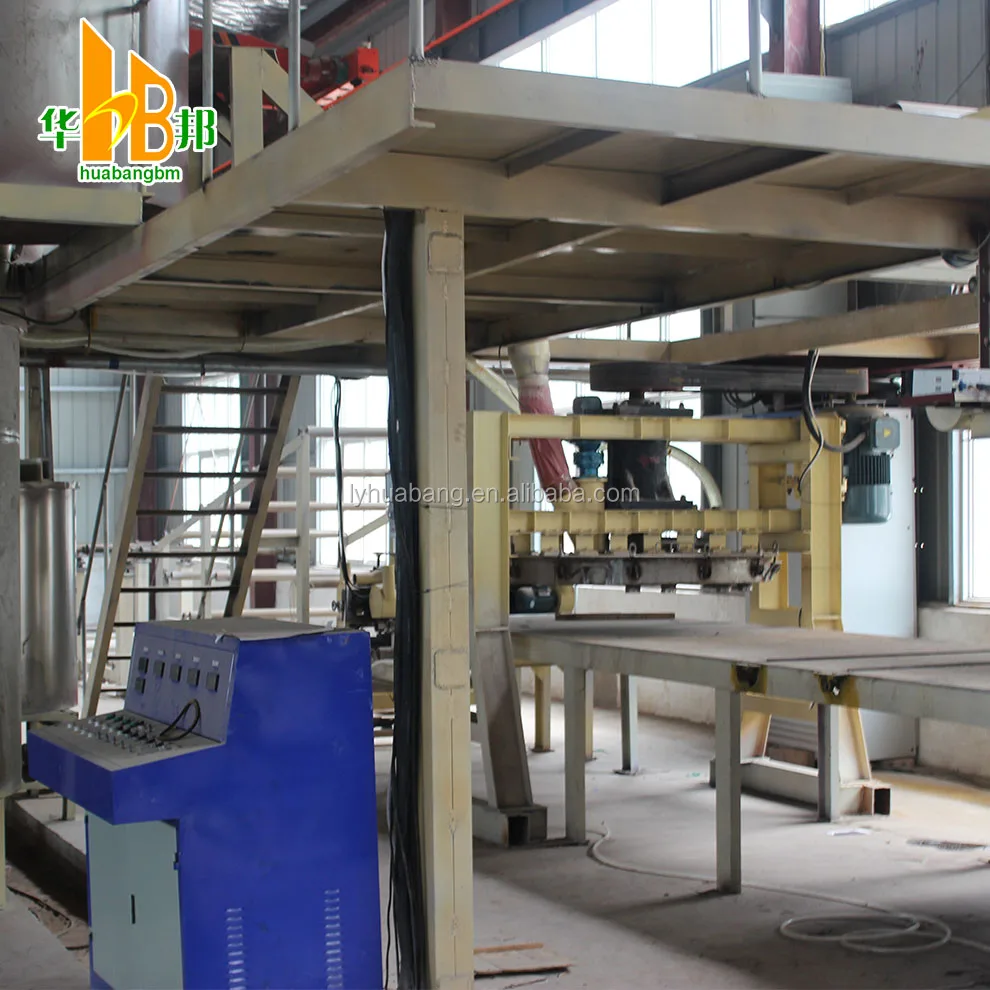

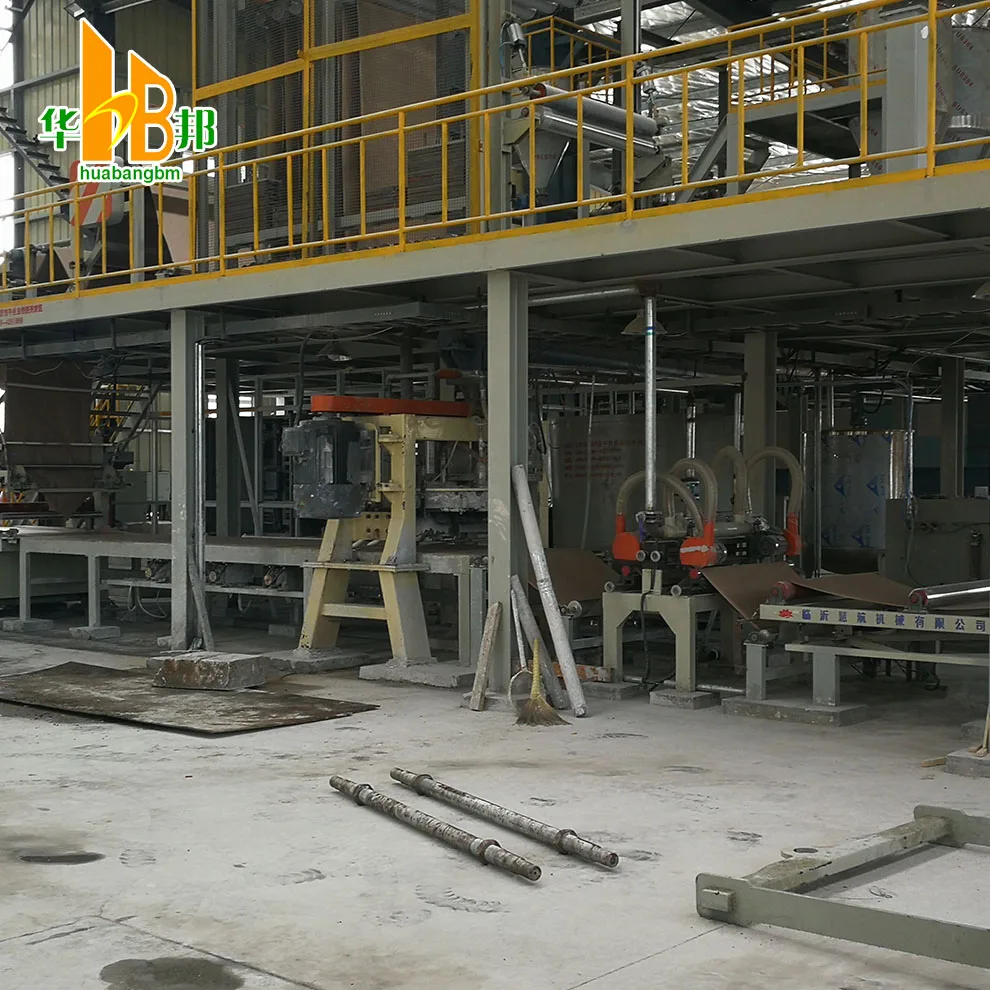

  2.Mixing system

Mainly consists of paper slurry,foaming agent,starch,water and additive etc

All slurry has the feedback signal of level indication and chain control each batching process according to the process requirement

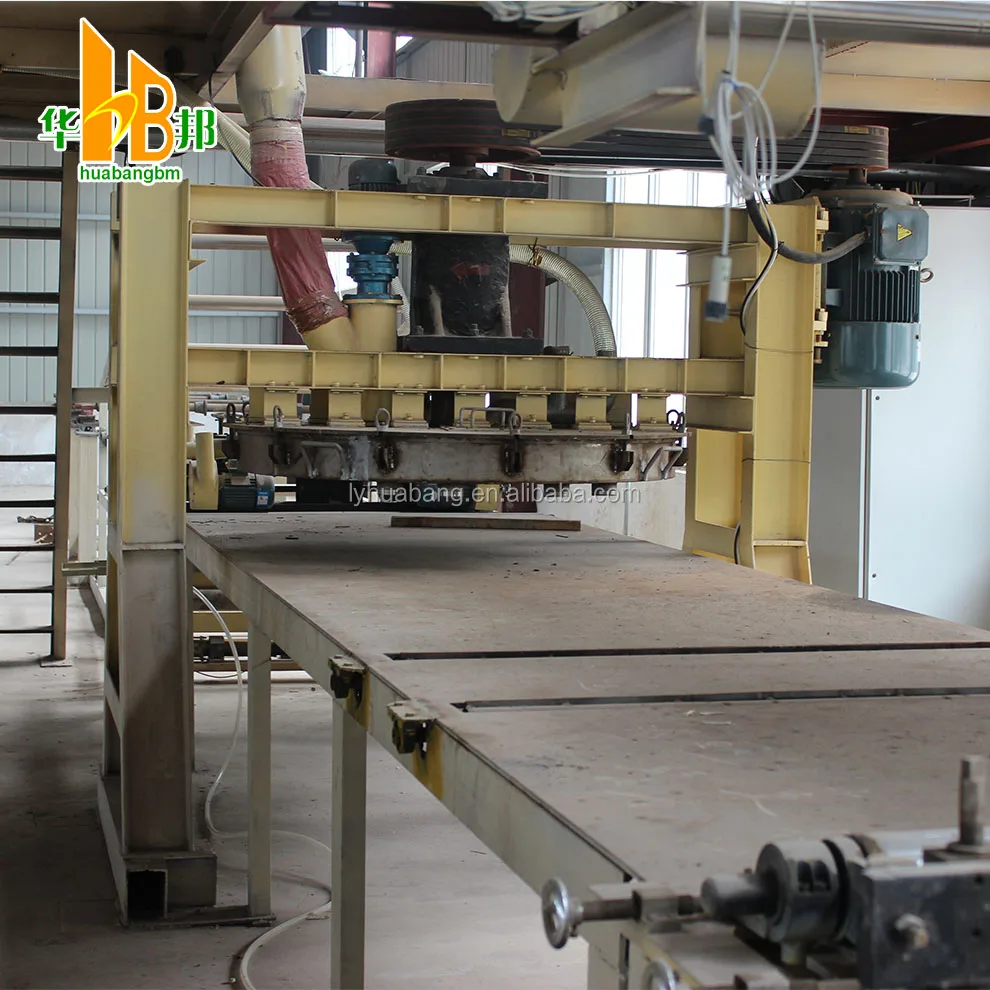

  3.Forming system

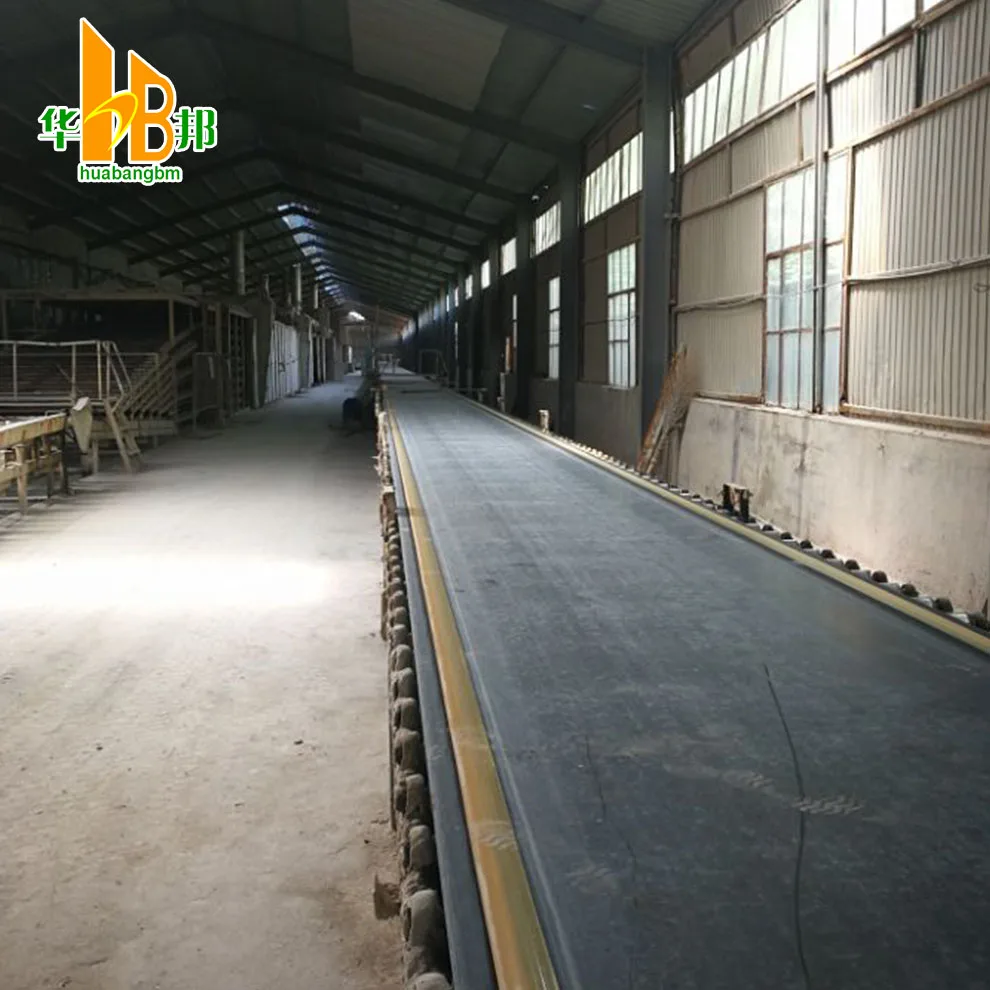

4.Conveying system

This part is composed of two sets solidification belt machine and one conveying roller machine.The three machines need to run synchronically.



5.Cutting system

Whole cut control algorithm is achieved by the separate PLC.



  6.Transferring system

This part mainly function is gypsum board acceleration conveying,overturning,transit conveying and lifting.

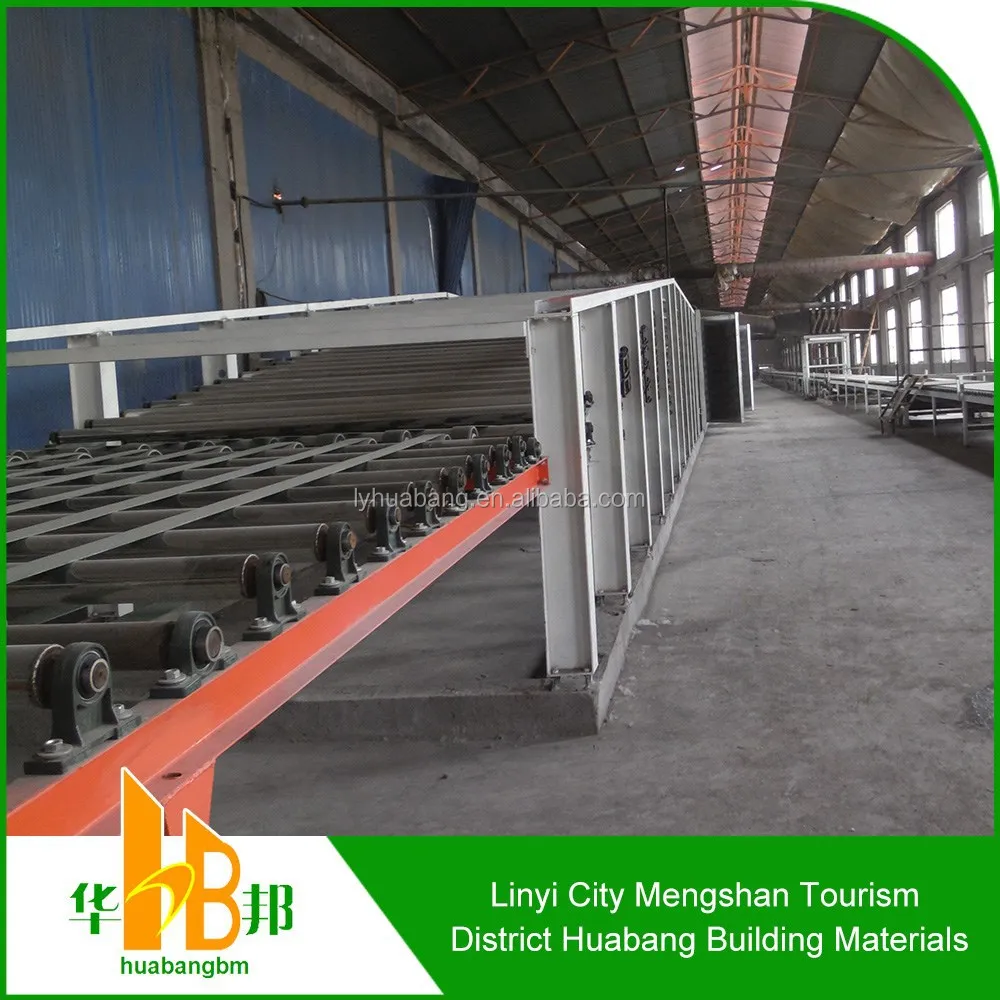

  7.Dryer system

Low heat consumption, heat preservation is good





8. Finished products converying system

This part mainly includes fast outlet,sizing and stacking which are all equipped double.





9.Fast outlet system

Can achieve the equipment failure without stopping.

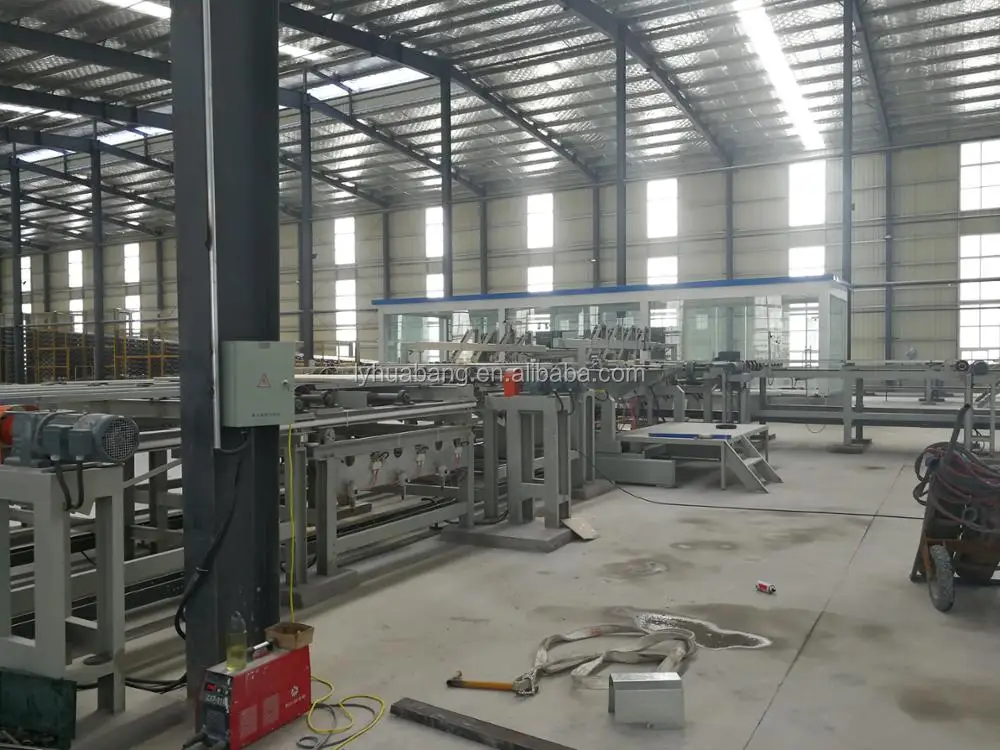

  10.Sizing system

 This part consists of transverse machine,storage roller,board colse folder and sizing device.







11.Stacking system

 This part consists of two sealing machines,stackers.





12.Control center system

 Host part adopts RS VIEW as the monitoring software table to monitor the whole production process.

The general monitoring system displays the production process in front of operators and managers.







Packaging and Shipping

Above loading photos of gypsum board machine are for your reference:

1.	All the electrical parts will load in wooden case,and others will in nude packing or bulk etc.
2.	And all the goods will load in 40HQ,if the boiler is over weight or oversize then will load in framework or bulk freighter.
3.	And if you have any requirements about the packing,we will do it according to that.



 Company Profile

Our services

Guarantee:

 3 years (except the easy worn parts such as bearings, electric buttons).

Installation and debugging:

 2 to 4 months when the buyer prepare the installation and commission conditions.

Technology training:

 Provide free training.

In order to guarantee the machine running, each year we will send engineer to check and development the technology with the buyer.

If the buyer can not run the machine well then we will send the production engineers to help the buyer to run the machine, and we can cooperate for long terms.
