Небольшой дизельный генератор открытого типа одноцилиндровый
- Категория: Diesel Generators >>>
- Поставщик: Fuan,City,Xinyutong,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.38 $* | 0.86 $* |
| Aug-17-2025 | 0.85 $* | 0.64 $* |
| Jul-17-2025 | 0.46 $* | 0.63 $* |
| Jun-17-2025 | 0.30 $* | 0.86 $* |
| May-17-2025 | 0.27 $* | 0.63 $* |
| Apr-17-2025 | 0.52 $* | 0.46 $* |
| Mar-17-2025 | 0.81 $* | 0.43 $* |
| Feb-17-2025 | 0.63 $* | 0.65 $* |
| Jan-17-2025 | 0.44 $* | 0.78 $* |
Характеристики

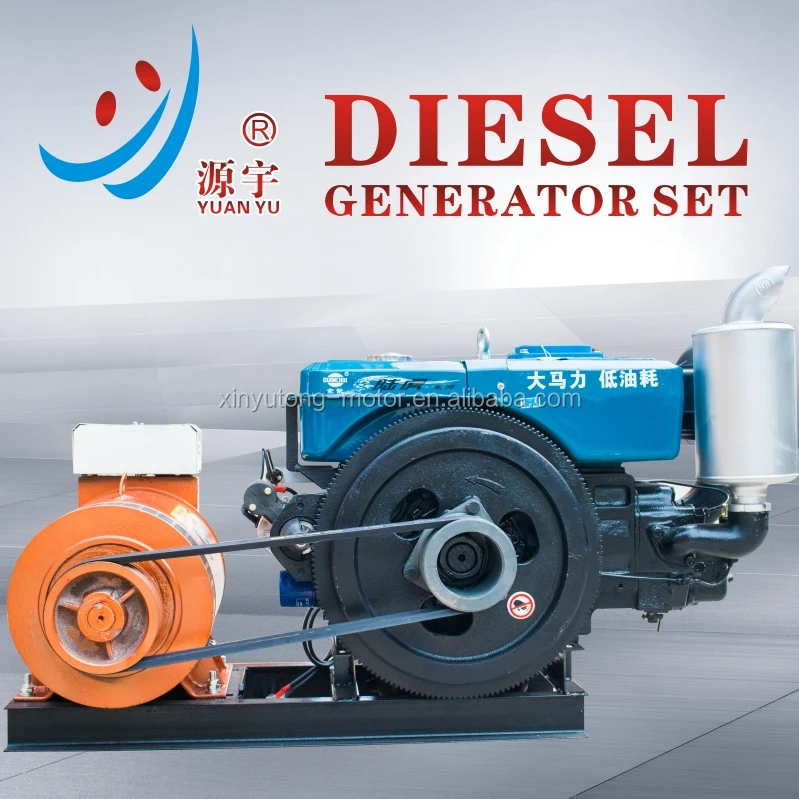

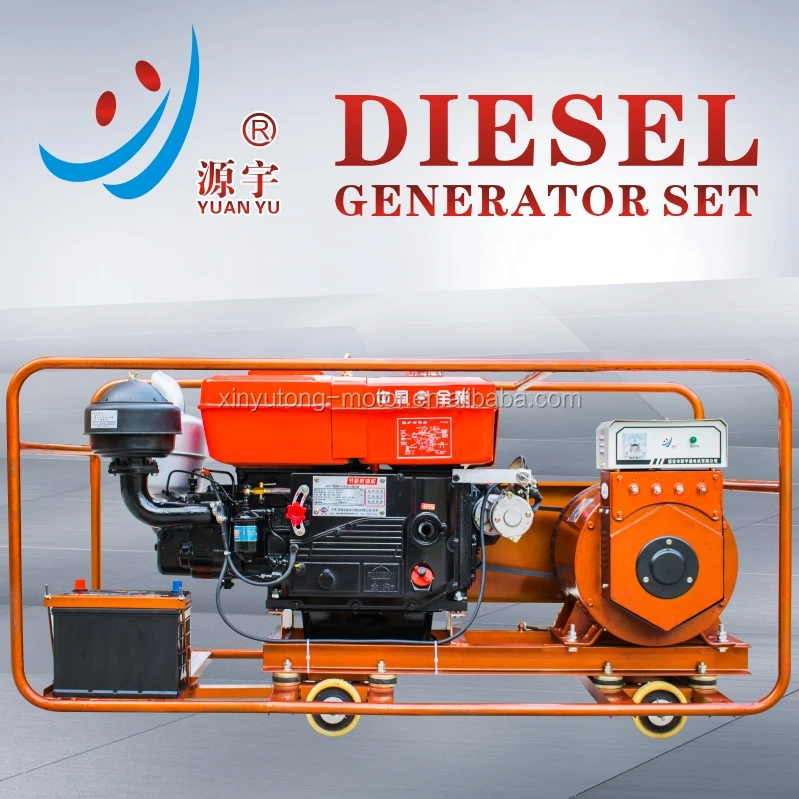

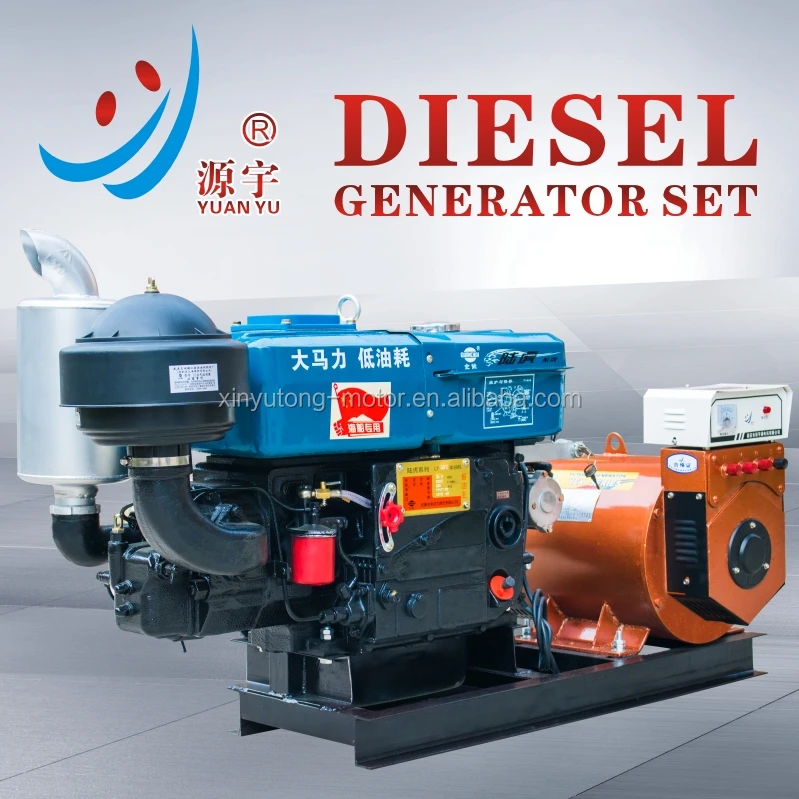

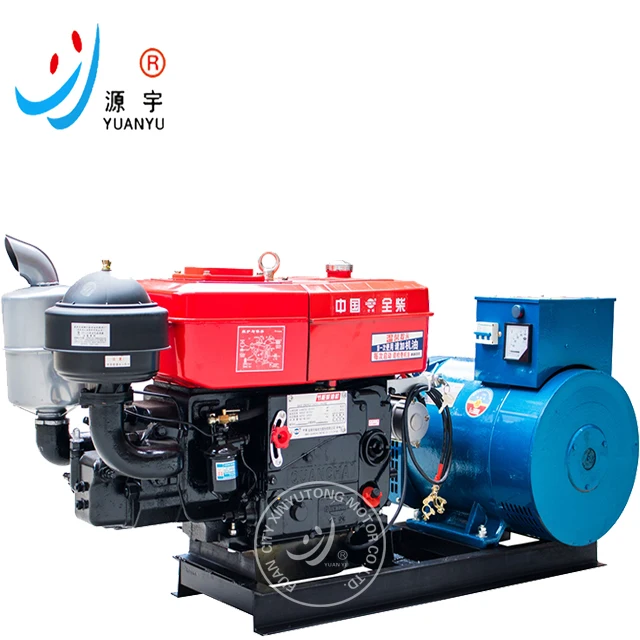

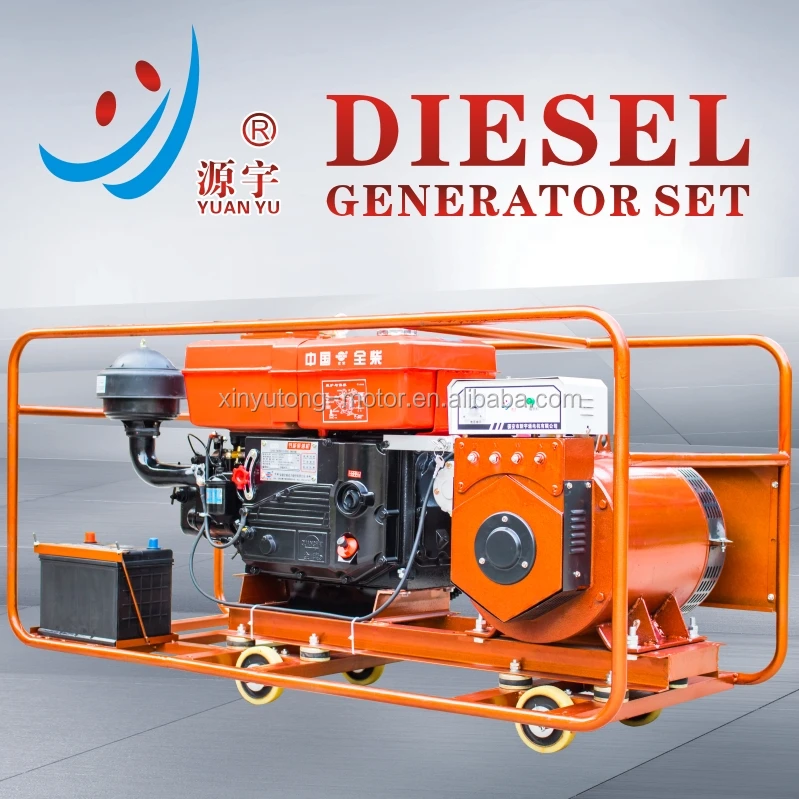

Open type small power diesel generator single cylinder diesel engine
Product Description
10Kw normal type diesel generator set
The noise of gen-sets should be no more than 85db(a)
Single phase
4-stroke
Home useing
| Generator | Item No | GF1-3 | GF1-5 | GF1-8 | GF1-10 | GF1-12 | GF1-15 |
| Prime output power | 3KW | 5KW | 8KW | 10KW | 12KW | 15KW | |
| Engine | Engine Item | R175A | R190 | ZS1100 | ZS1105 | ZS1115 | ZS1125A |
| Power | 4.41KW | 7KW | 11KW | 14.7KW | 17KW | 20.3KW | |
| Cylinder No | 1 Cylinder | ||||||
| Bore/stroke | 75×80 | 90×90 | 100×115 | 105×105 | 120×115 | 125×120 | |
| Engine manufacturers | Changchai Co.,Ltd | ||||||
| Engine structure | Single cylinder,horizonal, four-stroke, water cooled | ||||||
| The engine displacement (L) | 0.353 | 0.57 | 0.903 | 0.996 | 1.301 | 1.473 | |
| Compression ratio | 22:01 | 21:01 | 17:01 | 16.5:01 | 16:01 | ||
| 100 percent load fuel consumption (L / h) | 289.7 | 266.6 | 246.2 | 244.8 | 240.7 | ||
| 12 hours rated output (KW/P) | 4.41 | 7 | 11.03 | 12.13 | 16.2 | 18.38 | |
| One hours rated output (KW/P) | 4.85 | 7.7 | 12.13 | 13.34 | 17.8 | 20.22 | |
| Rated speed | 2600r/min | 2300r/min | 2200r/min | ||||
| Noise limited (DBA) | ≤104 | ≤105 | ≤108 | ≤110 | |||
| Clean degree(mg) | ≤210 | ≤254.7 | ≤369.3 | ≤399.6 | ≤423 | ≤425 | |
| Exhaust temperature | ≤4.0FSU | ||||||
| Alternator | Type of alternator | ST-3 | ST-5 | ST-8 | ST-10 | ST-12 | ST-15 |
| Rated voltage | 400,415,440/200,208,220V or 416,440,480/208,220,240 | ||||||
| Rated frequency | 50Hz | ||||||
| Rated current(a) | 5.412 | 9.02 | 14.43 | 18.04 | 21.648 | 27.06 | |
| Power factor | 0.8 | ||||||
| Frequency change rate steady | 0-5% can be adjust | ||||||
| No-load voltage adjustment range | 95%-105% | ||||||
| Steady voltage adjustment rate | Better than ± 1% | ||||||
| Insulation grade | B | ||||||
| level of security | IP21 | ||||||
| Tel influence coefficient | TIF <50 | ||||||
| harmonic coefficients | THF <2% | ||||||
| Excitation | Triple harmonic,Single-phase, Brush | ||||||
| Weight | 150KG | 280KG | 330KG | 380KG | 420KG | 630KG | |
| Dimension(mm) | 1050×500×720 | 1320×650×860 | 1320×650×860 | 1320×650×860 | 1420×700×900 | 1420×700×900 | |
Packaging & Shipping
Our Services
Factory Inspection, the test items before delivery are mainly as follows:
1. Full one hour factory quality testing with various loading at 25%,50%,75%,100%,110%
2. The noise level is tested
3. All of the meters on the control panel shall be tested
4. The appearance of the genset and all of the label and nameplate shall be checked
Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date. During the guarantee period,XINYUTONG will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, XINYUTONG provides cost spare parts maintenance of alternator.
Service Hotline: +86-18659309068
Company Information
Fu'an City Xinyutong motor.Co.Ltd.is a manufacturer of Generator,Diesel Generator set.Alternator.ect.with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building site,Factory,Hospital,Shopping Mall,Army and other industries,ect. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
Q1. Is it a reliable company?
Xinyutong reply: Fuan Xinyutong Motor Co., Ltd. engaged in R&D, production, sales and after-sales services.We have a professional team integrating with Generator, Diesel generator set, Alternator ect.
Q2: What about the delivery?
Xinyutong reply: we can offer the door to door services by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT, FedEx by air; and the sea transportation.
Q3: What's the delivery time?
Xinyutong reply: 7-15 business days after receiving payment.
Q4: What's package?
Xinyutong reply: new and strong Foam and PE film package,plywood package,plastic film package, suitable for long distance ocean / air and inland transportation, and change of climate, well protected against rough handling, moisture, rain, corrosion, shocks and freeze.
Q5: Do you have any timely technology supports?
Xinyutong reply: we have a professional technology supporting team for your timely services. We preparing the technical documents for you, also you can contact us by email, telephone, webcam, online chat (GTalk, skype, yahoo messenger, trademanager).
Q6: What's the payment method?
Xinyutong reply: T/T, WESTERN UNION, PAYPAL, MONEY GRAM, SECURE PAYMENT.
Q7: If the machines broken during the shipment, will you support us?
Xinyutong reply: generally our customer will purchase the insurance before shipment, avoid any money lost from rough transportation. Xinyutong will help you to solve the claims with the insurance companies to collect your money back in time.
Q8: What's the Minimum Order Quantity?
1 sample machine is acceptable, more quantities more discounts.
Fuan City Xinyutong Motor Co.,Ltd.
Address: Fu'an City, Fujian Province,China
Cell Phone/WhatsApp:+86 18659309068
Skype: martin95691410
