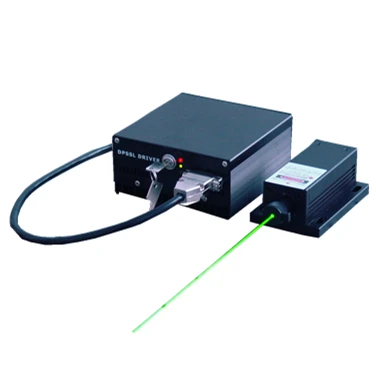

Одночастотный зеленый лазер 532 нм для спектроскопии
- Категория: Запчасти для лазерного оборудования >>>
- Поставщик: Changchun,New,Industries,Optoelectronics,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.5 $* | 0.28 $* |
| Aug-18-2025 | 0.4 $* | 0.31 $* |
| Jul-18-2025 | 0.63 $* | 0.98 $* |
| Jun-18-2025 | 0.98 $* | 0.37 $* |
| May-18-2025 | 0.13 $* | 0.1 $* |
| Apr-18-2025 | 0.88 $* | 0.81 $* |
| Mar-18-2025 | 0.26 $* | 0.75 $* |
| Feb-18-2025 | 0.95 $* | 0.17 $* |
| Jan-18-2025 | 0.93 $* | 0.22 $* |
Характеристики
Product Description
Raman Spectra Solution
It is given material molecular vibration and rotation information, different materials have different from other material characteristic spectrum - characteristic peak, which provides for the characterization and identification fingerprinting substance. Its application areas include chemical/biological research, environmental science, jewelry appraisal, textile industry, food safety testing, judicial authentication, pharmaceutical and medical diagnostics, geological exploration and detection of dangerous goods, etc.
Features
■ CNI high reliability lasers
■ All the necessary accessories available
■ Easy to install and maintain
■ Customized solution upon request
Detailed Images
SPECIFICATIONS 1:
Model | MSL-III-532 | MSL-FN-532 | MSL-F-532 | ||
Wavelength (nm) | 532±2 | 532±1 | 532±1 | ||
Operating mode | CW | ||||
Output power (mW) | >1, 5, 10, 20, - , 100 | >1, 5, 10, 20, - , 400 | >400, 600, - , 700 | ||
Power stability (rms, over 4 hours) | <1%, <2%, <3% | <1%, <2%, <3% | <1%, <2%, <3%, <5% | ||
Transverse mode | TEM00 | ||||
Longitudinal mode | Single | ||||
Spectral linewidth (nm) | <0.00001 | ||||
Coherent length (m) | >50 | ||||
Noise of amplitude (rms, 1Hz~20MHz) | <0.5% | <0.5% | <1%, typical<0.5% | ||
M2 factor | <1.5 | <1.5 | <1.2(<1.1 optional) | ||
Beam diameter at the aperture (1/e2 , mm) | <1.5 | <1.5 | <2.5 | ||
Beam divergence, full angle (mrad) | <1.2 | ||||
Beam divergence, full angle (mrad) | >100:1, Vertical±5 degree (Horizontal Optional) | ||||
Warm-up time (minutes) | <10 | ||||
Pointing stability after warm-up (mrad) | <0.05 | ||||
Beam height from base plate (mm) | 24.8 | 27.4 | 45 | ||
Operating temperature (℃) | 15-35 | ||||
Power supply (90-264VAC) | PSU-III-FDA | PSU-H-FDA | PSU-H-FDA | ||
Expected lifetime (hours) | 10000 | ||||
Warranty | 1 YEAR | ||||
SPECIFICATIONS 2:
Model | MSL-S-532 | MSL-DS-532 | |
Wavelength (nm) | 532±2 | 532±1 | |
Operating mode | CW | ||
Output power (mW) | >1,5,10,20,-,50 | >1,5,10,20,-,100 | |
Power stability (rms, over 4 hours) | <1%,<2%,<3% | ||
Transverse mode | TEM00 | ||
Longitudinal mode | Single | ||
Spectral linewidth (nm) | <0.00001 | ||
Coherent length (m) | >50 | ||
Noise of amplitude (rms, 20Hz~20MHz) | <0.5% | ||
M 2 factor | <1.2(<1.1 optional) | ||
Beam diameter at the aperture( 1/e2 ,mm) | 0.7±0.05 | ||
Beam divergence, full angle (mrad) | <1.5 | ||
Polarization ratio | >100:1 Horizontal±5 degree (Vertical Optional) | ||
Pointing stability after warm-up (mrad) | <0.05 | ||
Pointing stability Over Temp. (µrad/°C) | <8 | ||
Warm-up time (minutes) | <5 | ||
Beam height from base plate (mm) | 19 | ||
Power Consumption(W) | <30 | <6 | |
Fiber | Multimode/ Single Mode | ||
Shock Tolerance(6ms) | 7g laterally,15g vertically | ||
IP Rating | IP67 ,IP65 | ||
Power supply(90-264VAC) | PSU-H-FDA ,PSU-A-F | 5V DC (Photoelectric integrated) | |
Operating temperature (℃) | 0-60 | 15-35 | |
Max. Heat Dissipation of Head(W) | 10W@50℃,4W@25℃ | ||
Storage temperature (℃) | 0-50 | ||
Modulation | Modulation isn`t available. | ||
Expected lifetime (hours) | 10000 | ||
Warranty | 1 YEAR | ||
SPECIFICATIONS 3:
Model | MSL-RA-532 | MSL-R-532 | |
Wavelength (nm) | 532±1 | ||
Operating mode | CW | ||
Output power (W) | >1, 1.1, 1.2, - , 2 | >1, 2, - , 5 | |
Power stability (rms, over 4 hours) | <1%,<2%,<3% | <1%,<2%,<3%,<5% | |
Transverse mode | TEM00 | ||
Longitudinal mode | Single | ||
Spectral linewidth (nm) | <0.00001 | ||
Coherent length (m) | >50 | ||
Noise of amplitude (rms, 1Hz~20MHz) | <1% | ||
Beam diameter at the aperture (1/e 2 , mm) | <2 | ~1.5 | |
Beam divergence, full angle (mrad) | <1.2 | <1.5 | |
M2 factor | <1.2 | ||
Warm-up time (minutes) | <10 | <20 | |
Pointing stability after warm-up (mrad) | <0.05 | ||
Beam height from base plate (mm) | 51 | 19 | |
Cooled method | Water cooled | ||
Operating temperature (℃) | 20-30 | ||
Power supply (90-264VAC) | PSU-H-FDA | PSU-W-FDA | |
Expected lifetime (hours) | 10000 | ||
Warranty | 1 YEAR | ||
Certifications
Packing & Delivery
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and good laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our convenient and rapid service.
Exhibitions
Contact Us
FAQ
1.\tWhat about the delivery?
TNT UPS FEDEX DHL
2. What about the warranty?
For 1 year
3.How to pay?
T/T Western Union
4.\tHow to visit our factory?
You can contact us by following ways to apply for visiting our factory:
(1) International Tel: +86-431-85603799
(2) Fax: +86-431-87020258
5. How to find more product of our company?
Search our web to find more products(including more contact way )
www.cnilaser.com
