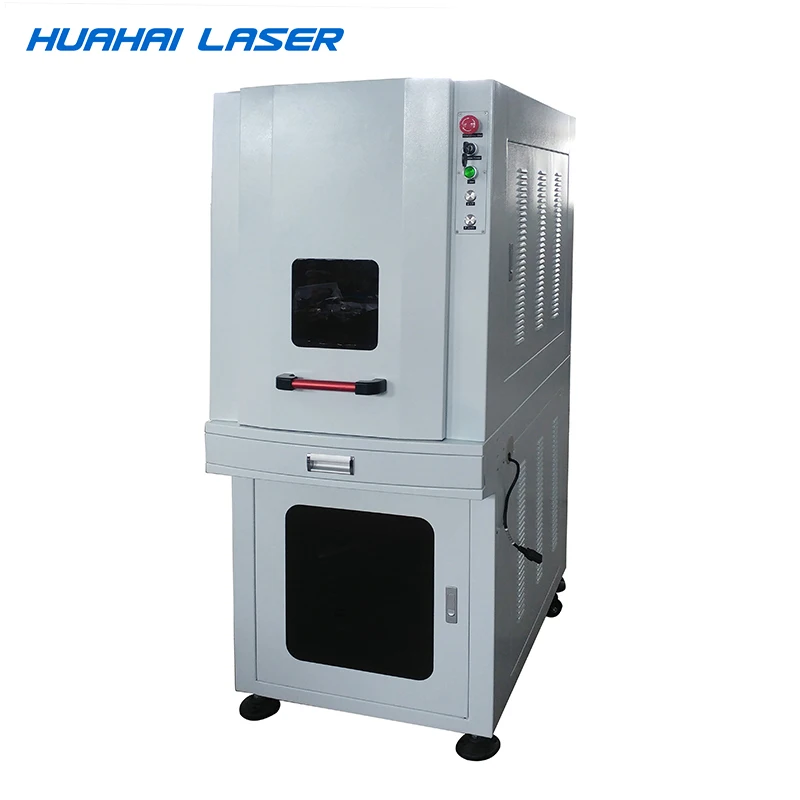

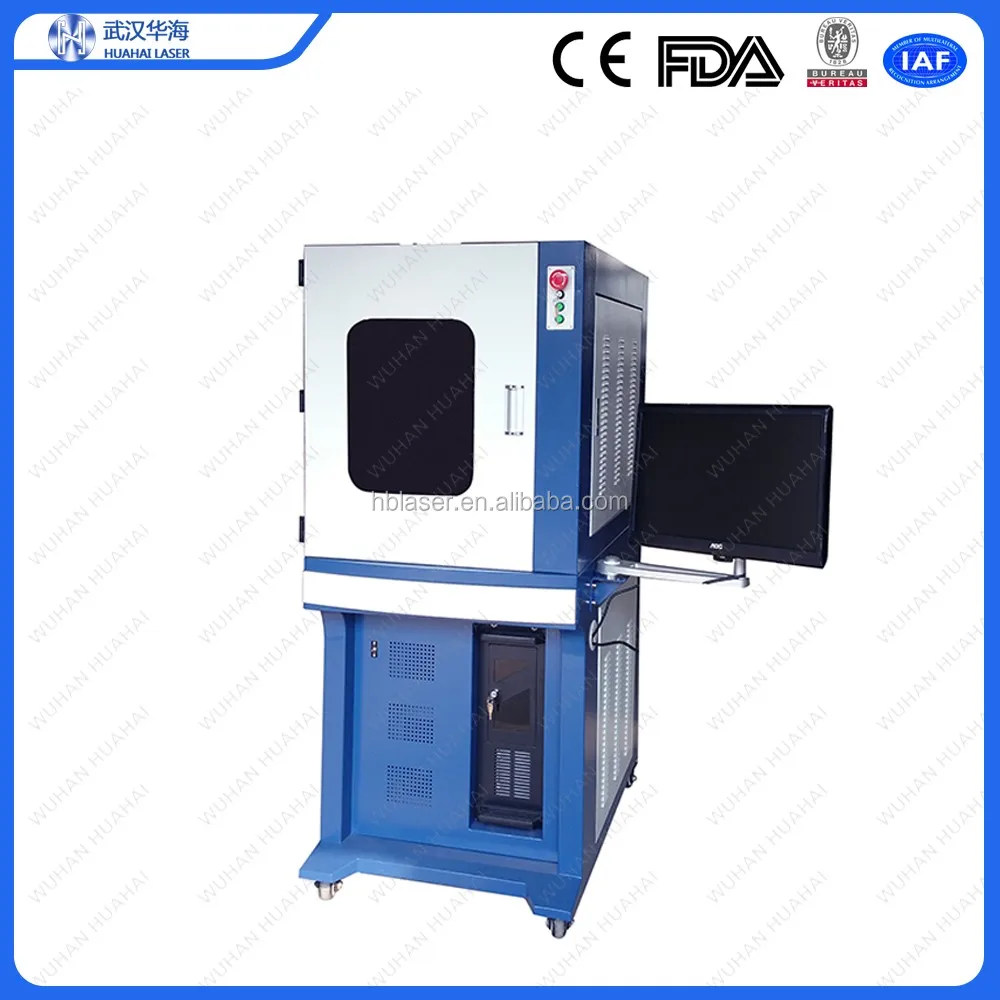

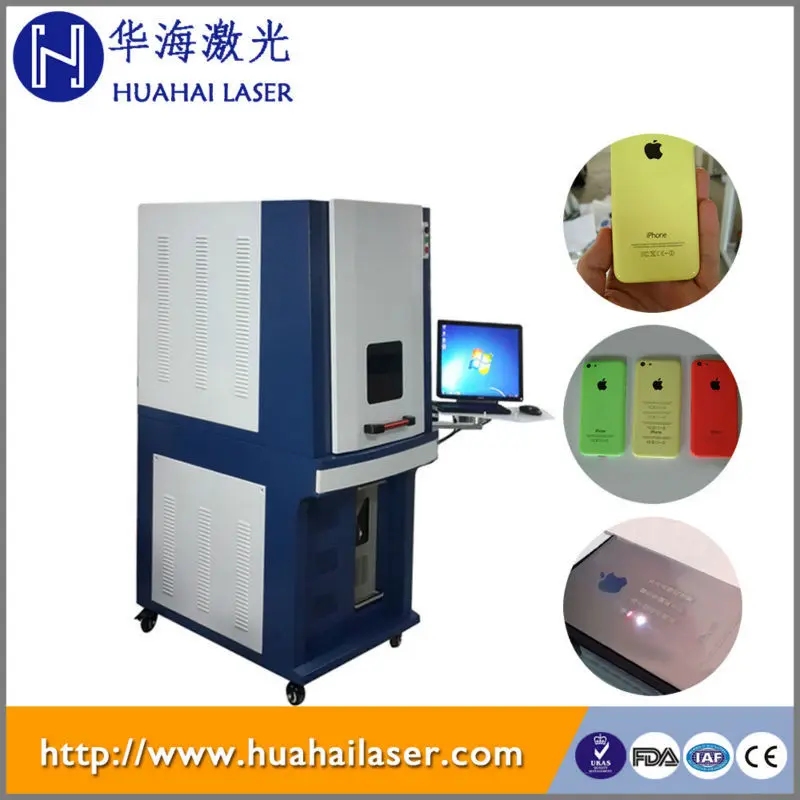

УФ-лазер Huahai 1 Вт 3 5 нм маркировочная машина с защитной крышкой
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: Wuhan,Huahai,Century,Laser,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.69 $* | 0.39 $* |
| Aug-20-2025 | 0.24 $* | 0.92 $* |
| Jul-20-2025 | 0.65 $* | 0.11 $* |
| Jun-20-2025 | 0.98 $* | 0.74 $* |
| May-20-2025 | 0.87 $* | 0.96 $* |
| Apr-20-2025 | 0.25 $* | 0.17 $* |
| Mar-20-2025 | 0.61 $* | 0.51 $* |
| Feb-20-2025 | 0.42 $* | 0.39 $* |
| Jan-20-2025 | 0.0 $* | 0.98 $* |
Характеристики
Main Features of UV Laser Marking Machine:
Applications of UV laser marking machine
cosmetics, pharmaceuticals, food and other polymer bottles’ surface. Marking effect is fine, clear and solid, which is
better than the injekt printing and no pullution produced.
Also used in marking and dicing flexible PCB board, drilling tiny hole or blind-hole on silicon wafers, two-dimensional coding on LCD, glass container surface, metal surface coating, plastic keys, electronic components, gifts,
communication equipment, construction materials
Advantages of UV laser marking machine
Focused UV light spot size is small , heat-affected area during processing is mimimum,So it is used in ultra
fine and special material’s marking.
Since UV laser did not produce any thermal effects and burning issues, the result of the marking is precise ,
smooth and steep.
A lot of material will absorb UV light at 355nm except Copper, so UV laser are suitable for processing more types
of material .

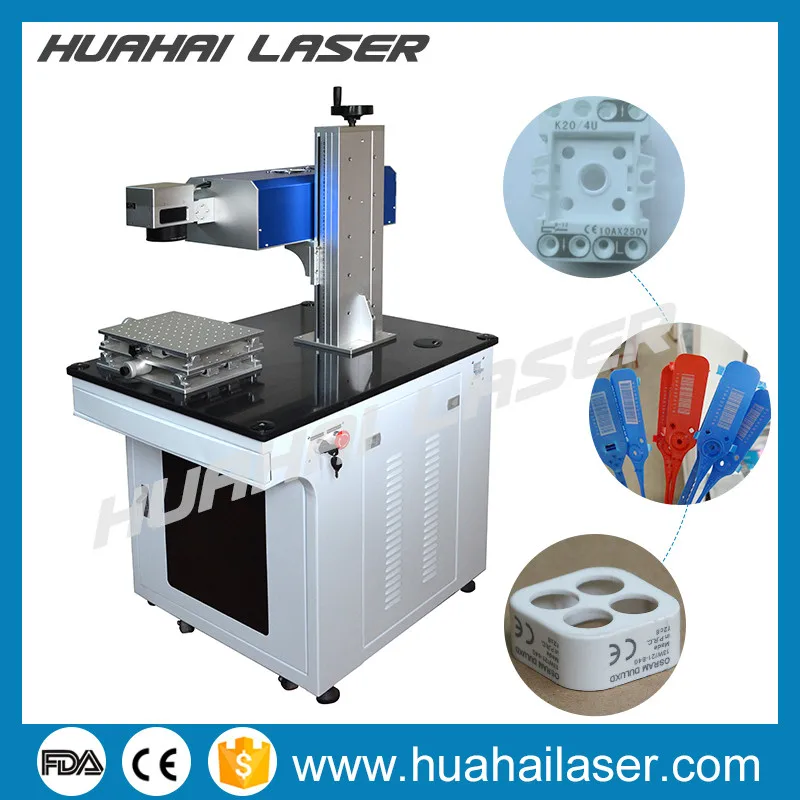

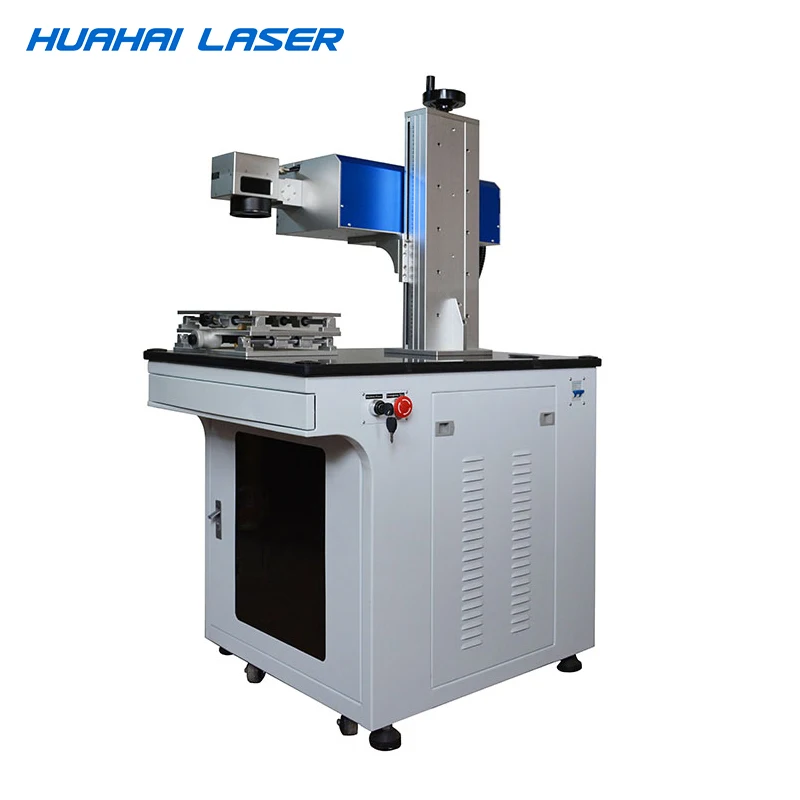

UV Laser Marking Machine
(Model:HM02P,HM03P,HM05P,
HM07P,HM10P,HM12P)
HM07P,HM10P,HM12P)
Main Features
1.High Precision Re-position precision is 0.001mm
2.High Speed High quality laser scanning system makes the marking speed up to 7000mm/s
3.Easy Operating Tranning vedio CD,trouble free
4.10 Years Long Lifetime Fiber laser device adopts IPG Technology.
China top quality,100000 hours lifetime
China top quality,100000 hours lifetime
5.No consumables Free of maintenance for 8~10 years
6.Air Cooling Adopts air cooling,excellent cooling effect than
the other cooling method
the other cooling method
Technical Parameters of UV laser marking machine:
| Laser Source | UV Laser |
| Output Power | 2W, 3W, 5W,7W |
| Wavelength | 355nm |
| Beam Quality | <2 |
| Repeat Frequency | 10khz--- 100khz |
| Pulse Energy | 2mJ |
| Beam Divergence | -0.3 to +0.3mrad |
| Laser Class | IV |
| Resolution | 18μ |
| Repeatablility | 50μ |
| Marking Scope | 50*50mm 100x100mm |
| Linear Speed | 800 character/ s |
| Marking Linear Speed | ≤12,000mm/s |
| Marking Depth | Max. 1.0- 1.5mm (hard steel) |
| Min. Line Width | 0.012mm |
| Min. Character Size | 0.15mm |
| Repeat Accuracy | ±0.003mm |
| Input Power | 0.5kw |
| Electrical Source | 220V / Single-Phase Circuit / 50/60Hz /4A |
Product Description
Main Structure
Key Parts of Fiber Laser Marking Machine
1.World Famous uv laser source
A wide selectivity of operating wavelengths Ultra-low amplitude noise High stability and ultra-long lifetime
A wide selectivity of operating wavelengths Ultra-low amplitude noise High stability and ultra-long lifetime
2.Fast Speed Digital Galvanometer Scanning Head
Fast response ability<0.7ms,can realize high speed marking and high precision
Fast response ability<0.7ms,can realize high speed marking and high precision
3.Focus Mirror
famous "wavalength" brand.Fast speed,high conversion rate
famous "wavalength" brand.Fast speed,high conversion rate
4.Control Card
The text in the computer converted into analog signal or digital signal, such as design and the spread
to the galvanometer
The text in the computer converted into analog signal or digital signal, such as design and the spread
to the galvanometer
5.Laser Source
Including Emergence Stop, Key Switch, Power Switch, etc.Easy to operate
Including Emergence Stop, Key Switch, Power Switch, etc.Easy to operate
6.Switching Power Supply and Control System
Including Emergence Stop, Key Switch, Power Switch, etc.Easy to operate
Including Emergence Stop, Key Switch, Power Switch, etc.Easy to operate
7.Exhaust Fan
Adopts the heat generated by the air cooling system
Adopts the heat generated by the air cooling system
Optional Item
1.Rotary Device
Marking for cylinder or round surface
2.Working Table
Made up by precision alloy and imported precise beeline device
3.Software
Professional Marking Software
1.Powerful editing function
2.Friendly interface
3.Easy to use
4.Support Windows XP,Win 7 syste
5.Support DXF,PLT and other file formats
Marking Samples
Related Items
Packaging & Shipping
Packing and Shipping
Terms and Conditions
1.24 months Guarantee
2.5~7 Days Lead Time
3.instruction Book,Training Video
4.24 hours Online Service
5.TT/Ali Trade Assurance Payment
6.shipping by Air,DHL,Sea
Huahai Laser Certificates
Company Information
Customer Visiting
Company Picture
FAQ
1> How can i install and operate fiber color laser marking machine by myself?
Re: When you get the laser marking machine, just need to connect with power cord, then machine can start work. Because the marking software is installed in computer, engineer have set the parameters well before delivery. Also, the complete English user manual and operation video will be sent to you. 98% customers can easily use the machine.
2> How to get technical support after purchasing the fiber color laser marking machine?
Re: You can contact us on Skype, WhatsApp and email at any time. Our professional engineer will solve your problem perfectly. If you need any remote assistant support, we will support you with Teamviewer software.
3> Will the laser marking machine come with protective goggle?
Re: Yes, we will provide it with the machine together free of charge.
4> Is there any consumables for the fiber laser marking machine ?
Re: There is no consumables, and maintenance-free. Laser source lifetime up to 100000+ hours.
