Product Description

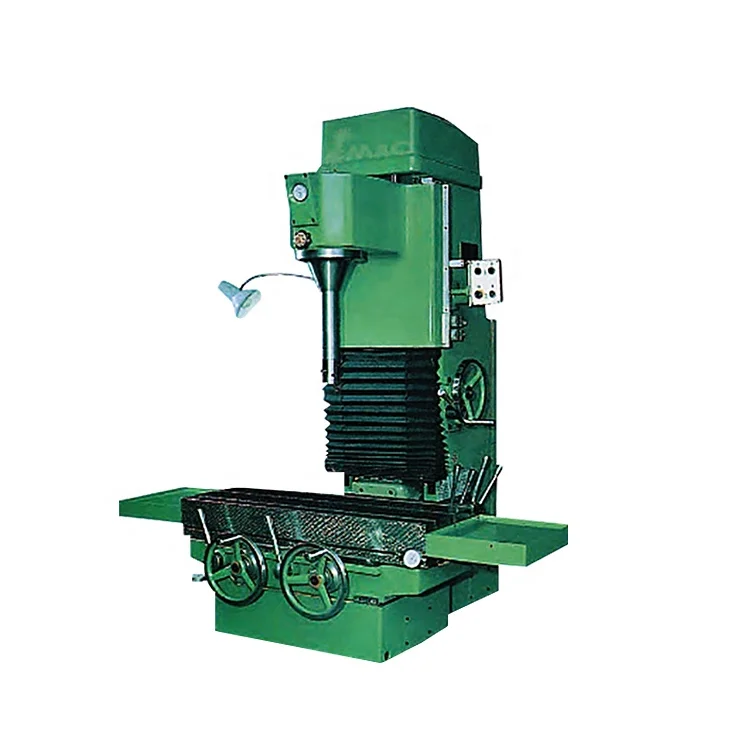

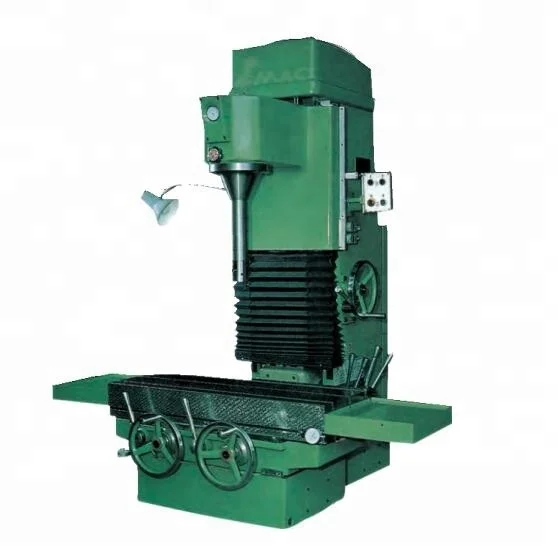

chinese vertical boring machine BC20C

Features:
1,The table longitudinally and latitudinally moving device.
2,The working fast centering device.
3,Boring measuring device.
4,Also provides optional digital read out for the tables moving.

1, Universal spindle

2, Boring spindle 110

3, Boring spindle 75

4, Boring spindle 56

5, Boring spindle 45

6, Tool Box

7, V-type cylinder fixture

8, Quick cylinder fixture

9, Boring measuring device

10, Boring spindle 150

11, Universal boring & milling head

12,4#boring bar
13, 250milling cutter holder

Specification

	14501	14502	14503	14504	14505
		Modle	BC20B	BC10A	BC16A	BC20D
Max.Boring dia.	mm	200	100	165	200
Max.Boring depth	mm	500	325	410	500
Spindle speed steps		9	9	9	250
Spindle speed range	mm/rev	53-840	65-100	190-600	53-840
Spindle feed steps	mm	4	4	4	9
Spindle feed range	mm	0.05-0.2	0.05-0.2	0.05-0.2	0.05-0.2
Spindle travel	mm	710	410	550	710
Distance from spindle certerline to the vertical side on the slide	mm	315	390	315	315
Table dimension	mm	500*1250	400*1000	500*1200	500*1250
Longitudinal travel	mm	900	650	700	100
Cross travel	mm	100	100		160
Machine accuracy Accuracy		IT7	IT7	IT7	IT7/IT8
Roundness	mm	0.0025	0.002	0.0025	0.005
Cylindricity	mm	0.01/300	0.01/300	0.01/300	0.01/300
Surfuce roughness	mm	Ra0.8	Ra0.8	Ra0.8	Ra0.8
Overrall dimensions	mm	158012502340	170015501990	186015502230	158826102350
N.W/G.W.	Kg	3300/3800	2000/2500	2500/3000	3500
