Характеристики
Description

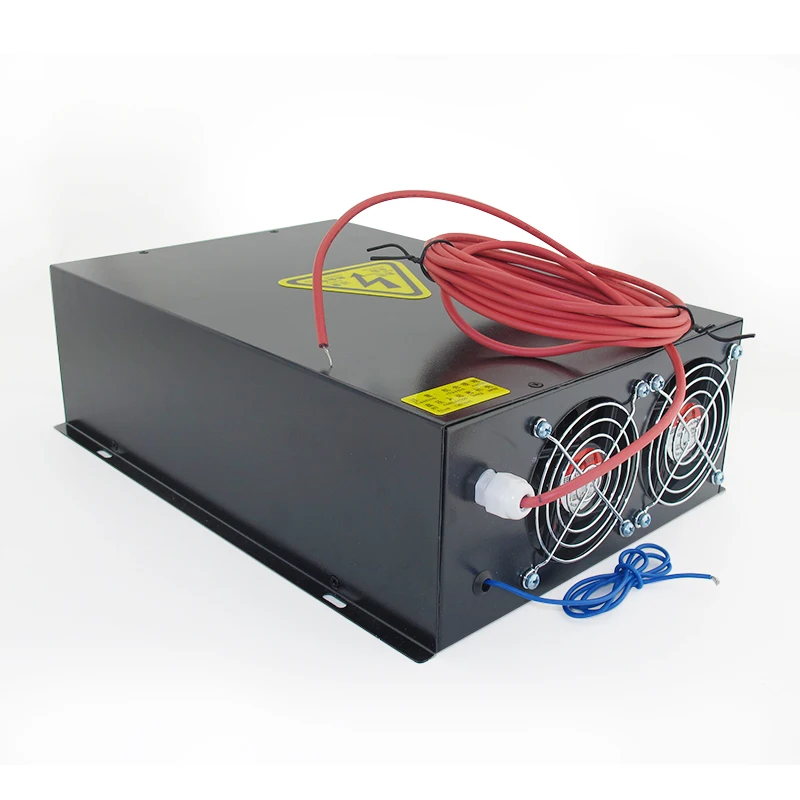

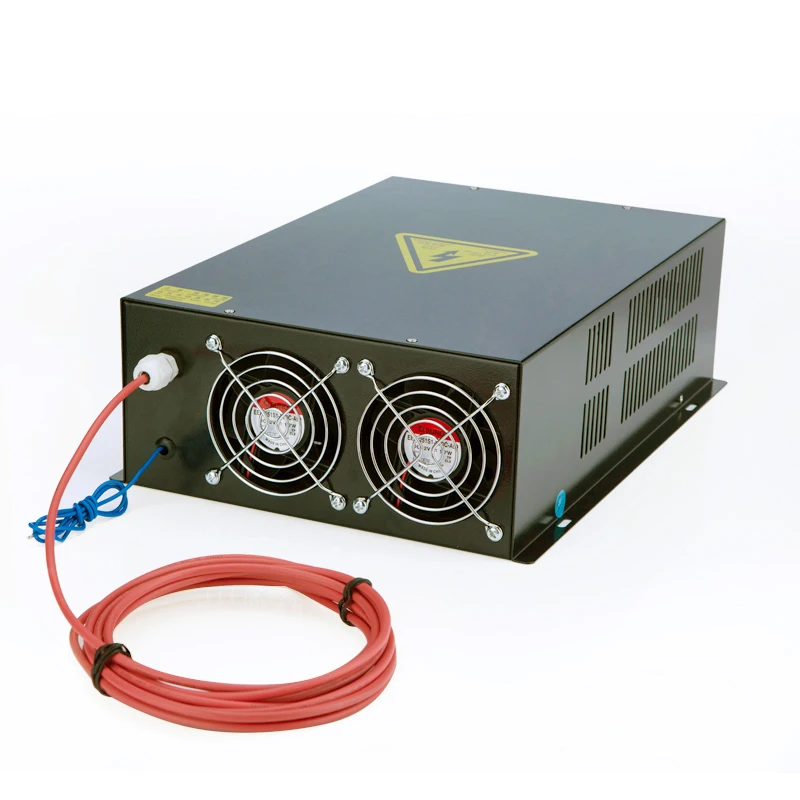

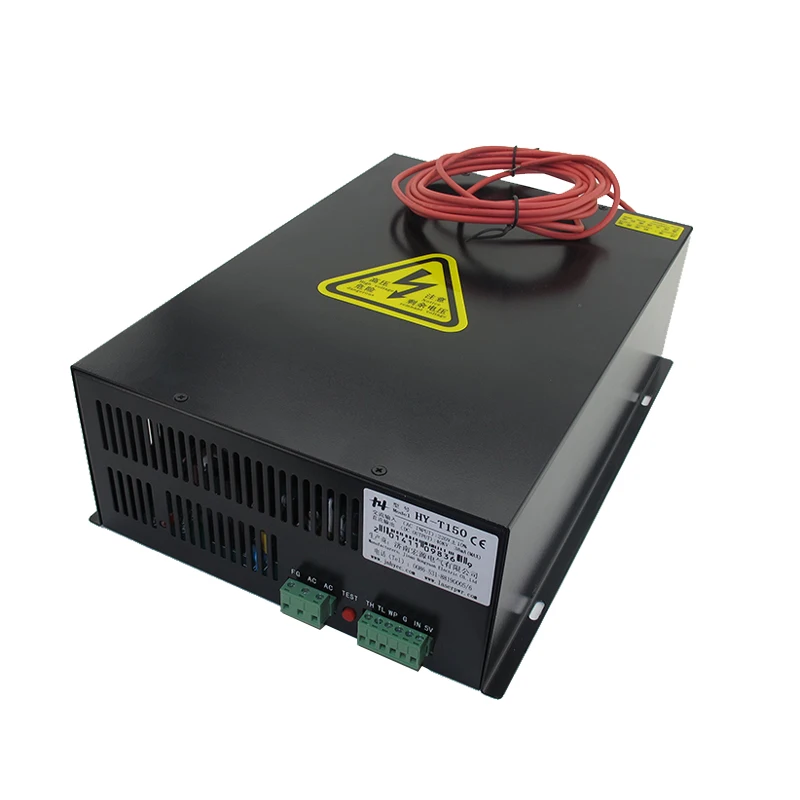

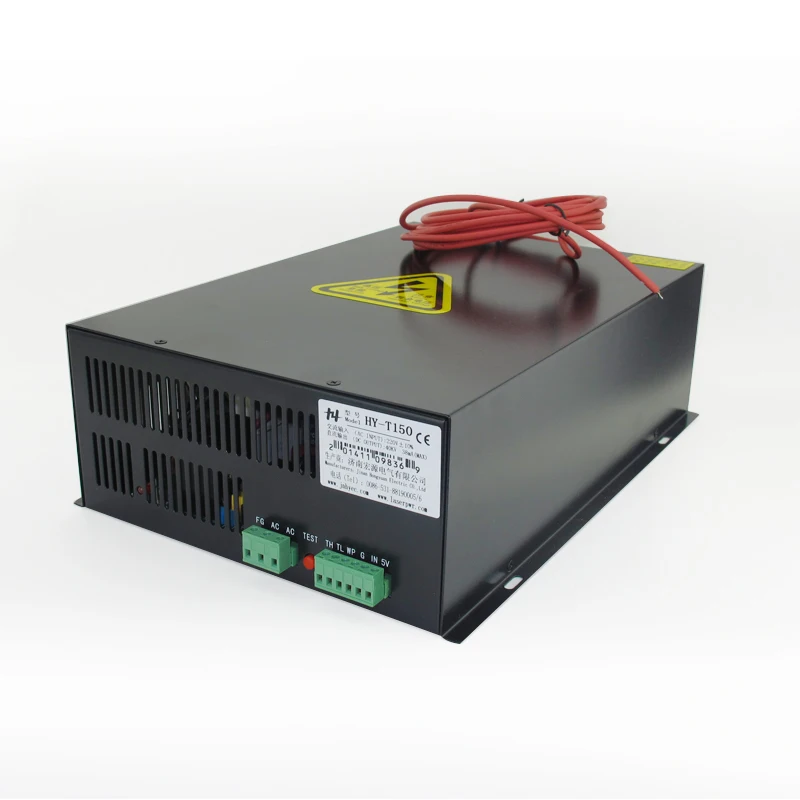

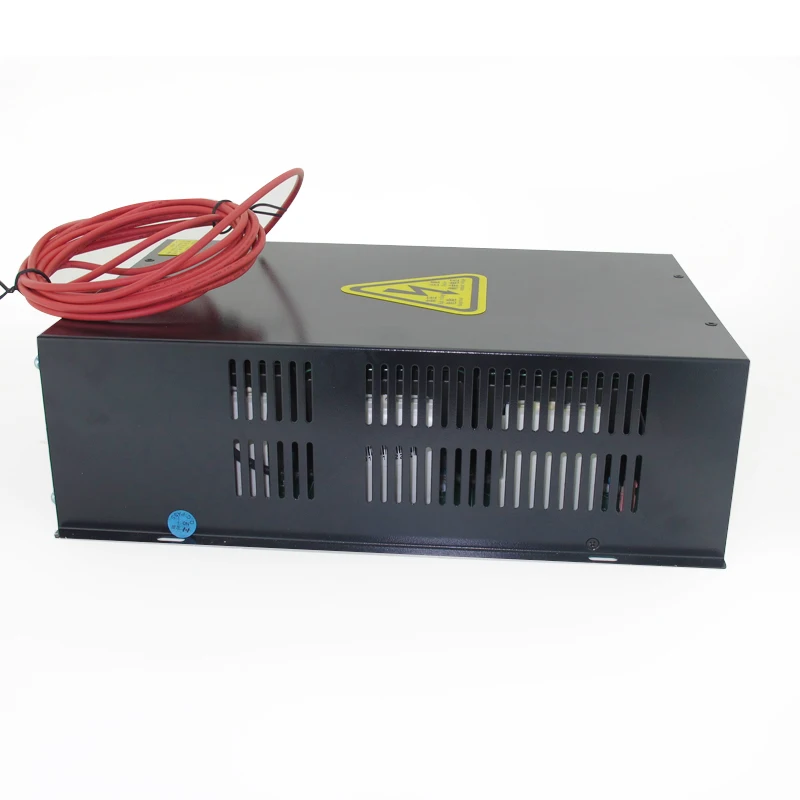

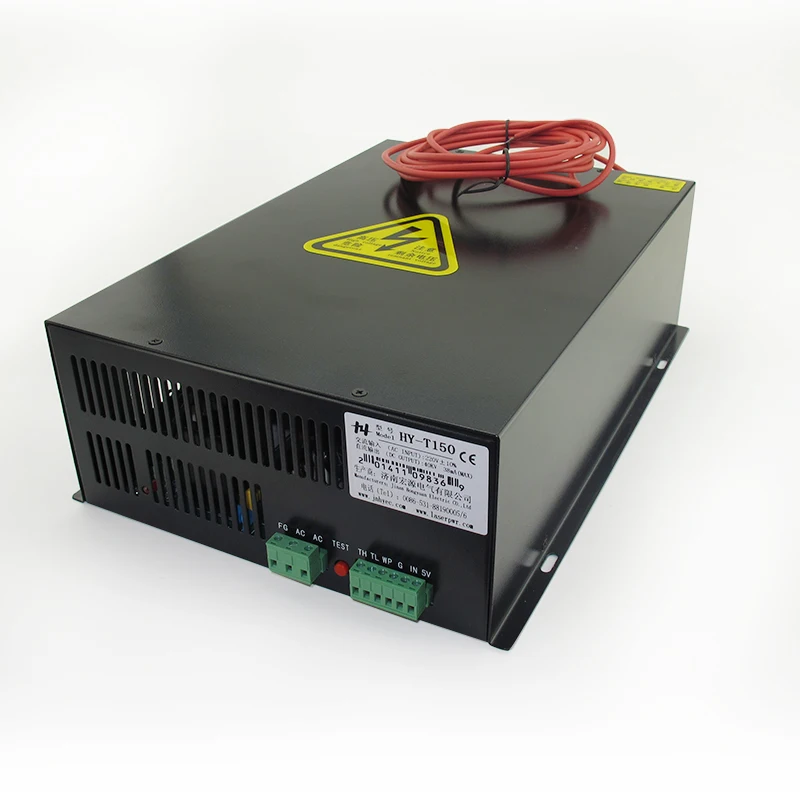

Model: HY-T150
fMatch for EFR, RECI, Weiju,Yongli CO2 100W,120W, 130W,150W Laser tubes or CO2 Laser Machine
Alias: Co2 Laser Generator, Co2 Laser Source,Co2 Laser Device,High Voltage Power Supply
Application
HY-T150 Laser Power Supply is used for 100W,120W, 130W,150W,180W Cutting and Engraving Acrylic, Fabric, Double Color S
Main Features
1) Good compatibility: It can be applicable to 100W,120W,130W,150W laser tubes manufactured by different factories.
2) High output Voltage and high output Current: when input AC220V and output current up to 38mA,the Voltage can be up to 50KV.
3) High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 50KV.
4) This Power Supply has the”TEST” button which can test output laser manually.
5) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
6) Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.
7) The power supply has the function of open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit condition for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
8) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
9) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
Specification
Connection diagram
