Генераторная

Категория: Diesel Generators >>>
Поставщик: Weifang,Huayuan,Diesel,Engine,Manufacture,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.53 $*	0.15 $*
Aug-17-2025	0.7 $*	0.12 $*
Jul-17-2025	0.30 $*	0.24 $*
Jun-17-2025	0.25 $*	0.19 $*
May-17-2025	0.68 $*	0.51 $*
Apr-17-2025	0.7 $*	0.95 $*
Mar-17-2025	0.48 $*	0.59 $*
Feb-17-2025	0.21 $*	0.84 $*
Jan-17-2025	0.54 $*	0.83 $*

Характеристики

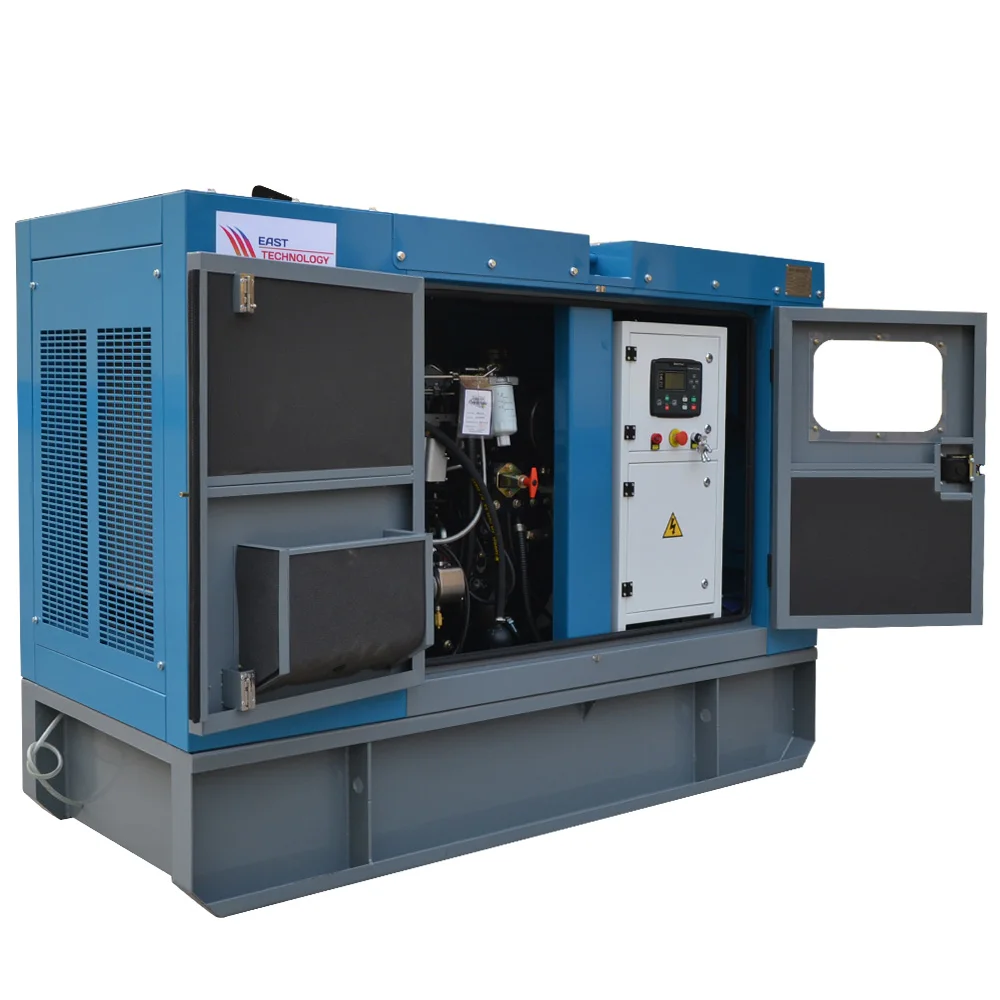

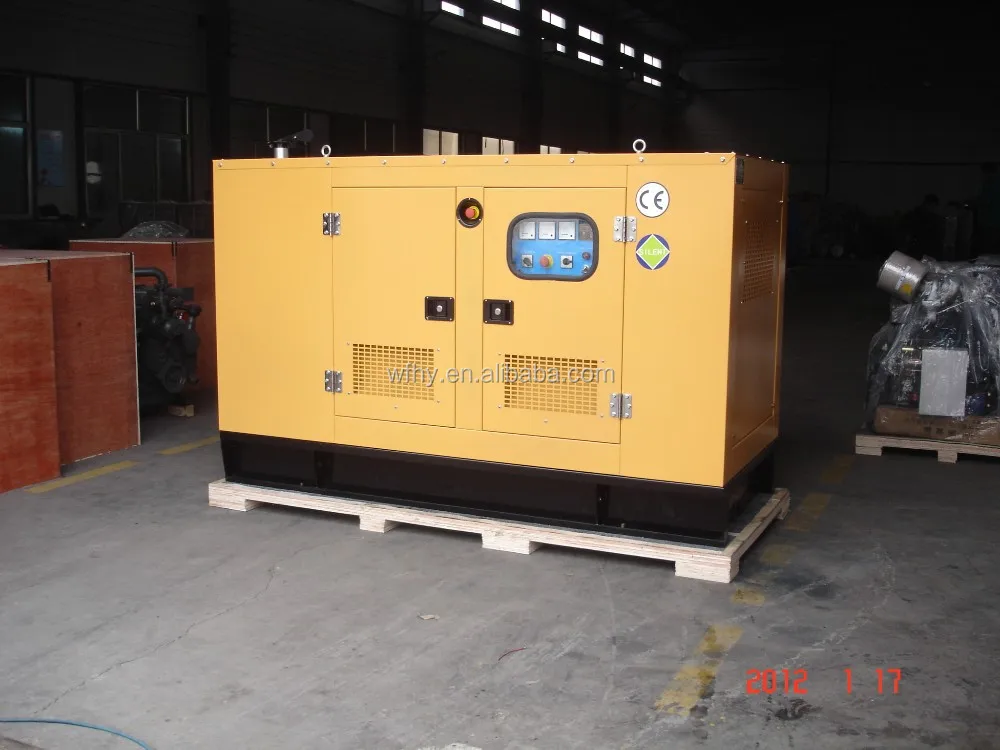

120KV GENERATOR SET SPECIFICATION

*Composed of Cummins/Deutz/Perkins/Richardo/Weichai or Huayuan diesel engine and Stamford/Faraday/Leroy Somer/ Marathon alternator

*12/24V DC start motor and storage battery

* Brushless, self-excited, insulation H alternator

* Engine cooling system: water cooled

* Control system: Harsen/Deepsea control panel, AMF only or with ATS

* 8 hours operation base fuel tank

* Open type/silent type

* Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load,110% and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

* Certificate: ISO9001:2000, CE (ESC/070119)

* Packing: in plywood casing

Main data

Rated output	100kW (125KVA)
Prepare output	110kW (138KVA)
Frequency	50/60HZ
Speed	1500/1800rpm
Voltage	230/400V, 120/240V
Power factor	0.8
Connection method	3 phase 4 wire/1 phase 3 wire
Fuel consumption	Less than 218g/kw.h
Engine	Deutz, Cummins, Steyr or Perkins diesel engine can be chosen
Engine type	Multi cylinders, water cooled
Alternator	Copy Stamford
Alternator type	Brushless self excitation
Start method	Key start, auto start
Fuel tank	run 8 hours
Genset type	Open type, silent/soundproof, or automation type can be chosen
Control system	a) automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current b) Operation display: Unit voltage, tri-phase load current and frequency display Water temperature, oil pressure display Fuel level, fuel temperature display Audible and visual alarm lamps and buzzers
Package	In plywood case
